Ⅱ. Features of of PTFE tube extrusion machine
1. PTFE tube has the characteristics of high and low temperature resistance, corrosion resistance, etc., and can be used to transport gas, water, acid, alkali and most chemical solvents.
2. Temperature resistance: -60℃ to 280℃.
3. Working pressure: 15kg / cm2
4. Note: The smaller the pipe diameter and volume, the smaller the working pressure.
----------------------------------------------------------------------------------------------------------------------------

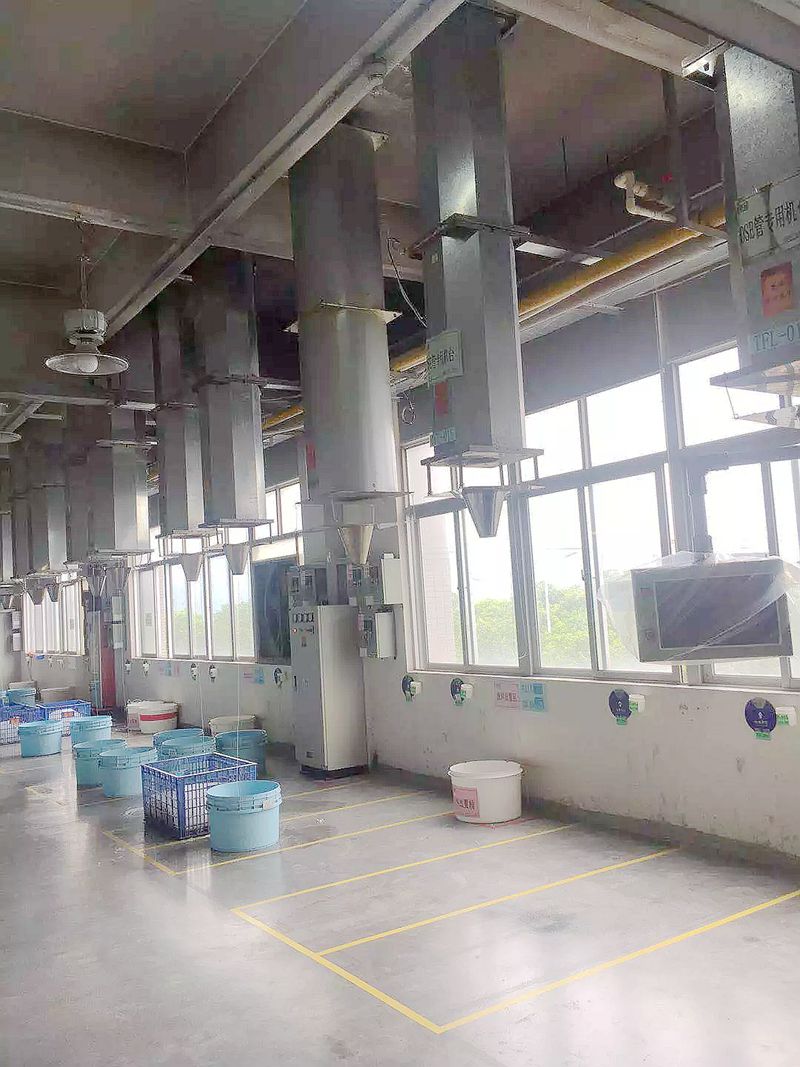

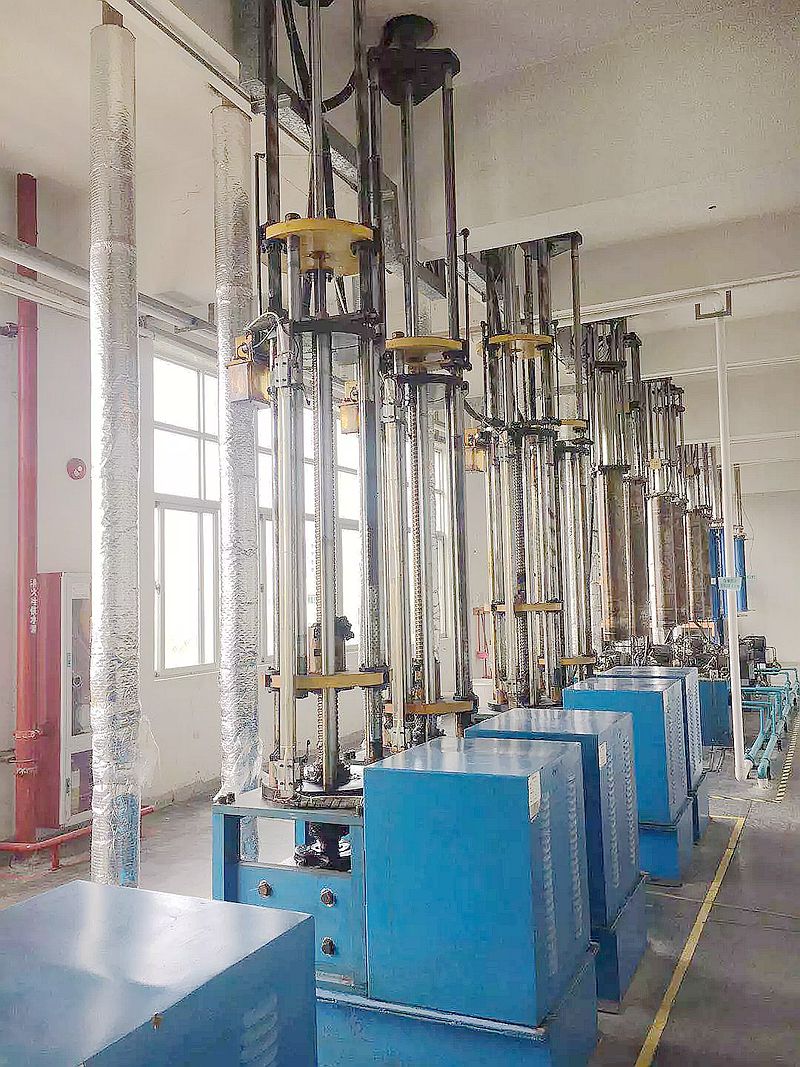

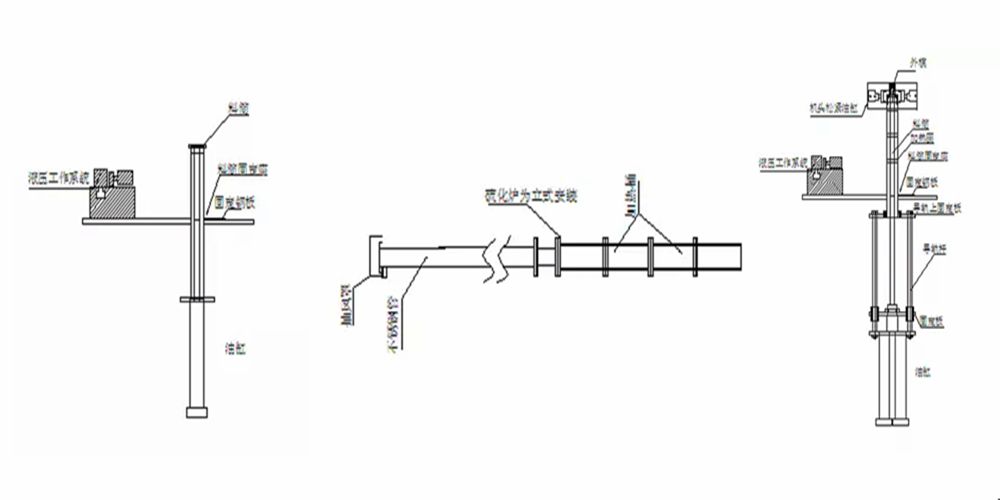

Ⅲ.Dry sintering furnace of PTFE tube extrusion machine
1. The volatilization furnace is placed in front of the die mouth and the dry sintering furnace. The stainless steel and
internal and external materials are vertically arranged
2. 2 beforehand, sintering furnace, The total 6 meters, at the bottom of the furnace frame decorate, outward open furnace, both inside and outside are made of SUS304 material, and matches SUS304 Φ 89 tube, work transition connection within two paragraphs are linked together, made of S45C, total 8 to 10 m high
-----------------------------------------------------------------------------------------------------------------------------------
Ⅳ. Specifications of PTFE tube extrusion machine
|
item
|
value
|
|
Place of Origin
|
China
|
|
|
Guangdong
|
|
Brand Name
|
Hooha
|
|
Model Number
|
HH-25
|
|
Usage
|
Extruding
|
|
Cylinder diameter
|
25mm
|
|
Mandrel
|
15mm
|
|
Cylinder length
|
750mm
|
|
Power supply
|
AC41, 50Hz
|
|
Host height
|
3000mm
|
|
Motor power
|
3.7kw
|
|
Maximum thrust
|
10T
|
|
Color
|
Customized
|
|
Model
|
HH-25
|
|
Application
|
Extruding
|
-------------------------------------------------------------------------------------------------------------------------------

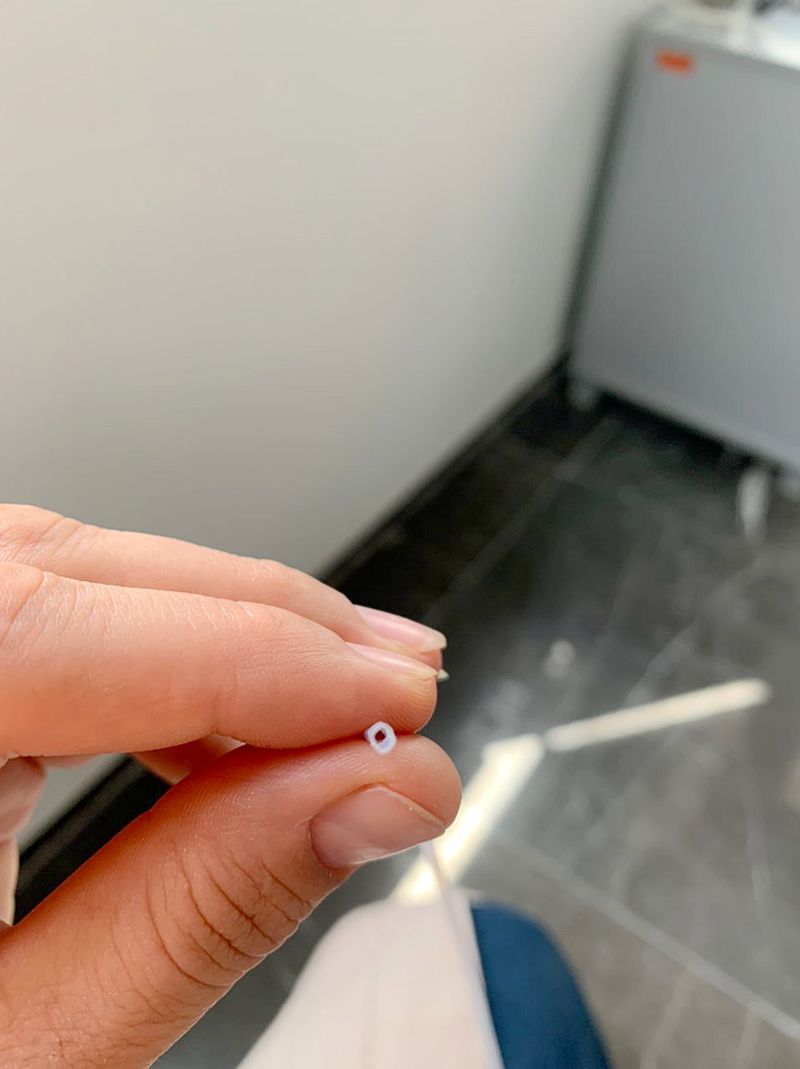

Ⅴ.Tube Samples of PTFE tube extrusion machine
--------------------------------------------------------------------------------------------------------------------------------
Ⅵ.Five application areas of PTFE
1. Anti-corrosion coating
PTFE raw materials get rid of the defects of general plastic and metal materials that are not corrosion-resistant, and have become the key corrosion-resistant raw materials for crude oil, chemical plants, and textile industries. It is used to manufacture and transport corrosive gas transmission pipes, exhaust pipes, pipes, etc.
2. Oil-free moisturizing raw materials
Polytetrafluoroethylene has the least frictional resistance among rubber products at this stage, so it is the most ideal raw material for filling and lubricating industrial equipment parts without oil stains. In the food industry, paper industry, textile industry and other industries where the addition of grease will contaminate the goods, PTFE solves this difficulty very well.
3. Advanced material raw materials for electronic products
PTFE has been listed as the most ideal insulating layer material for wire and cable in recent years. In the final analysis, PTFE itself has low loss, abrasion resistance, aging resistance, relative dielectric constant, heat resistance and certain Flexibility, etc., the design scheme of PTFE porous structure can minimize the loss and frame loss rate. It is also an excellent filling material and is widely used in electronic computers, telecommunication networks, airlines, national defense and security. and many other interesting industries.
4. Collagen-removing materials
PTFE is resistant to high and low temperature tests, does not adhere to all chemical substances, and has the least interfacial tension and no harmful substances. It is mainly used for microwave heating and non-stick pot liner.
5. Pharmaceutical raw materials
PTFE itself has no harmful substances, and its high-quality physical properties, performance, and microbial adaptability are not easy to cause reactions in the human body, and have no adverse reactions to the human system. Therefore, it is widely used in the level of diagnosis and treatment. There are also countless applications of PTFE products in medical machinery, and the most widely used is the blood and dialysate pipeline. At present, the characteristics of PTFE microporous plate structure are more and more widely used in medicine, including patches and artificial blood vessels for subcutaneous tissue reconstruction, as well as for cardiovascular, capillary, plastic and cosmetic surgery , surgical treatment of medical oncology, surgical suture, etc.
Ⅶ.Delivery time of PTFE tube extrusion machine
1 set 60 days including the test time
Ⅷ.After service of PTFE tube extrusion machine
1) The machine will be install in hooha factory
2）The machine can be making the cable in our facyory but the raw material provide from our clients
3）The machine can be PLC control from China and help you install in your factory
4）The machine install process will show you by laying out,
Ⅸ.The extrusion mahine Q and A?
1,Q: What is your main brand for the electrical and mechanical parts?
A: International famous brand
2, Q:could we appoint the parts brand?
A: Yes, ABB, SIEMENS, Danfoss, or theirs that you like.
3, Q: could you please arrange the installation and commissioning ?
A: Yes , we could and the buyer pay the charge
4, Q: could you arrange the production education?
A: Yes , we could and the buyer pay the charge
5, Q: could you do the design for the whole plant
A: Yes , we can.
6, Q: could you offer the production process design
A: Yes , we can.
7, Q: what is the difference with other supplier?
A: what we could offer to other customer is not only the machine itself, also we could offer: factory design, production process design , QC control and education and assist machine and raw material offering .
8.Q:What's the payment terms?
A:T/T,70% deposit and 30% balance before delivery.
9, Q:How long the guarantee:
A: one year and charge for repair the whole life.
Ⅹ.Why chose HOOHA Before sales
1) 88 successful turnkey factory project .
2)Help over 28 clients from around the globe build their program from the ground.
3)Most humanized cable making solution provided by professional sales team with 10 years experience .
4)Complete access for all aspect of supply chain in professional cable industry with 18 years experience , including manufacturing material , technology , testing equipment , etc .
5)For 15 years , HOOHA stand alongside the client , considering and solving from the perspective of client’s marketing angle with all-around , precise and applicable solution .
6)HOOHA help saving the communication time cost for dealing with over dozens of supplier in the supply chain , mean while clients can generate much more value with same amount of time .
Middle sales
7)10 years experience engineer team for overseas cable and wire industry manufacturing and machinery installation and maintenance .
8)10 years experience engineer planing team for whole factory project including machinery , space layout , operational plan , water air electricity consume , raw material and such .
9)10 years experience professional team working on daily management and operation craft for cable and wire factory .
Vision
1)HOOHA is willing to grow with clients and achieve a mutual victory through business .
2)HOOHA spare no efforts to work for the future that all people is able to use clean electricity energy .
ⅩⅠ.Application and performance of PTFE polytetrafluoroethylene material
PTFE is a kind of fiber material, and the manufacturing industry of PTFE should be very extensive, ranging from mechanical equipment, aerospace, small products, life, etc. to the shadow of PTFE. Although PTFE is invisible to the human eye on the surface of life, there is no doubt that PTFE is the most outstanding chemical raw material and components.
