Product Description

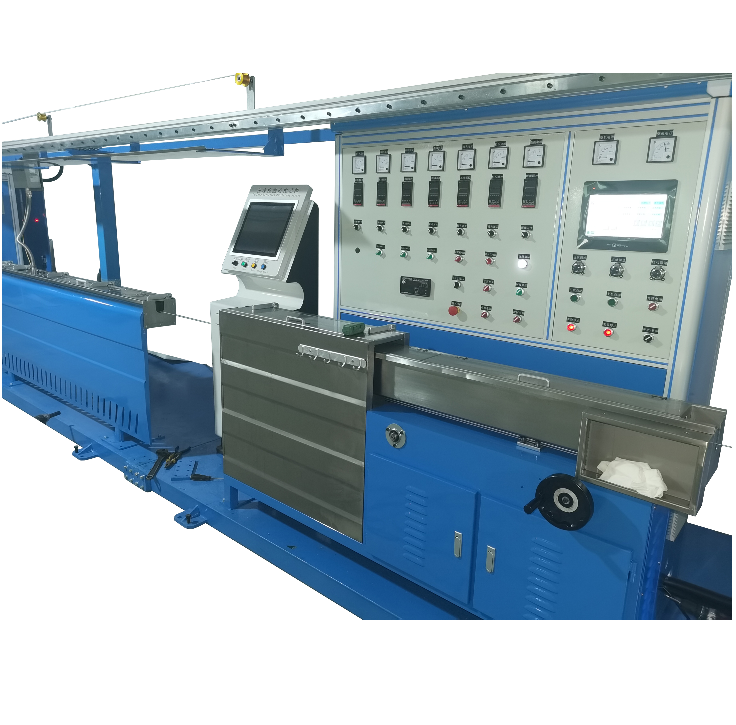

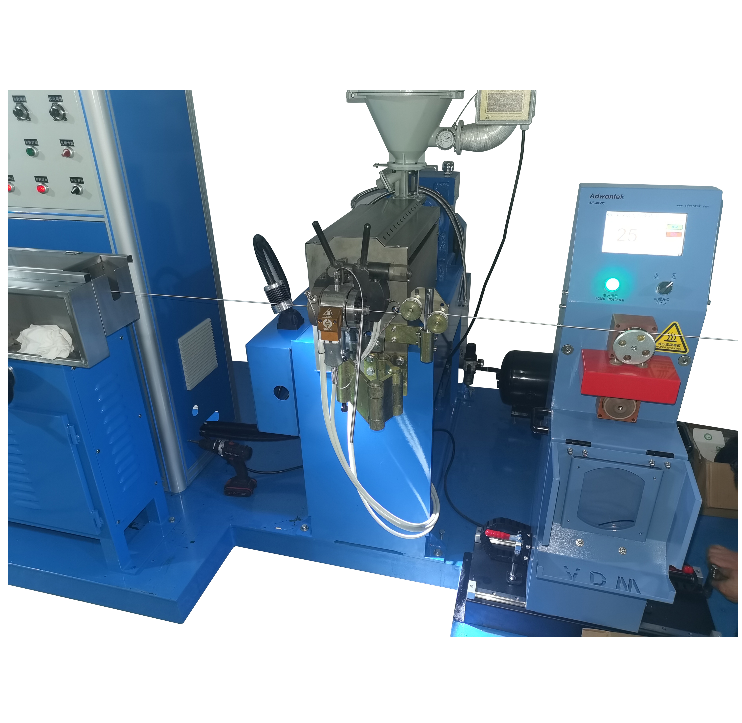

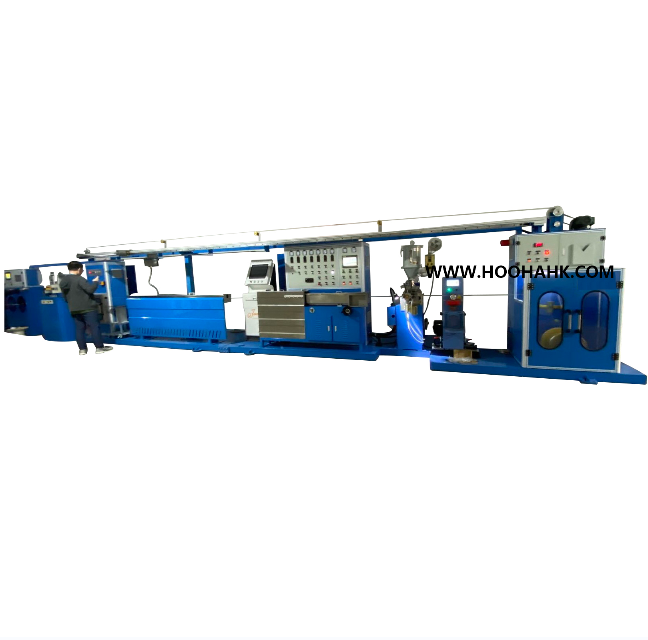

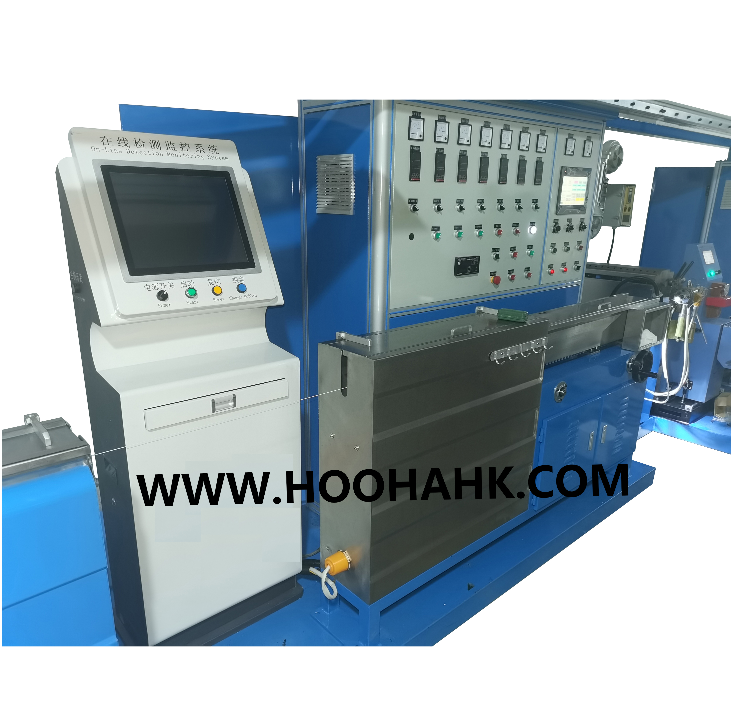

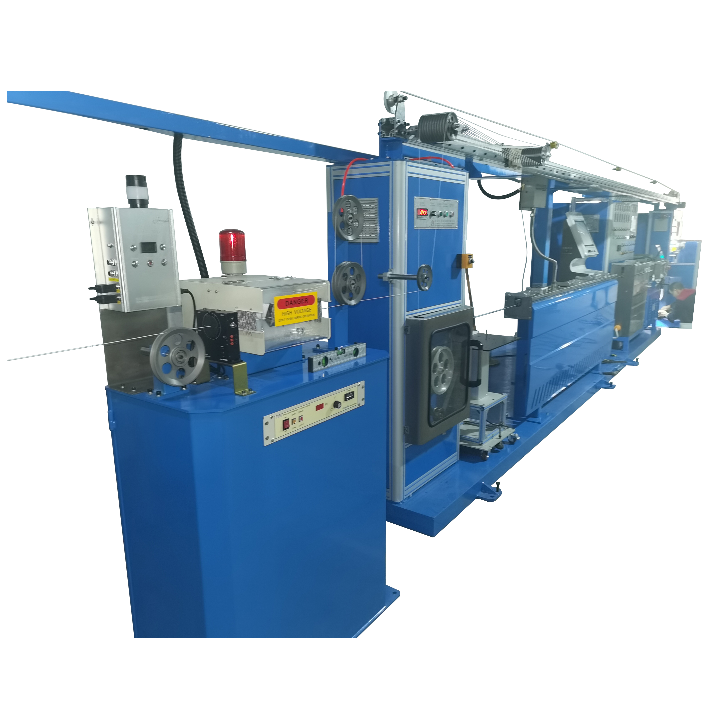

Newly developed 25mm Teflon Extra Thin Cable Extrusion Machine :
It's suitable for Teflon insulation extrusion of ultra-fine coaxial wire or high frequency wire number transmission wire Teflon insulation extrusion and other wire extrusion,and it's more high precision,high quality,stable temperature control,less space required.
Main accessories material brands
| Main motor | Taiwan Futian or (Inovance servo motor) |
| Drive mode | Japan Yaskawa inverter + Inovance servo control |
| Thermostat | Japan Omron (or RKC) thermostat |
| Screw cylinder | German HASTELLOY-27 Hastelloy, designed by Canada KRONG company, length-diameter ratio: 26:1 |
| Head | domestic Teflon custom head |
| Electrical parts | imported Schneider, Japan Izumi, Shilin and other well-known brands. |
| Human-machine interface | Taiwan Weilun |
| Pneumatic components | SMC |
| Bearings | Japanese NSK or equivalent brands |
| Transmission belts | American/German brands |
Machine technical parameters
|
Wire diameter specification |
Φ0.25-1.5mm |
|
Extrusion material |
ETFR/FEP/PFA |
|
Screw parameters |
Aspect ratio 26:1 |
|
Take-up type |
Double-shaft take-up, wire-arranging device, single-action/linkage operation |
|
Pay-off type |
Automatic shaftless power pay-off |
|
Main engine power |
4KW servo motor |
|
Maximum production capacity |
8KG/h |
|
Active sink |
1.5m |
|
U-shaped water tank length |
6m |
|
Storage line parameters (11+10 grooves) |
Φ60-120 alloy aluminum wheel, surface anodized |
|
Number of temperature control segments(body + head) |
3+3 |
|
Maximum line speed |
180M/min |
