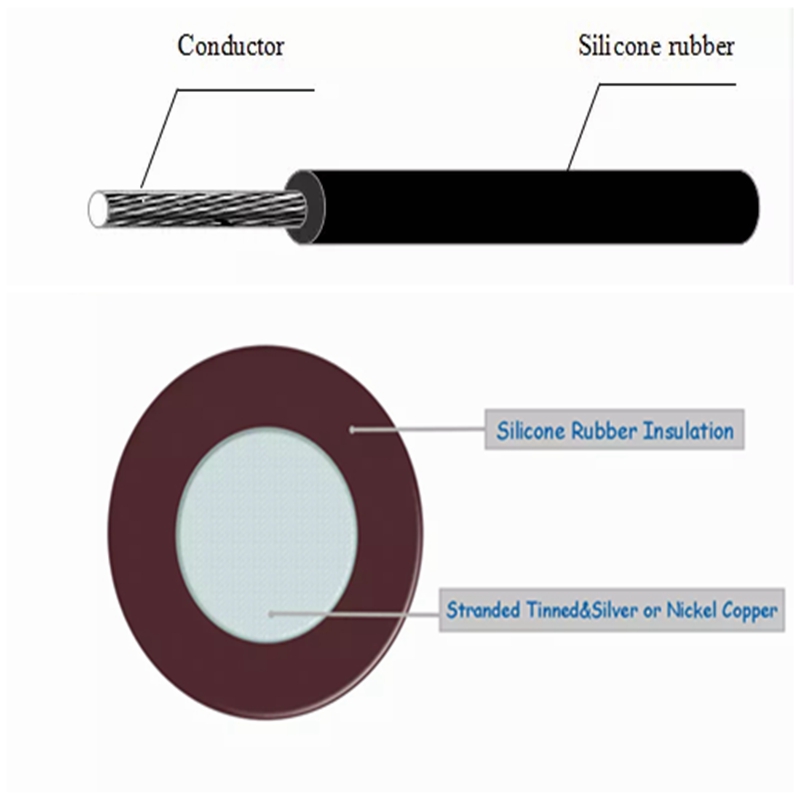

Introduction and Usage of Silicone Cable
Silicone high temperature wire has excellent high temperature resistance and low temperature resistance, excellent high pressure resistance, aging resistance, high temperature resistance, acid and alkali resistance, and long service life. Silicone rubber is used for insulation, and the colors are: white, red, black, blue, green, yellow, translucent, etc. Long service life, easy to be soft and easy to install.
Features：
Insulation: Silicone rubber
Single or stranded bare copper or tinned copper wire (tinned copper wire is 0.08mm-0.4mm)
Flammability UL: VW-1, Electrical Appliances Safety Law: -F-
Usage:
It is widely used in high temperature wire environment such as lighting lamps, household appliances, electric heating appliances, instrumentation, motor lead wires and electronics, lamps and dyeing tools.
Production Process and Related Machines
1. Conductor Stranding →
HH-B-500 High Speed Bunching Machine
2. Conductor Silicone Insulation→
HH-E-65 Silicone Cable Extrusion Machine
Components and Parameters
1. HH-B-500 High Speed Bunching Machine
Application:
It is suitable for stranding of the copper wires with more than seven strands, also suitable for electronic wires, power wires, bare copper wires, network wires etc.
Components:
|
No. |
Items |
Quantity |
|
1 |
500 Bunching machine |
1 set |
|
2 |
Pay off stand multi-core copper wire |
1 set |
Parameters:
|
No. |
Items |
Value |
|
1 |
Single wire diameter |
Ø0.08mm-Ø0.30mm |
|
2 |
Stranding area |
0.3mm2-2.5 mm2 |
|
3 |
Stranded wire length calculation |
How many meters per minute = twisting distance *2/1000* twisting bow speed per minute |
|
4 |
Twisting pitch |
5.66 - 39.37mm |
|
5 |
Rotation speed of arched band |
Max: 2200RPM. |
|
6 |
Spindle lubrication |
Use manual grease gun to inject oil |
2. HH-E-65 Silicone Cable Extrusion Machine
Application:
This silicone cable extrusion line is applicable for insulation and sheathing extruding for single, 2 cores, 3 cores silicone cables such as power cables, medical cables, control cables etc.
Components:
| No. | Items | Features |
| 1 |
400-630 active pay-off stand |
1 set |
| 2 |
5-wheel Straightening device |
1 set |
| 3 |
Copper wire preheating machine |
1 set |
| 4 |
65 Silicone extrusion machine with vacuum pump |
1 set |
| 5 |
PLC electric control box |
1 set |
| 6 |
Diameter tester |
1 set |
| 7 |
20m Electric heating curing chamber |
1 set |
| 8 |
High speed printing machine |
1 set |
| 9 |
9 meters accumulator stand |
1 set |
| 10 |
Dual wheels Capstan |
1 set |
| 11 |
Meter counter |
1 set |
| 12 |
High frequency spark tester |
1 set |
| 13 |
Powder machine |
1 set |
| 14 |
Double shaft take-up machine |
1 set |
| 15 |
Display board |
1 set |
| 16 |
Accessories |
Parameters:
|
No. |
Items |
Features |
|
1 |
Inlet Wire Diameter |
0.3-5.0mm |
|
2 |
Finished Wire Diameter |
1.8-8.0mm |
|
4 |
Extrusion Speed |
Max 80 m/min |
|
5 |
Extrusion Capacity |
60 kg/h |
|
6 |
Installed Capacity |
65 kva |
|
7 |
Voltage |
380KV, can be customized |
|
8 |
Weight |
3500 kg |
|
9 |
Measurement (L*W*H) |
18*2*2 m |
|
10 |
Workers recommendation |
3 workers |
