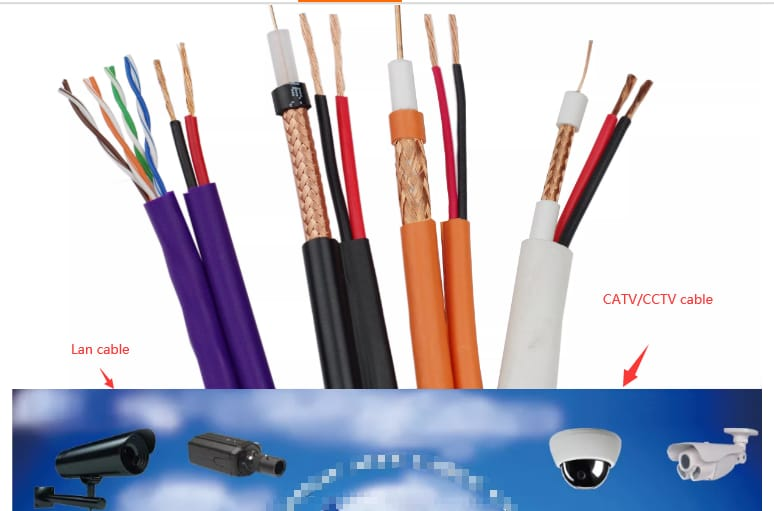

CATV Cable

CATV Cable

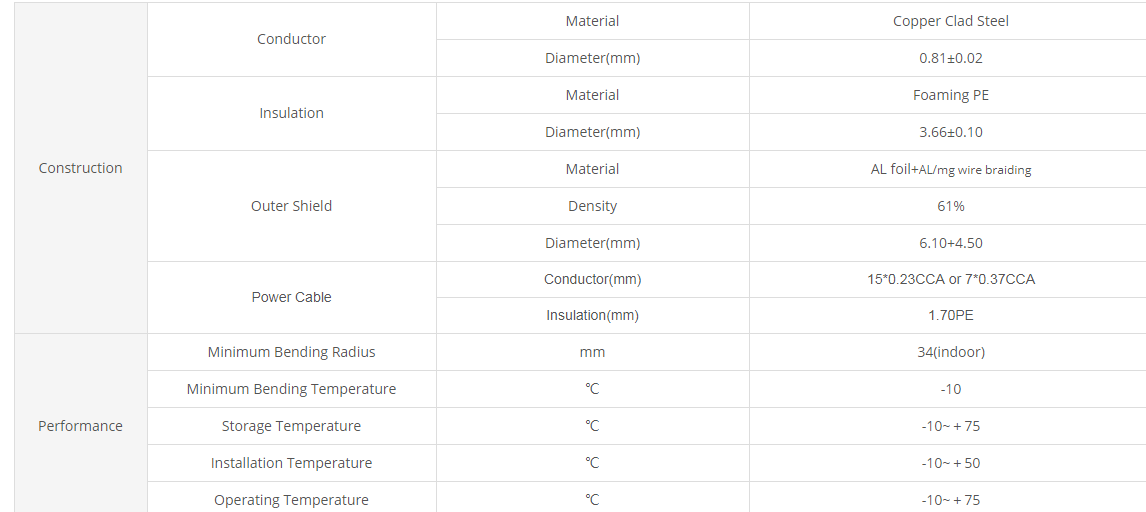

Description



Introduction and Feature of CATV Cable



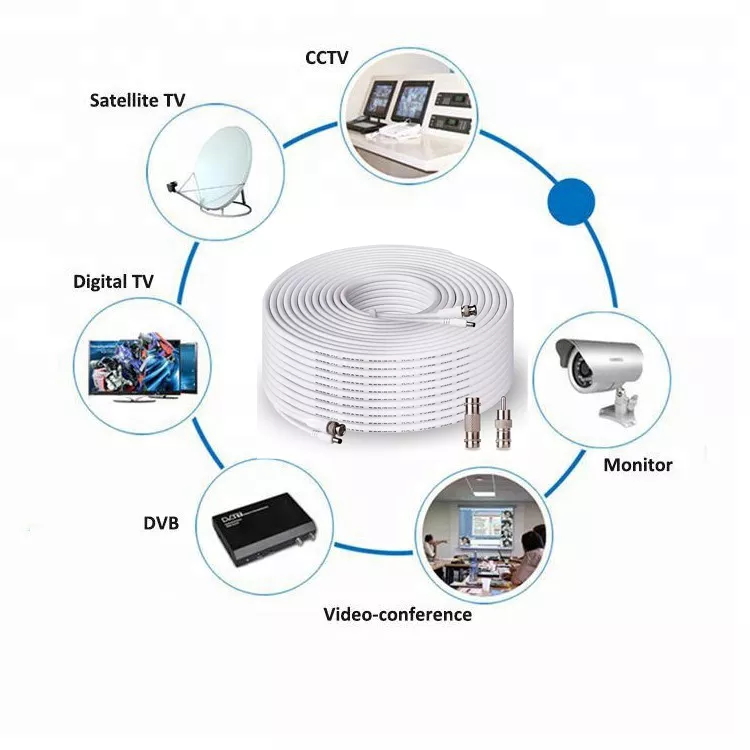

Introduction:

The full name of CATV is Community Antenna Television. CATV cable is used for broadband transmission. It is different from the baseband transmission used by other Ethernet physical layers. The broadband cabling system can divide the frequency band into different frequency spectrums, and then provide different services through different frequency bands. This kind of technology has been widely used in cable television broadcasting, providing multiple TV channels on the same cable at the same time, since each channel occupies a different frequency band, it can not interfere with each other.







Feature :

CATV is characterized by multiple communication and two-way communication. In the future, CATV systems may use optical fiber to transmit signals instead of coaxial cables. Because the wavelength of light is shorter than that of high-frequency waves, the use of light to transmit signals can increase a lot Transmission capacity, and can achieve the effect of high fax rate. Because of the appearance of optical fiber, the performance of CATV will be further exerted.







Production Process and Related Machines



1.  Copper Wire stranding (outer diameter 0.81mm)→

HH-B-500 High Speed Bunching Machine

2.  Copper Wire PVC Insulation

HH-E- PLC 80 Extrusion Machine

3. Copper Wire PE Insulation

HH-E-PLC 70 Extrusion Machine

4. Copper Wire Braiding

HH-BR-High Speed 16 Spindle Braiding Machine



5. PVC Sheath →

HH-E- PLC 80 Extrusion Machine

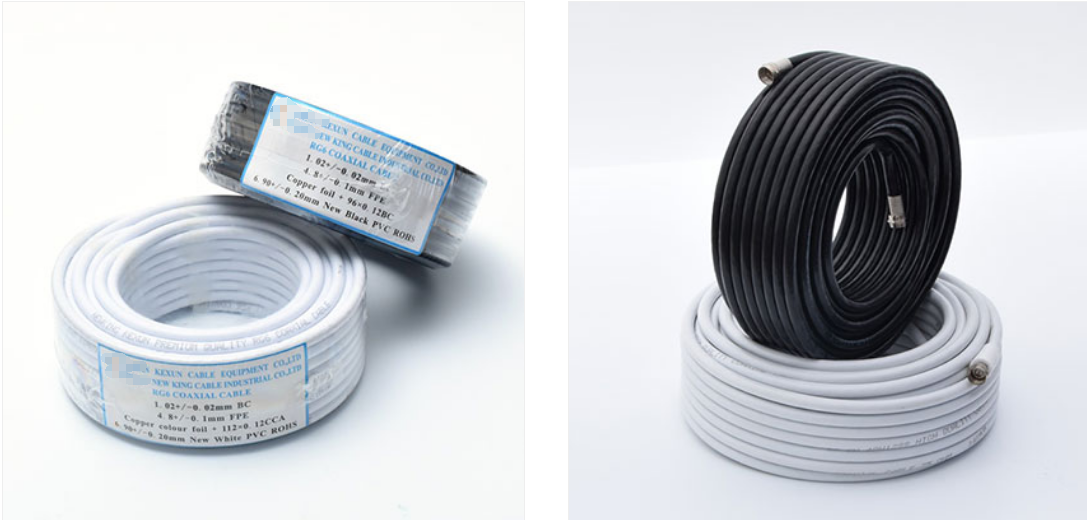

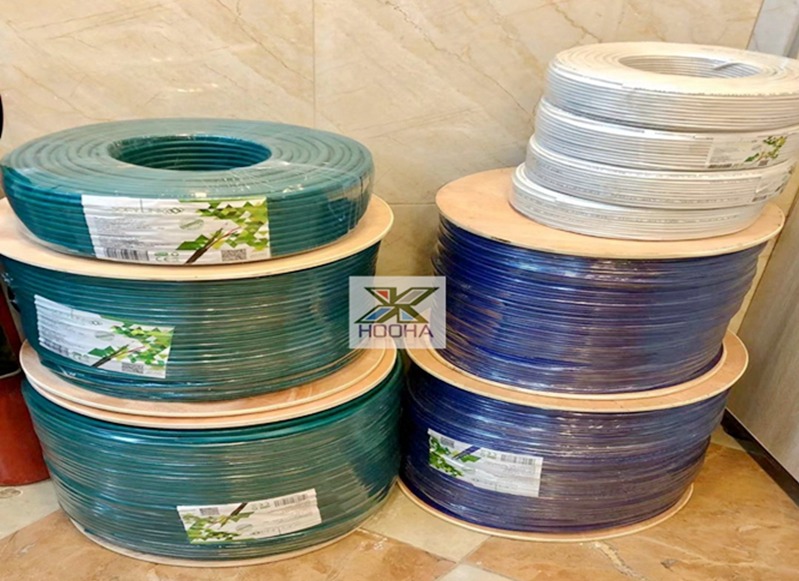

6. Packing→

100m/Roll, 1000m/Spool



(1)Roll Packing



(2)Spool Packing



1. HH-B-500 High Speed Bunching Machine



Application:

It is suitable for stranding of the copper wires with more than seven strands, also suitable for electronic wires, power wires, bare copper wires, network wires etc.



Components:

No.

Items

Quantity

1

500 Bunching machine

1 set

2

Pay off stand multi-core copper wire

1 set



Parameters:

No.

Items

Value

1

Single wire diameter

Ø0.08mm-Ø0.30mm

2

Stranding area

0.3mm2-2.5 mm2

3

Stranded wire length calculation

How many meters per minute = twisting distance *2/1000* twisting bow speed per minute

4

Twisting pitch

5.66 - 39.37mm

5

Rotation speed of arched band

Max: 2200RPM.

6

Spindle lubrication

Use manual grease gun to inject oil

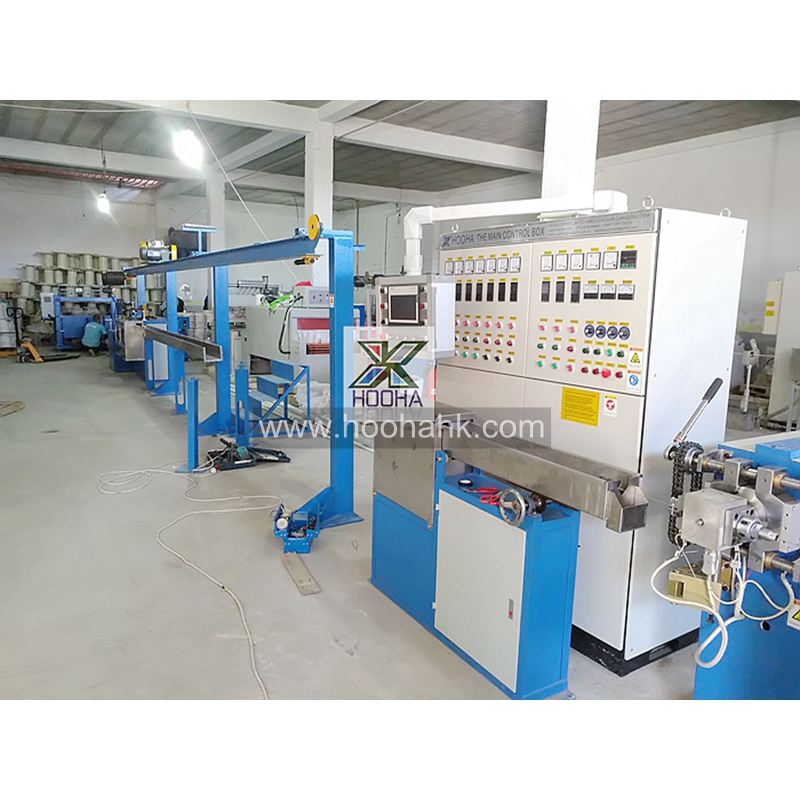

2. HH-E- PLC 80 Extrusion Machine



Application:

This equipment is suitable for outer surface extrusion of wires and cables with insulation materials such as PVC/PE.



Components:


NO. Description Quantity
1 400-630 dual-head magnetic powder pay-off machine 1 set
2

5-wheel Straightening device

1 set
3

80 Host extruder

1 set
4 Electrical control box 1 set
5

1.5m movable water tank

1 set
6

12m fixed water tank

1 set
7 12m wire accumulator 1 set
8 610mm double wheel tractor 1 set
9 Diameter detector 1 set
10 High speed printing machine 1 set
11 15kv spark tester 1 set
12

400-630 Double-head take-up machine

1 set
13 Spare parts and tools 1 set
14 Diagram, operation and maintenance manual 1 set


Parameters:


No.

Items

Features

1

Inlet Wire Diameter

1~15mm

2

Finished Wire Diameter

2~20 mm

3

Cross Sectional Area

1~10 square mm

4

Extrusion Speed

Max 300 m/min

5

Extrusion Capacity

200 kg/h

6

Installed Capacity

65 kva

7

Voltage

380KV, can be customized

8

Weight

4500 kg

9

Measurement (L*W*H)

26*3.5*3.5 m

10

Workers recommendation

3 workers

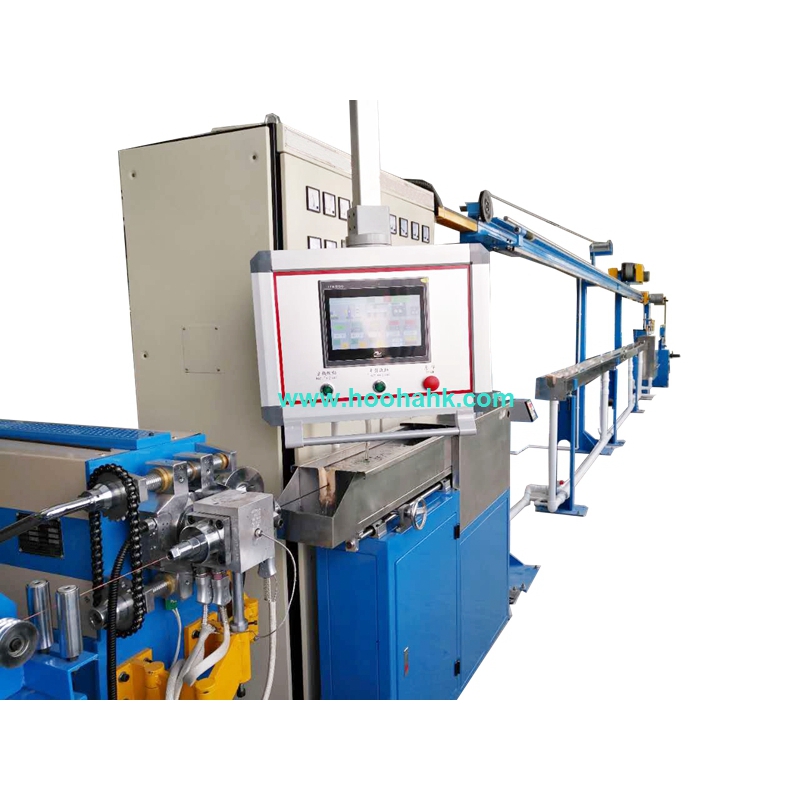

3. HH-E-PLC 70 Extrusion Machine

Application:

This equipment is suitable for outer surface extrusion of wires and cables with insulation materials such as PVC/PE.



Components:





Parameters:

No.

Items

Features

1

Inlet Wire Diameter

1~4mm

2

Finished Wire Diameter

2~8 mm

3

Cross Sectional Area

1~6 square mm

4

Extrusion Speed

Max 400 m/min

5

Extrusion Capacity

140 kg/h

6

Installed Capacity

55 kva

7

Voltage

380KV, can be customized

8

Weight

4000 kg

9

Measurement (L*W*H)

24*3.5*3.5 m





4. HH-BR-High Speed 16 Spindle Braiding Machine



Application:

It is suitable for the shielding or braiding of all kinds of high quality electric wire , computer wire etc.



Components:

No.

Items

Features

1

16 Spindle Braiding Machine

1 set

2

Wire Combining Machine

1 set



Parameters:



A. 16 Spindle Braiding Machine

No.

Items

Features

1

Braiding Direction

Vertical

2

Bobbin Number

16 ( 8 is inside , 8 is outside )

3

Bobbin Size

80mmx22mmx80mm

4

Bobbin Speed

50-150rpm

5

Braiding Pitch

3.2-35.5mm or 6.4-65mm

6

Braiding Cable Diameter

Max.14mm

7

Production Speed

Max.485 m/hour

8

Braiding Wire Material

0.1-0.2mm , Al, Mg wire , copper wire

9

Reel Diameter

630mm-800mm

10

Main Motor Power

1.1kw

11

Product Weight

854 Kg

12

Dimension

1200x1390x2350mm



B. Wire Combining Machine

No.

Items

Features

1

Combine wire diameter range

0.08mm-0.4mm

2

Speed

0-5000 RPM

3

Control

Automatic stop when reel is full , or copper wire broken

4

Motor

0.75 KW Inverter motor , stepless speed adjustable



5. HH-E- PLC 80 Extrusion Machine



Application:

This equipment is suitable for outer surface extrusion of wires and cables with insulation materials such as PVC/PE.



Components:


NO. Description Quantity
1 400-630 dual-head magnetic powder pay-off machine 1 set
2

5-wheel Straightening device

1 set
3

80 Host extruder

1 set
4 Electrical control box 1 set
5

1.5m movable water tank

1 set
6

12m fixed water tank

1 set
7 12m wire accumulator 1 set
8 610mm double wheel tractor 1 set
9 Diameter detector 1 set
10 High speed printing machine 1 set
11 15kv spark tester 1 set
12

400-630 Double-head take-up machine

1 set
13 Spare parts and tools 1 set
14 Diagram, operation and maintenance manual 1 set


Parameters:


No.

Items

Features

1

Inlet Wire Diameter

1~15mm

2

Finished Wire Diameter

2~20 mm

3

Cross Sectional Area

1~10 square mm

4

Extrusion Speed

Max 300 m/min

5

Extrusion Capacity

200 kg/h

6

Installed Capacity

65 kva

7

Voltage

380KV, can be customized

8

Weight

4500 kg

9

Measurement (L*W*H)

26*3.5*3.5 m

10

Workers recommendation

3 workers



FAQ
1.Who are we?
Hooha company Limited is based in Hongkong, china.Factory is located in dongguan,China.Established in 2003, with 19 years of experience in wire and cable field trade.It only takes 1 hour from our company to guangzhou/shenzhen airport.

2.How can we guarantee quality?
1.Online inspect facotry,production,shipment,and aftersales services. 2.pre-production sample before mass production. 3.High standards and strict requirements, key accessories of cable equipment only use imported parts. 4.Mechnical parts gurantee 12months, elcctrical parts 12 months. 5.online communication,remote assistance,solve customer problem 24 hours,when the problem can not solved online,we will dispatch engineer to go aboard to the problem on-site for the customer.

3.What can you buy from us? 1.material for wire and cable 2.turkey project for wire and cable 3.extrusion line/bunching/twisting machine for wire and cable 4.accessorries for cable equipments

4.How long is your delivery time?
1.Generally, 3-7 days for goods in stock 2.30 days for goods after realsing order. 3.project will take 60-90 days

5. Will the price be cheaper if the order is placed in bulk?
Yes,Of course,it will make 10%-12% discount

6.What services can we provide?
1.Plant solution and machine design. 2.technical support at machines and cable 3.Installtion and commmsioning,after sales service. 4.Packaging customization 5.Customized,saving 10%-20% year-on-year cost

7.HOOHA cable equipment technical advantages
1.In order to ensure the high quality of products,we start from ensuring the accuracy of accessories, and the main accessories of products(Casing, end cover,shaft and wheel) they are all manufactured by CNC machining center,The main purchased parts are NSK Bearings from Japan,American gates belt,taiwan TTO Fluoro rubber oil seal,the working efficiency of the equipment is improved, the noise is reduced,and the service life of the equipment is extended to more than 10 years. 2.High precision dynamic balancing of all equipment rotors,The dynamic balance level is G1, reducing the unbalance to less than 1G, and the long-term operation is safe and reliable. 3.The bearing adopts double row cylindrical roller bearing and double row self-aligning roller bearing,compared with the deep groove ball bearing, the bearing has high fatigue strength, long service life, stable operation and small vibration.
