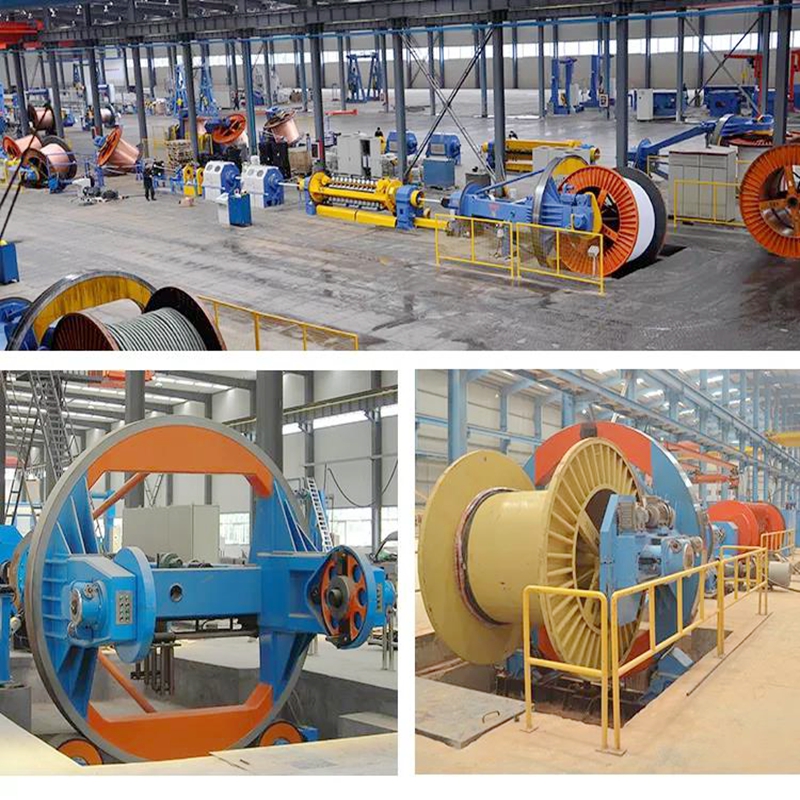

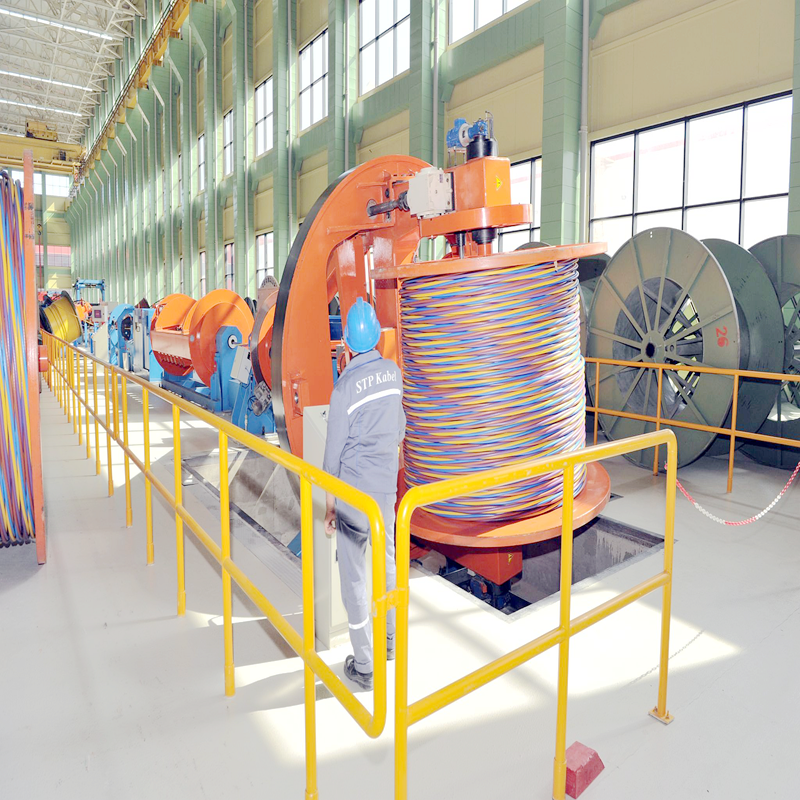

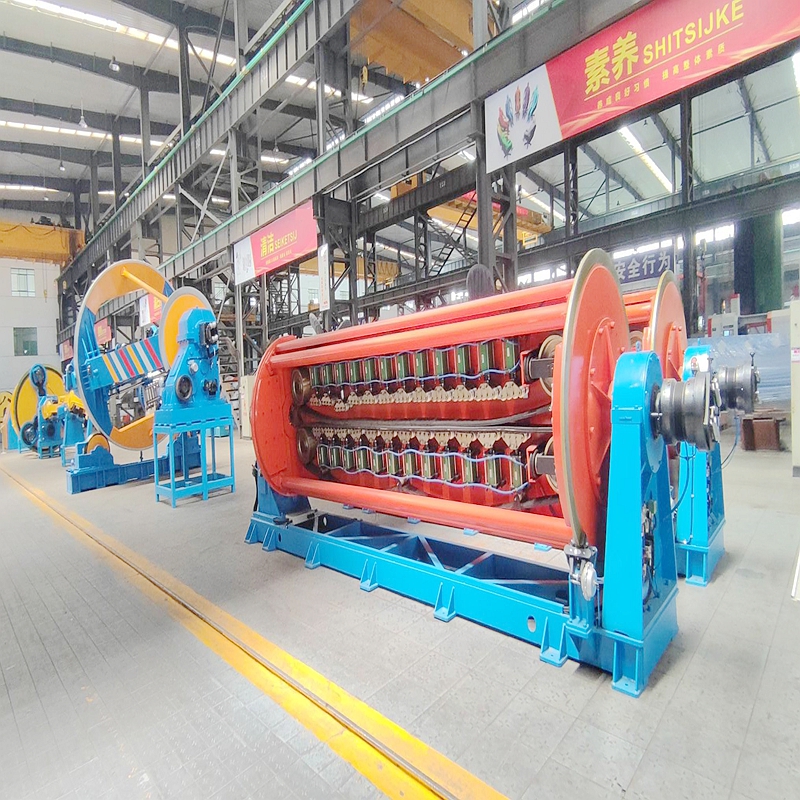

3400 Drum Twister

Drum twister is an important device for stranding wires and cables which is mainly used for stranding large-length and large-section power cables and milliken conductors.It can also be armored with steel wire or steel tape, or shielded with copper wire or copper tape.

Component:

Rotary pay-off, guiding unit, assembling roller, flling stand, steel wire pay-off unit,steel wire armouring head, die holder, taping unit,rotary caterpillar, drum stranding pay-off,transmission system and electric control system.

This is currently a relatively advanced twisting equipment with high production efficiency, the speed is generally above 30m/min. The pay-off bobbins can be rotated synchronously with the take-up frame, or can be fixed without turning to realize back twist or non back twist. The take-up bobbin can simultaneously complete the double movement of twisting and take-up. The size of the take-up bobbin can reach up to 4000mm, which improves the production efficiency and expands the production range compared with ordinary stranding equipment.

We have many years of experience in the development of the drum twister, the rotary caterpillar type drum twister we developed combines the production technology of domestic first-class cable manufacturers. We can provide 2000, 2500, 3150, 3500, 4000, 4200 and other types of drum twisters which can achieve 3 cores , 4 cores, 5 cores, "4 + 1" cores and "3 + 2" cores structures, effectively expanding the production range.

1.Equipment features

The drum twister from us adopts sub-motor driving mode, with the following features:

A.The main components of the equipment have high precision, good balance of rotation, high strength, high speed and high production efficiency.

B.Technical parameters can be set, displayed on the touch screen, and can be modified online. The PLC can calculate various operating data under the process to ensure the accurate realization of the process. The type and location of the fault can also be displayed on the touch screen to quickly identify the fault point and reduce maintenance time.

C.The equipment can be configured with metal and non-metal wrapping devices, steel wire armoring devices, filling and longitudinal wrapping devices according to customer requirements to meet different process requirements.

D.The drum twister is driven by individual motors, with advanced design, reasonable structure, beautiful appearance, convenient operation, good process performance, high reliability, low failure rate and convenient maintenance,etc.

2.Main Technical Parameters
