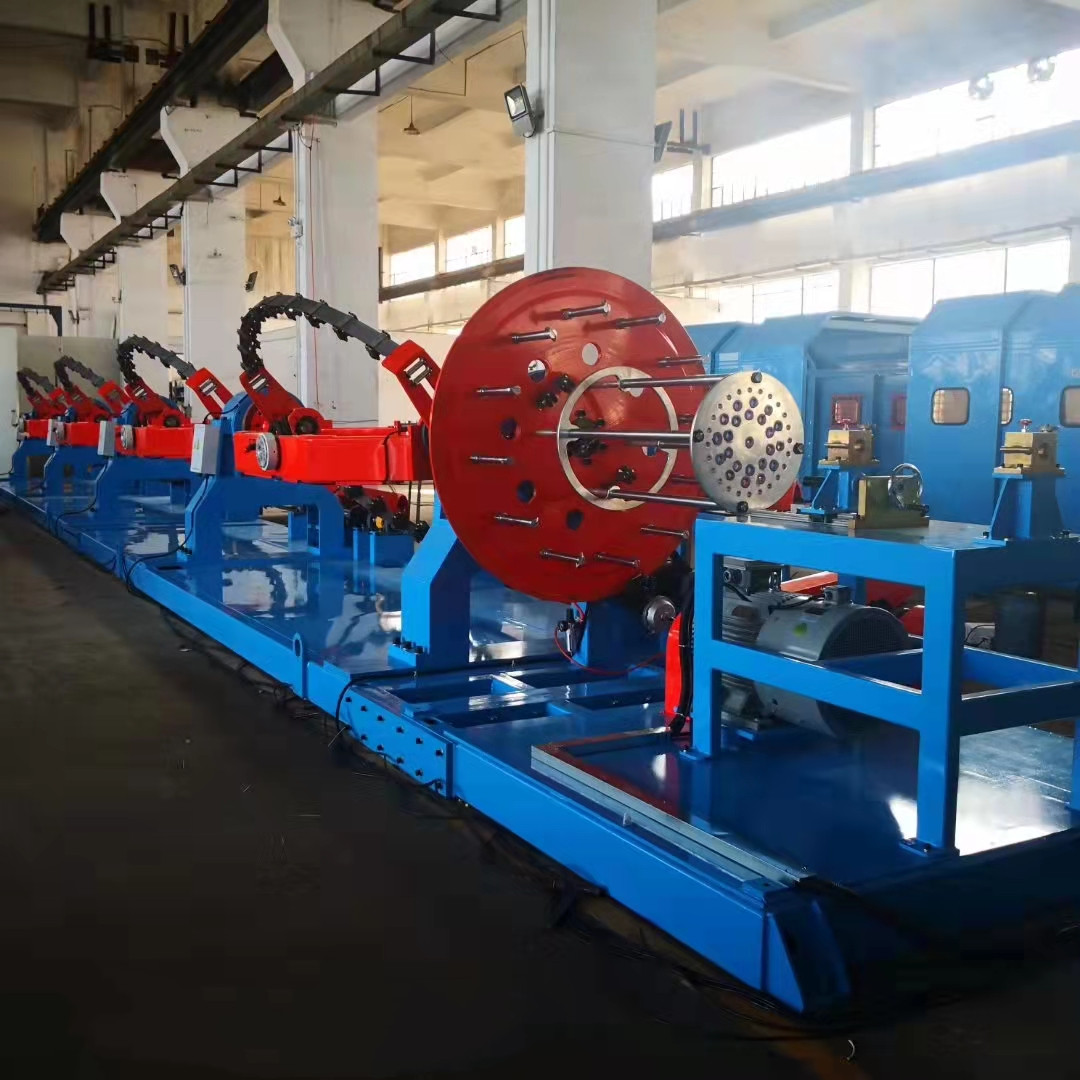

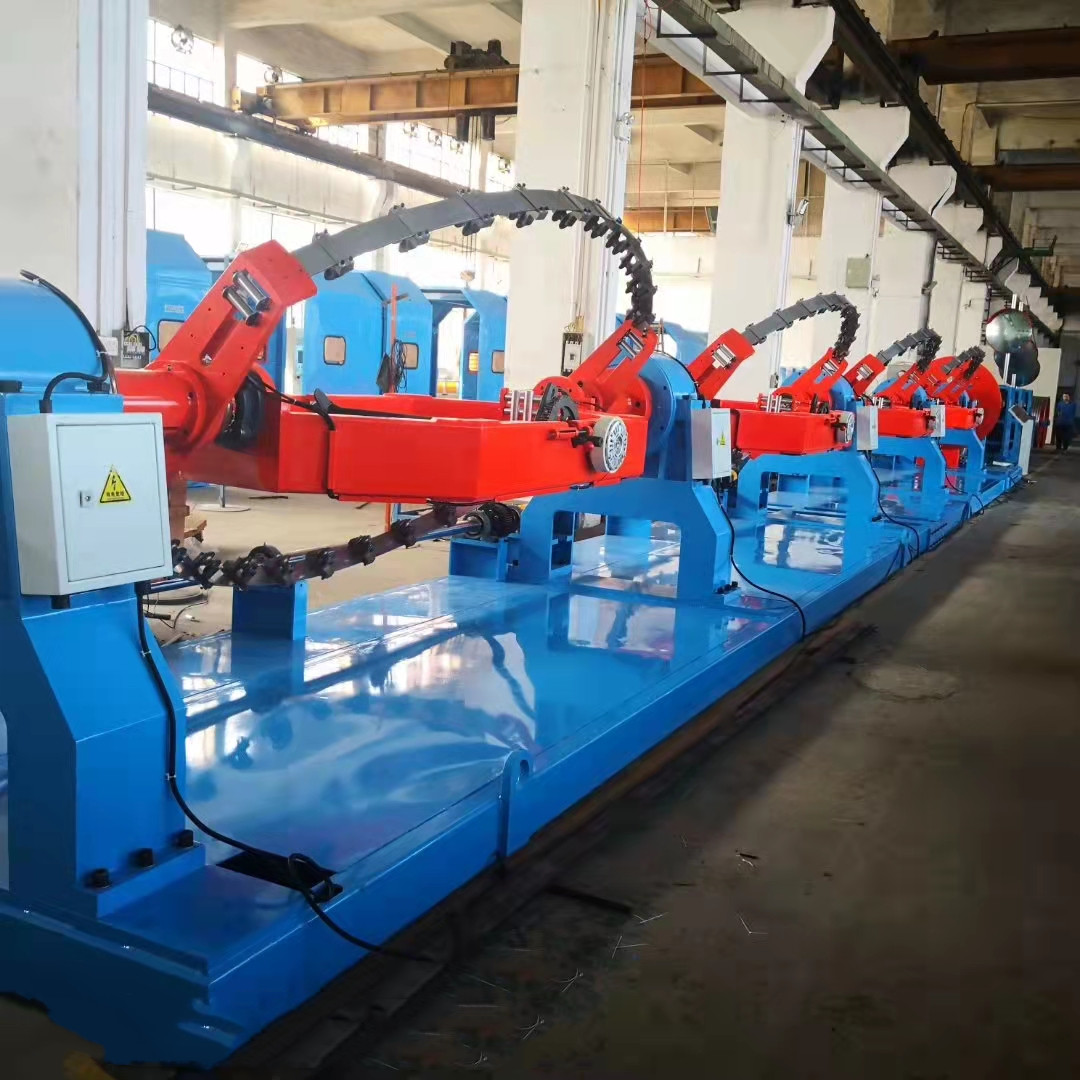

1000 1+3(4B) Bow Type Stranding Machine

1

Stranding limit

 suitable for 2-4 strands of core wire stranding + filling (optional) + tape (optional)

2

Rotation speed

 variable frequency speed regulation, the design speed is up to 300RPM, and the normal use is 250RPM

3

Stranding range

 16mm2 (about OD7mm, multi-core soft copper core wire) 2-4 core stranded outer diameter 16mm---150mm2 (below OD20mm, multi-core soft copper core wire) 2-4 core stranded outer diameter below 45mm

4

To wire diameter

 OD7mm----OD20mm multi-core soft copper core wire

5

Twist pitch

 100mm-500mm (gear change pitch, the pitch range provided by the customer)

6

Twisting direction

 left and right can be twisted

7

Releasing shaft

 Φ1000m/m iron shaft

8

Coiling shaft

 Φ1600m/m iron shaft/wood shaft (maximum)

9

Upper and lower shaft

 the upper and lower shaft of the aerial crane (installed by the customer)

10

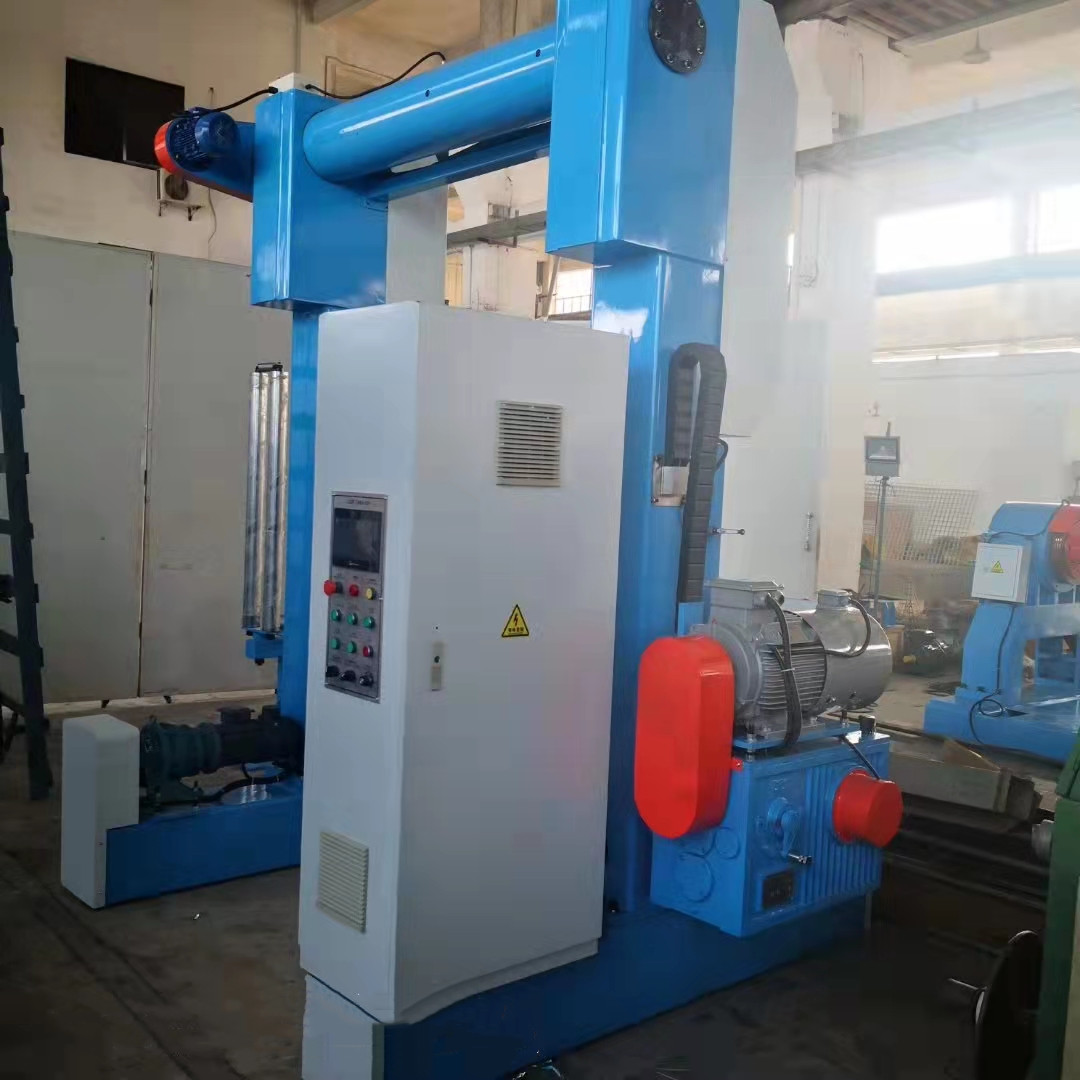

Take-up method

 Single-shaft take-up machine 10HP motor tension take-up

11

Cable

 2HP geared motor + 3HP inverter screw type cable

12

Drive motor

 50HP AC motor + reducer + 50HP inverter speed regulation

13

Brake

 Air-pressure butterfly brake inside and outside disconnection automatic brake

14

According to the face set

 L20000 (depending on the discharge method)*W1600*H1800 (not including the filling part)

15

Weight

 about 12000KG

16

Coating

 Turkish Basket or specified by customer
