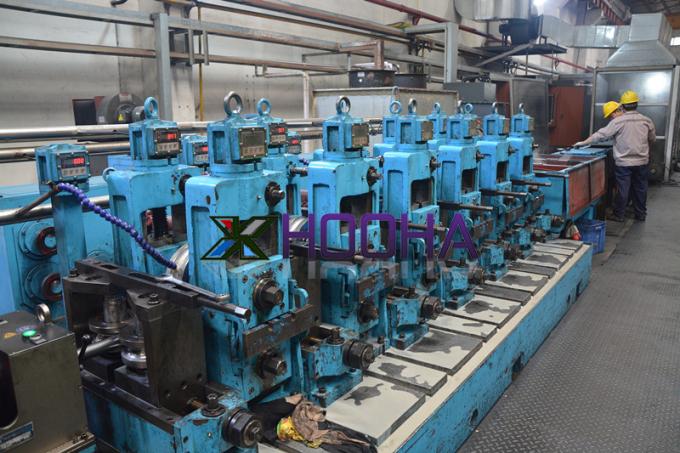

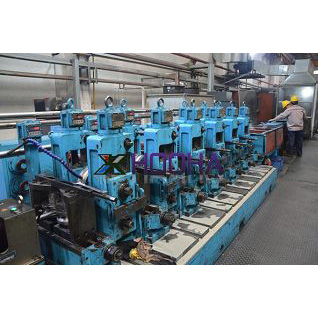

Straight Seam Steel Welding Pipe Mill Production Line Speed 15-30m / Min

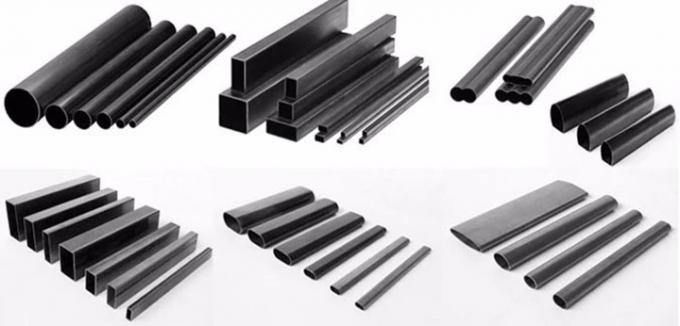

1: The pipes made by our steel pipe making machine line

Pipe produced by our ERW pipe mill can be used for below:

1. Oil & Gas Pipes 7. Wire and Cable Protection Pipe
   2. Heating Pipe 8. Structural Support Steel Pipe
   3. Low-pressure Process Pipeline 9. Industrial Steel Pipes
   4. Low Pressure Fire Fighting Pipeline 10. Decoration Pipe
   5. Sewage Pipes 11. Water Pipe
   6. Steel Scaffolding Pipe 12. Building pipe

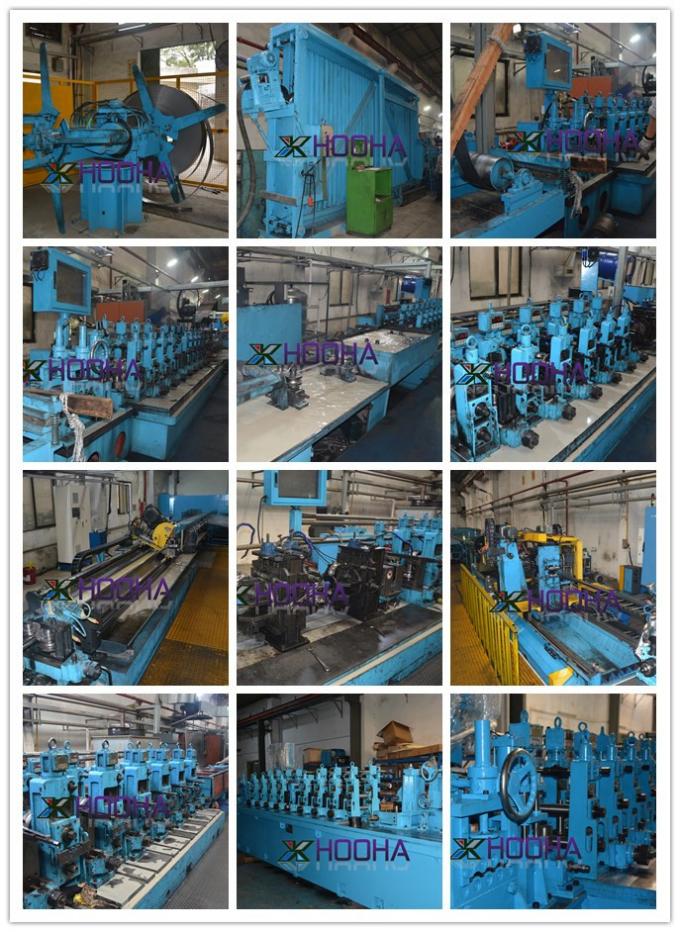

2: Our pipe production line installed in the world

HOOHA have successfully supplied world-class products and service to over 30 countries and areas around the world, such as: Poland, Spain, Russia, Yugoslavia, Ukraine, Turkey, Egypt, Saudi Arabia, India, Vietnam, Malaysia, Thailand, the Philippines, Pakistan, Kazakhstan, Ethiopia, etc.

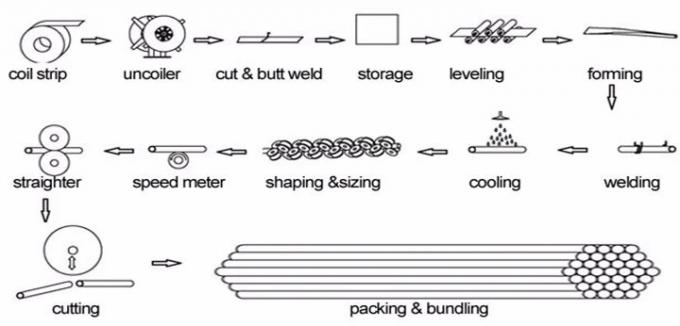

Flow Chart

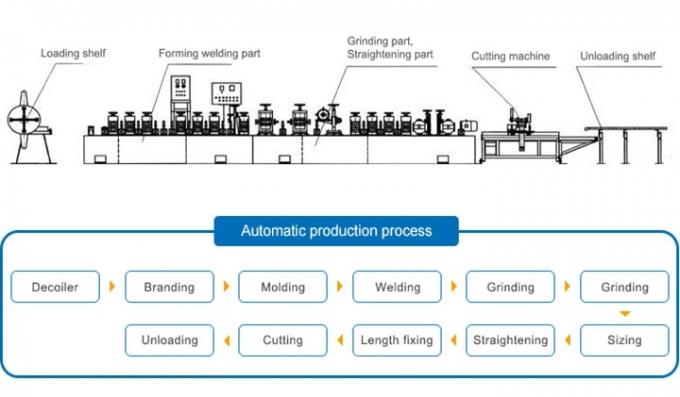

Standard flow chart of 2018 new Welding Plant Stainless Steel Easy Operate Pipe Making Machine :

Step 1: Un-coiler

Function: support rolled plate and strip tension for erw pipe mill production line, by the frame, main shaft, increases of drum, brake.

There are 3 types: pneumatic, hydraulic and manual.

Step 2: Shear & butt-welding

Function: Shear the end of each strip coil, then welding them together, so that pipe making welding machine line can be continue production.

2 Types: Automatic & manual

Step 3: Vertical Accumulator

Function: storage strip to keep continue production for the machine to make metel tube.

Type: Vertical

Advantage: easy to operation, low investment. special for small size and light wall pipe

Disadvantage: less storage capacity, crease.

Step 4: Horizontal Accumulator

Function: storage strip to keep continue production for the Round Square Pipe Making Machine Production Line.
Type: Horizontal
Advantage: Large capacity.
Disadvantage: more expensive than vertical type

Step 5: Forming section

Function: forming the tube from strip

Advantage:

> Advanced forming technical

> One-stage molding platform

> Reliable quality gear box

> Siemens Beide motor

Step 6: High Frequency Welding

Function: Welding the pipe , different thickness & diameter, the power of the HF welding machine welder

Our advantage: We choose the China best welder: Sanyi brand.

Step 7: Sizing section of pipe making machine

Function: sizing the tube to precise size
Advantage:
> Advanced sizing technical
> One-stage molding platform
> Reliable quality gear box and Siemens Beide motor
> High precision, low error of the pipe size

 Step 8: Flying saw

Function: cutting the tube mill line tube to right length.

Advantage: easy to operation, low investment.

Disadvantage: loud, cutting section generates burr.

 Step 9: Cold saw cutting of ERW tube mill line

 Function: cutting the tube to right length.
Advantage: No noise, no burr cutting precision and cross section .
Disadvantage: the price is 4 times of ordinary flying saw.

 Step 10: Run Out Table.

Function: run out the pipe, packing the pipe for tube making machine
Type: Automatic or manual

HOOHA carbon steel pipe making machine
