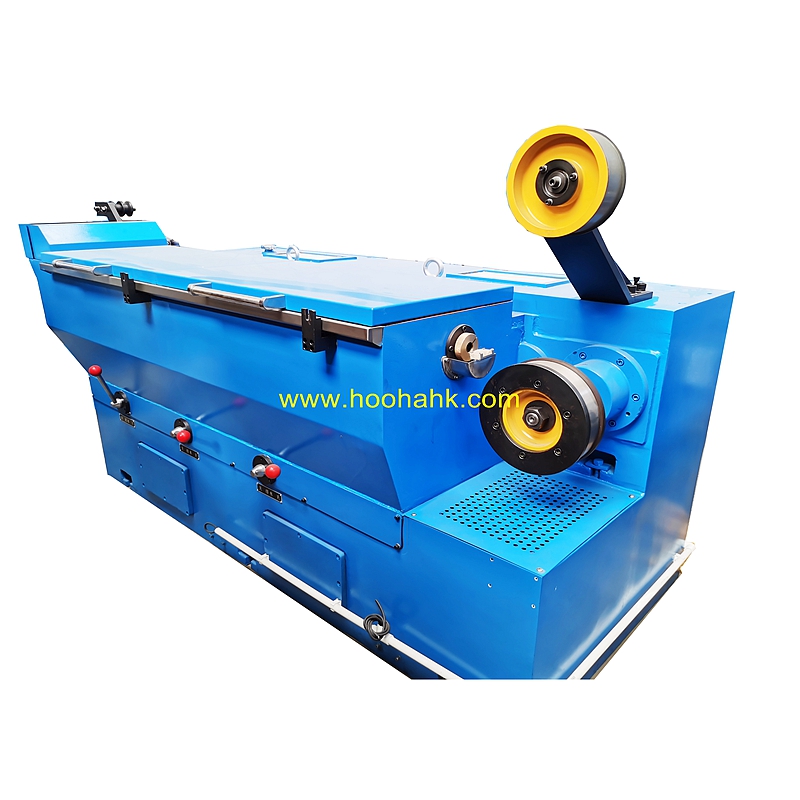

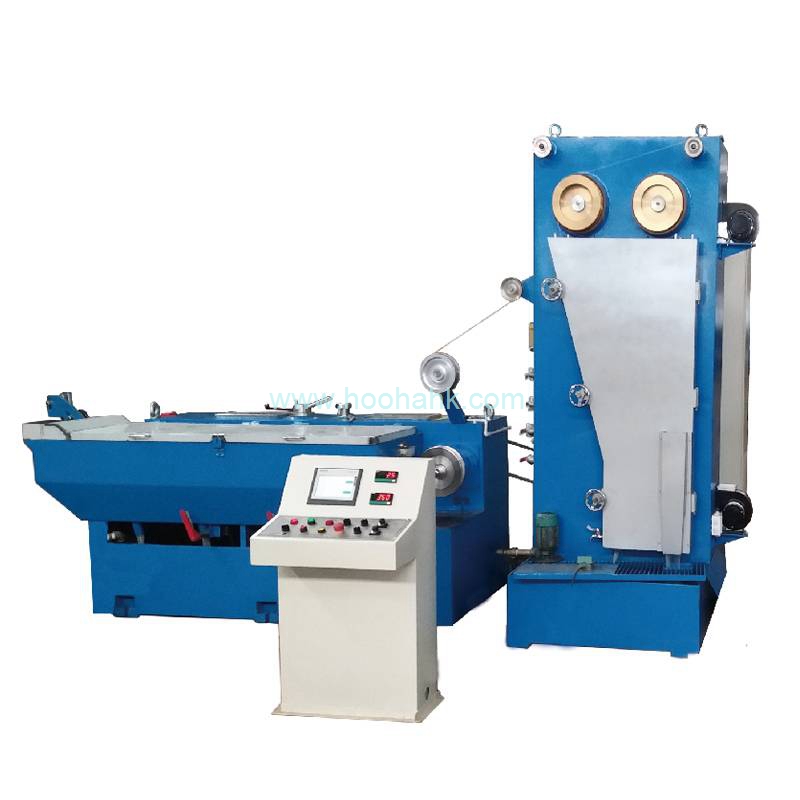

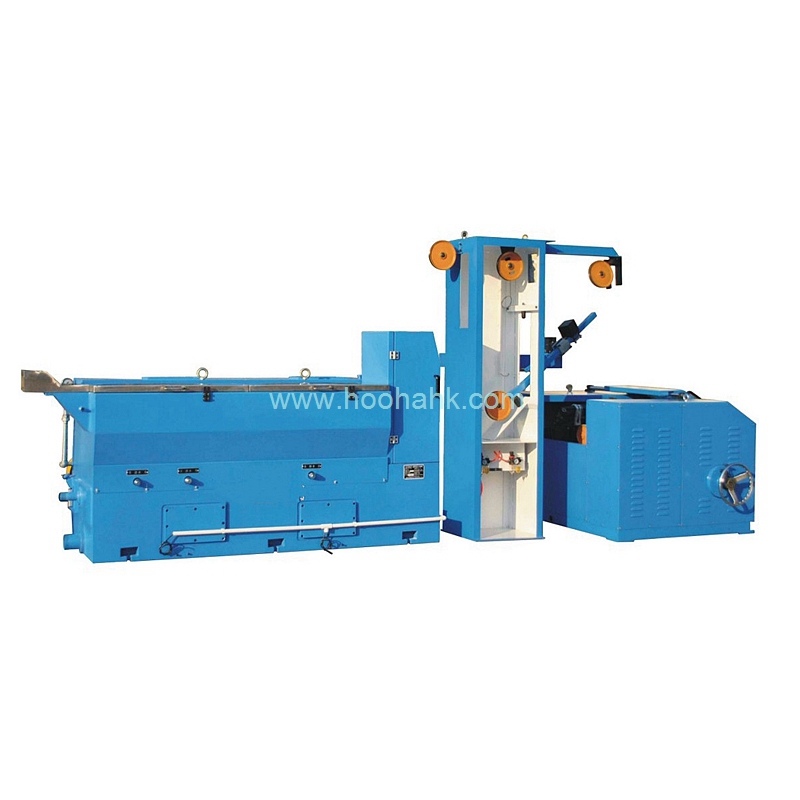

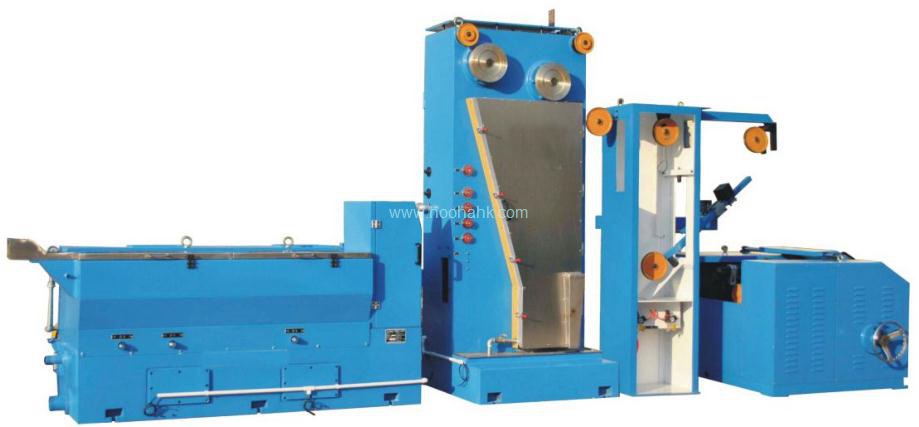

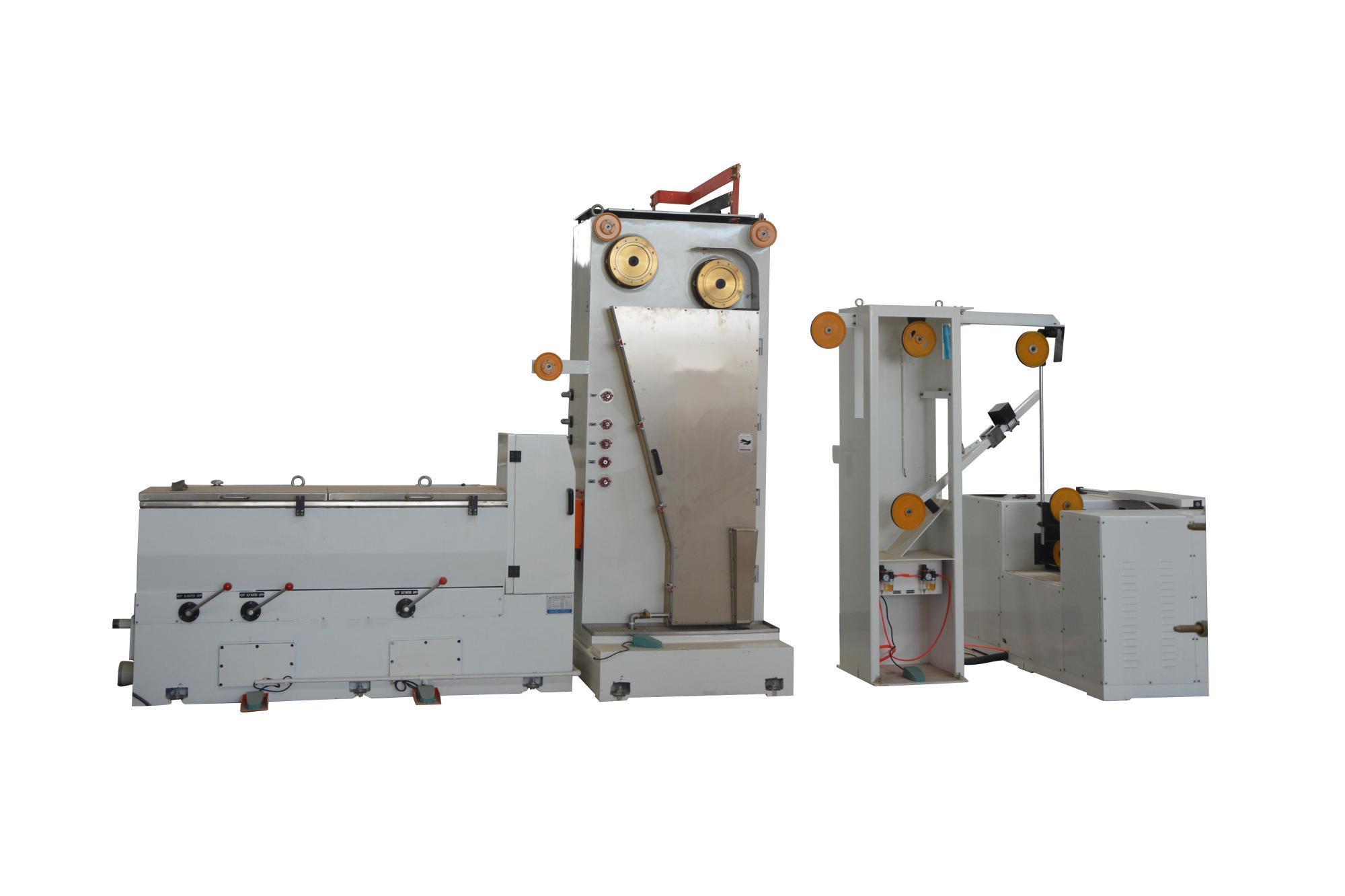

HH-D-250-21 Intermediate Wire Drawing Machine Making 3.0mm Wire to 0.4-1.2mm

HH-D-250-21 Intermediate Wire Drawing Machine Making 3.0mm Wire to 0.4-1.2mm
HH-D-250-21 Intermediate Wire Drawing Machine Making 3.0mm Wire to 0.4-1.2mm HH-D-250-21 Intermediate Wire Drawing Machine Making 3.0mm Wire to 0.4-1.2mm HH-D-250-21 Intermediate Wire Drawing Machine Making 3.0mm Wire to 0.4-1.2mm HH-D-250-21 Intermediate Wire Drawing Machine Making 3.0mm Wire to 0.4-1.2mm HH-D-250-21 Intermediate Wire Drawing Machine Making 3.0mm Wire to 0.4-1.2mm
Product ID :
HH-D-250-21
Product Attributes :

FOB Price: 150,000 ~ 180,000 USD

Payment Terms: T/T, L/C

Delivery Time: 30 working days

Measurment(L*W*H): 10m*3m*3.5m

Production Speed: Max 1800 m/min

Power Request: 120 kw

Warranty: 12 months

Product Description




This drawing line is used to make 2.6-3.0mm copper or aluminum alloy wire to 0.4-1.2mm wire. After annealing process, the drawn out copper wire can be used directly for further process such as extrusion.




1. Driven and controlled by AC three phases dual-inverter.

2. Highly precise bearing achieves running in low noise, high efficiency and low power-consumption.

3. Widely use imported advanced parts and components to ensure machines high reliability.

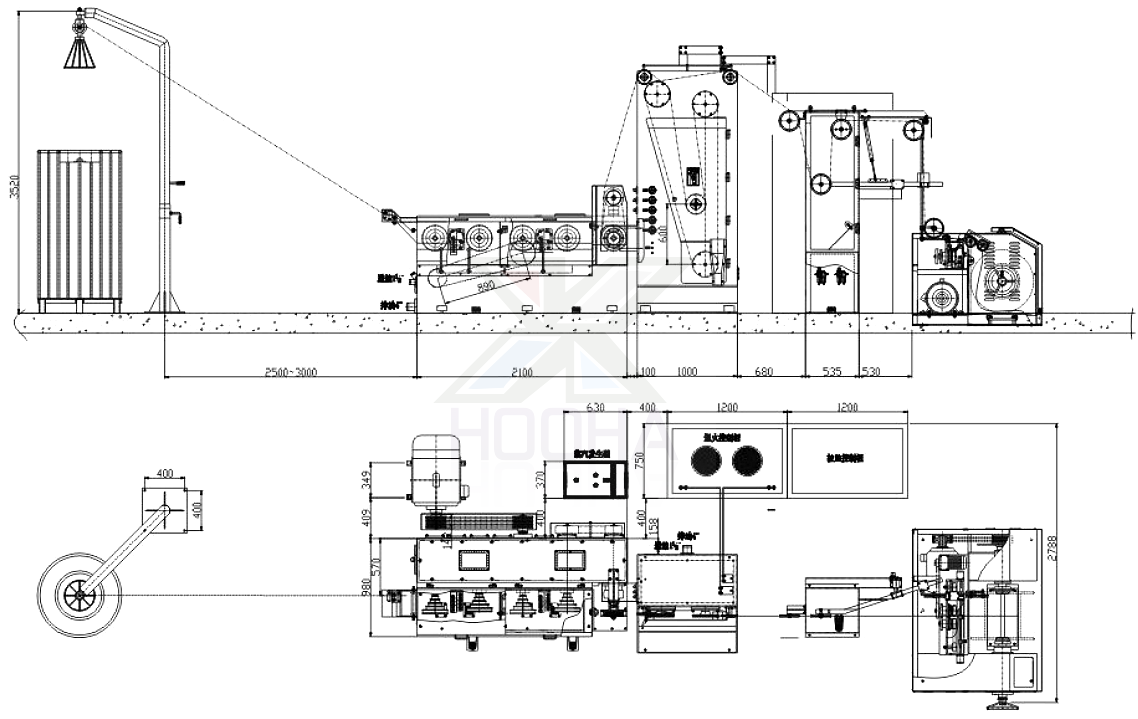

No.

Name

Qty.

Note

1

Pay off Stand

1 set



2

Host Drawing Machine

1 set



3

Annealer Machine

1 set



4

Tension Unit

1 set



5

Take up machine

1 set



6

Electrical Control Cabinet

1 set



7

Accessories supplied with the machine

1



7.1

Anchor bolts

1 set



7.2

Power supply cords

1 set



7.3

Dry-blower

1 set

Φ0.4-1.6mm

7.4

Steam generator

1 set

9kw

7.5

Pointing machine

1 set






No.

Items

Features

1

Power control

Dual inverter

2

Wire Inlet Diameter

2.6~3.0 MM

3

Wire Outlet Diameter

0.4~1.2 MM

4

Number of Dies

21

5

Power consumption

AC 60-120 KW

6

Production Speed

Max 1800 M/Min

7

Voltage

380V, can be customized

8

Weight

7000 KG

9

Measurement (L*W*H)

10*3*3.5 M






1.Over 20-year experienced engineer team in field of cable and wire making machines to guarantee professional solution and first-rate quality products.

2.Our professional engineer team had over 5 years experience working overseas, will provide various technologies to support our customers, including overseas on-site installation guidance, talent training, long-term technological updating services,etc.

3.Adopting famous brand parts such as Siemens, Yaskawa, Omron, Emerson to ensure reliable using of our products.

4.We check every detail of the machines and do pre-production test before delivery to eusure products quality and performance.
