HH-D-350-9 Large Wire Drawing Machine Making 3.5mm Wire to 1.0-2.76mm

HH-D-350-9 Large Wire Drawing Machine Making 3.5mm Wire to 1.0-2.76mm
HH-D-350-9 Large Wire Drawing Machine Making 3.5mm Wire to 1.0-2.76mm HH-D-350-9 Large Wire Drawing Machine Making 3.5mm Wire to 1.0-2.76mm HH-D-350-9 Large Wire Drawing Machine Making 3.5mm Wire to 1.0-2.76mm HH-D-350-9 Large Wire Drawing Machine Making 3.5mm Wire to 1.0-2.76mm
Product ID :
HH-D-350-9
Product Attributes :

FOB Price: 250,000 ~ 400,000 USD

Payment Terms: T/T, L/C

Delivery Time: 60 working days

Measurment(L*W*H): 15m*5m*3m

Production Speed: Max 1200 m/min

Power Request: 210 kw

Warranty: 12 months

Product Description

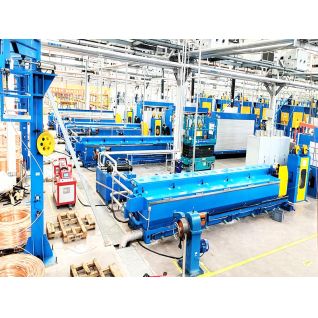

This drawing line is used to make 2.6-3.5mm copper wire or aluminum alloy wire to 1.0-2.76mm wire. This is the front process in wire and cable manufacturing industry, strongly needed for conductor or cable manufacturers.








1. Driven and controlled by AC three phases dual-inverter.

2. Horizontal contact-type DC annealing.

3. Automatic wire take-up on two spools without stop.

4. Highly precise bearing achieves running in low noise, high efficiency and low power-consumption.

5. Widely use imported advanced parts and components to ensure machines high reliability.

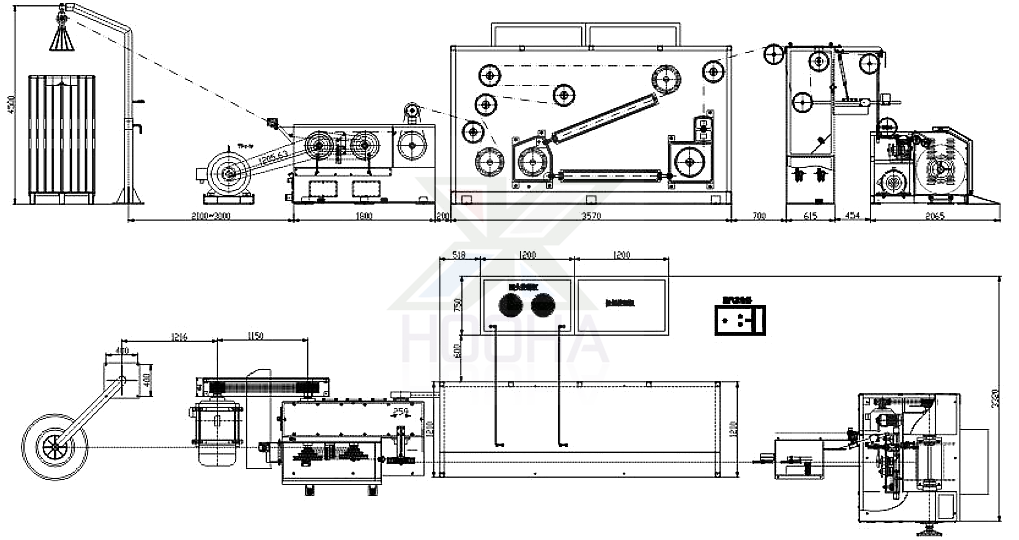

No.

Name

Qty.

1

Pay off Stand

1 set

2

Host Drawing Machine

1 set

3

Annealer Machine

1 set

4

Tension Unit

1 set

5

SN630-2 Take up

1 set

6

Electrical Control Cabinet

1 set

7

Accessories supplied with the machine



7.1

Anchor bolts

1 set

7.2

Power supply cords

1 set







No.

Items

Features

1

Control System

Digital control

2

Wire Inlet Diameter

2.6~3.5 MM

3

Wire Outlet Diameter

1.0~2.76 MM

4

Number of Dies

13

5

Power consumption

AC 220 KW

6

Production Speed

Max 1200 M/Min

7

Voltage

380V, can be customized

8

Weight

15000 KG

9

Measurement (L*W*H)

15*5*3 M









1.Over 20-year experienced engineer team in field of cable and wire making machines to guarantee professional solution and first-rate quality products.

2.Our professional engineer team had over 5 years experience working overseas, will provide various technologies to support our customers, including overseas on-site installation guidance, talent training, long-term technological updating services,etc.

3.Adopting famous brand parts such as Siemens, Yaskawa, Omron, Emerson to ensure reliable using of our products.

4.We check every detail of the machines and do pre-production test before delivery to eusure products quality and performance.
