HH-D-400-13 RBD Drawing Machine Making 8mm Rod to 1.2-3.5mm Wire

HH-D-400-13 RBD Drawing Machine Making 8mm Rod to 1.2-3.5mm Wire
HH-D-400-13 RBD Drawing Machine Making 8mm Rod to 1.2-3.5mm Wire HH-D-400-13 RBD Drawing Machine Making 8mm Rod to 1.2-3.5mm Wire HH-D-400-13 RBD Drawing Machine Making 8mm Rod to 1.2-3.5mm Wire HH-D-400-13 RBD Drawing Machine Making 8mm Rod to 1.2-3.5mm Wire
Product ID :
HH-D-400-13
Product Attributes :

FOB Price: 245,000 ~ 300,000 USD

Payment Terms: T/T, L/C

Delivery Time: 60 working days

Measurment(L*W*H): 28m*5.5m*5m

Production Speed: Max 1500 m/min

Power Request: 600 kw

Warranty: 12 months

Product Description

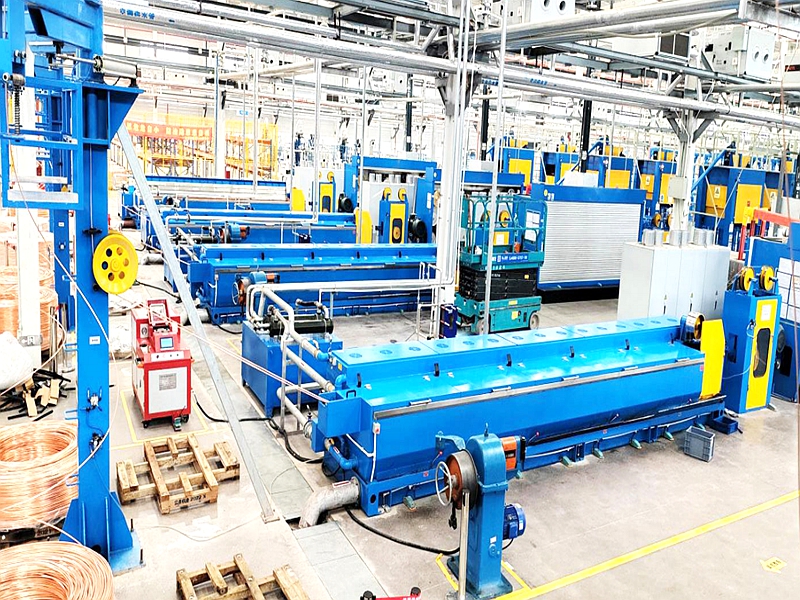

This drawing line is used to make 8mm copper rod or aluminum alloy rod to 1.2-3.5mm wire. This is the front process in wire and cable manufacturing industry, strongly needed for conductor or cable manufacturers.






1. AC three phase current motor drive, free of maintenance and energy saving.

2. Micro-slip drawing elongates the usage life of drawing wheels and improve the quality of finished wire.

3. Highly precise bearing achieves running in low noise, high efficiency and low power-consumption.

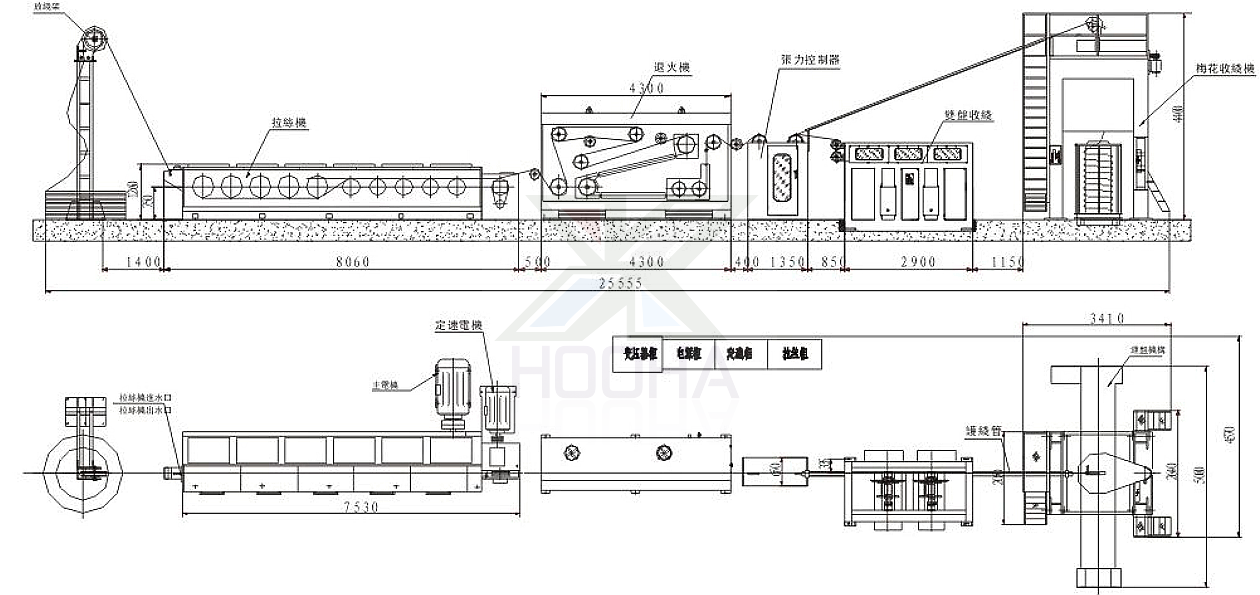

No.

Name

Qty.

1

Pay off Stand

1 set

2

D-400-13 Drawing Machine

1 set

3

TH5000 Annealer

1 set

4

YG400 Joy Tension Rod

1 set

5

SN630-2 Take up

1 set

6

Operation Panel

1 set

7

Electrical Control System

1 set

8

Pointing Machine

1 set

9

Welding Machine

1 set






No.

Items

Features

1

Suitable materials

Hypoxia/Anaerobic round copper wire or aluminum alloy

2

Inlet Diameter

8 MM

3

Outlet Diameter

1.2~3.5 MM

4

Number of Dies

13

5

Main Motor Power

AC 220 KW

6

Annealing Power

AC 320 KW

7

Production Speed

Max 1500 M/Min

8

Voltage

380V, can be customized

9

Weight

25000 KG

10

Measurement (L*W*H)

28*5.5*5 M









1.Over 20-year experienced engineer team in field of cable and wire making machines to guarantee professional solution and first-rate quality products.

2.Our professional engineer team had over 5 years experience working overseas, will provide various technologies to support our customers, including overseas on-site installation guidance, talent training, long-term technological updating services,etc.

3.Adopting famous brand parts such as Siemens, Yaskawa, Omron, Emerson to ensure reliable using of our products.

4.We check every detail of the machines and do pre-production test before delivery to eusure products quality and performance.
