Description:

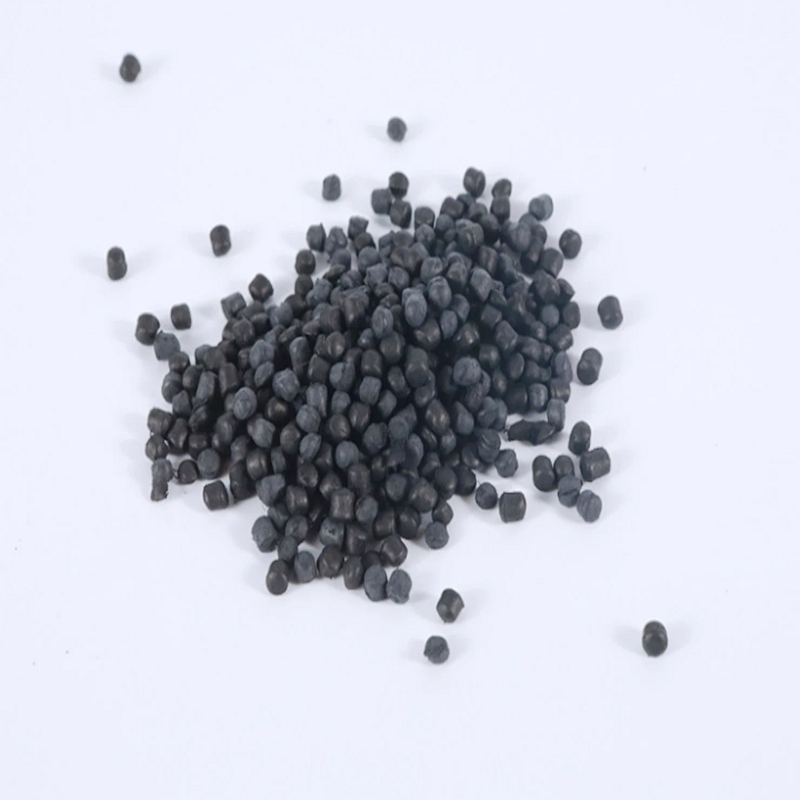

0835 cross-linkable semi-conductive shielding compound is used as strippable insulation shield for cross-linked polyethylene insulation power cable rated voltage up to 35KV. It's suitable for high temperature vulcanization processing method. 0835 provides excellence processability, fine surface smoothness, stable volume resistivity, low pre-cure or scorch characteristic, lower stripping force with anti-tearing property, leaving clean surface for insulation after stripped.
1.Description:
0835 cross-linkable semi-conductive shielding compound is used as strippable insulation shield for cross-linked polyethylene insulation power cable rated voltage up to 35KV. It's suitable for high temperature vulcanization processing method. 0835 provides excellence processability, fine surface smoothness, stable volume resistivity, low pre-cure or scorch characteristic, lower stripping force with anti-tearing property, leaving clean surface for insulation after stripped.
2.Packing:In Cardboard Box with inner PE bag, 600kg/box.
3.Technical Parameter
|
Property |
Test Method |
Unit |
Value |
|
Density at 23°C |
ASTM D 1505 |
g/ cm3 |
≤ 1.13 |
|
Tensile Strength (200 mm/min) |
ASTM D 638 |
MPA |
≥ 13 |
|
Elongation at Break before ageing |
ASTM D 638 |
% |
280 |
|
Volume Resistivity at 20°C |
ASTM-D991 |
W.cm |
60 |
|
Hot Set Test Conditions |
IEC 540-14 |
|
|
|
Elongation after loading |
|
% |
≤ 60 |
|
Moisture Content |
KARL FISCHER |
ppm |
≤ 500 |
|
Brittleness Temperature |
ASTM-D746 |
|
-40°C |
|
Stripping Force |
Q/TNYM 1-2012 |
N/cm |
15 |
4.Processing Conditions:
The recommended standard extrusion temperature profiles are as followings: Unit: °C
|
Zone |
Zone 1 |
Zone 2 |
Zone 3 |
Zone 4 |
Flange |
Tube |
Screw |
|
Temperature Range°C |
80-85 |
90-95 |
100-105 |
105-110 |
105 |
105 |
50-55 |
We suggest using double layer filter mesh with size 40 mesh (350μm).
We recommend hopper drying at 40~60'C for 4 hours to remove moisture before extrusion.
5.Storage:
Should be stored at room temperatures between 10~30°C. Recommended maximum storage period in dry and clean are is 12 months unopened and in original packaging after the manufacture.
