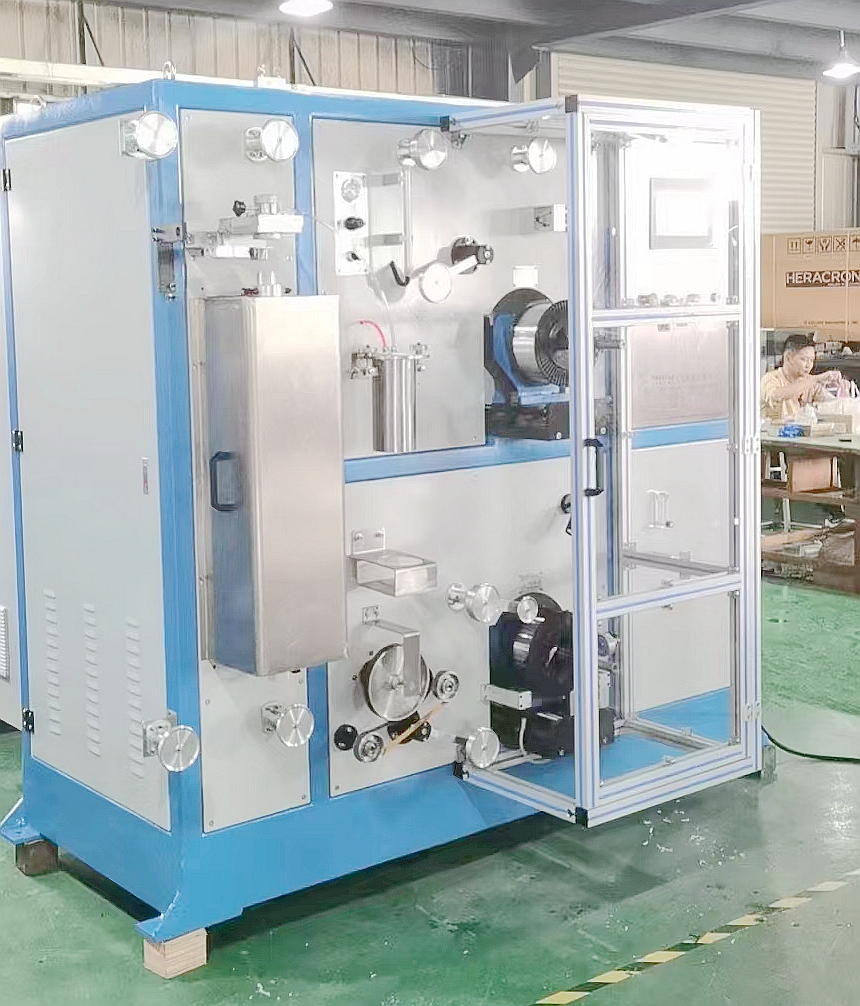

Main specification and performance
1. No of optical fiber:1 piece
2. Coloring speed:1600m/min
3. Structure speed :1800m/min
4. Rewinding speed:≦1800m/min
5. Coloring layer thickness:3-5um
6. Pay-off tension:0.2N-1.0N±0.05N
7. Traversing pitch:0.1-2.0mm
8. Excess loss after coloring:≦0.02db/km
9. Optical fiber reel size(MAX):ø236×ø25.4×ø225mm,weight:10kg(25.2km/50.4km reel)
10. As usual preceding die:0.26mm, coloring die:0.256mm.
11. Machine size:L1900mm*W1350mm*H2100mm
12. Total power:About 13KW, three wire five phase, 380V 50HZ
13. Nitrogen purity ≥99.99%
14. Press air pressure 0.5Mpa
15. Operating temperature 20-25℃
16. Cooling fan motor:1.1KW
Parameters
No.
|
Items
|
Value
|
1
|
Mechanic speed
|
2200 m/min
|
2
|
Tension
|
0.3-1.2 n
|
3
|
Pay-off bobbin
|
265*165*25.4 mm (od*id*w) 50km
|
4
|
Take-up bobbin
|
235*155*25.4 mm (od*id*w) 25km
|
5
|
Additional loss
|
≤ 0.02 db/km
|
6
|
Installed capacity
|
18 kw
|
Q:How is your after service to customer ? A:1.It is able for us to offer customer the pre-sale services of providing customized design the production line based on special requirement of products, as well as configuring the production plant drawing of equipment arrangement if necessary, and accessing the factory environment. 2.We are able to provide service of training the customer's technicians in operation the machine and technical support in making wire and cable. 3.About after-sale services, we have obligation to offer installation and commissioning service in customer's factory. 4.The regular maintenance and product tracking service will be done in machine lifetime. Any problem can be feedback to our company pointed service man at any time, and the solution is going to be given with high quality and efficiently.
1.Who are we?
Hooha company Limited is based in Hongkong, china.Factory is located in dongguan,China.Established in 2003, with 19 years of experience in wire and cable field trade.It only takes 1 hour from our company to guangzhou/shenzhen airport.
2.How can we guarantee quality?
1.Online inspect facotry,production,shipment,and aftersales services.
2.pre-production sample before mass production.
3.Highstandards and strict requirements, key accessories of cable equipment only use imported parts.
4.Mechnical parts gurantee 12months, elcctrical parts 12 months.
5.online communication,remote assistance,solve customer problem 24 hours,when the problem can not solved online,we will dispatch engineer to go aboard to the problem on-site for the customer.
3.What can you buy from us?
1.material for wire and cable
2.turkey project for wire and cable
3.extrusion line/bunching/twisting
machine for wire and cable
4.accessorries for cable equipments
4.How long is your delivery time?
1.Generally, 3-7 days for goods in stock
2.30 days for goods after realsing order.
3.project will take 60-90 days
5. Will the price be cheaper if the order is placed in bulk?
Yes,Of course,it will make 10%-12% discount
6.What services can we provide?
1.Plant solution and machine design.
2.technical support at machines and cable
3.Installtion and commmsioning,after sales service.
4.Packaging customization 5.Customized,saving 10%-20% year-on-year cost
7.HOOHA cable equipment technical advantages
1.In order to ensure the high quality of products,we start from ensuring the accuracy of accessories, and the main accessories of products(Casing, end cover, shaft and wheel) they are all manufactured by CNC machining center,The main purchased parts are NSK Bearings from Japan,American gates belt,taiwan TTO Fluoro rubber oil seal,The working efficiency of the equipment is improved, the noise is reduced, and the service life of the equipment is extended to more than 10 years.
2.High precision dynamic balancing of all equipment rotors,The dynamic balance level is G1, reducing the unbalance to less than 1G, and the long-term operation is safe and reliable.
3.The bearing adopts double row cylindrical roller bearing and double row self-aligning roller bearing,compared withthe deep groove ball bearing, the bearing has high fatigue strength, long service life, stable operation and small vibration.
