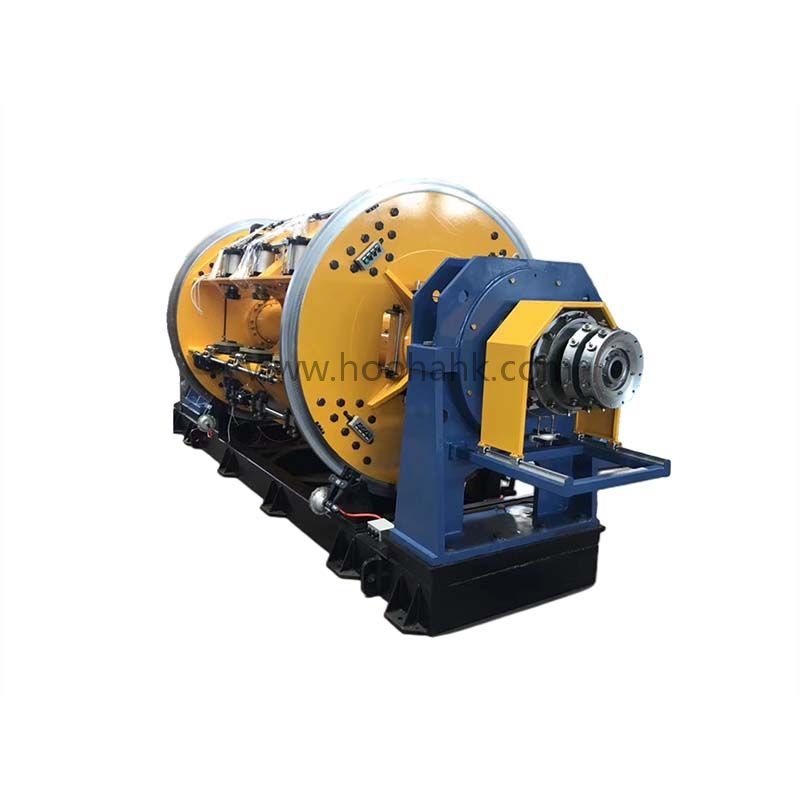

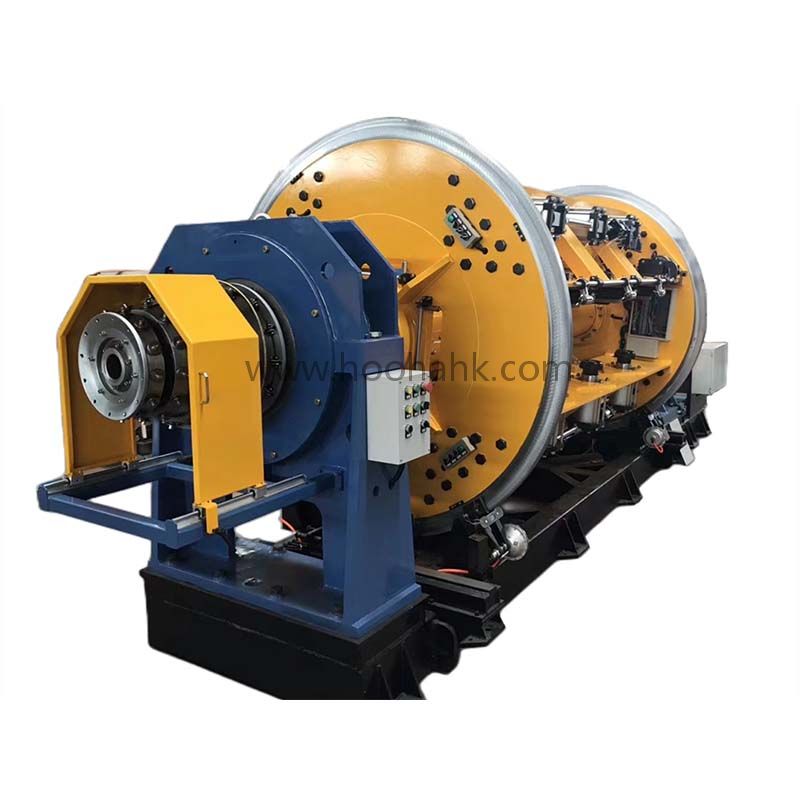

It is suitable for the production of large-length bare aluminum, bare copper wire, steel core aluminum stranded wire and aluminum alloy wire, sector-shaped conductor stranding and pressing, round conductor stranding, drawing and pressing, and special-shaped conductor stranding. The equipment adopts 36-stage traction variable speed gear box, dual active and dual traction devices. The splitter wheel uses natural splitting to avoid the wire core grazing during the stranding process. It is equipped with a complete disconnection automatic stop device, and the disconnection stop is directly controlled To each pay-off reel, the host will automatically stop immediately when the disconnected reel stops.

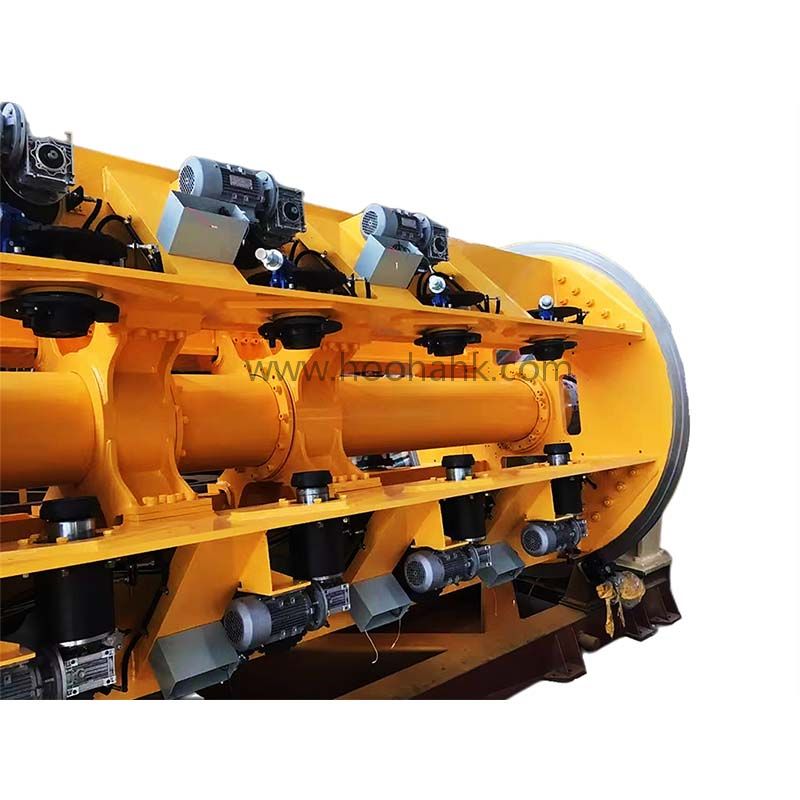

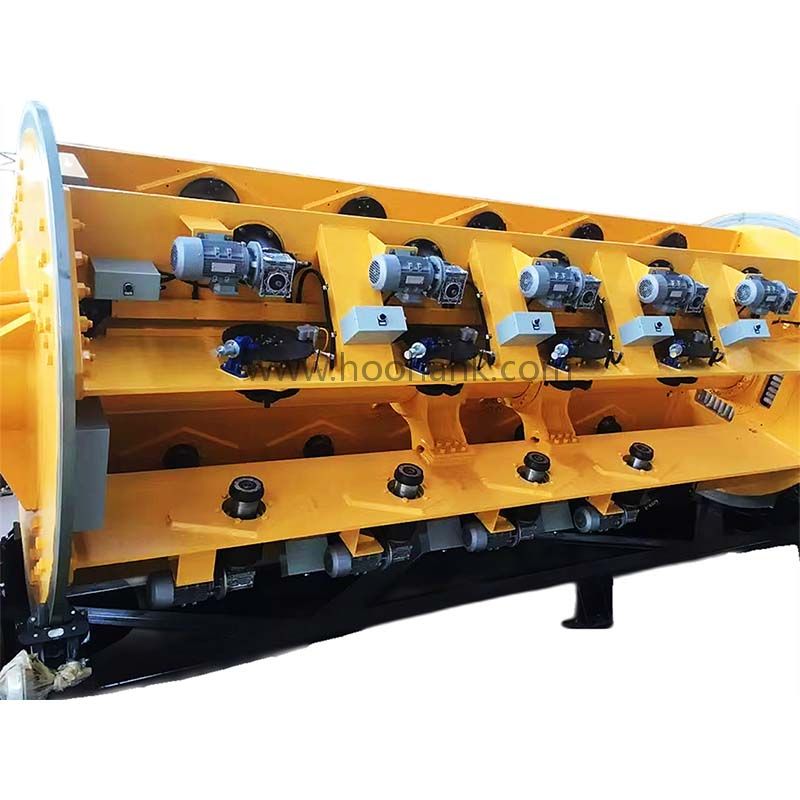

1. The reels are divided into four equal parts around the cage. The centralized side-mounted system can greatly improve efficiency, and the equipment has high power and high speed.

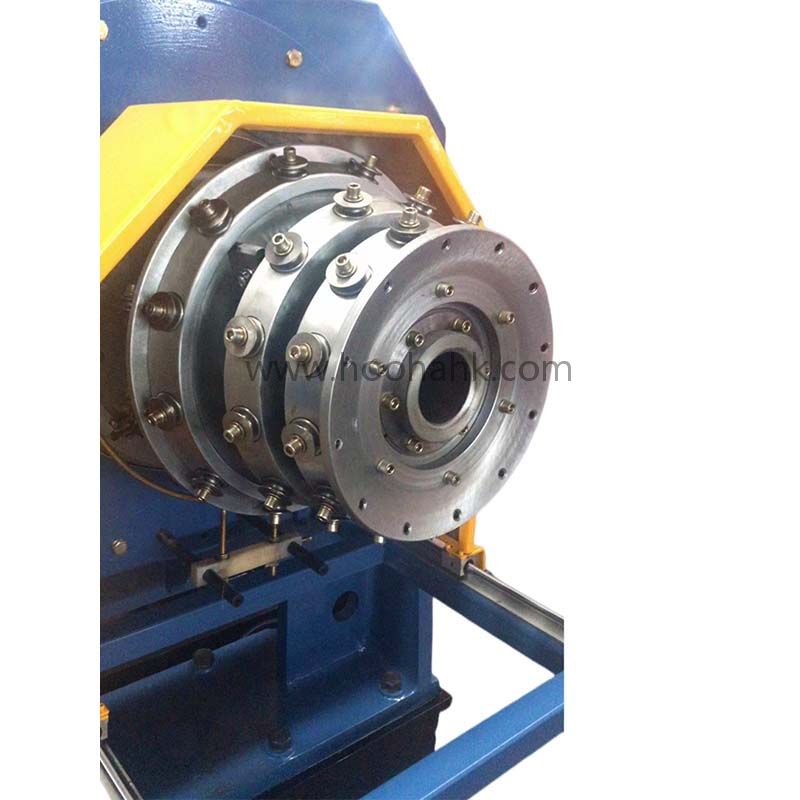

2. Driven by a 36-stage gearbox, the traction wheel of the double winch is suspended on the shaft. One wheel is straight and the other is inclined to ensure good care of the material to be pulled out. The maximum pulling force reaches 15T. Each reel is equipped with an advanced wire break detector, which can automatically stop the machine when the wire is broken.
3. The rigid frame is welded and punched as a whole to ensure stable performance during operation.
4. This machine can twist multiple cable cores simultaneously.
5. The spools are loaded and unloaded in batches, which greatly improves the production efficiency.
| No. | Items | Quantity |
Reference Picture |
|
1 |
Φ 500mm Manual type pay-off |
1 set |  |
|
2 |
500/6+12 Bobbins cages |
1 set |
 |
|
3 |
Side loading system for each cage |
1 set |
 |
|
4 |
Wire-stranded mould stand |
1 set |
 |
| 5 |
Wire-stranded and Wire-compacted mould stand |
1 group |
 |
|
6 |
Meter counter |
1 set |
 |
|
7 |
Φ 1600mm Double capstan wheels |
1 set |
 |
|
8 |
Φ 1600mm Column type take-up with traverse |
1 set |
 |
|
9 |
Transmission system |
1 set |
 |
|
10 |
Electric control system |
1 set |
 |
|
11 |

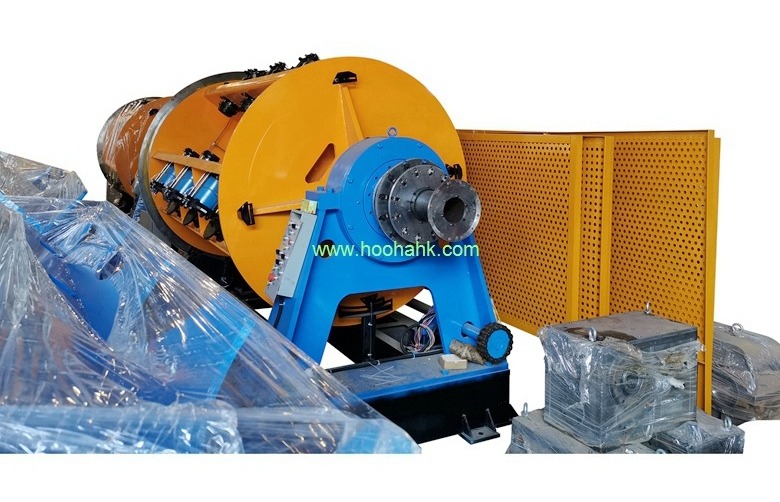

Safe fence |
1 set |
 |
|
No. |
Items |
Features |
|
1 |
Single wire Diameter |
Φ 1.5 - Φ 5mm |
|
2 |
Max stranded Diameter |
Φ 36mm |
|
3 |
Max cage rotate speed |
6B:190RPM 12B:175RPM |
|
4 |
Capstan wheel diameter |
Ф1600mm |
|
5 |
Central pay-off bobbin |
Ф500mm |
|
6 |
Pay-off bobbin in cage |
Ф500mm |
|
7 |
Take-up bobbin |
Ф1600mm |
|
8 |
Main motor power |
30KW,AC,380V,50Hz |
|
9 |
Stranding pitch range |
44-850mm |
|
10 |
Central height of machine |
1500mm |
2.Our professional engineer team had over 5 years experience working overseas, will provide various technologies to support our customers, including overseas on-site installation guidance, talent training, long-term technological updating services,etc.
3.Adopting famous brand parts such as Siemens, Yaskawa, Omron, Emerson to ensure reliable using of our products.
4.We check every detail of the machines and do pre-production test before delivery to eusure products quality and performance.
