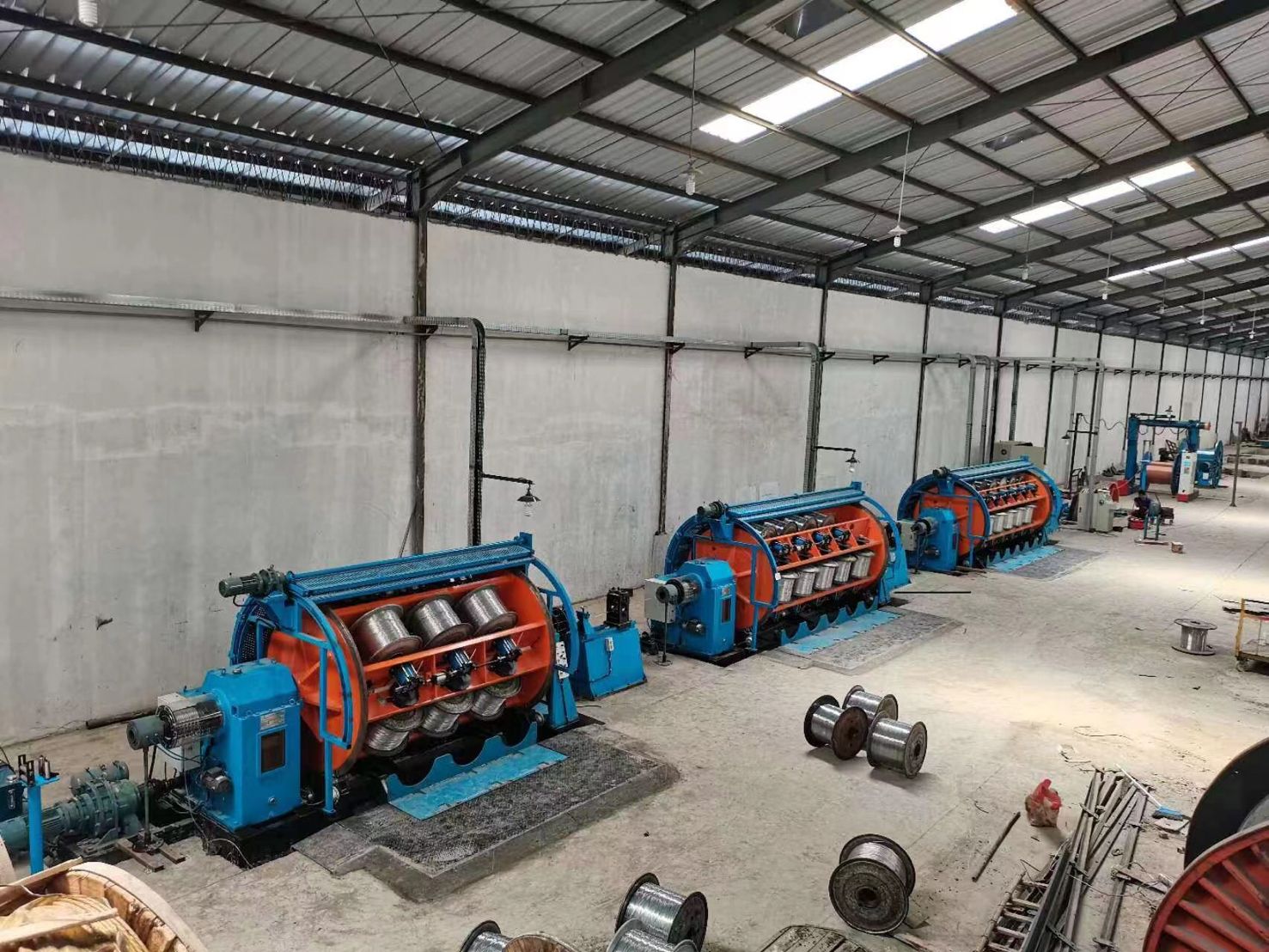

HH-S-630-1+6+12 Cable Rigid Frame Stranding Machine

HH-S-630-1+6+12  Cable Rigid Frame Stranding Machine
HH-S-630-1+6+12  Cable Rigid Frame Stranding Machine HH-S-630-1+6+12  Cable Rigid Frame Stranding Machine HH-S-630-1+6+12  Cable Rigid Frame Stranding Machine HH-S-630-1+6+12  Cable Rigid Frame Stranding Machine HH-S-630-1+6+12  Cable Rigid Frame Stranding Machine
Product Attributes :

FOB Price: 84,000 ~ 85,000 USD

Payment Terms: T/T, L/C

Delivery Time: 60 working days

Max cage rotate speed:  6B:150RPM   12B:140RPM

Main motor power: 55 KW

Warranty: 12 months



Product Description




This machine is mainly used for stranding copper and aluminum wires with 1+6+12 structure.

It is suitable for the production of large-length bare aluminum, bare copper wire, steel core aluminum stranded wire and aluminum alloy wire, sector-shaped conductor stranding and pressing, round conductor stranding, drawing and pressing, and special-shaped conductor stranding. The equipment adopts 36-stage traction variable speed gear box, dual active and dual traction devices. The splitter wheel uses natural splitting to avoid the wire core grazing during the stranding process. It is equipped with a complete disconnection automatic stop device, and the disconnection stop is directly controlled To each pay-off reel, the host will automatically stop immediately when the disconnected reel stops.








1. The reels are divided into four equal parts around the cage. The centralized side-mounted system can greatly improve efficiency, and the equipment has high power and high speed.

2. Driven by a 36-stage gearbox, the traction wheel of the double winch is suspended on the shaft. One wheel is straight and the other is inclined to ensure good care of the material to be pulled out. The maximum pulling force reaches 15T. Each reel is equipped with an advanced wire break detector, which can automatically stop the machine when the wire is broken.

3. The rigid frame is welded and punched as a whole to ensure stable performance during operation.

4. This machine can twist multiple cable cores simultaneously.

5. The spools are loaded and unloaded in batches, which greatly improves the production efficiency.









No.  Items Quantity

Reference Picture

1

Φ 630mm Manual type pay-off

1 set

2

630/6+12 Bobbins cages

1 set

3

Side loading system for each cage

1 set

4

Wire-stranded mould stand

1 set

5

Wire-stranded and Wire-compacted mould stand

1 group

6

Meter counter

1 set

7

Φ 1300mm Double capstan wheels

1 set

8

Φ 2000mm Column type take-up with traverse

1 set

9

Transmission system

1 set

10

Electric control system

1 set

11

Safe fence

1 set










No.

Items

Features

1

Single wire Diameter

Φ 1.2 - Φ 5mm

2

Max stranded Diameter

Φ 40mm

3

Max cage rotate speed

6B:150RPM   12B:140RPM

4

Capstan wheel diameter

Ф1300mm

5

Central pay-off bobbin

Ф630mm

6

Pay-off bobbin in cage

Ф630mm

7

Take-up bobbin

Ф1000mm-Ф2000mm

8

Main motor power

55KW,AC,380V,50Hz

9

Stranding pitch range

65-625mm

10

Central height of machine

1500mm







1.Over 20-year experienced engineer team in field of cable and wire making machines to guarantee professional solution and first-rate quality products.

2.Our professional engineer team had over 5 years experience working overseas, will provide various technologies to support our customers, including overseas on-site installation guidance, talent training, long-term technological updating services,etc.

3.Adopting famous brand parts such as Siemens, Yaskawa, Omron, Emerson to ensure reliable using of our products.

4.We check every detail of the machines and do pre-production test before delivery to eusure products quality and performance.
