Description



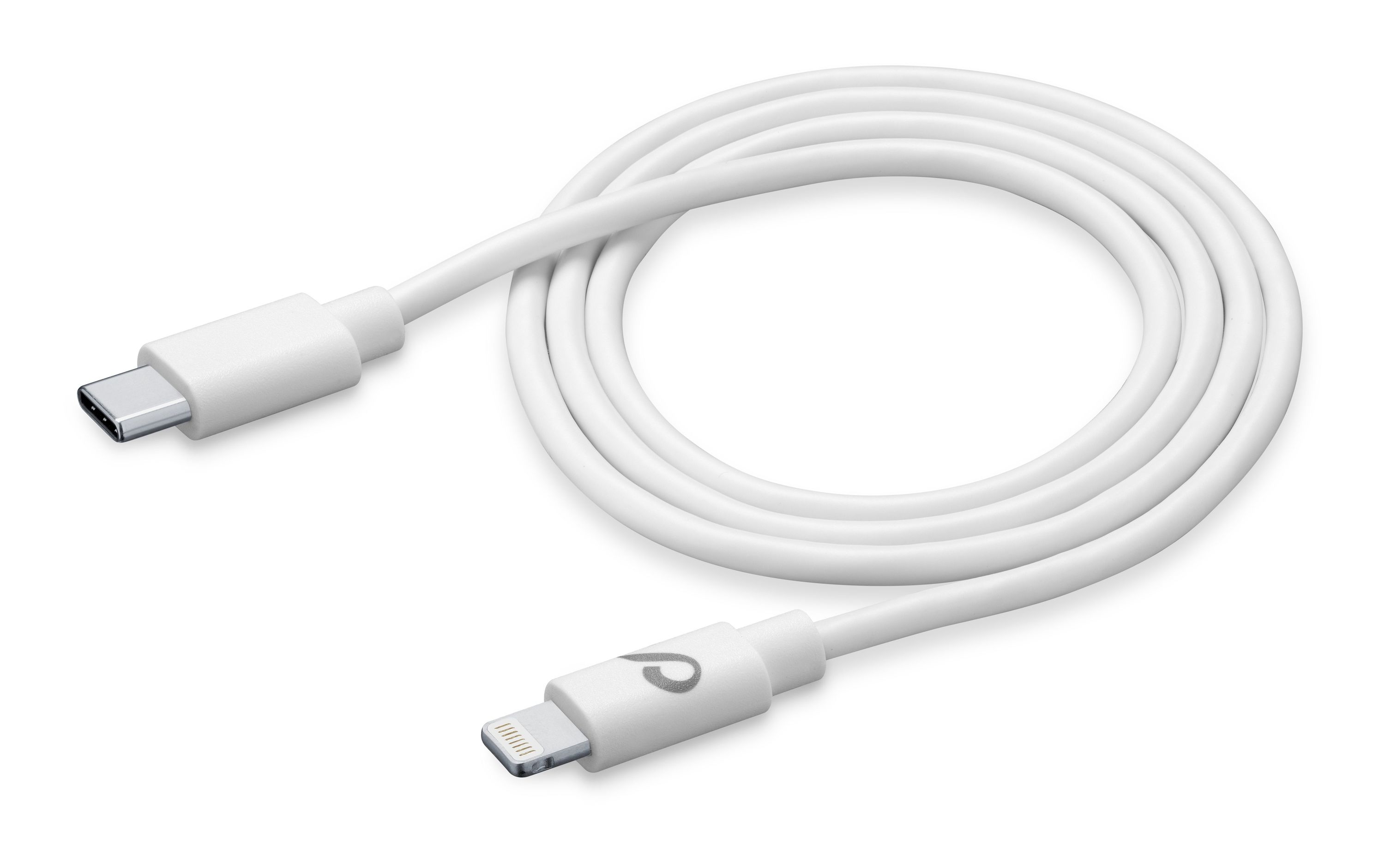

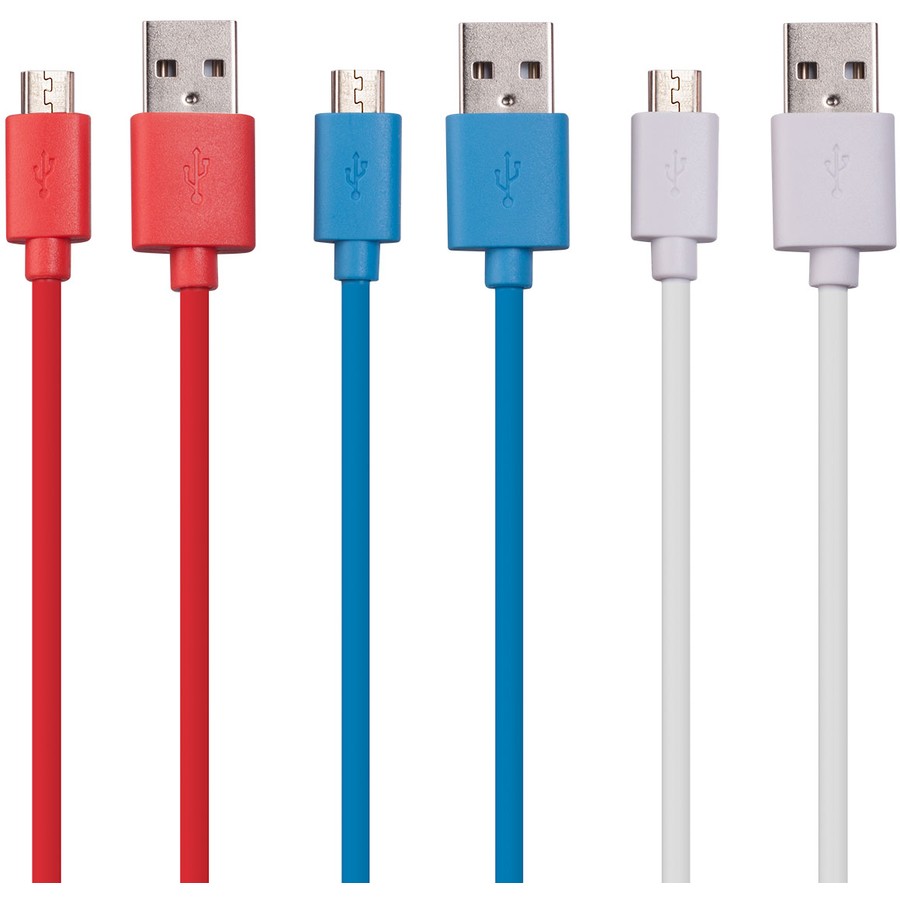

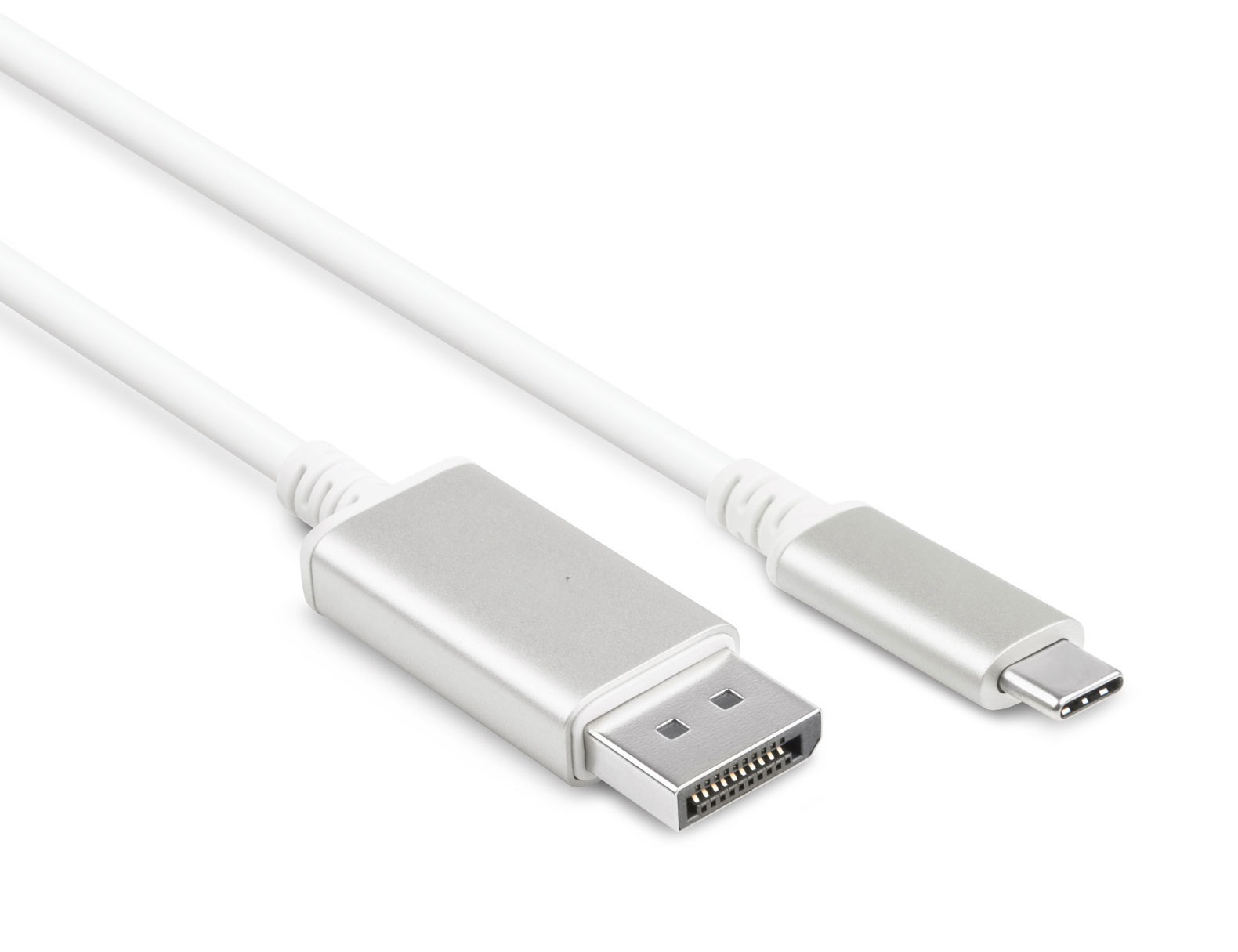

Introduction and Usage of USB Cable



USB is the most widely used external bus standard in the PC field. It is used to regulate the connection and communication between computers and external devices. The USB interface supports plug-and-play and hot-swappable functions of the device. With the rapid development of computer hardware, the application of USB has increased the speed of data transmission between external devices. The greatest benefit of the increase in speed for users is that users can use more efficient external devices, such as USB 2.0 scanners and scans. A 4M picture only takes about 0.1 seconds, which greatly improves work efficiency.



Usage:

The USB data cable is used for the connection and communication between the computer and the external equipment, and can also be used for the charging of the mobile phone and the connection with the outside. In layman's terms, it is used to transfer data and charge. USB supports devices according to different interfaces and data lines: mouse, keyboard, printer, scanner, camera, flash disk, MP3 player, mobile phone, digital camera, mobile hard disk, external optical floppy drive, USB network card, ADSL Modem, Cable Modem, etc. electronic product.

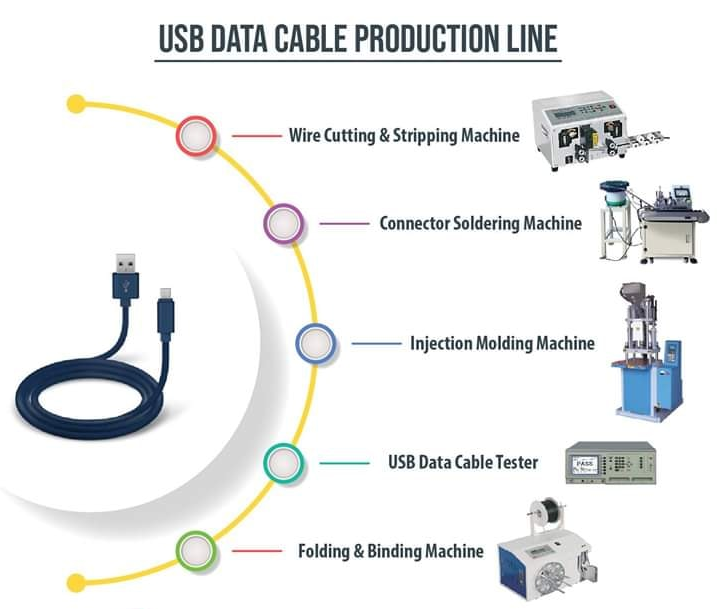

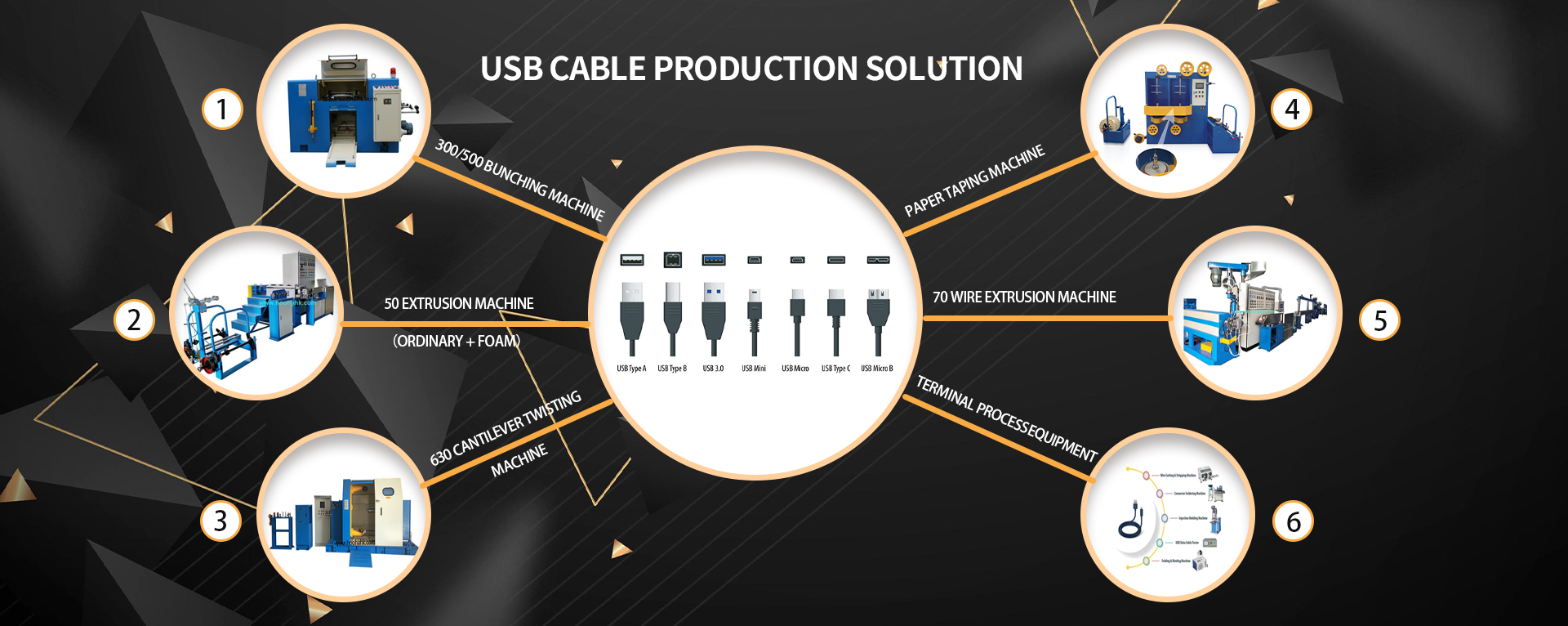

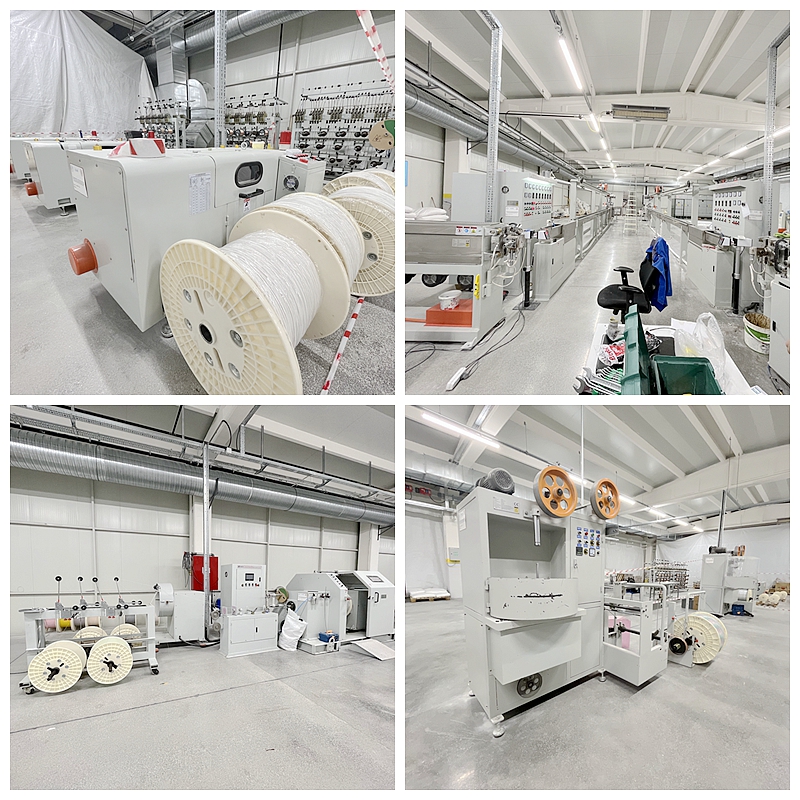

Production Process and Related Machines

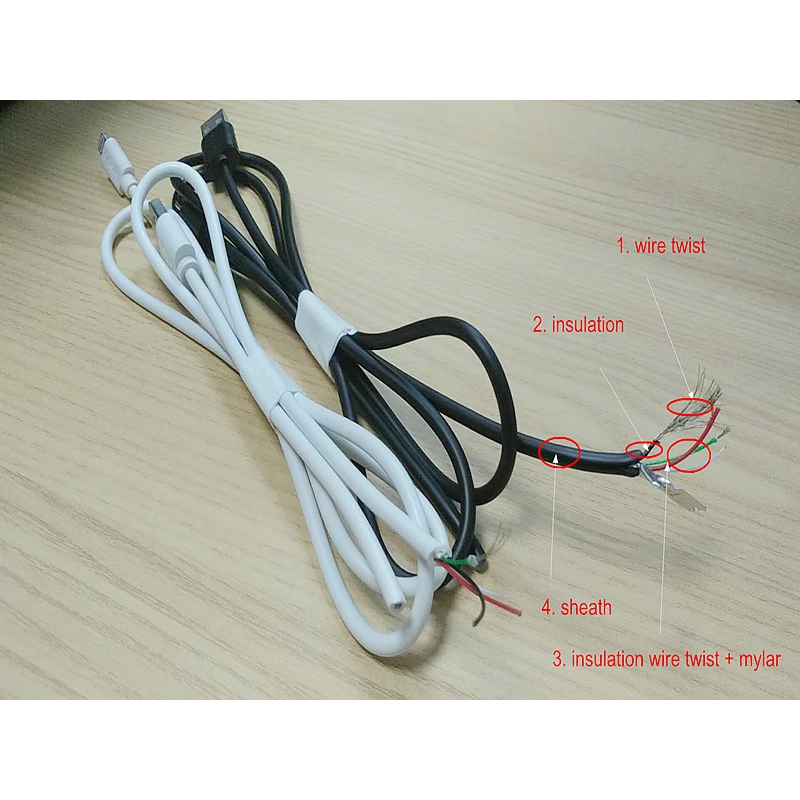

1. Conductor Stranding →

HH-B-500 High Speed Bunching Machine





2. Conductor  Insulation

HH-E-PLC 50 Extrusion Machine



3. Core Wire Stranding →

630 Cantilever Single Twisting Machine



4. Stranded Core Wire Sheath

PLC 70 Extrusion Machine



Components and Parameters

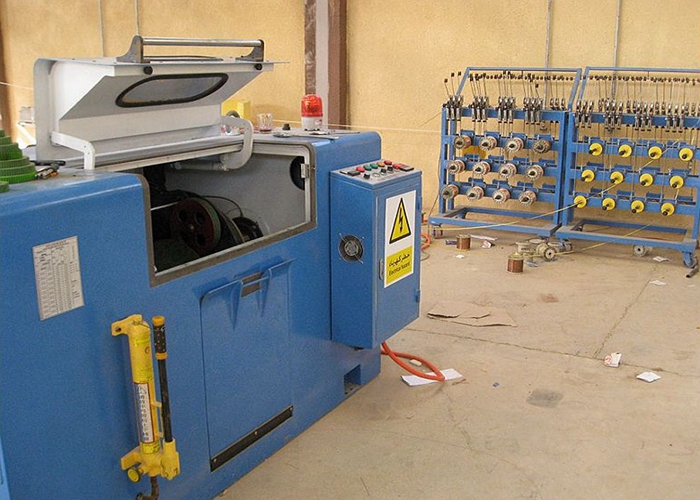

1. HH-B-500 High Speed Bunching Machine



Application:

It is suitable for stranding of the copper wires with more than seven strands, also suitable for electronic wires, power wires, bare copper wires, network wires etc.



Components:

No.

Items

Quantity

1

500 Bunching machine

1 set

2

Pay off stand multi-core copper wire

1 set



Parameters:

No.

Items

Value

1

Single wire diameter

Ø0.08mm-Ø0.30mm

2

Stranding area

0.3mm2-2.5 mm2

3

Stranded wire length calculation

How many meters per minute = twisting distance *2/1000* twisting bow speed per minute

4

Twisting pitch

5.66 - 39.37mm

5

Rotation speed of arched band

Max: 2200RPM.

6

Spindle lubrication

Use manual grease gun to inject oil

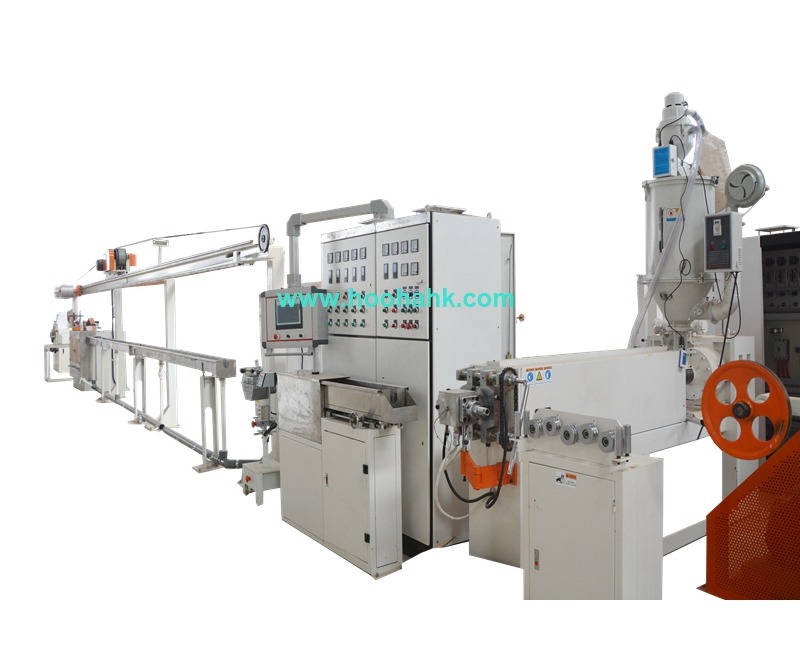

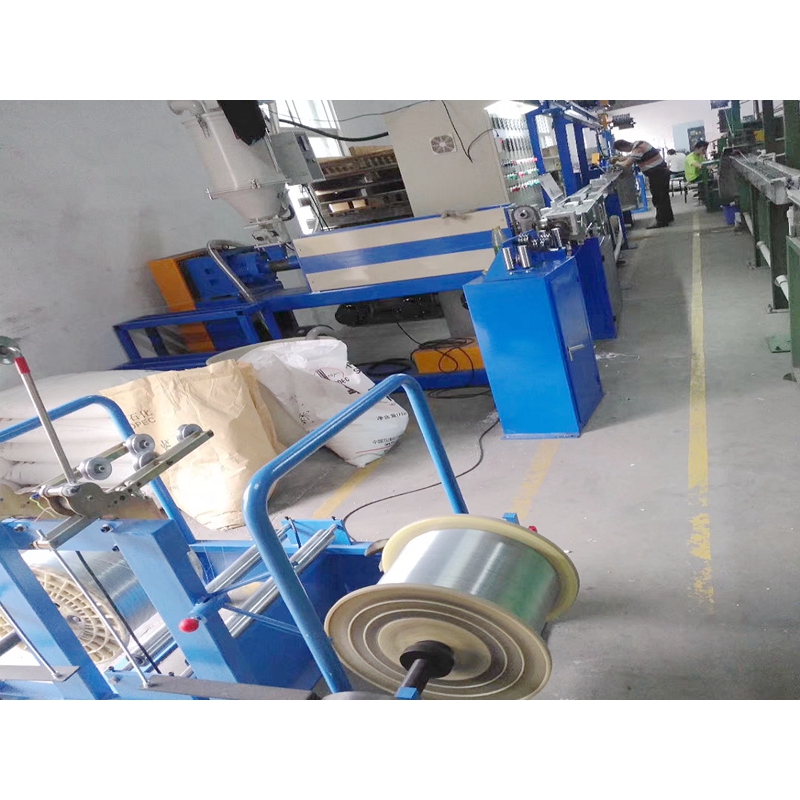

2. HH-E-PLC 50 Extrusion Machine



Application:

This equipment is suitable for outer surface extrusion of wires and cables with insulation materials such as PVC/PE.



Components:

No.

Items

Features

1

400-630 motorized pay-off stand

1 set

2

5-wheel Straightening device

1 set

3

50 Host extruder

1 set

4

50 Adjustable extrusion head

1 set

5

Automatic drying and feeding machine

1 set

6

PLC electric control box

1 set

7

1.5m Movable water tank with cover

1 set

8

Diameter tester

1 set

9

8m Fixed water tank with cover and leak-proof

1 set

10

10 m Slide rail type + anode guide wheel storage rack

1 set

11

410mm tractor

1 set

12

Meter counter

1 set

13

High frequency spark tester

1 set

14

400-630 Double-head shaftless motorized take-up stand

1 set

15

Display board

1 set

16

Accessories

1 set



Parameters:



No.

Items

Features

1

Inlet Wire Diameter

0.5~3 mm

2

Finished Wire Diameter

1~5 mm

3

Cross Sectional Area

0.5~2.5 square mm

4

Extrusion Speed

Max 500 m/min

5

Extrusion Capacity

80 kg/h

6

Installed Capacity

45 kva

7

Voltage

380KV, can be customized

8

Weight

3500 kg

9

Measurement (L*W*H)

20*3*3 m

10

Workers recommendation

3 workers





3. 630 Cantilever Single Twisting Machine



Application:

It is suitable for the twisting and synchronous winding of insulated core wires such as USB cable,  electrical cable, communication cable and data cable etc. This single twisting machine is widely used in various types of wires and cables production process.



Components:

No. Items Quantity
1 8 Heads Horizontal tension pay off stand 1 Set
2 PLC Siemens electric control box 1 Set
3 Wire collection device 1 Set
4 Wrapping machine 1 Set
5 630 Cantilever single twisting main machine 1 Set



Parameters:

Motor

Drive (Main machine) motor: AC 380V 10 HP

Capstan motor: AC 380V 5 HP

Linkage wrapping machine motor: AC 380V 2 HP



Inverter

Drive (Main machine):10 HP

Capstan: 5 HP

Linkage wrapping machine:2 HP



Electric control box

PLC Systems: SIEMENS brand, Man-machine interface complete computer control

Tickle touch screen: Easy to operate

Human Interface: SIEMENS





4. PLC 70 Extrusion Machine



Application:

This equipment is suitable for outer surface extrusion of wires and cables with insulation materials such as PVC/PE.



Components:





Parameters:

No.

Items

Features

1

Inlet Wire Diameter

1~4mm

2

Finished Wire Diameter

2~8 mm

3

Cross Sectional Area

1~6 square mm

4

Extrusion Speed

Max 400 m/min

5

Extrusion Capacity

140 kg/h

6

Installed Capacity

55 kva

7

Voltage

380KV, can be customized

8

Weight

4000 kg

9

Measurement (L*W*H)

24*3.5*3.5 m
