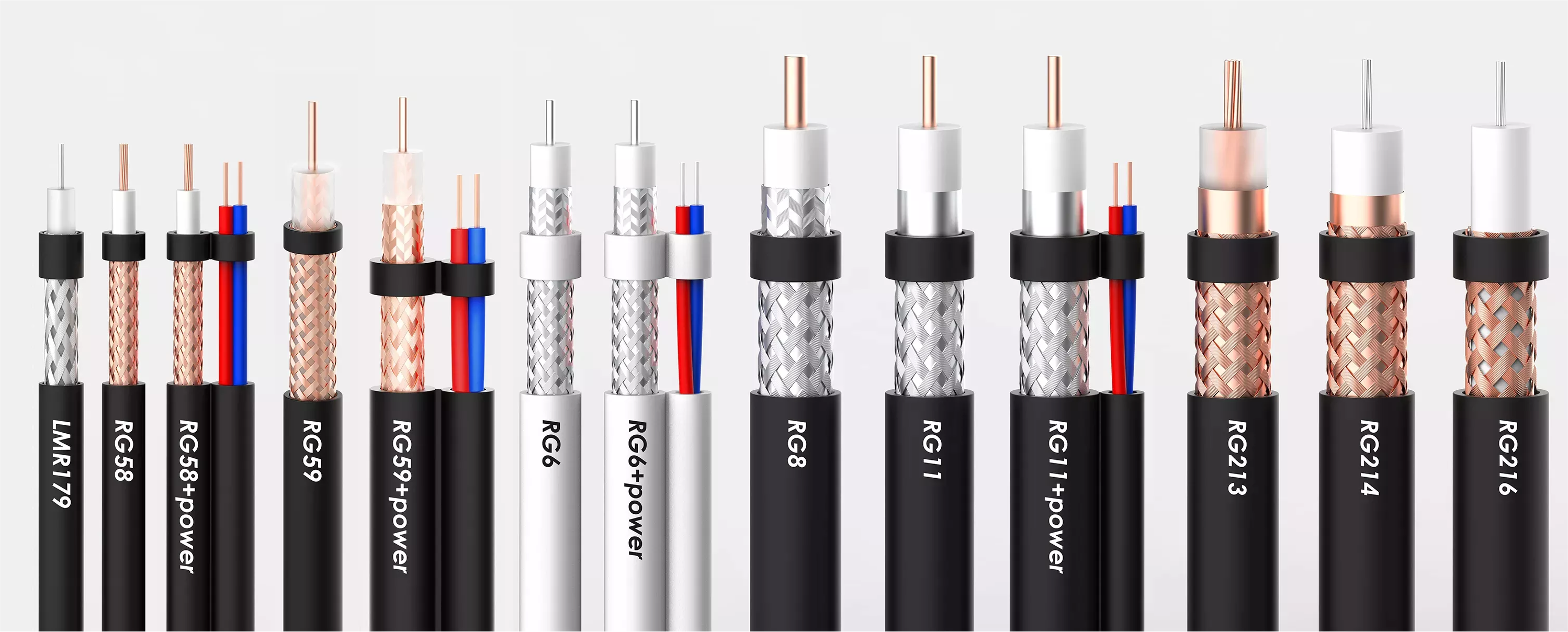

CCTV Cable

CCTV Cable
Description



Introduction and Advantage of CCTV Cable



Introduction:

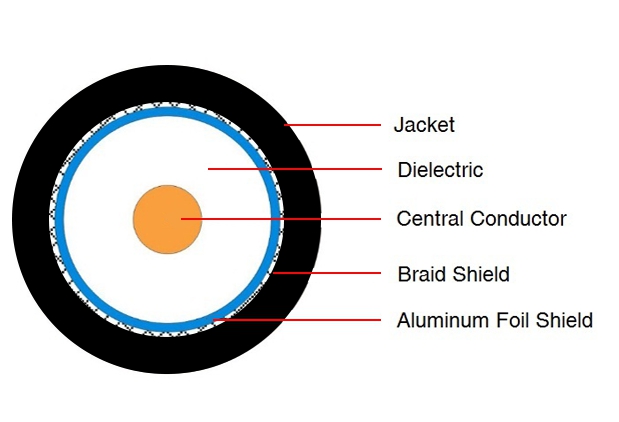

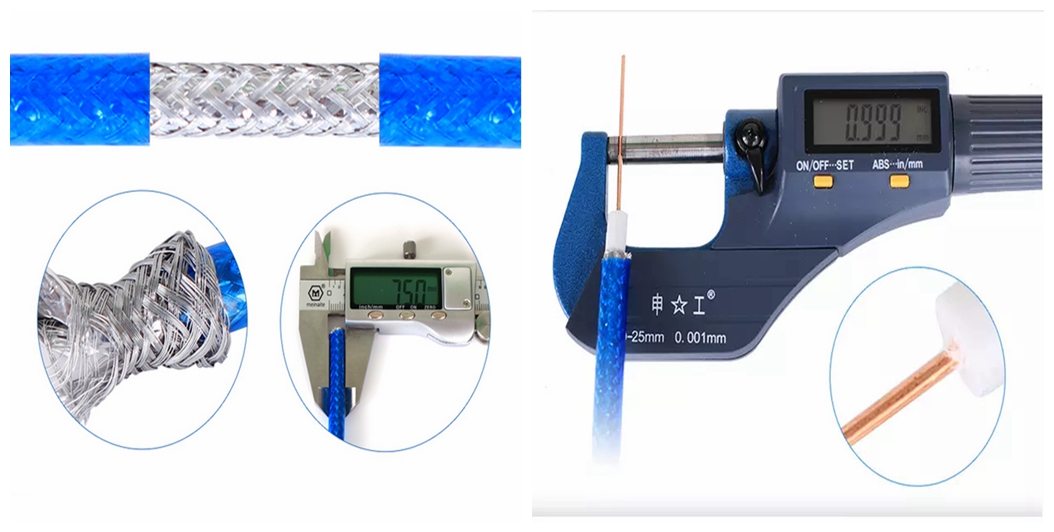

The central conductor of the cable is BC. BC stands for Bare Copper wire. And it also can be CCS. CCS stands for Copper-clad-Steel. BC has a great electric conductivity. It ranks second only to silver. But its price is higher. CCS is relatively cheaper. With the skin effect in high frequency, CCS is used to transmit signals in a coaxial cable. (Such as the connection between TV and VCD, outdoor antenna and CCTV, etc.)So compared to the hard wire, copper wire has greater strength of the expansion. It also can be used as the aerial cable over long stances in the high mountains or across the rivers.

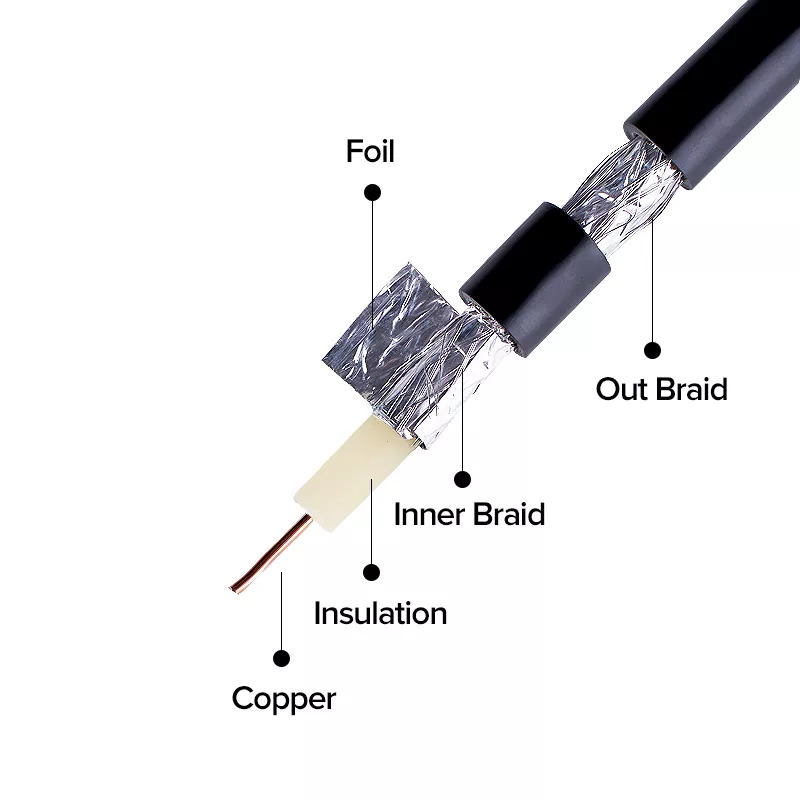

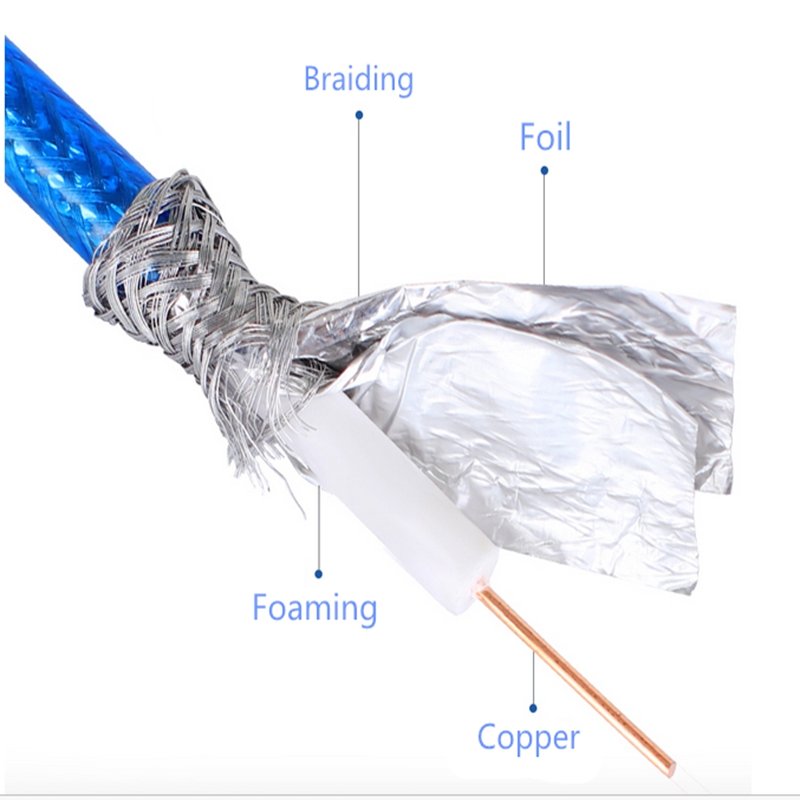

There are three types of shielding.The first one is the standard shielding. The structure is single-sided APC(Aluminum-plastic composite) tape plus braiding.

Then the second one is the triple-layer shielding. The structure is single-sided APC tape plus braiding plus double-sided APC tape.

Lastly the third one is the four-layer shielding. The structure is single-sided APC tape plus braiding plus double-sided APC tape plus braiding.

The shield can help to reduce signal interference. It can prevent the outside condition from affecting the transmission. Likewise, it can prevent the transmission from affecting the outside condition.

The shielding also serves as an outer conductor. The greater thickness and higher density of shielding is, the higher strength of protection will be.

The materials of the shielding are various. They include aluminum-polymer taped wrapping, copper braiding, copper taped wrapping, etc. So far coaxial cables have adopted the braiding of Al-Mg Alloy Wire. So they can increase the strength and reduce cost. The copper wire and copper-clad aluminum wire are a bit expensive. Thus, its usage number isn’t large.





Advantage:

First of all, the cable has multiple applications. It is commonly used to transmit audio and video signals. You can use it for TV connection and computer network.

Second, the cable has a stable transmission speed. Besides, it is good at reducing signal losses and interference due to its insulation.

Third, it is very durable and flexible. You can use it for a very long time. Also, it is easy to bend and run. So you can install it easily by yourself.

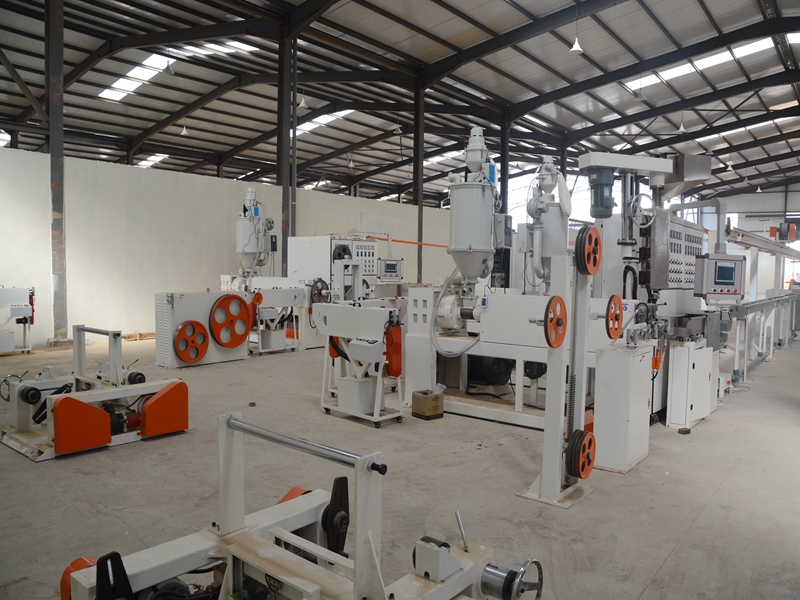

Production Process and Related Machines



1. Physical Foaming →

HH-E-65+35 Physical Foaming Two Layer Co-extrusion Machine







2. Braiding

HH-BR-High Speed 16/24 Spindle Braiding Machine







3. PVC Sheath →

HH-E-PLC 70 Extrusion Machine

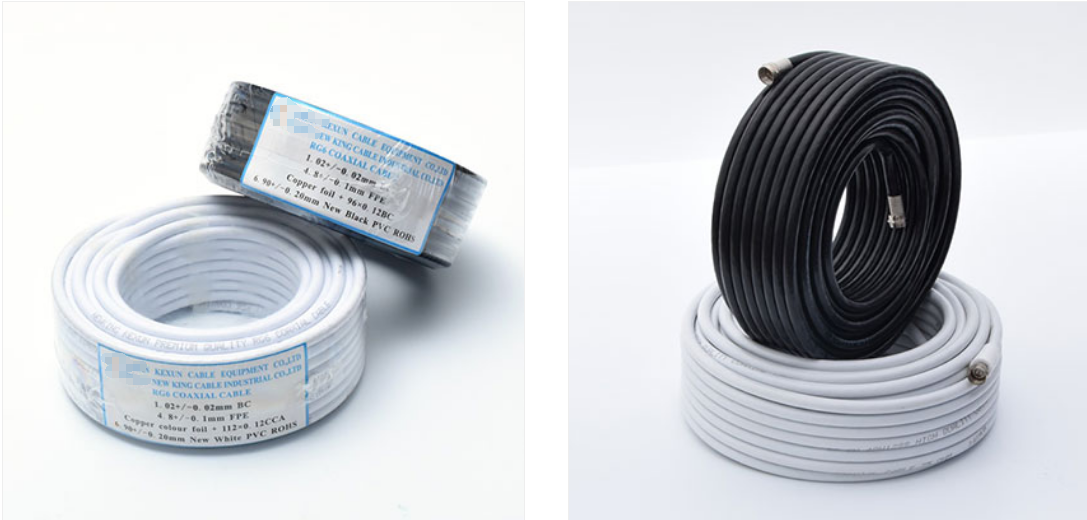

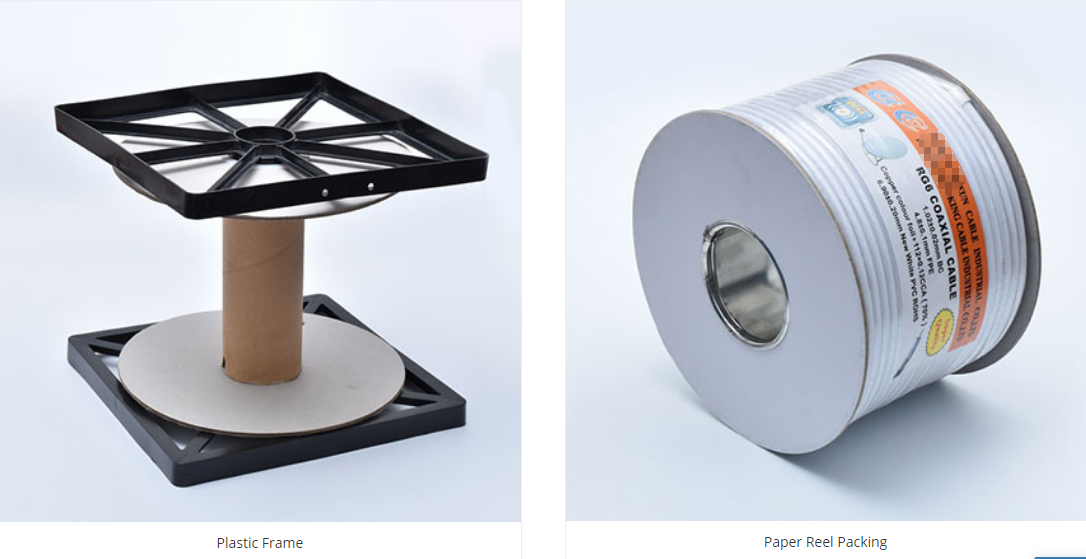

4. Packing

100m/Roll, 1000m/Spool



(1)Roll Packing



(2)Spool Packing



Components and Parameters

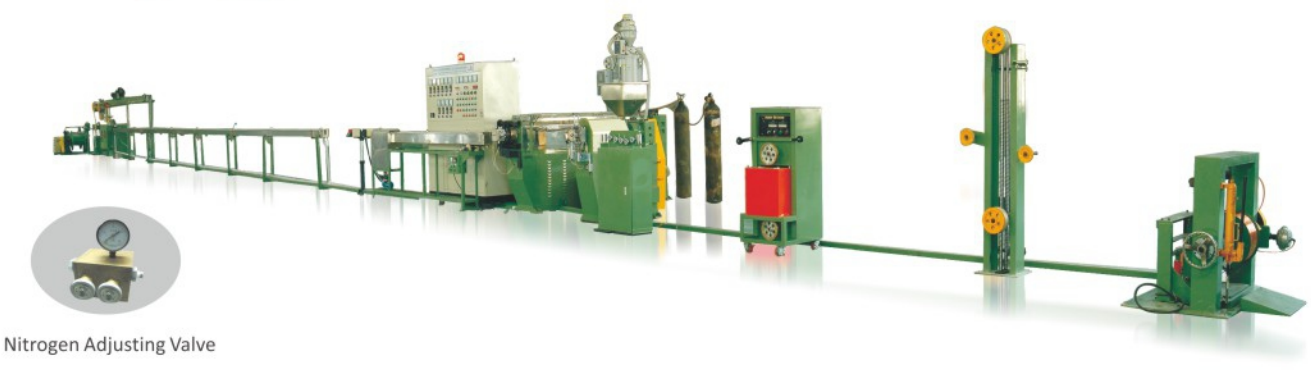

1. HH-E-65+35 Physical Foaming Two Layer Co-extrusion Machine



Application:

Two layer high pressure physical foaming production is used for high quality signal cable, data cable (skin-foam-skin) insulated core wire, adopt high pressure nitrogen inject to foaming in two layer co-extrusion production line.



Components:



No.

Items

Features

1

400-630 active pay-off stand

1 set

2

Copper Wire preposition tension stand

1 set

3

Copper wire preheating machine

1 set

4

65 physical foaming host extruder

1 set

5

Automatic drying and feeding machine

1 set

6

35 inner skinning extruder

1 set

7

Siemens PLC electric control box

1 set

8



1.5m Movable water tank with cover

1 set

9

Diameter tester

1 set

10

8m Fixed water tank with cover and leak-proof

1 set

11

Underwater static capacitance tester

1 set

12

12 m Slide rail type + anode guide wheel storage rack

1 set

13

410mm tractor

1 set

14

Meter counter

1 set

15

High frequency spark tester

1 set

16

400-630 Double-head shaftless take-up stand

1 set

17

Accessories





Parameters:



No.

Items

Features

1

Inlet Wire Diameter

0.8-2.0 mm

2

Finished Wire Diameter

3.0-8.0 mm

3

Cross Sectional Area

0.5-10 square mm

4

Extrusion Speed

Max 150 m/min

5

Extrusion Capacity

80 kg/h

6

Foaming degree

74%

7

Centrality

95%

8

Installed Capacity

75 kva

9

Voltage

380KV, can be customized

10

Weight

7800 kg

11

Measurement (L*W*H)

25*2.5*2.5 m

12

Workers recommendation

3 workers







2. HH-BR-High Speed 16/24 Spindle Braiding Machine



Application:

It is suitable for the shielding or braiding of all kinds of high quality electric wire , computer wire etc.



Components:

No.

Items

Features

1

16/24 Spindle Braiding Machine

1 set

2

Wire Combining Machine

1 set



Parameters:



A. 16 Spindle Braiding Machine

No.

Items

Features

1

Braiding Direction

Vertical

2

Bobbin Number

16 ( 8 is inside , 8 is outside )

3

Bobbin Size

80mmx22mmx80mm

4

Bobbin Speed

50-150rpm

5

Braiding Pitch

3.2-35.5mm or 6.4-65mm

6

Braiding Cable Diameter

Max.14mm

7

Production Speed

Max.485 m/hour

8

Braiding Wire Material

0.1-0.2mm , Al, Mg wire , copper wire

9

Reel Diameter

630mm-800mm

10

Main Motor Power

1.1kw

11

Product Weight

854 Kg

12

Dimension

1200x1390x2350mm



B. Wire Combining Machine

No.

Items

Features

1

Combine wire diameter range

0.08mm-0.4mm

2

Speed

0-5000 RPM

3

Control

Automatic stop when reel is full , or copper wire broken

4

Motor

0.75 KW Inverter motor , stepless speed adjustable



3. HH-E-PLC 70 Extrusion Machine



Application:

This equipment is suitable for outer surface extrusion of wires and cables with insulation materials such as PVC/PE.



Components:





Parameters:

No.

Items

Features

1

Inlet Wire Diameter

1~4mm

2

Finished Wire Diameter

2~8 mm

3

Cross Sectional Area

1~6 square mm

4

Extrusion Speed

Max 400 m/min

5

Extrusion Capacity

140 kg/h

6

Installed Capacity

55 kva

7

Voltage

380KV, can be customized

8

Weight

4000 kg

9

Measurement (L*W*H)

24*3.5*3.5 m
