The twisting of the insulated core of the LAN cable is an important part of the entire production process. The stability of the pitch of the twisted pair and the consistency of the tension of the pay-off cable will affect the electrical performance of the finished cable. High-precision twisting pitch and constant tension of pay-off and pay-off are powerful guarantees for high-performance LAN cables.

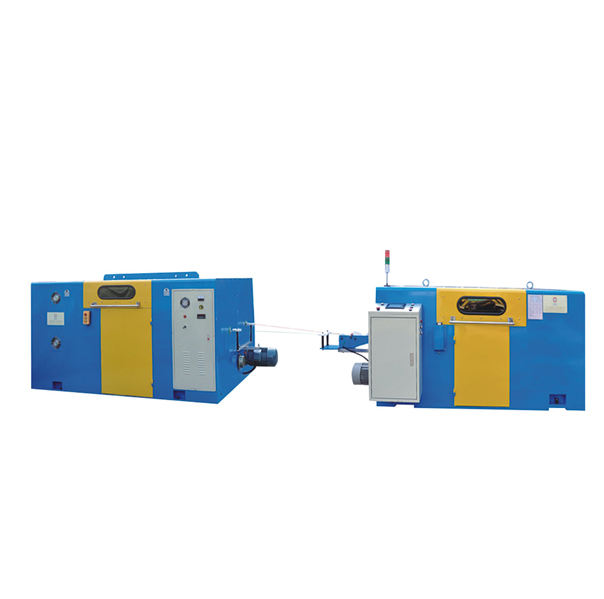

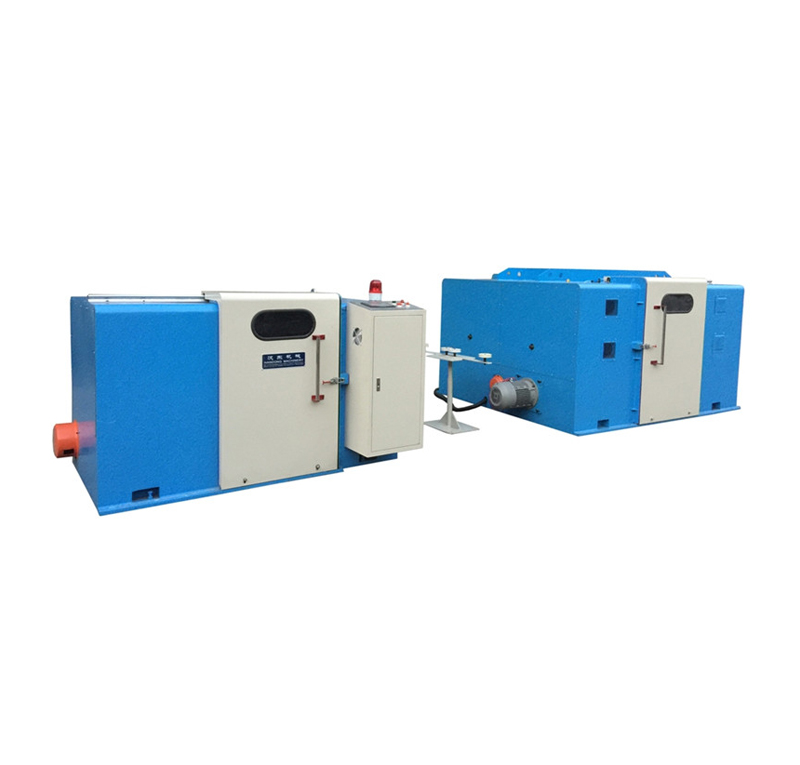

We can provide vertical and horizontal twisting machines in two structural forms, suitable for twisting Cat.5e, Cat.6, Cat.6A, Cat.7, Cat. 7A, Cat.8 two insulated core wires.
The test performance of the finished cables can meet the requirements of ISO 11801, IEC 61156, ANSI / TIA 568 and other standards.
The pair-twisting machine provided by our company has the following characteristics:
1) Stable pitch and high precision;
2) The tension of the retractable wire is constant and the tension is adjustable;
3) The back-twisting rate can be adjusted online, and the operation is convenient;
4) Fast twisting speed and high production efficiency;
5) Mechanical and electrical integration, PLC control of the whole machine, operation panel adopts color man-machine dialogue touch screen type, humanized design.
|
Max. core insulation Dia. (mm) |
1.40 |
|
Max. O.D. of stranding (mm) |
2.80 |
|
Pitch Changing mode |
Mechanical or electronic |
|
Back twist rate (%) |
0～50 |
|
Max. Stranding speed of the bow (rpm) |
200～2000 |
|
Twisting speed (T/min) |
400～4000 |
|
Max. Line speed (m/min) |
150 |
|
Twisting direction |
S or Z |
|
Pay-off and take-up (mm) |
φ500×φ250×300×φ56 (bobbin diameter × barrel diameter × outer width × axle hole) |
