Product Description

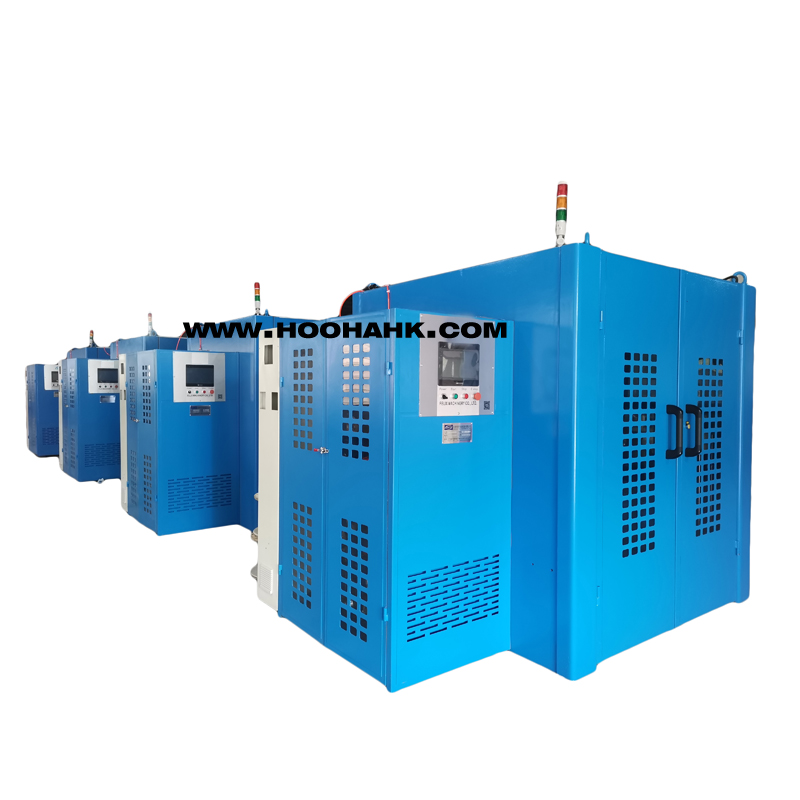

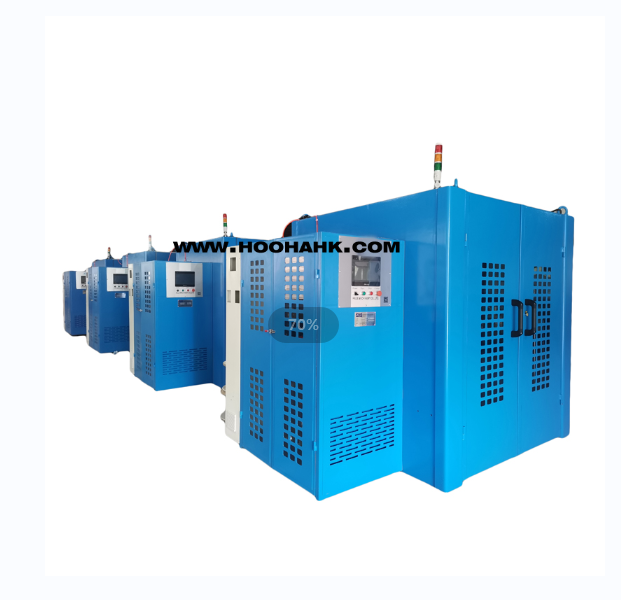

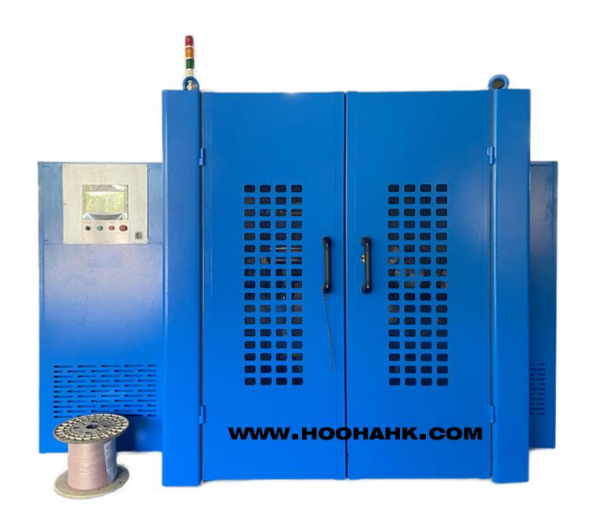

The Newly Developed 500 Twins Back Twisting Machine For CAT 7,8:
Specifacation
|
Name
|

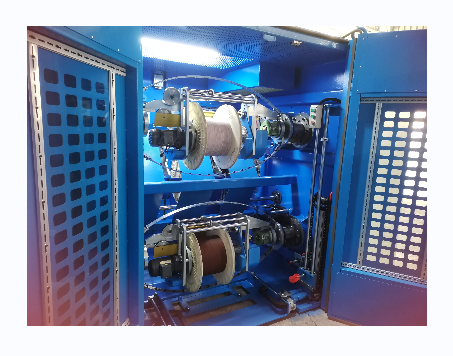

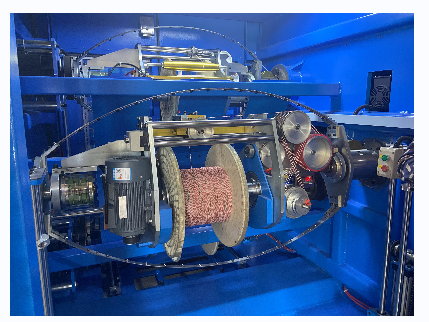

Ф500 horizontal double-disc rewind and unwind wire,
Ф500 electronic twisting distance twisting machine
|
|
Usage
|
Suitable for LAN CABLE CAT5,CAT5E,CAT6A,CAT7,CAT8 signal cable twisting
|
|
Core wire specifications
|
Best range:Ф0.8~2.0mm
|
|
Strand O.D.
|
Best range:Ф1.6~4.0mm
|
|
RPM range
|
For details, please refer to the product parameters of the twist release and stranding mainframe
|
|
Strand pitch setting
|
Touch screen + PLC program setting
|
|
Range of strand pitch
|
Optimal range:5~30mm, special specifications must be written in the custom
item
|
|
Retorsion rate
|
0~100% arbitrary setting
|
|
Tolerance of strand pitch
|
±2%
|
|
Strand direction
|
S,Z are available
|
|
Production speed
|
Winch TPM x winch pitch/1000 m/min (depending on winch pitch and retracting rate)
|
|
Tension form
|

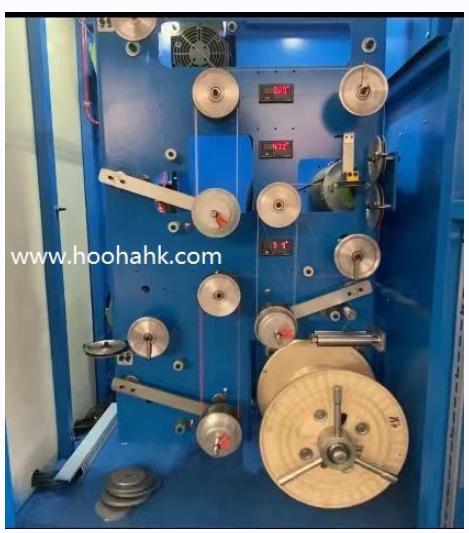

Pendulum type constant tension control
|
|
Lineup type
|
Light bar arrangement
|
|
Voltage of the whole machine
|
Three phase 380V as standard, non-standard as specified by customer
|
