Equipment composition
|
No. |
Name |
Specification |
Qty |
|
1 |

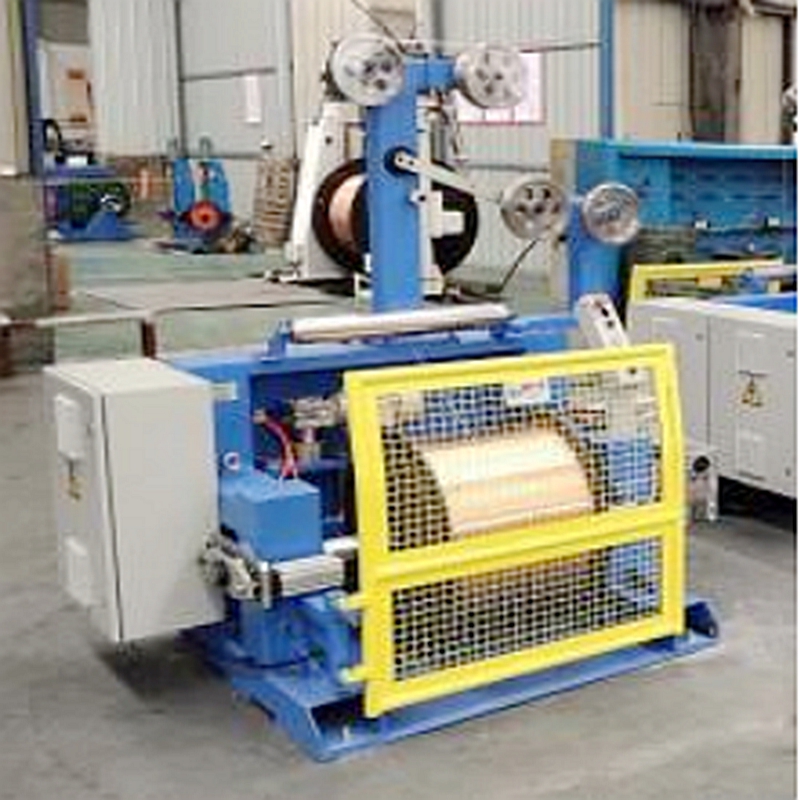

Box type pay off |
630-800 |
7 |
|
2 |

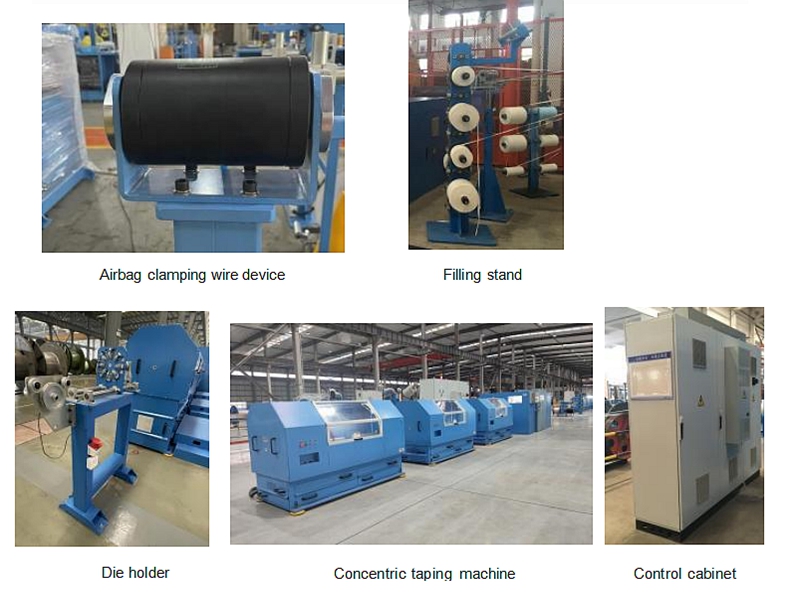

Die holder |
LP-10 |
1 |
|
3 |
Airbag clamping wire device |
1 |
|
|
4 |
8 Heads filling stand |
200 |
1 |
|
5 |
Concentric taping machine |
500 |
3 |
|
6 |

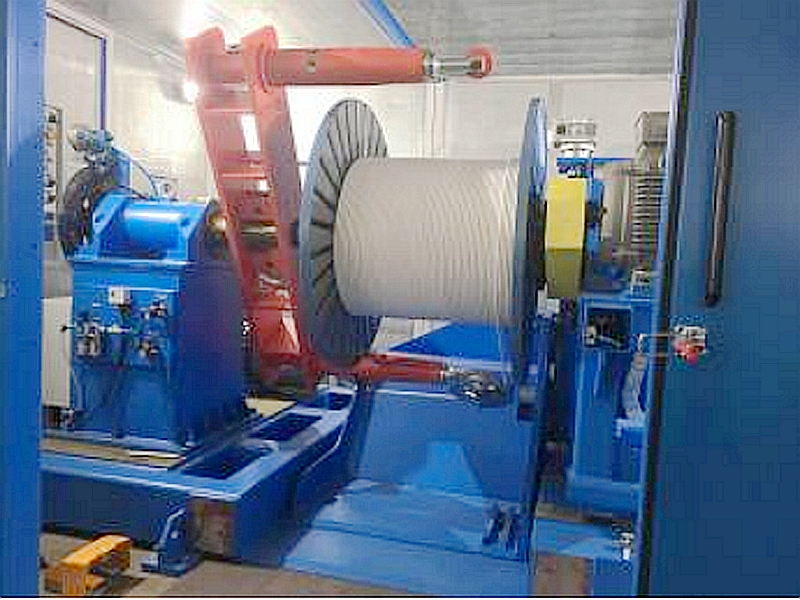

Cantilever type single twister |
1250ARM |
1 |
|
7 |
Main control cabinet |
S7-1200 |
1 |
|
8 |
Air conditioner of cabinet |
1 |
|
|
9 |
Automatic oil lubrication system for host |
2 |
|
|
10 |
Automatic oil lubrication system for concentric taping machine |
|
1 |
|
11 |
Automatic bearing temperature sensing system |
1 |
|
|
12 |
Molds |
|
1 |
|
13 |
Spare parts |
|
1 |
Model |
1250 |
1600 |
2000 |
Wire diameter(mm) |
1.5-5.0 |
3.0-15 |
5.0-15 |
Max cabling diameter(mm) |
25 |
35 |
50 |
Pitch range(mm) |
30-350 |
50-600 |
50-700 |
Take-up(mm) |
1250 |
1600 |
2000 |
Max line speed(rpm) |
500 |
300 |
200 |
Direction |
S or Z |
||
