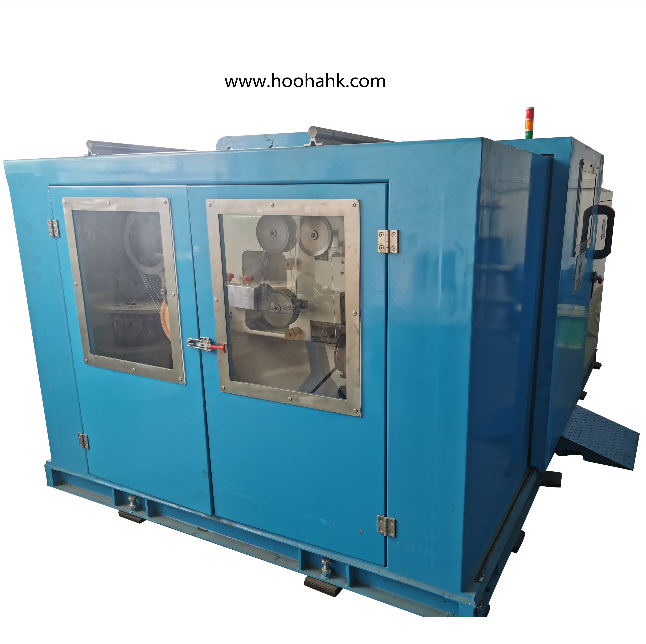

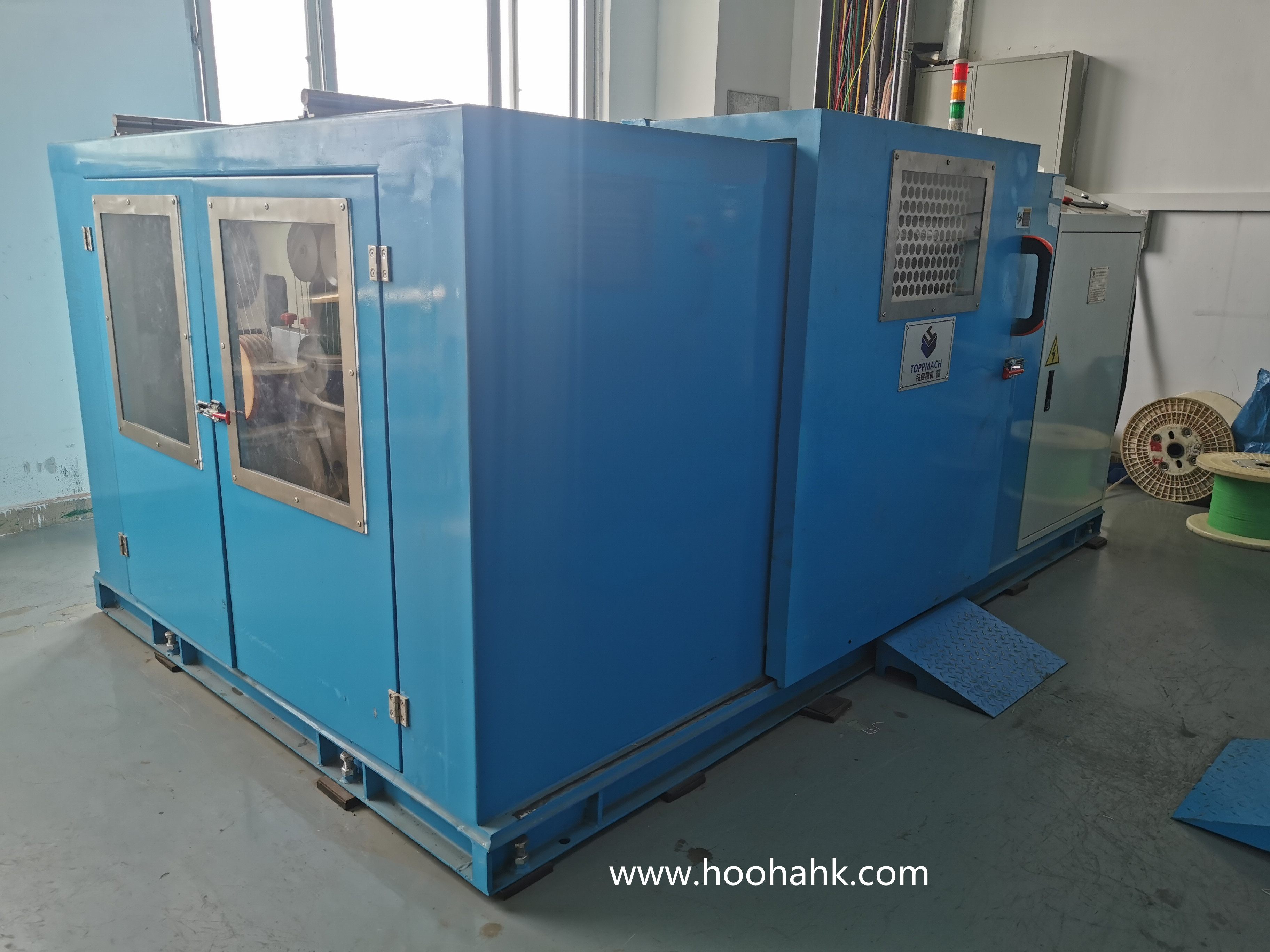

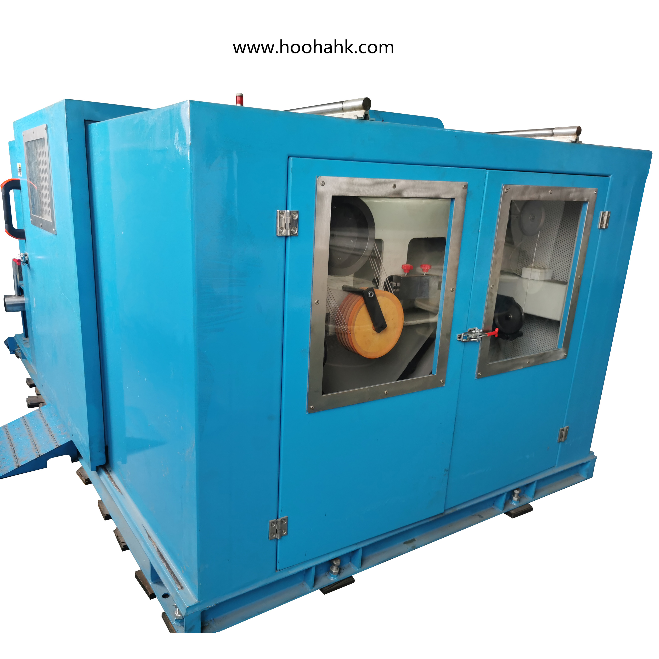

HH-T-500 Intelligent Triple High Speed Back Twisting Pair Machine

Product Attributes :

FOB Price: 398800-428800 USD

Payment Terms: T/T, L/C

Delivery Time: 60 working days

Max cage rotate speed: 2000RPM

Max line speed:150m/min

Warranty: 12 months

Product Description

500 intelligent triple high speed back twisting pair machine

Application:Applicable to the twisting of the LAN cable, the torque can be set according to the wire requirements within the range of 0---100%, so that the wire can meet the requirements of the 5, 6, 7, and 8 types of cables (due to the raw materials If the failure is not met or the production technical parameter design problem is not met by the test standard, it is not included in this range; and the speed is more than 30% higher than that of the back-twisting machine.

Main Parts

1.500 Outside active pay off

2.500 Back twist single stranding machine

3.222 External servo tractor

4.500 pair twist take-up part

5.Electric Control cabinet

Specifications

Bobbin size

500mm*300*∮56mm

Adaptation wire diameter

0.59mm---1.5mm

Wire tension

0.6—3KG

Highest wire speed

150m/min (depend on wire requirements)

Cable tension

up to 5KG, adjustable

Maximum line speed

150m/min (depending on wire requirements)

Power

750W Delta servo motor + controller

Max turning speed

2000RPM (4000 strands)

Winch distance

5mm-60mm (freely set within this range, the lay length error rate is 2%)

Max row pitch

10mm

Color

Specified by the customer

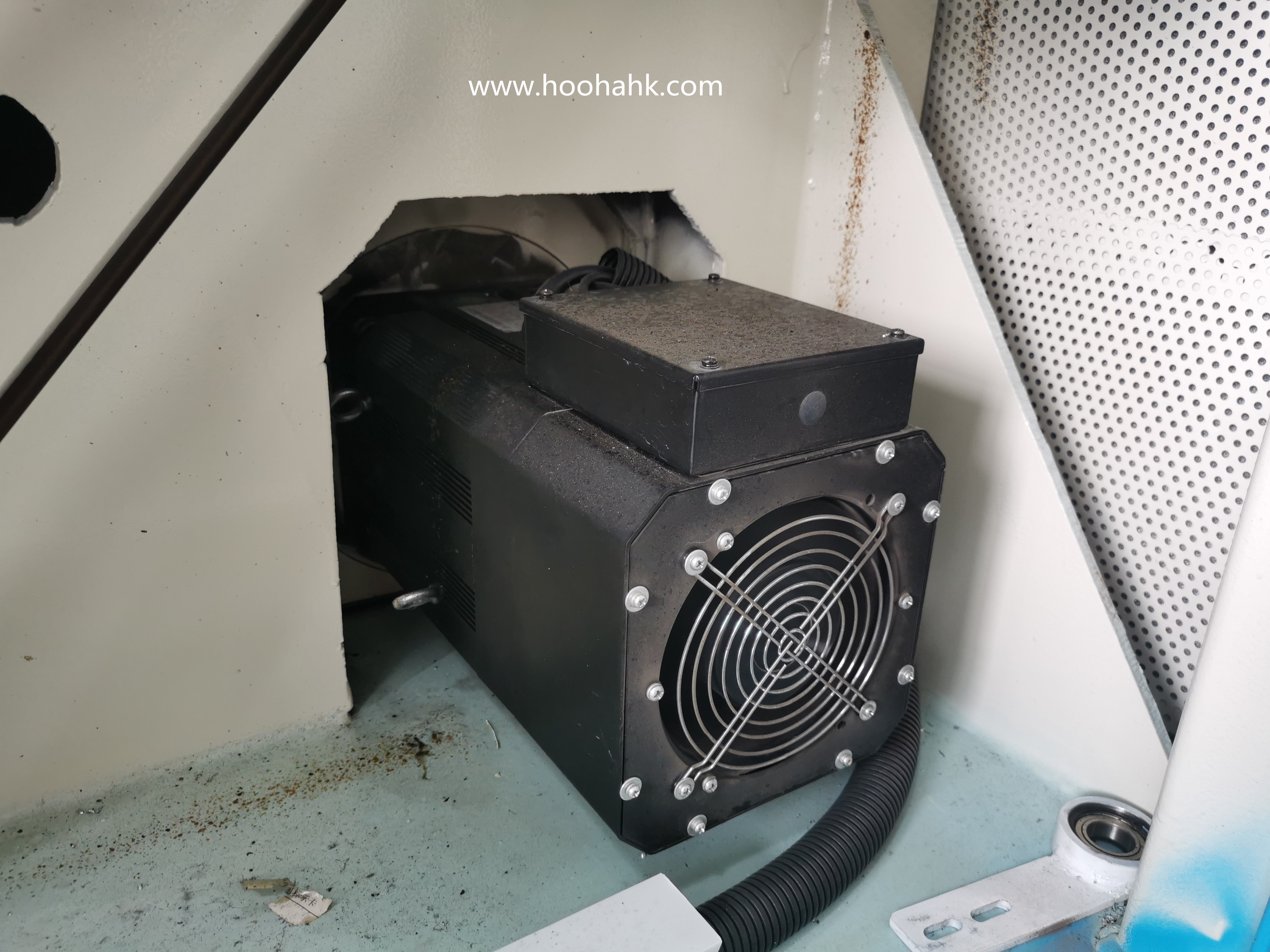

Main motor power

7.5 HP

Weight

about 4500 KG

Volume

L x W x H=3.2 m x 1.6 m x 2 m

Samples

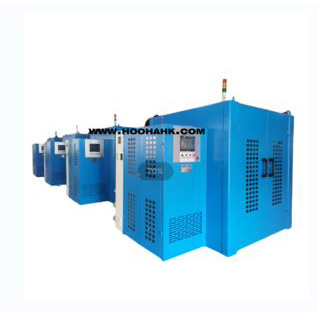

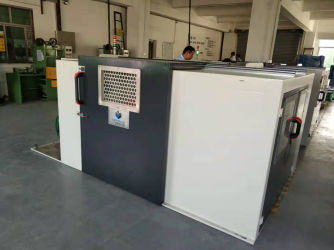

Factory Picture
