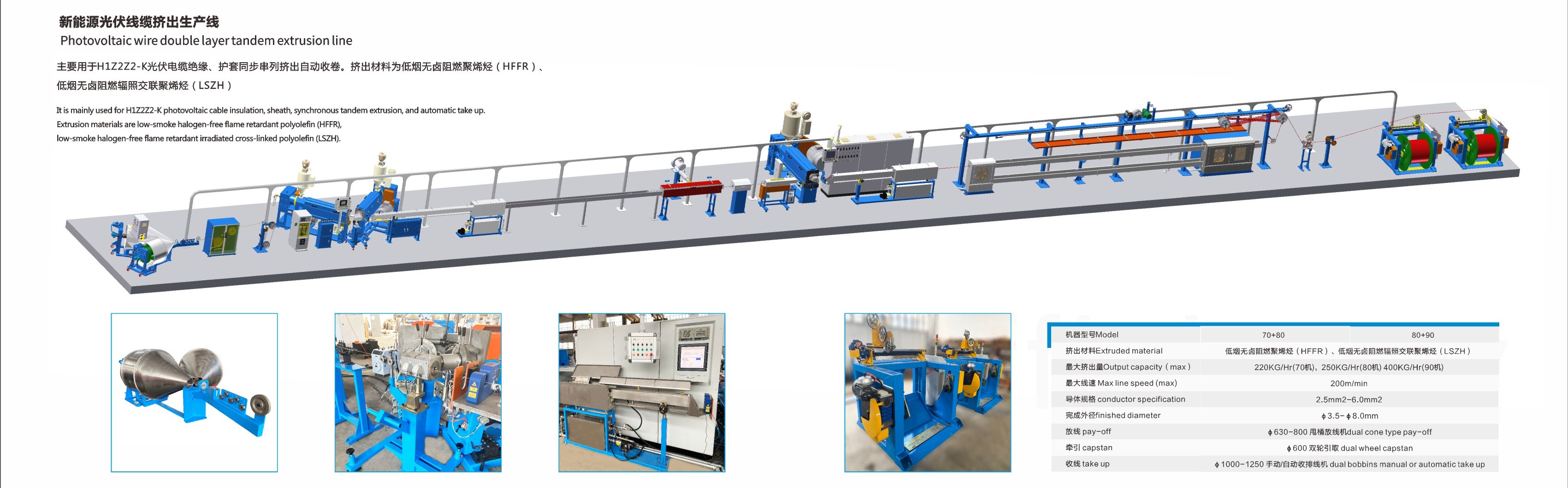

HH-Solar cable making machine

No.

Items

Features

1

Inlet Wire Diameter

1～12mm

2

Finished Wire Diameter

1～16mm

3

Cross Sectional Area

1～6 square mm

4

Applicable material

XLPE/XLPO/PE

5

Extrusion Speed

0-500 m/min

6

Extrusion Capacity

70 extruder: 200 kg/h

90 extruder: 350kg/h

7

Extruding Speed

1.4mm²XLPE/XLPO/LSOH photovoltaic cable speed is around 10-200m/mun

2.6mm²XLPE/XLPO/LSOH photovoltaic cable speed is around  10-150m/min

8

Screw Rotational Speed

70 extruder: 1-75 Rpm

90 extruder: 1-75 Rpm

9

Installed Capacity

55 kva

10

Voltage

380V, can be customized

11

Weight

9000 kg

12

Measurement (L*W*H)

24*3.5*3.5 m

13

Center height

1000m

14

Workers recommendation

3 workers

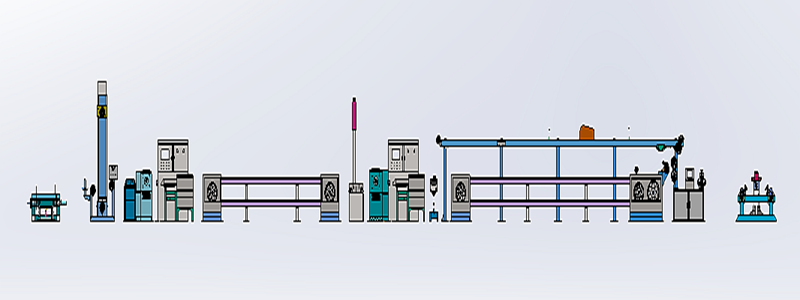

No.

Description

Qty

1

Dual head barrel type  500-630 pay off

1 set

2

5-wheel Straightening device

1 set

3

4-wheel tension stand

1 set

4

70 Host extruder

1 set

5

90 Host extruder

1 set

5

70 Adjustable extrusion head

1 set

6

90 Adjustable extrusion head

1 set

7

100KG Automatic drying and feeding machine

2 sets

8

PLC Electric control box

2 sets

9

1.5m Movable water tank with cover

1 set

10

X*Y Cable Diameter Measuring device with display control screen

2 sets

11

High speed printing machine

1 set

12

6m Double fixed water tank with cover and leak-proof

1 set

13

American air blower

4 sets

14

12 m Slide rail type + anode guide wheel storage rack

1 set

15

600mm tractor

1 set

16

Meter counter

1 set

17

15KV spark tester

1 set

18

800-1000mm Double-head shaftless motorized take-up stand

1 set

19

Display board

1 set

20

Accessories

1 set

21

Conductor connector

1 set
