HH-E-90 Optic Fiber Cable Jacket Machine

HH-E-90 Optic Fiber Cable Jacket Machine
HH-E-90 Optic Fiber Cable Jacket Machine HH-E-90 Optic Fiber Cable Jacket Machine HH-E-90 Optic Fiber Cable Jacket Machine HH-E-90 Optic Fiber Cable Jacket Machine HH-E-90 Optic Fiber Cable Jacket Machine
Product Attributes :

FOB Price: 200,000 ~ 250,000 USD

Payment Terms: T/T, L/C

Delivery Time: 90 working days

Max. Cores diameter:Φ30mm

Speed: 100 m/min

Installed capacity:130 kw

Warranty: 12 months

Product Description

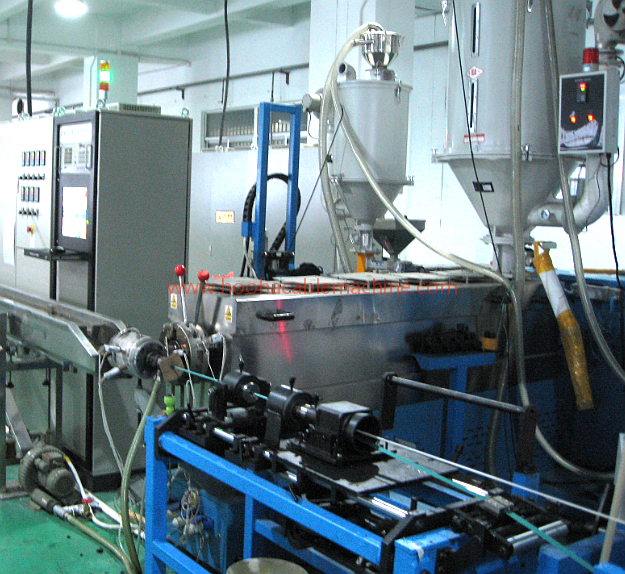

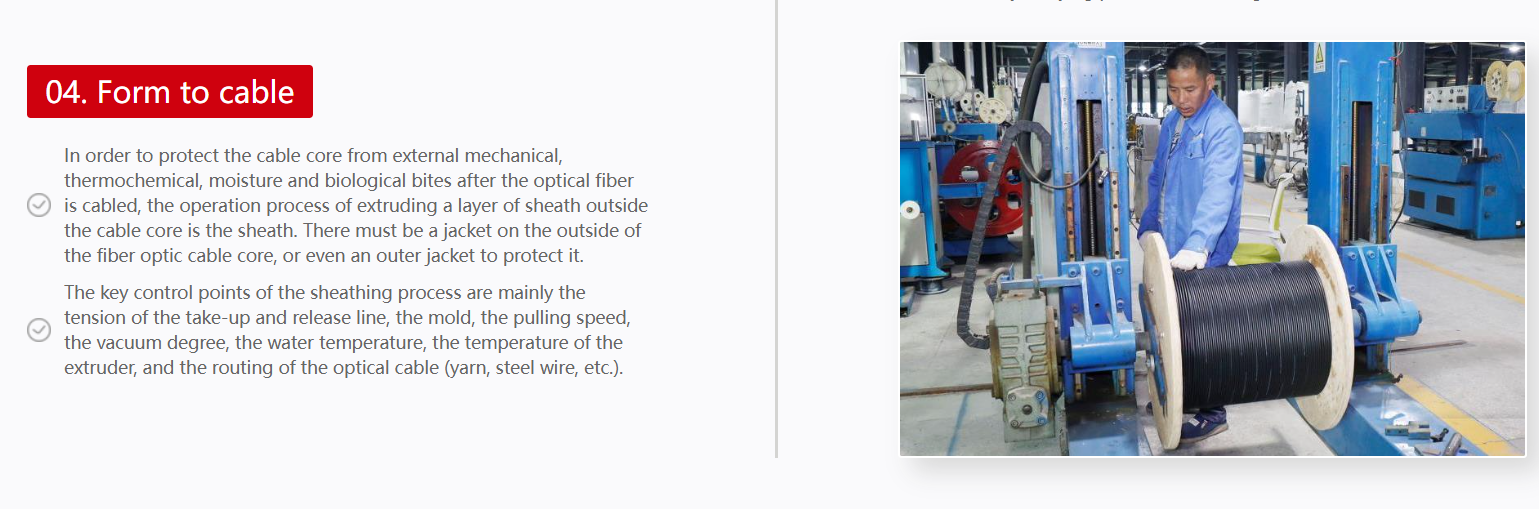

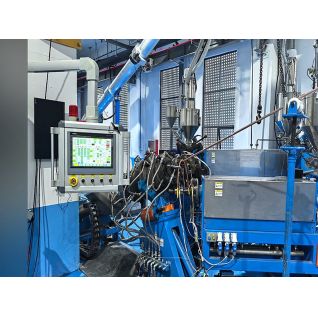

This equipment is mainly used for the extrusion of the inner and outer sheath of the optical cable.




1. The production line has the characteristics of accurate tension, easy operation, fast production speed and stable performance.

2. The whole machine adopts the control technology that combines industrial computer and programmable logic controller, namely PC + PLC mode, to realize the synchronous operation of the entire production line and the independent operation of a single machine; the operation of the production line, parameter setting and display, etc. The production control process of industrial computer, motor start, stop, given signal, motor speed and other production status is realized by PLC; data transmission between industrial computer and PLC through communication port; it can realize production line operation, alarm display, production line Emergency stop and other functions.

3. The production line has the characteristics of uniform extrusion outer diameter, smooth appearance, fast production speed, high production efficiency, precise take-up and unwinding tension, and easy operation of the production line.






No.

Items

Quantity

1

cable core pay-off device

1 set

2

steel wire pay-off device

1 set

3

steel (aluminum) longitudinal package with a corrugated forming device

1 set

4

grease filling device

1 set

5

feeding and drying device

1 set

6

90 extrusion host

1 set

7

cooling water tank

1 set

8

1250KG Caterpillar tractor

1 set

9

gantry wire take-up device

1 set

10

electrical control system

1 set





No.

Items

Value

1

Overall diameter

Φ6.0mm~Φ35mm

2

Max. Cores diameter

Φ30mm

3

Mechanic speed

100m/min

4

Pay-off bobbin

800-1600mm

5

Take-up bobbin

1000-2000mm

6

Line length

55m

7

Installed capacity

130 kw






Our engineer team has over 15-year experience working overseas for customer on-site service. Therefore, we can provide you widely range of support, such as overseas on-site installation, talent training, long-term technology updating services,etc.
