Application:
and field work place, to test DC resistance, resistivity inside of metal conductor, resistance of conductor line,
resistance of DC shunt, contact resistance of switch and appliance; winding wire resistance of various of motors
and transformers; and elevated temperature test and so on
Standard:
GB/T3048.4-2007
Technical parameters:
Measuring range: 0.01μΩ ~ 1.1111KΩ
Accuracy: 0.05%

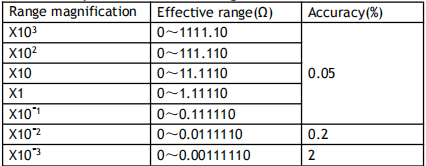

The main parameters of each range
Measuring range: 0.01μΩ ~ 1.1111KΩ
Accuracy: 0.05%
The main parameters of each range
Specifications:
Overall dimensions: 300×250×160 mm
Power supply: built-in null indicator power supply 9 (one 6F22 type battery)
built-in bridge working power supply 1.5 V
Power supply: built-in null indicator power supply 9 (one 6F22 type battery)
built-in bridge working power supply 1.5 V
