GJYXCH Fiber to the home aerial drop cable(self support FTTH)

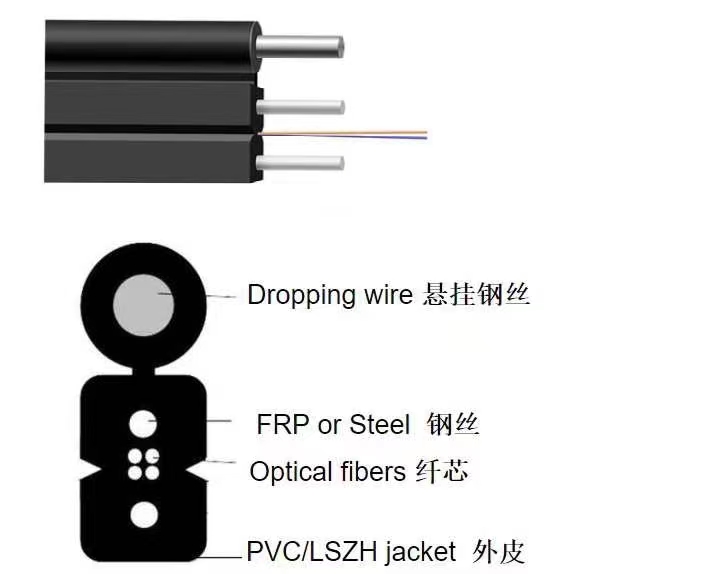

FTTH Cable directly connected to their homes, their bandwidth, wavelength and transmission technology type are not restricted. The optical fiber unit id positioned in the centre. Two parallel strength member are placed at the two sides. A steel wire as the additional strength member is also applied ,then, the cable is completed with a LSZH sheath.
CFOAC-BLI A/B-CM-01-CO-LSZH
Technical Parameters

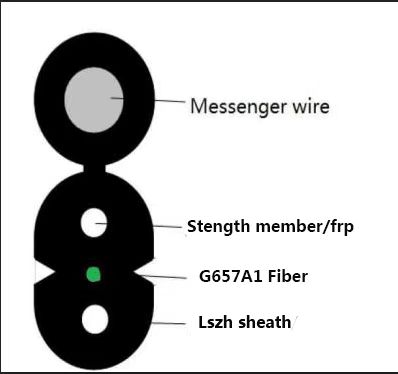

Cable construction details :
|
Number of fiber |
1-4 core |
|
|
strength member |
Material |
Steel |
|
Diameter |
2*0.4mm |
|
|
Self support Messenger wire |
Material |
Steel wire |
|
Diameter |
1.0mm |
|
|
Outer sheath |
Material |
LSZH |
|
Cable size (Height * width) |
2.0(±0.1) mm × 5.0(±0.1)mm |
|
|
Cable weight |
Net weight |
17.5KG/KM |
|
Gross weight |
19.5KG/KM |
|
Cable Mechanical characteristic
|
Items |
Description |
|
|
Installation Temperature range（℃） |
-20+60 |
|
|
Operation and transport temperature（℃） |
-40+70 |
|
|
Min Bending Radius(mm) |
Static |
10D |
|
Dynamic |
25D |
|
|
Min allowable Tensile Strength(N) |
Long term |
300 |
|
Short term |
600 |
|
|
Crush Load (N/100mm) |
Long term |
1000 |
|
short term |
2200 |
|
Fiber characteristic
|
Fiber style |
Unit |
ITU-T G.657A1 |
|
Condition |
nm |
1310/1550 |
|
Attenuation |
dB/km |
≤0.36/0.23 |
|
Dispersion(1285-1310nm) |
|
≤ 3,5 ps/nm.km |
|
Dispersion(1550nm) |
|
≤ 18 ps/nm.km |
|
PMD coefficient |
|
£ 0,2ps/km1/2 |
|
Cable Cut - off Wavelength- lcc |
|
£ 1.260nm |
|
Radius attenuation bending (With radius: 10mm; round number: 1) |
dB |
1550nm£0.75dB; 1625nm£1.5dB |
|
MFD at wavelength 1310nm |
|
8.6mm ± 0.4mm |
|
Mode Field Concentricity Error |
mm |
£ 0,5mm |
|
Cladding diameter |
mm |
125±0.7mm |
|
Cladding non-circularity |
% |
≤0.5 |
|
Coating diameter |
um |
242±7mm |
Package
|

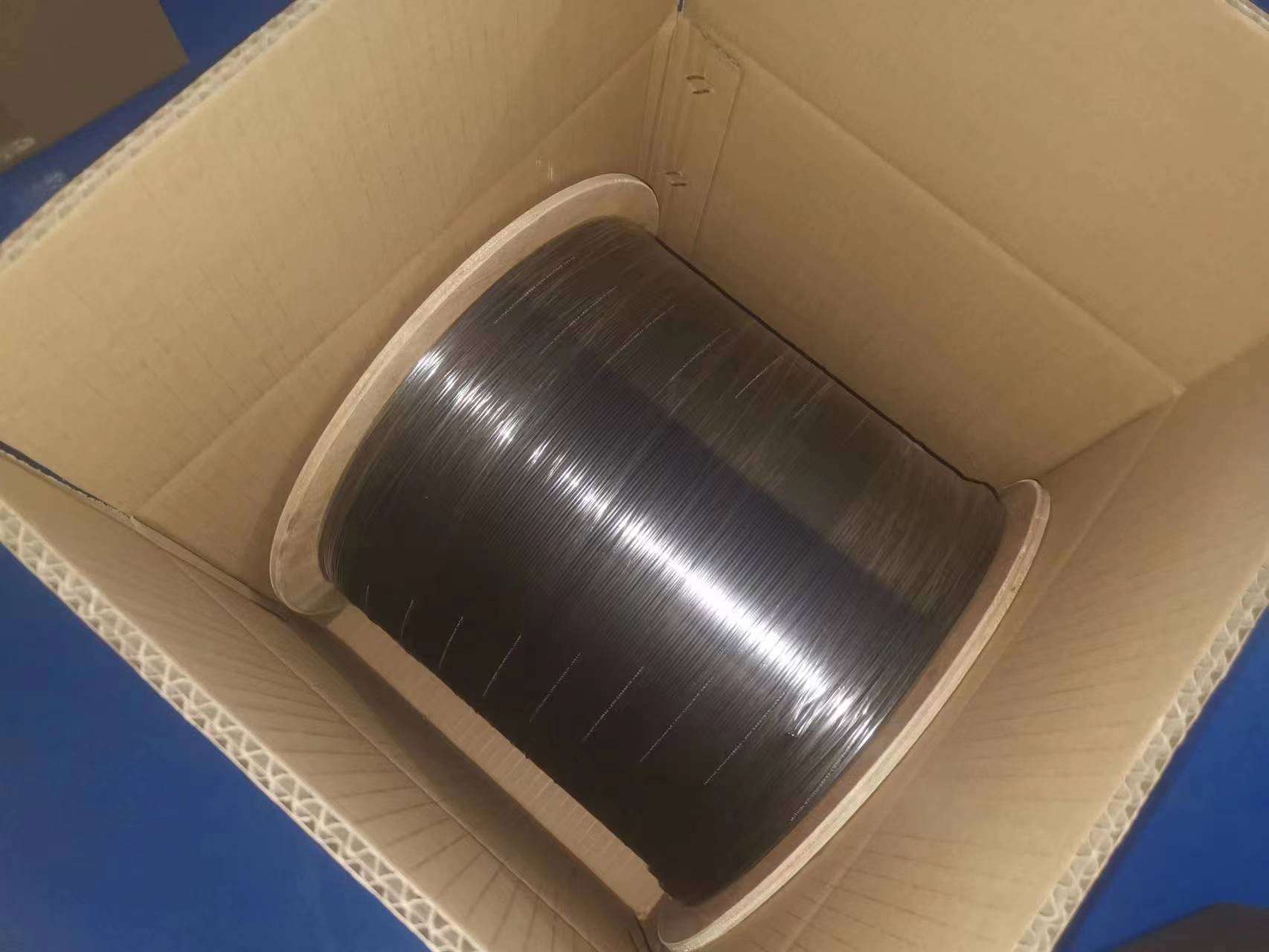

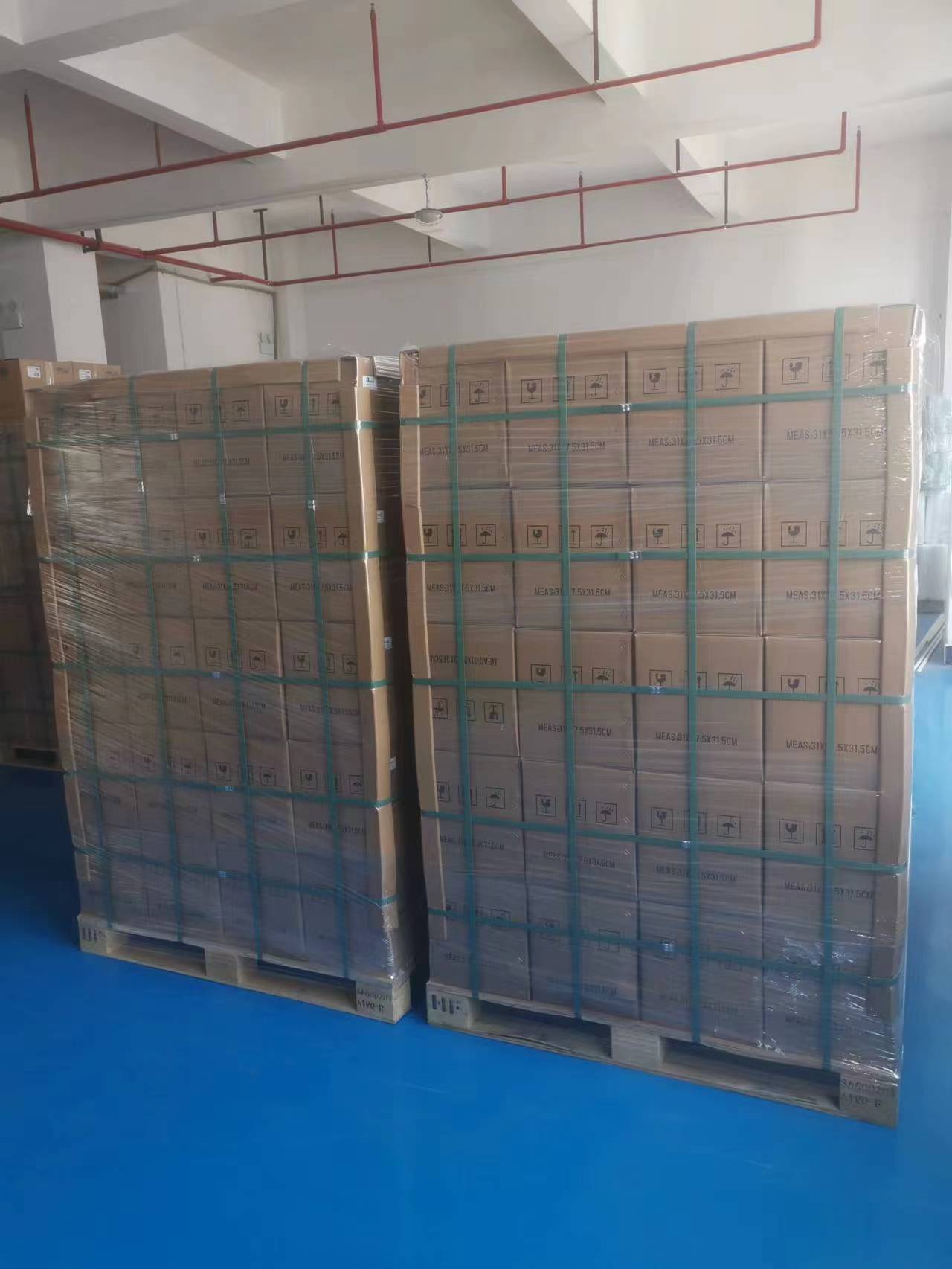

1.Packing material: Wooden drum and carton |
|
2.Packing length: standard length of cable shall be 1 km or 2km. Other cable length is also available |
|
if required by customer |
Cable marking and cable reel marking
The cable sheath shall be marked with white characters according to customer's requirement.
