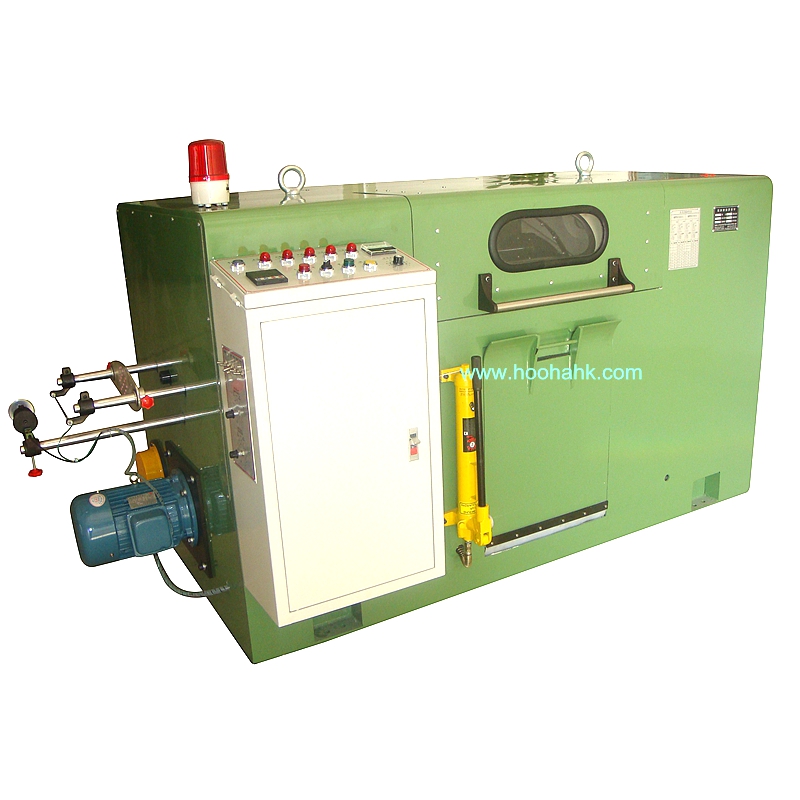

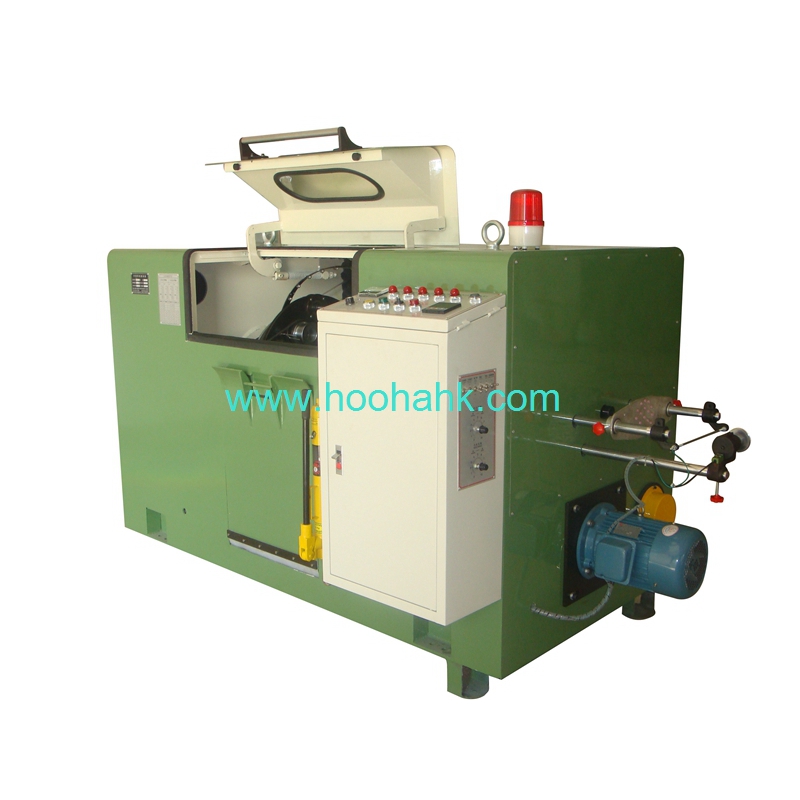

HH-B-300 High Speed Bunching Machine for 0.08-0.25mm Wire

HH-B-300 High Speed Bunching Machine for 0.08-0.25mm Wire
HH-B-300 High Speed Bunching Machine for 0.08-0.25mm Wire HH-B-300 High Speed Bunching Machine for 0.08-0.25mm Wire HH-B-300 High Speed Bunching Machine for 0.08-0.25mm Wire HH-B-300 High Speed Bunching Machine for 0.08-0.25mm Wire HH-B-300 High Speed Bunching Machine for 0.08-0.25mm Wire
Product ID :
HH-B-300
Product Attributes :

FOB Price: 6,900 ~ 7,000 USD

Payment Terms: T/T, L/C

Delivery Time: 25 working days

Measurment(L*W*H): 1800mm x 750mm x 850 mm

Power Request: 2.2 kw

Warranty: 12 months

Product Description




It is suitable for stranding of the copper wires with more than seven strands, also suitable for electronic wires, power wires, bare copper wires, network wires etc.




1. Humanized design of the whole machine, simple and convenient operation. Adopting frequency conversion control method with touch screen and PLC, automatic control, man-machine interface and servo motor drive. The production status is visible on the touch screen. Using man-machine dialogue to query, adjust and control, the bunching precision is greatly improved and the worker’s operation difficulty is reduced.

2. The advanced technology of quantitative and timed automatic lubrication can automatically supply oil to the equipment at the set time interval, so that the equipment can be well lubricated during high-speed operation.

3. Comprehensive fault and safety alarm warning system. It can realize the stop of broken wire, stop of finished wire and tension detection device, which guarantees the quality of wire bunching.

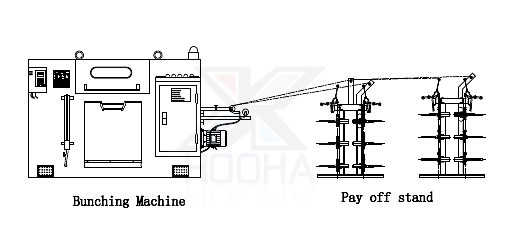

No.  Items Quantity

Reference Picture

1

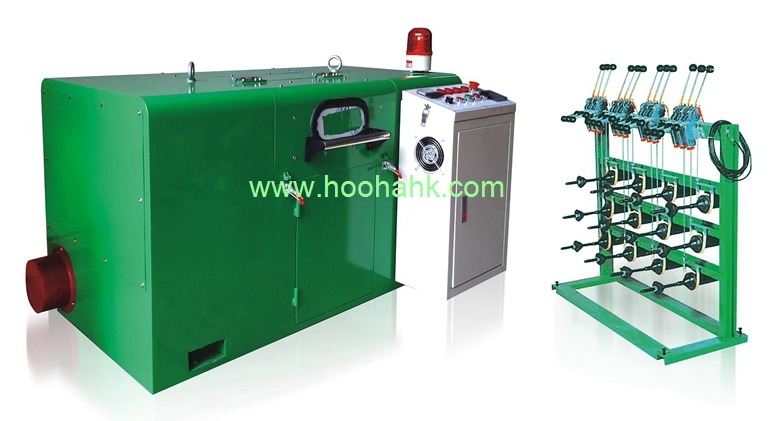

300 Bunching machine

1 unit

2

Pay off stand for multi-core copper wire

1 unit




No.

Items

Features

1

Machine Frame

 A3 welded structure, processed by annealing milling room

2

Twisting direction

S or Z

3

Take-up Bobbin

300mm

4

Traverse

Bearing flatting , adjustable row distance and row breadth

5

Drive motor

3 phase AC 5HP

6

Inverter

2.2 KW

7

Main shaft height

700mm

8

Lifting

well-known brand hydraulic lifting shaft

9

Weight

About 750 kg

10

Measurement (L*W*H)

1800mm x 750mm x 850 mm






1.Over 20-year experienced engineer team in field of cable and wire making machines to guarantee professional solution and first-rate quality products.

2.Our professional engineer team had over 5 years experience working overseas, will provide various technologies to support our customers, including overseas on-site installation guidance, talent training, long-term technological updating services,etc.

3.Adopting famous brand parts such as Siemens, Yaskawa, Omron, Emerson to ensure reliable using of our products.

4.We check every detail of the machines and do pre-production test before delivery to eusure products quality and performance.
