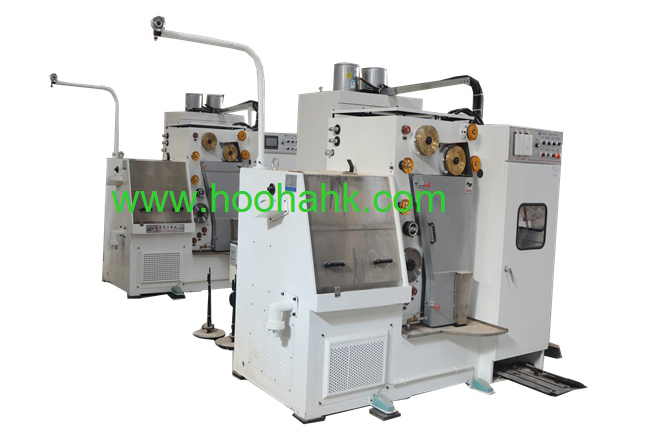

HH-D-SMD100-24A Super Fine Wire Drawing Machine Making 0.2mm Wire to 0.025-0.06mm

HH-D-SMD100-24A Super Fine Wire Drawing Machine Making 0.2mm Wire to 0.025-0.06mm
HH-D-SMD100-24A Super Fine Wire Drawing Machine Making 0.2mm Wire to 0.025-0.06mm HH-D-SMD100-24A Super Fine Wire Drawing Machine Making 0.2mm Wire to 0.025-0.06mm HH-D-SMD100-24A Super Fine Wire Drawing Machine Making 0.2mm Wire to 0.025-0.06mm HH-D-SMD100-24A Super Fine Wire Drawing Machine Making 0.2mm Wire to 0.025-0.06mm
Product ID :
HH-D-SMD100-24A
Product Attributes :

FOB Price: 8,800 ~ 9,200 USD

Payment Terms: T/T, L/C

Delivery Time: 30 working days

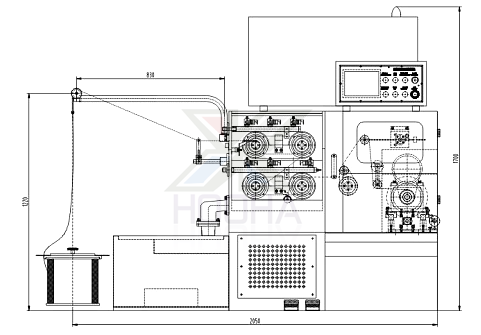

Measurment(L*W*H): 2.5m*1m*1.7m

Production Speed: Max 2000 m/min

Power Request: 8 kw

Warranty: 12 months

Product Description




This production line is used to draw 0.08-0.2mm copper wire to 0.025-0.06mm wire.




1. Driven and controlled by AC three phases dual-inverter.

2. Highly precise bearing achieves running in low noise, high efficiency and low power-consumption.

3. Widely use imported advanced parts and components to ensure machines high reliability.





No.

Name

Qty.

1

Pay-off Stand

1 set

2

Host Drawing Machine

1 set

3

Take-up Machine

1 set

4

Accessories supplied with the machine



4.1

Rotary pay-off stand

1 set

4.2

Mounting rubber pad

8 pieces






No.

Items

Features

1

Power control

Dual inverter

2

Wire Inlet Diameter

0.08~0.2 MM

3

Wire Outlet Diameter

0.025~0.06 MM

4

Number of Dies

24

5

Power Consumption

AC 6-8 KW

6

Production Speed

Max 2000 M/Min

7

Voltage

380V, can be customized

8

Weight

1500 KG

9

Measurement (L*W*H)

2.5*1*1.7 M





Host Drawing Machine



No.

Items

Feature

1

Wire Inlet Diameter

0.08~0.2 MM

2

Wire Outlet Diameter

0.025~0.06 MM

3

Production Speed

Max 2000 M/Min

4

Final capstan Diameter

100 MM

6

No. of Dies (Channel)

24

7

Dies Outer Size

25mm × 8 - 12mm (thickness)

8

Mechanics Elongation (%)

By the dies from the 1st to 23rd, 8%

By the 24th die, 7%

9

Main Motor Power

AC 4 KW

12

Drawing Coolant Mode

Full Immersion

13

Electrical System

Including control Cabinets, Operation Panel, Touch Screen, IC, Software



Take-up machine



No.

Items

Feature

1

Max. Coiling Speed

2000 M/Min

2

Take-up reel

Φ190mm, max

3

Take-up volume

12kg, max

4

Take Up Motor

AC 1.5 KW

5

Take-up control

Weight type tension bar,automatic modification and control of take-up tension







1.Over 20-year experienced engineer team in field of cable and wire making machines to guarantee professional solution and first-rate quality products.

2.Our professional engineer team had over 5 years experience working overseas, will provide various technologies to support our customers, including overseas on-site installation guidance, talent training, long-term technological updating services,etc.

3.Adopting famous brand parts such as Siemens, Yaskawa, Omron, Emerson to ensure reliable using of our products.

4.We check every detail of the machines and do pre-production test before delivery to eusure products quality and performance.
