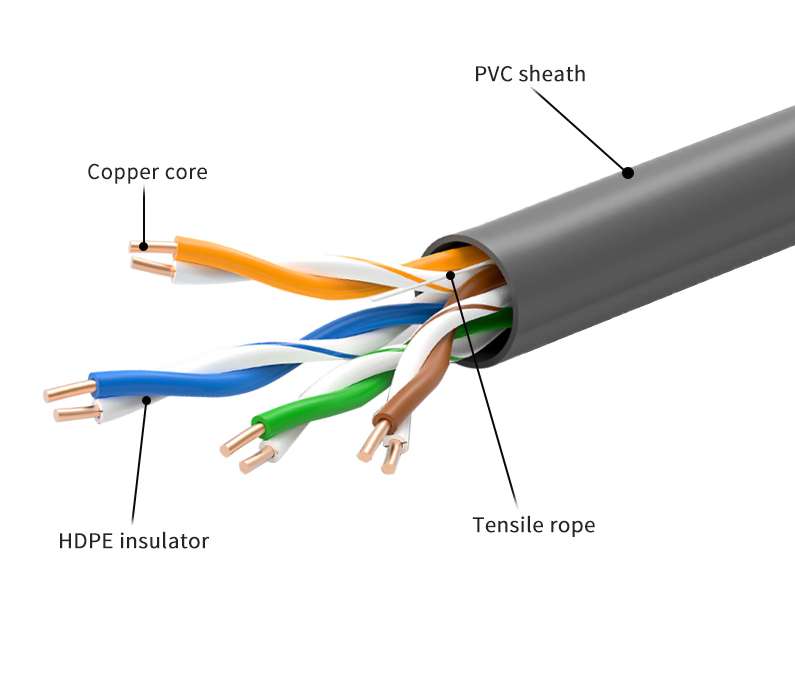

CAT5 / 6电缆的介绍和功能



5类电缆(简称为CAT.5)是用于计算机网络的双绞线电缆,以及用于数据,语音和其他信息通信服务的多媒体电缆。 它被广泛用于以太网和宽带接入项目中,其质量直接关系到信息通信的传输质量。随着光纤和通信技术的发展,双绞线对通信质量的影响逐渐减小。







6类线路的传输频率为1MHz〜250MHz,6类布线系统的综合衰减串扰比(PS-ACR)在200MHz时应有较大的余量。 它提供了5类带宽的两倍,而5类线路为100M,超五类为155M,六类为200M。 在短距离传输中,类别5,类别5和类别6可以达到1Gbps。 6类电缆的传输性能高于5类和5类电缆,最适合传输速率高于1Gbps的应用。





生产过程及相关机器



1. 导体PE绝缘(0.48mm/0.5mm/0.52mm Single Copper Conductor)

HH-E-50 + 35 押出机







2. 芯线对绞

HH-PT-500 带退扭对绞机

3. 4对绞成缆

HH-ST-PLC 800 悬臂单绞机

4. PVC外护套→

HH-E-PLC 70 押出机



5. 包装→

8 字形成圈包装 ( 305m/Roll )

机器组件和参数

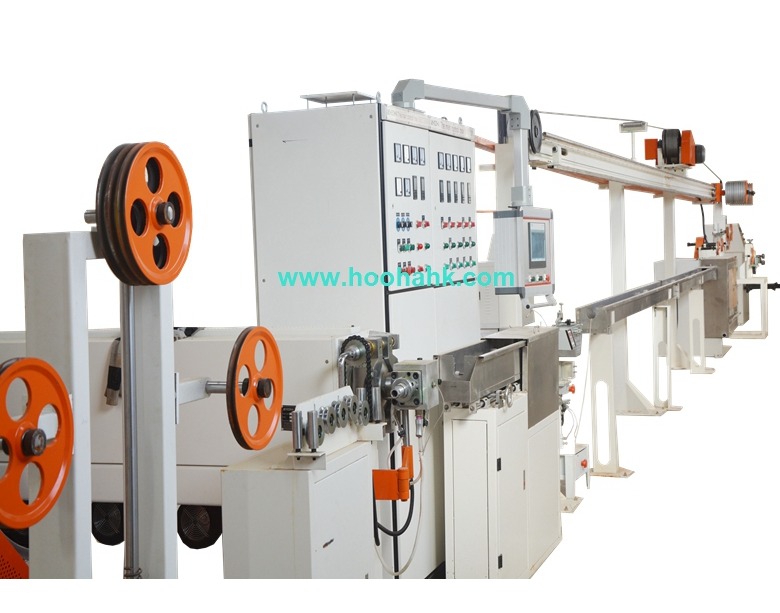

1. HH-E-50 + 35 Extrusion Machine



Application:

This equipment is suitable for outer surface extrusion of wires and cables with insulation materials such as PVC/PE.



Components:

No.

Items

Quantity

1

400-630 motorized pay-off stand

1 set

2

5-wheel Straightening device

1 set

3

50 Host extruder

1 set

4

50 Adjustable extrusion head

1 set

5

Automatic drying and feeding machine

1 set

6

PLC electric control box

1 set

7

1.5m Movable water tank with cover

1 set

8

Diameter tester

1 set

9

8m Fixed water tank with cover and leak-proof

1 set

10

10 m Slide rail type + anode guide wheel storage rack

1 set

11

410mm tractor

1 set

12

Meter counter

1 set

13

High frequency spark tester

1 set

14

400-630 Double-head shaftless motorized take-up stand

1 set

15

35 Injection Machine

1 set

16

Display board

1 set

17

Accessories





Parameters:

No.

Items

Features

1

Inlet Wire Diameter

0.5~3 mm

2

Finished Wire Diameter

1~5 mm

3

Cross Sectional Area

0.5~2.5 square mm

4

Extrusion Speed

Max 500 m/min

5

Extrusion Capacity

80 kg/h

6

Installed Capacity

45 kva

7

Voltage

380KV, can be customized

8

Weight

3500 kg

9

Measurement (L*W*H)

20*3*3 m

10

Workers recommendation

3 workers

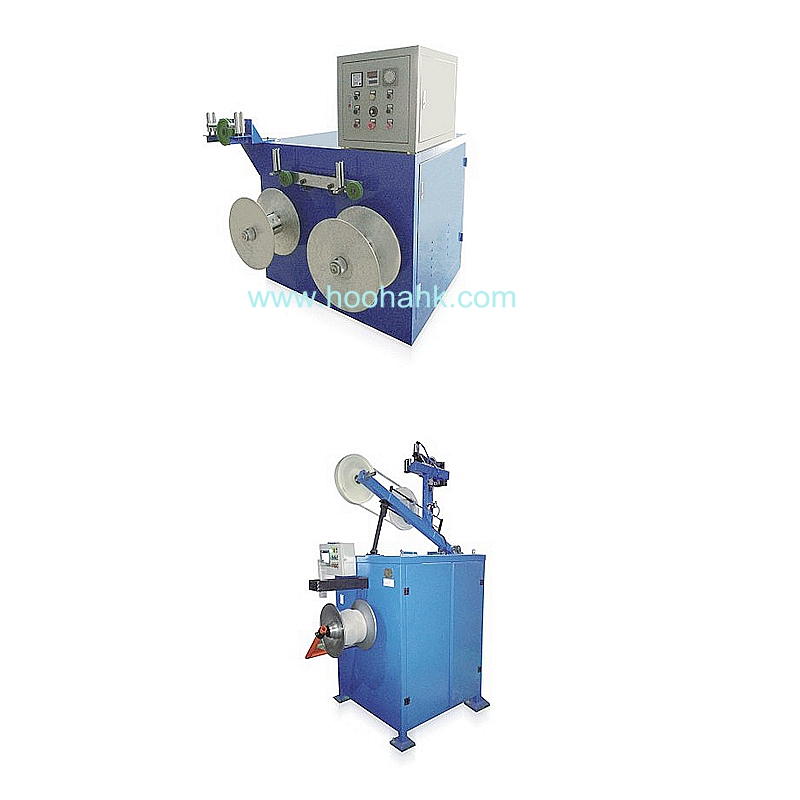

2. HH-PT-500 Pair Twisting And Vertical Back Twisting Machine



Application:


Mainly used for high-frequency data cable Lan Cable pair twisting and back twisting. The position of the twisted insulated core is staggered, to overcome the uneven twisting, to ensure high-speed twisting, uniform quality, uniform pitch, high pitch accuracy, suitable for high Frequency cable pair twisting synchronous reverse twisting.



Components:



No.

Items

Quantity

1

500 Pair Twisting Machine

1 Set

2

500 Vertical Back Twisting Machine

1 Set


Parameters:


No.

Items

Features

1

Application

Core wires Pair twisting and Back twisting

2

Wire diameter

Φ0.7-1.5mm

3

Maximum capacity

120m/min

4

Center height

1000mm

5

Power supply

380V 50HZ three-phase,five-wire system

6

Operation direction

S or Z

7

Machine color

Optional

8

Total power consumption

8.25KW.H (at full load)

9

Floor area

Length 6000mm, Width 1400mm, Height 1800mm

10

Pitch range

6-50mm

11

Pitch error

≤1%

12

Noise

≤80DB

13

Weight

Around 4.2T

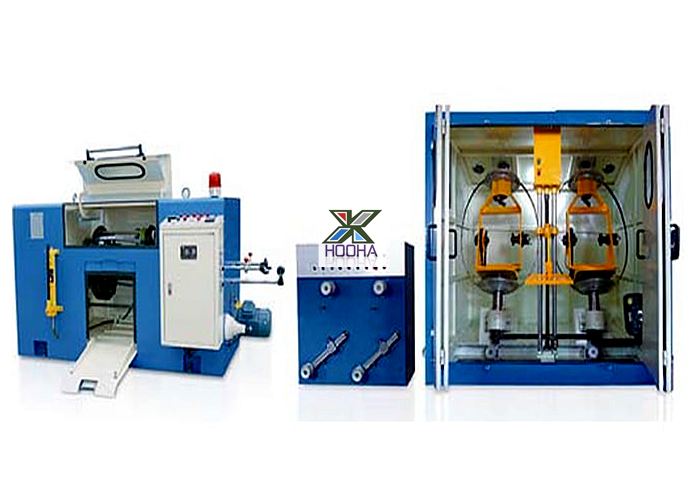

3. HH-ST-PLC 800 Cantilever Single Twisting Machine



Application:

This equipment is suitable for outer surface extrusion of wires and cables with insulation materials such as PVC/PE.



Components:



No.

Items

Quantity

1

8 Heads Horizontal tension pay off stand

1 Set

2

PLC Siemens electric control box

1 Set

3

Wire collection device

1 Set

4

Wrapping machine

1 Set

5

800 Cantilever single twisting main machine

1 Set





Parameters:



Motor

Drive (Main machine) motor: AC 380V 15 HP

Capstan motor: AC 380V 7.5 HP

Linkage wrapping machine motor: AC 380V 2 HP



Inverter

Drive (Main machine):15 HP

Capstan: 7.5 HP

Linkage wrapping machine:2 HP



Electric control box

PLC Systems: SIEMENS brand, Man-machine interface complete computer control

Tickle touch screen: Easy to operate

Human Interface: SIEMENS

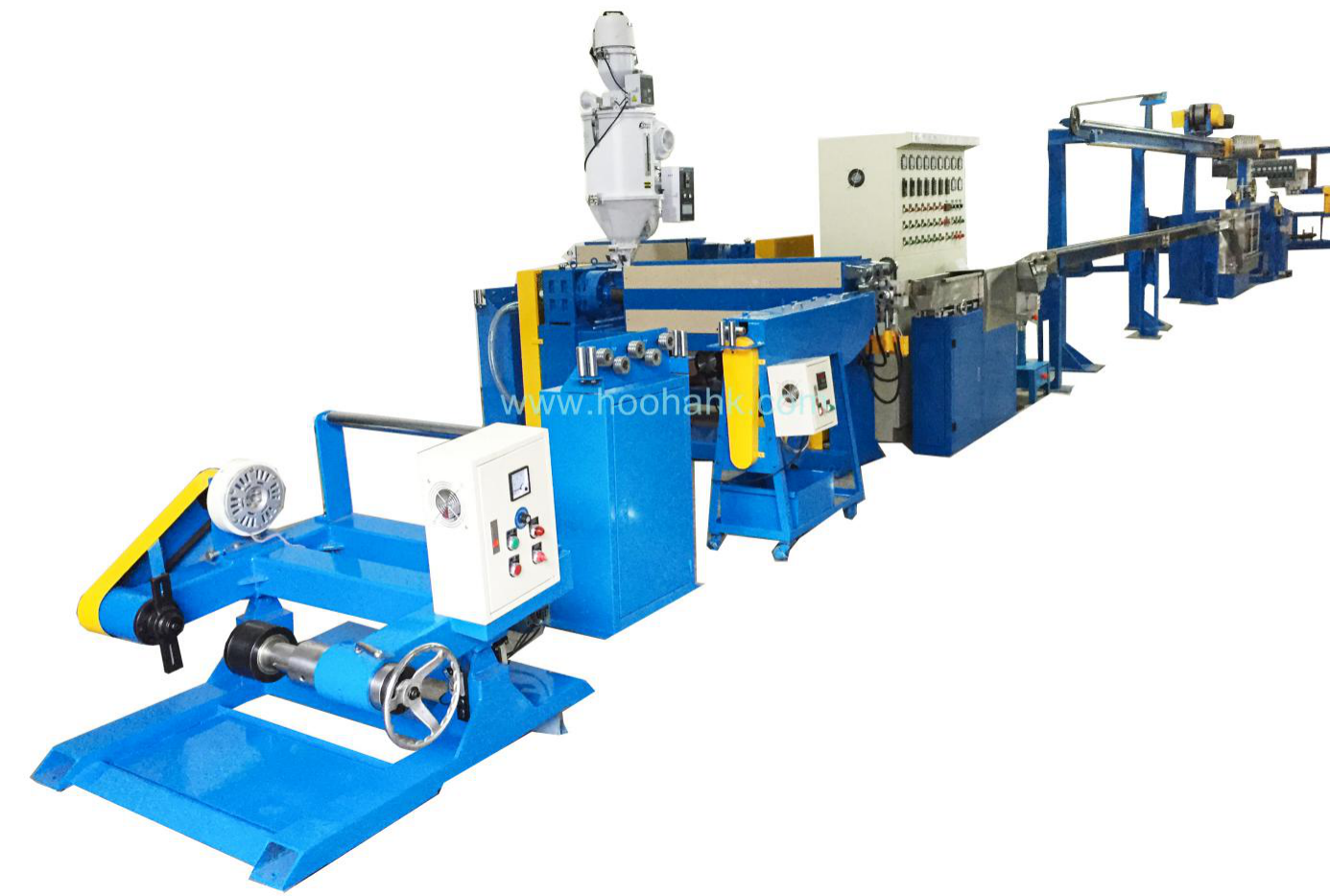

4. HH-E-PLC 70 Extrusion Machine



Application:

This equipment is suitable for outer surface extrusion of wires and cables with insulation materials such as PVC/PE.



Components:





Parameters:

No.

Items

Features

1

Inlet Wire Diameter

1~4mm

2

Finished Wire Diameter

2~8 mm

3

Cross Sectional Area

1~6 square mm

4

Extrusion Speed

Max 400 m/min

5

Extrusion Capacity

140 kg/h

6

Installed Capacity

55 kva

7

Voltage

380KV, can be customized

8

Weight

4000 kg

9

Measurement (L*W*H)

24*3.5*3.5 m
