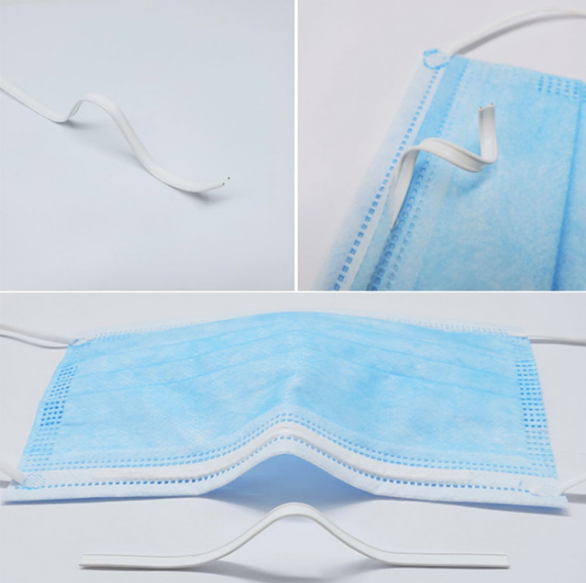

口罩鼻梁条的介绍和应用
市场上主要使用50押出机生产医用口罩的鼻梁。我们的设备生产的鼻梁条符合KN95和KN99医疗标准，具有高性能和成本效益。 在COVID-19期间，我们的鼻梁条设备在韩国，俄罗斯，美国和土耳其等市场上热销。
应用 :
医用口罩
生产过程及相关机器
1. 镀锌丝 →
The conductor is galvanized iron wire
2. 导体PP或PE绝缘 →
HH-E-PLC 50 押出机
3. 包装 →
成圈或线盘包装

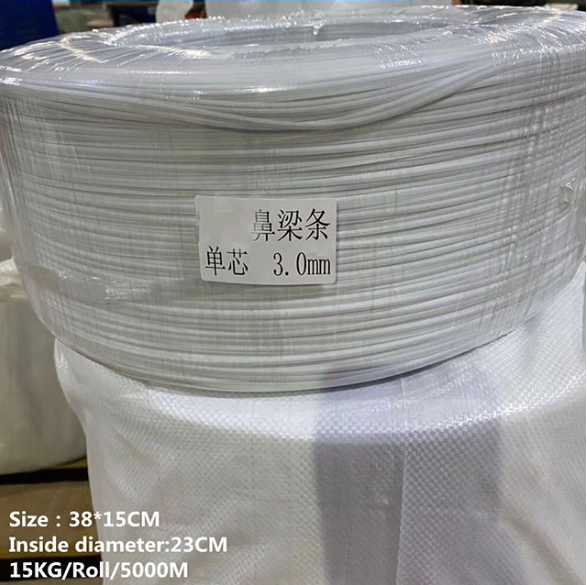

（1）成圈包装

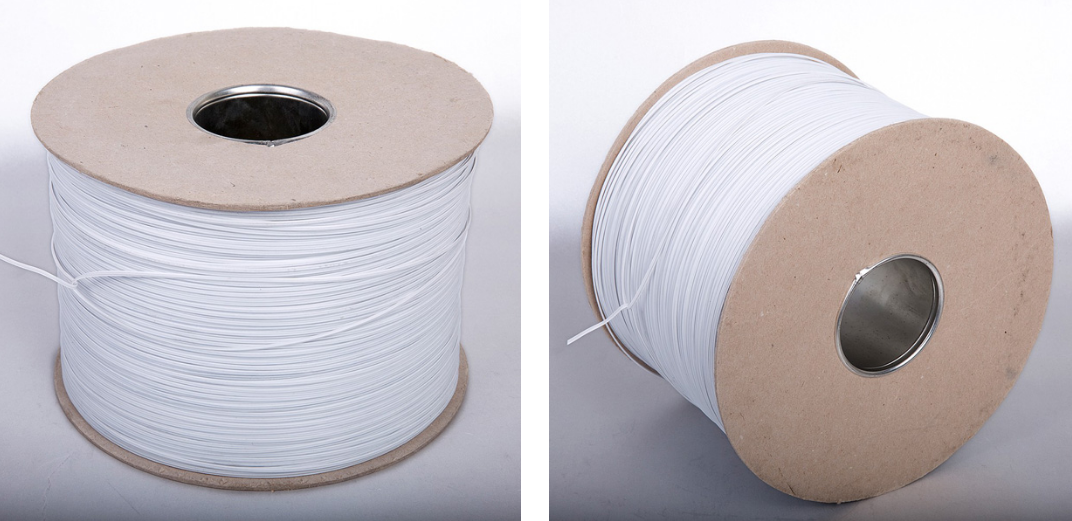

（2）线盘包装
组件和参数

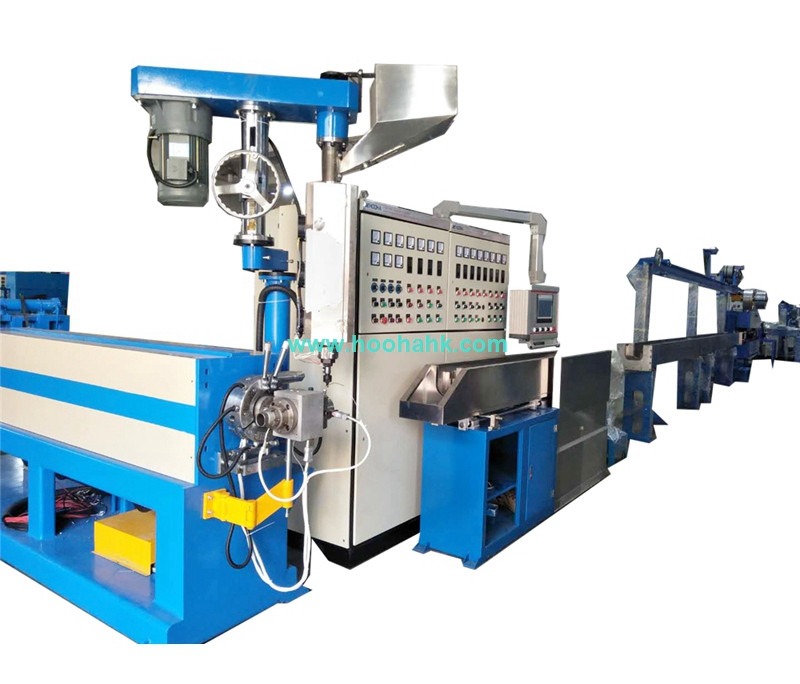

1. HH-E-PLC 50 押出机
Application:
This equipment is suitable for outer surface extrusion of wires and cables with insulation materials such as PVC/PE.
Components:
|
No. |
Items |
Features |
|
1 |
400-630 motorized pay-off stand |
1 set |
|
2 |
5-wheel Straightening device |
1 set |
|
3 |
50 Host extruder |
1 set |
|
4 |
50 Adjustable extrusion head |
1 set |
|
5 |
Automatic drying and feeding machine |
1 set |
|
6 |
PLC electric control box |
1 set |
|
7 |
1.5m Movable water tank with cover |
1 set |
|
8 |
Diameter tester |
1 set |
|
9 |
8m Fixed water tank with cover and leak-proof |
1 set |
|
10 |
10 m Slide rail type + anode guide wheel storage rack |
1 set |
|
11 |
410mm tractor |
1 set |
|
12 |
Meter counter |
1 set |
|
13 |
High frequency spark tester |
1 set |
|
14 |
400-630 Double-head shaftless motorized take-up stand |
1 set |
|
15 |
Display board |
1 set |
|
16 |
Accessories |
1 set |
Parameters:
|
No. |
Items |
Features |
|
1 |
Inlet Wire Diameter |
0.5～3 mm |
|
2 |
Finished Wire Diameter |
1～5 mm |
|
3 |
Cross Sectional Area |
0.5～2.5 square mm |
|
4 |
Extrusion Speed |
Max 500 m/min |
|
5 |
Extrusion Capacity |
80 kg/h |
|
6 |
Installed Capacity |
45 kva |
|
7 |
Voltage |
380KV, can be customized |
|
8 |
Weight |
3500 kg |
|
9 |
Measurement (L*W*H) |
20*3*3 m |
|
10 |
Workers recommendation |
3 workers |
