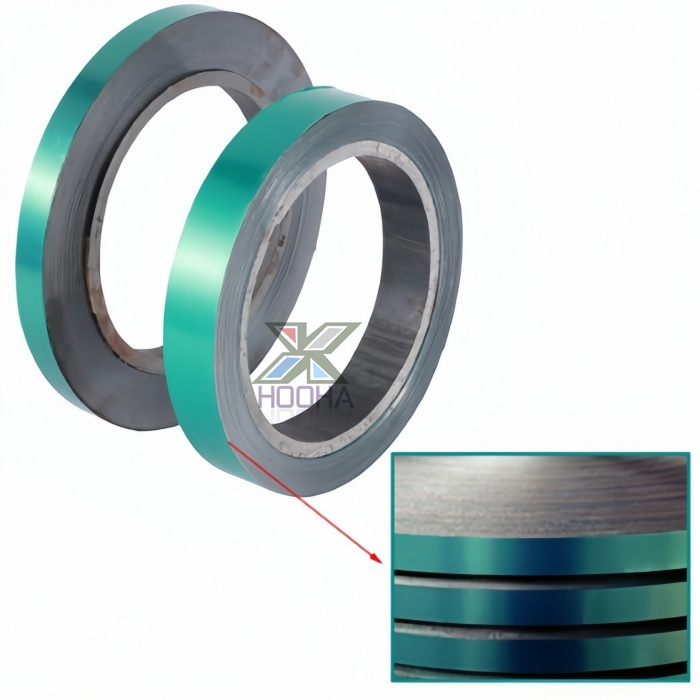

Grade 7 Corrosion Resistance Copolymer Steel Strip for Wire and Cable Armouring

Product Attributes :

It's used for communication optical Cable and shielding cable and water proof cable.

Product Description

1. Application of Copolymer Steel Tape

It's used for communication optical Cable and shielding cable and water proof cable.

2. Specification of Copolymer Steel Tape

Thickness		Tensile strength	Elongation	Peel strength	Heat Seal strength	Corrosion resistance	Filler/ Flood Resistance 68 deg C/168 hrs	Water Resistance 68 deg C/ 168 hrs, Peel Strength68ºC	Dielectric Strength Two-Side DC 1 Kv
STL	EAA	Tensile strength	Elongation	Peel strength	Heat Seal strength	Corrosion resistance	Filler/ Flood Resistance 68 deg C/168 hrs	Water Resistance 68 deg C/ 168 hrs, Peel Strength68ºC	Dielectric Strength Two-Side DC 1 Kv
mm	mm	MPa	%	N/cm	N/cm	Grade	-	N/cm	-
0.15/0.20	0.05	≥300	≥20	≥6.13	≥17.5	7	No Delamination	≥6.13	No Break

3. Packing of Copolymer Steel Tape

In roll, then pack into wooden case, the core material is paper/steel/plastic.

ID	OD	Width
76mm/102mm /150mm/205mm//406mm	Max 1200mm	12mm-1070mm

4. Payment and Delivery Time of Copolymer Steel Tape

TT, delivery about 20 days

5. Composition

It consists of steel tape coated on one side or both sides with an adherent ethylene copolymer. The steel is bow carbon electronic chrome-coated steel tempered t T2-condition for excellent formability and fabrication characteristics.

6. Standard

YD/T 723.3-94
