Application:Local Communication Cable, Coaxial Cable, LAN Cable
Conductor Material:BC/CCS/CCA/TC/CU/CCAG
Cover Material:PVC
Type:Cat 6
Material Shape:Round Wire
Conductor Type:Solid
Wire Core Material: Bare Copper Wire/Copper Clad Steel Wire
Certification:CE, ISO, RoHS, CPR
Model:CAT6 LAN Cable
Conductor:8 Core 4 Pairs
Insulation:HDPE
Ripcord:630d
Package:305m/Pully Box, 2pull Box/CTN
Color:Grey,Blue,Black,Yellow,Red etc.
Trademark: OEM
Transport Package: Wooden Spool,Plastic Reel,Gift Box,Pully Box,Carto
|

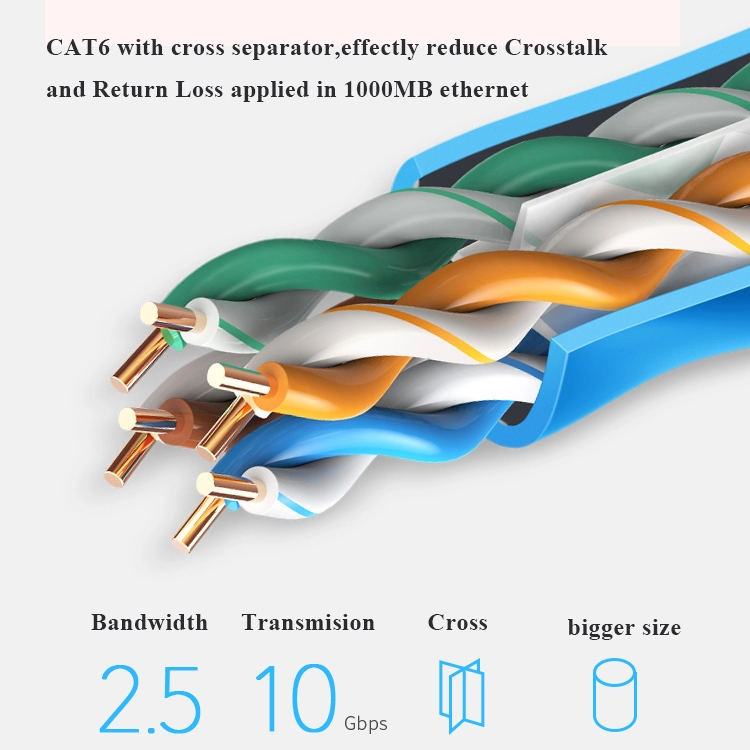

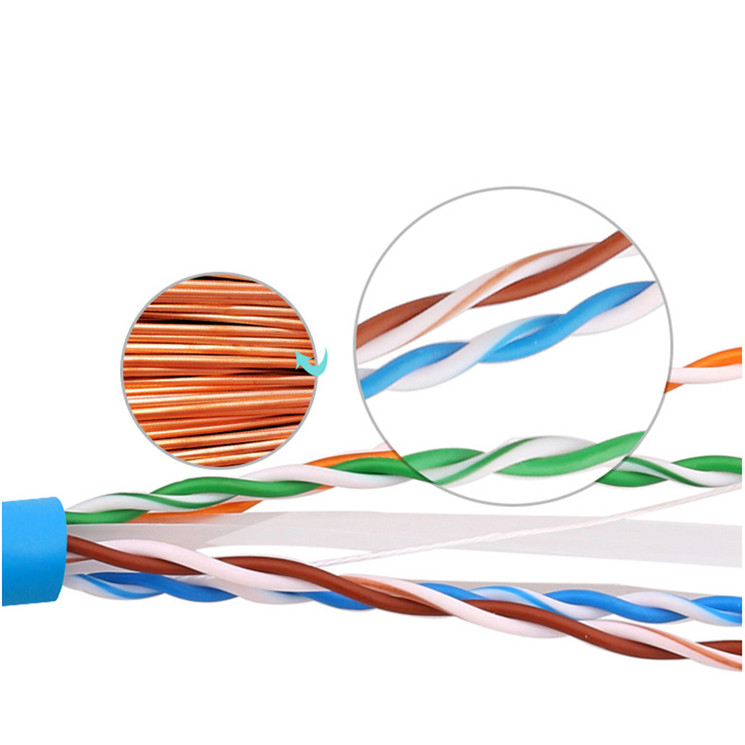

Cat 6 UTP Network cable |
|||
|
|
Conductor:0.37mm CCA, Jacket:PVC |
|
Conductor:0.5mm CCA, Jacket:PE |
|
|
Conductor:0.47mm CCA, Jacket:PVC |
|
Conductor:0.55mm CCA, Jacket:PE |
|

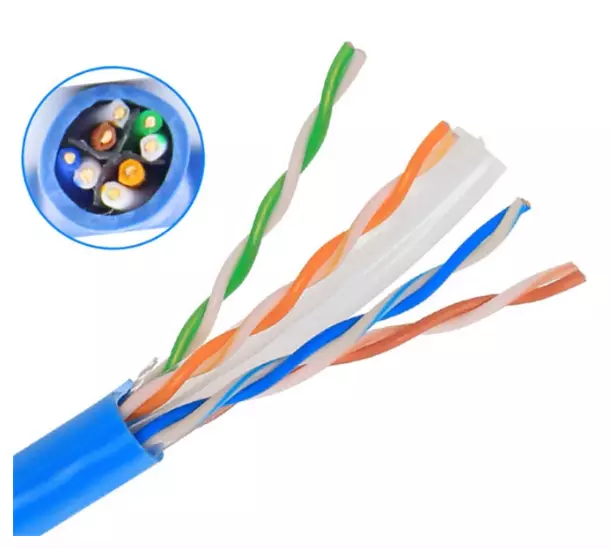

INDOOR |
Conductor:0.5 mm CCA, Jacket:PVC |

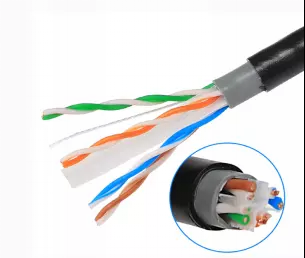

OUTDOOR |
Conductor:0.57mm CCA, Jacket:PE |
|
|
Conductor:0.55mm CCA,Jacket:PVC |
|
Conductor:0.57mm CU, Jacket:PE |
|
|
Conductor:0.45mm BC ,Jacket:PVC |
|
Conductor:0.45mm BC, Jacket:PE |
|
|
Conductor:0.5mm BC ,Jacket:PVC |
|
Conductor:0.5mm BC ,Jacket:PE |
|
|
Conductor:0.57mm BC ,Jacket:PVC |
|
Conductor:0.57mm BC ,Jacket:PE |

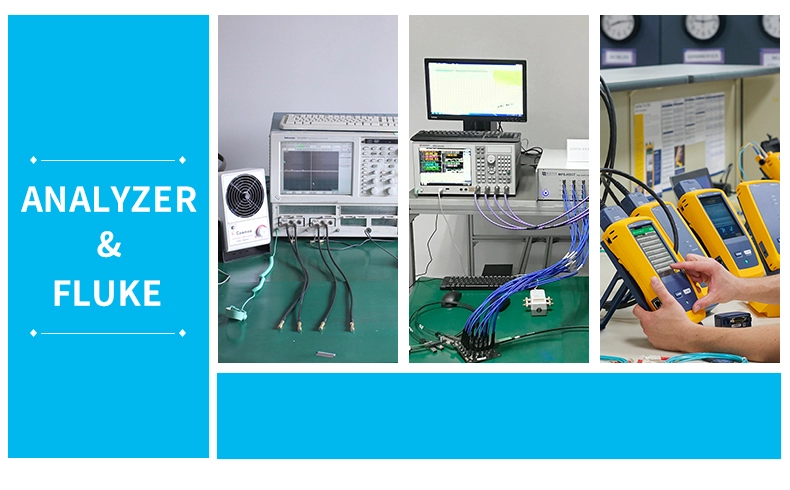

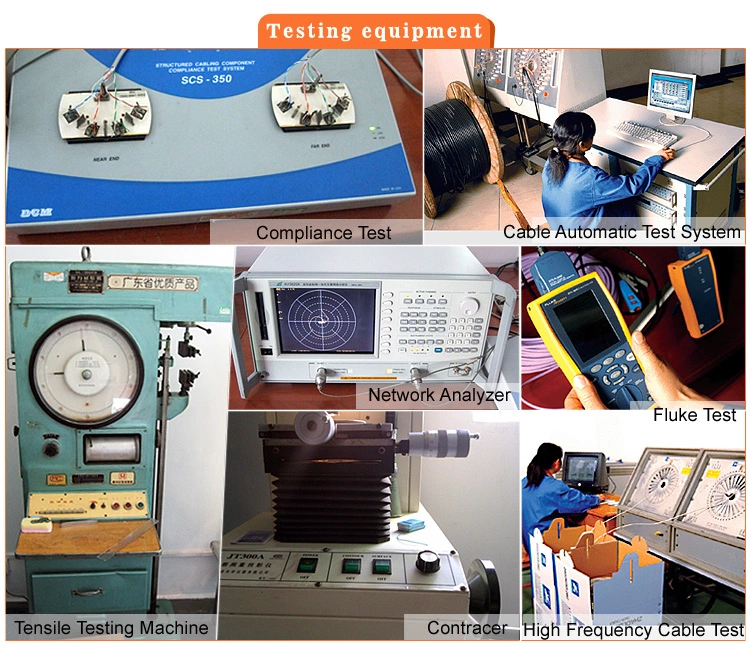

Testing

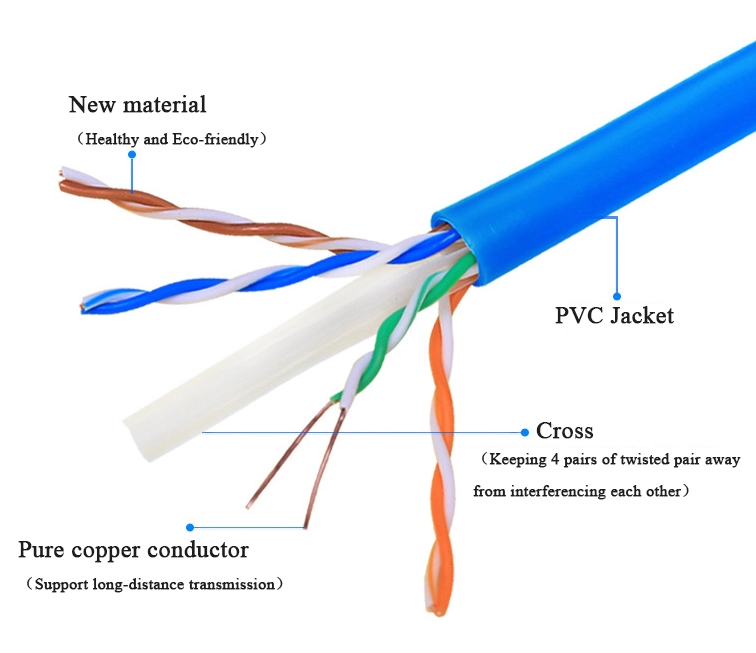

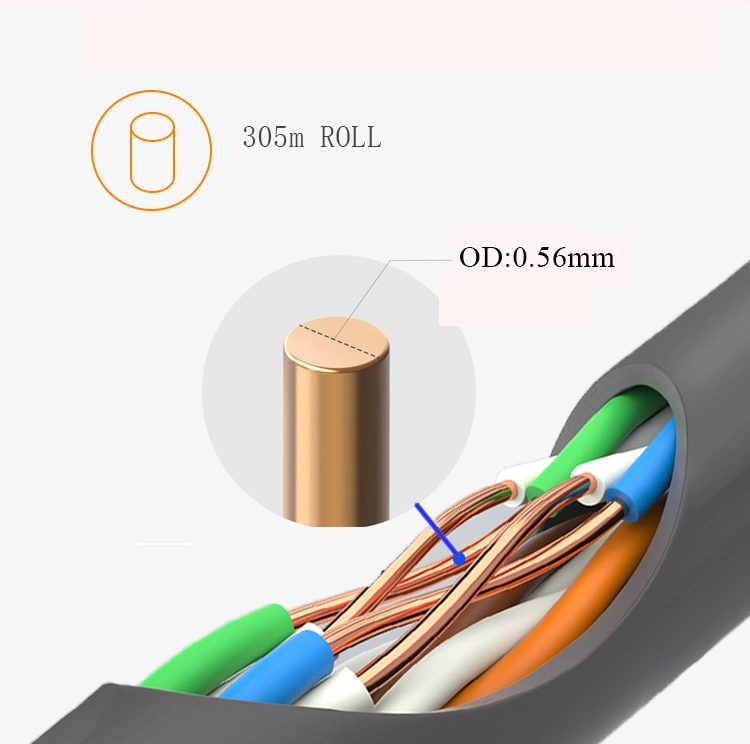

| Constrution | Material | Diameter(mm) |
| 1.Conductor | Bare copper | 0.58±0.005 |

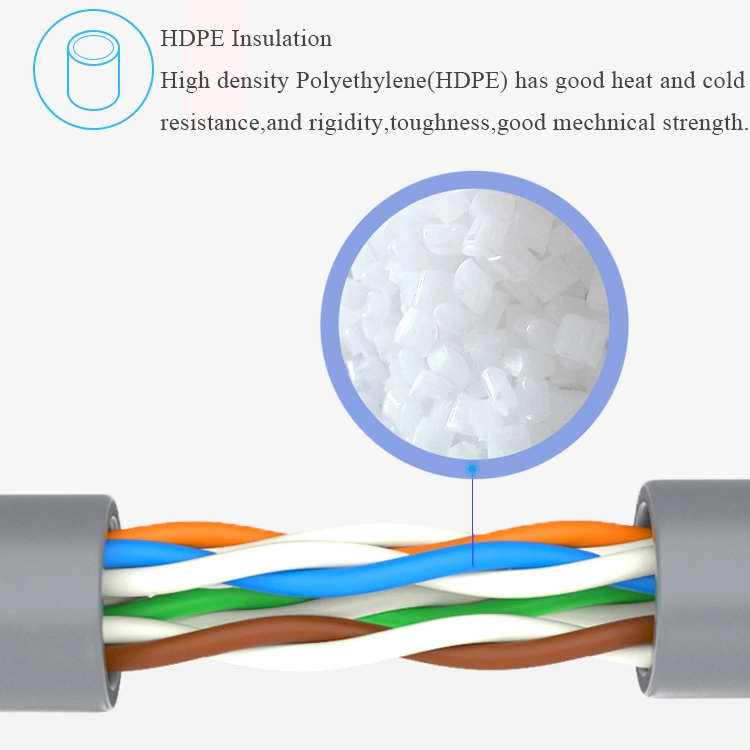

| 2.Insulation | High-density polyethylene | 0.95±0.020 |
| 3.Rip cord | nylon | 300D |
| 4.Jacket | LSZH | 5.58±0.20 |
| Frequency | Attenuation | RL | Next | ELFEXT |
| MHZ | (dB/100M) | (dB) | (dB) | (dB/100M) |
| 1MHZ | 2.1 | 15 | 62 | 61 |
| 4MHZ | 4.3 | 15 | 52 | 49 |
| 8MHZ | 6 | 15 | 48 | 47 |
| 10MHZ | 6.9 | 17 | 46 | 41 |
| 16MHZ | 8.9 | 17 | 43 | 37 |
| 20MHZ | 10 | 17 | 42 | 35 |
| 25MHZ | 11.1 | 21 | 41 | 34 |
| 31.3MHZ | 12.4 | 20 | 39 | 31 |
| 62.5MHZ | 17.7 | 19 | 34 | 25 |
| 100MHZ | 23.4 | 17 | 31 | 21 |
Electrical Properties
| Conductor Resistance | Max.9.38 ohm/100m |
| Resistance Unbalance | Max.2.5% |
| Insulation Resistance | 5000 ohm/KM |
| Mutual Capacitanue | Max.5600pF/100m |
| Capacitanue Unbalance | Max.330pF/100m |
| Impedance | 100±15 ohm |
| Spark Test | 2.0KV |
| Velocity of Propagation | 0.69 |
Mchanical Properties
| Elongation | Min.300% |
| Temperature Range | -20 Up to +75ºC |
| Tensile Strength | Min1.68KG/mm2 |
Our Packing
1.Wooden reel, plastic reel,paper reel,carton box
2.100m:PE protective layer, 5 roll per carton box
3.305m:one roll in one carton box, two carton boxes in one master carton
4.500m:wooden roll package, carton box as outer package
