Inlet φ0.12mm--φ0.55mm
Outlet φ0.030mm--φ0.12mm

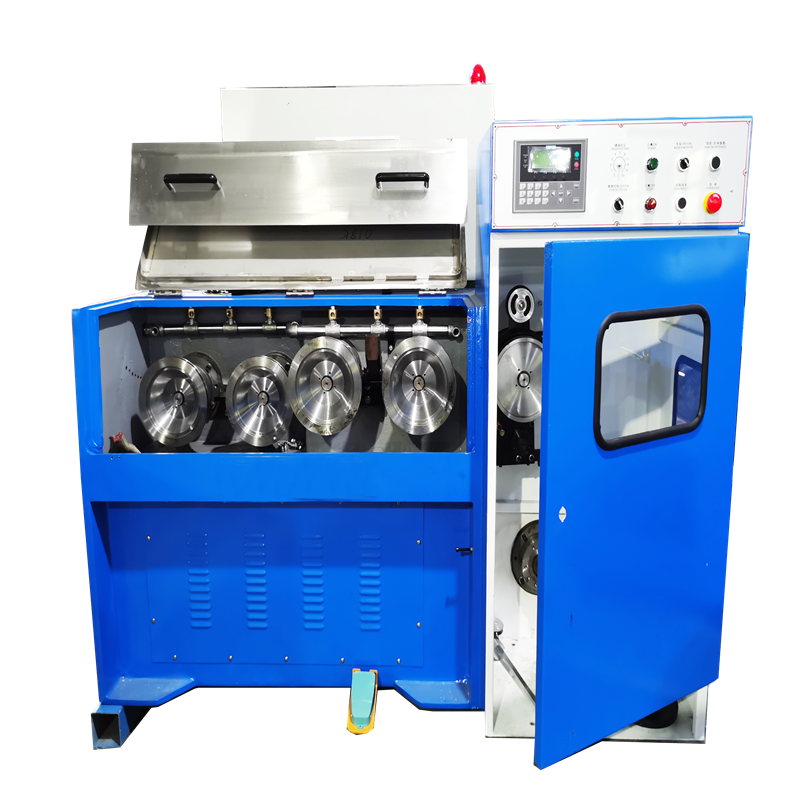

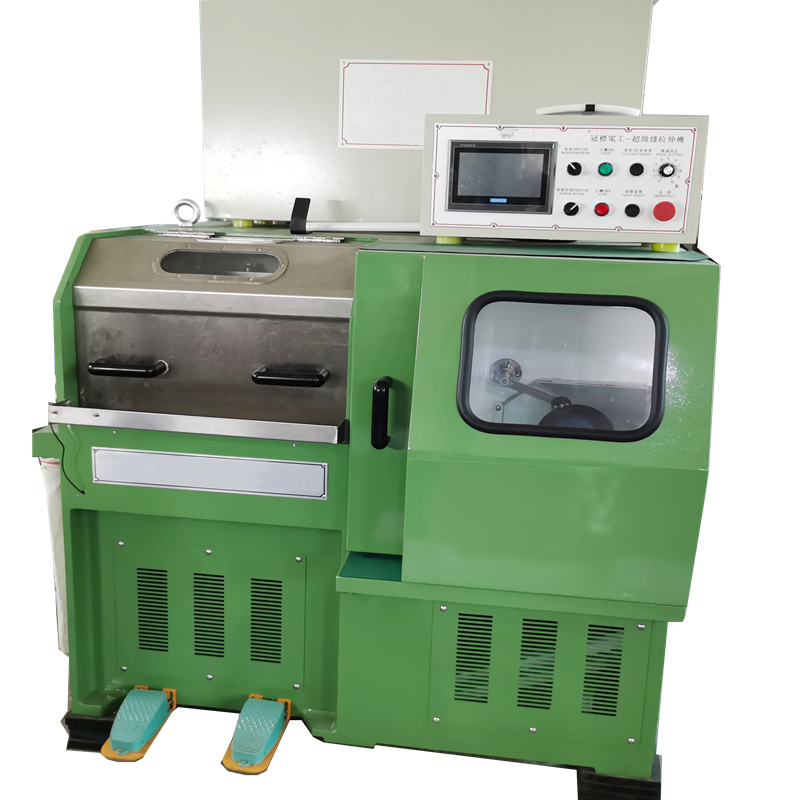

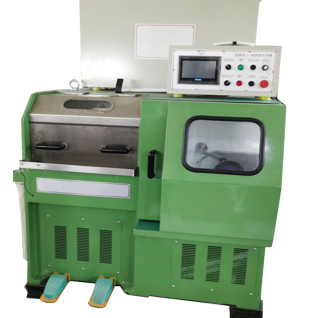

LHS150/24Ultra-fine Wire Draw machine is a new development of our factory with the advanced level of domestic and foreign small wire drawing machine, It has the characteristics of full computer control, The disconnection is the non-contact automatic parking and full automatic parking, Linear automatic control of the whole process of line up, the four main technical parameters of the direct display, Using color touch screen control display, sliding parameter, line speed, Recovery line speed , current weight and meters, The output and the output parameters of the 3 shift 4 operation class are directly displayed. parameters display and has memory function, the machine adopts wire drawing, winding, double frequency without tension rod PLC control, cable with synchronous servo motor, wheel round-trip cable, this machine line high speed, large capacity, Stepless frequency conversion speed ,And so on Characteristics.
it is mainly in Military industry, drones, medical minimally invasive aspects
|
Technical parameters |
||
| No. | Name | LHS150-24 |
| 1 | Incoming line | φ0.12mm--φ0.55mm |
| 2 | Finished product line | φ0.030mm--φ0.12mm |
| 3 | Maximum line speed | 2200m/min (12--50kgCapa city of receiving line) |
| 4 | Maximum mold number | 24 (1+11+11+1) |
| 5 | Reduction rate | 11% , Final: 10% |
| 6 | Wire drawing mode | Up and down 2,4 groups of pulley,Double mould rack,Spray sliding type |
| 7 | The cone pulley | φ150×11(4 group); Capstanφ150(1 group);Ceramic spray cone pulley |
| 8 | Main motor 4 KW | (Y2-112M-2 ) Three-phase AC |
| 9 | wire winding motor 4 KW | (Y2-112M-2 ) Three-phase AC |
| 10 | Winding motor (servo motor) | 80W(70TDY115) Three-phase AC |
| 200W(20B30CB)Single phase AC | ||
| 11 | water pump motor | 120W(15SJCB--22)Three phase AC pipeline pump |
| 12 | wire drawing lighting | 220V 30W |
| 13 | Receiving line lighting | 220V 7W-11W Receiving line lighting |
| 14 | Electromagnetic Stop device | 24V 30W |
| 15 | speed control mode | Control small electric cabinet panel multi ring position, potentiometer speed regulation |
| 16 | traverse method | Ball screw drive, servo motor positive and negative, maximum width 250mm～280mm |
| 17 | lubricating system | Fan shaped spray type (With water tank, water pump, put the line rack ) |
| 18 | exterior dimensions | Length×width×height 1495×1340×1812mm |
| 19 | full car weight | 1.27T |
| 20 | Reel size of receiving line | Small: φ200×216×φ160 ×180×φ80 (Plastic tray) |
| Big: φ300×270×φ215×250×φ180 (Steel plate,Dynamic balance requirement ) |
||
