| No. | Items | Quantity |
Reference Picture |
|
1 |
Φ 630mm Manual type pay-off |
1 set |  |
|
2 |

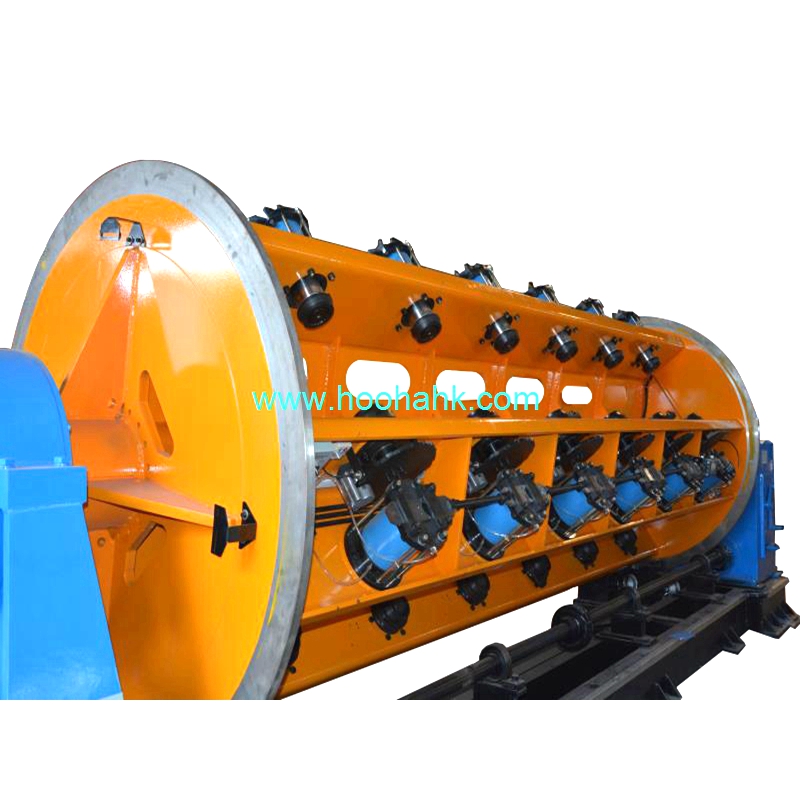

630/6+12 Bobbins cages |
1 set |
 |
|
3 |
Side loading system for each cage |
1 set |
 |
|
4 |
Wire-stranded mould stand |
1 set |
 |
| 5 |
Wire-stranded and Wire-compacted mould stand |
1 group |
 |
|
6 |
Meter counter |
1 set |
 |
|
7 |
Φ 1300mm Double capstan wheels |
1 set |
 |
|
8 |
Φ 2000mm Column type take-up with traverse |
1 set |
 |
|
9 |
Transmission system |
1 set |
 |
|
10 |
Electric control system |
1 set |
 |
|
11 |
Safe fence |
1 set |
 |
|
No. |
Items |
Features |
| 1 |
Single wire Diameter 单线直径 |
Φ 1.2 - Φ 5mm |
| 2 |
Max stranded Diameter 最大绞合直径 |
Φ 40mm |
| 3 |
Max cage rotate speed 最大绞笼转速 |
6B:150RPM 12B:140RPM |
| 4 |
Capstan wheel diameter 牵引轮直径 |
Ф1300mm |
| 5 |
Central pay-off bobbin 中心放心盘 |
Ф630mm |
| 6 |
Pay-off bobbin in cage 绞笼放线盘 |
Ф630mm |
| 7 |
Take-up bobbin 收线盘直径 |
Ф1000mm-Ф2000mm |
| 8 |
Main motor power 主机功率 |
55KW,AC,380V,50Hz |
| 9 |
Stranding pitch range 绞合节距范围 |
65-625mm |
| 10 |
Central height of machine 中心高度 |
1500mm |
