应用：本地通信电缆，同轴电缆，LAN电缆
导体材料：BC / CCS / CCA / TC / CU / CCAG

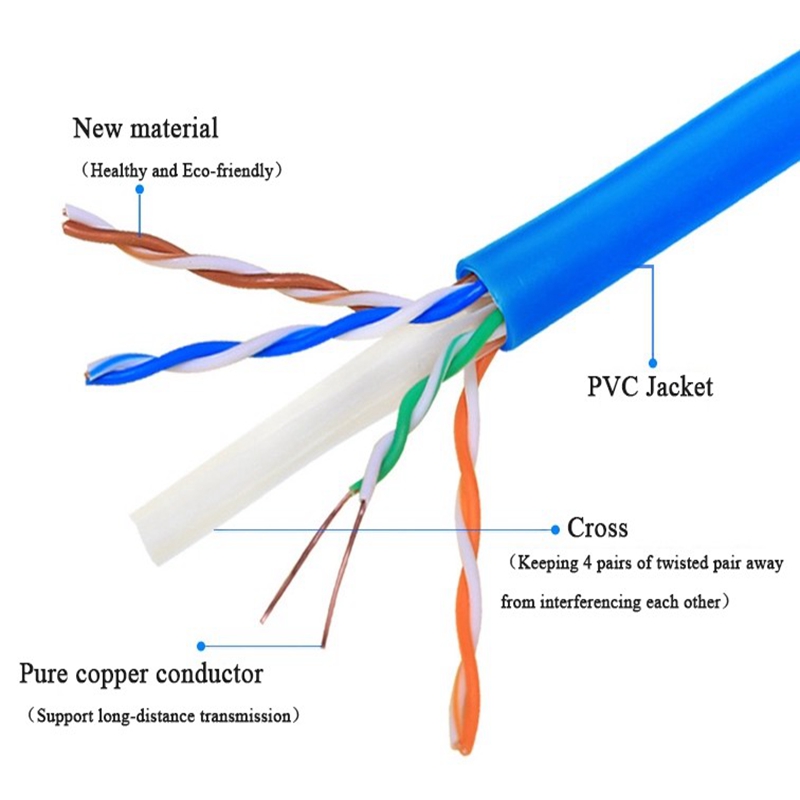

封面材料：PVC
类型：CAT6
材质形状：圆线
导体类型：实心
线芯材料：裸铜线/铜包钢线
认证：CE，ISO，RoHS，CPR
型号：CAT6 LAN电缆

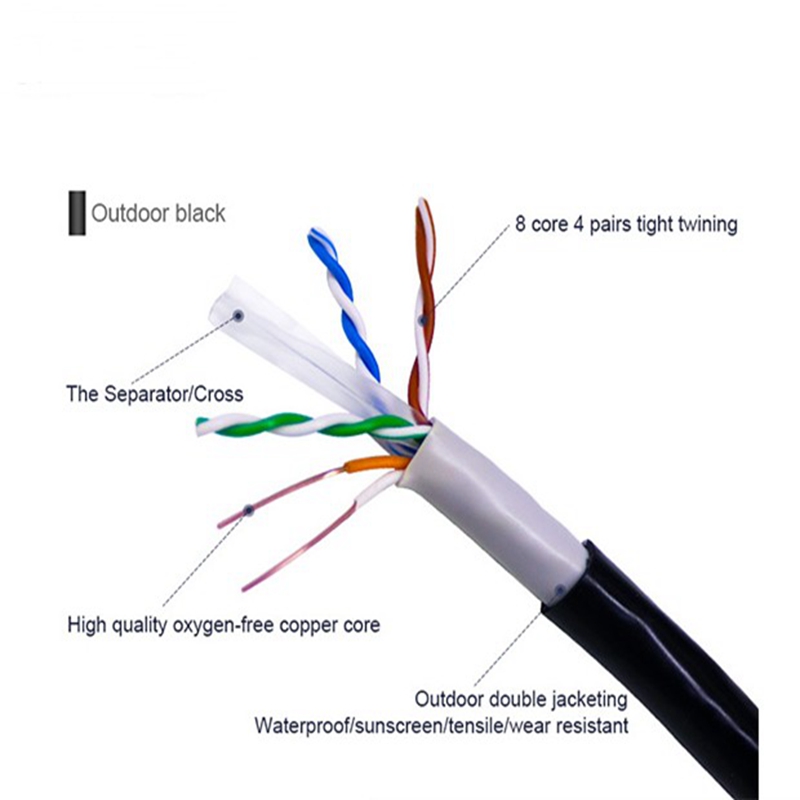

导体：8芯4对
绝缘：HDPE
Ripcord：630d

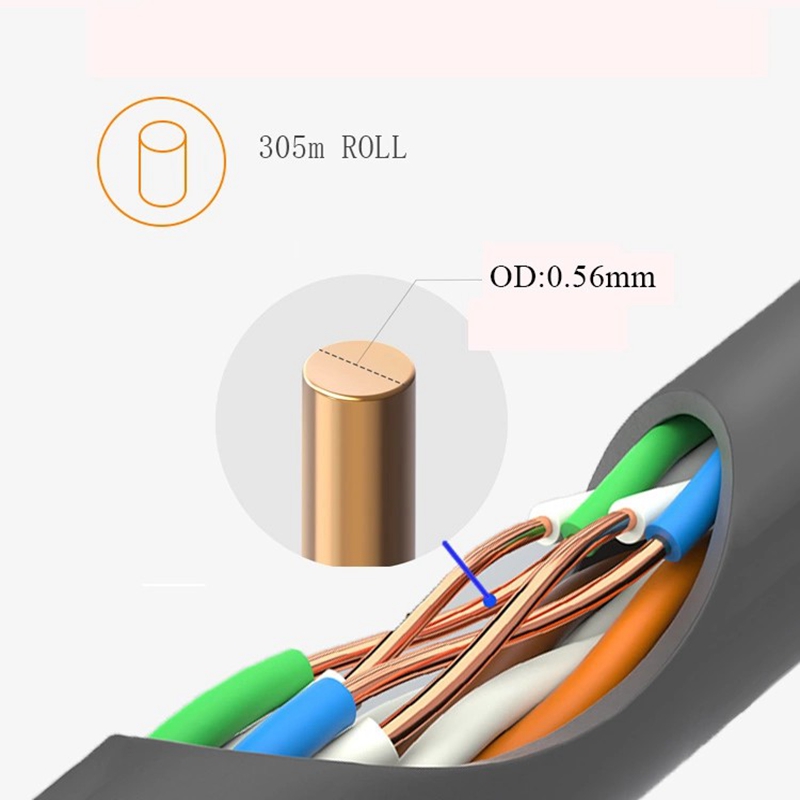

包装：305m /纸箱，2拉盒/ CTN
颜色：灰色，蓝色，黑色，黄色，红色等
商标：OEM
运输包装：木制线轴，塑料线轴，礼品盒，纸盘盒，Carto
|

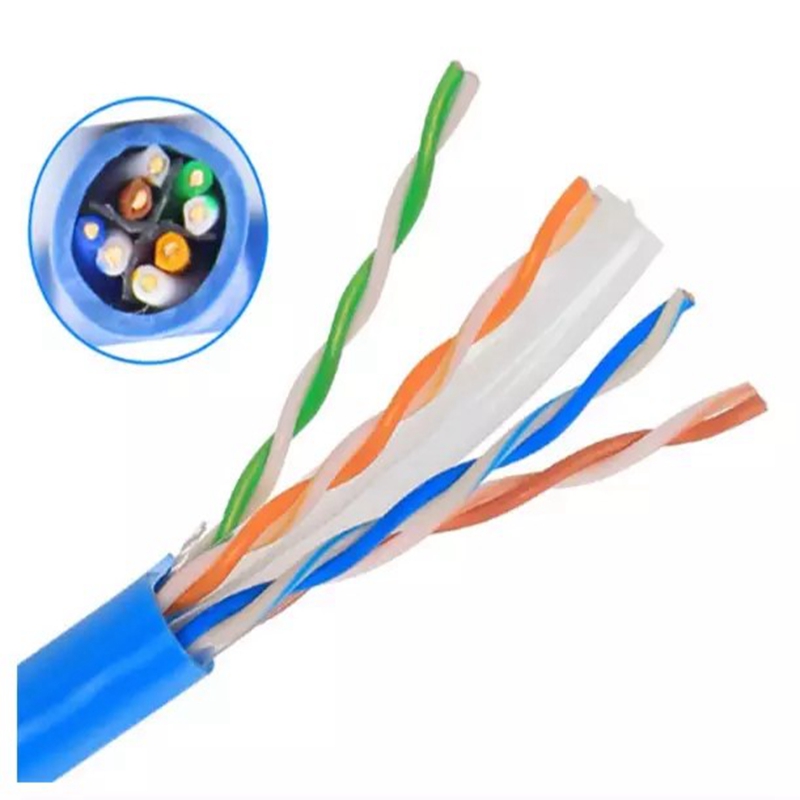

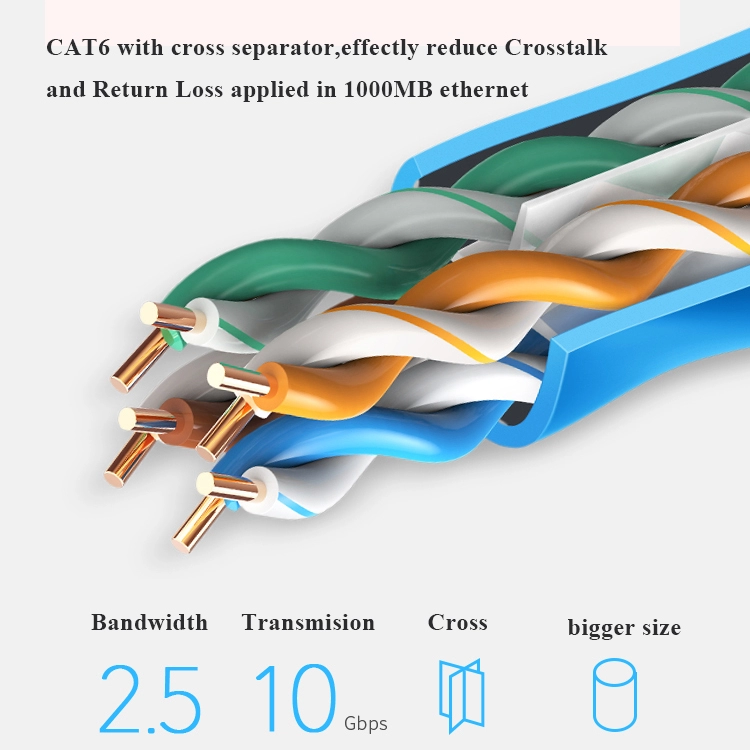

Cat 6 UTP Network cable |
|||
|
|
Conductor:0.37mm CCA, Jacket:PVC |
|
Conductor:0.5mm CCA, Jacket:PE |
|
|
Conductor:0.47mm CCA, Jacket:PVC |
|
Conductor:0.55mm CCA, Jacket:PE |
|
INDOOR |
Conductor:0.5 mm CCA, Jacket:PVC |
OUTDOOR |
Conductor:0.57mm CCA, Jacket:PE |
|
|
Conductor:0.55mm CCA,Jacket:PVC |
|
Conductor:0.57mm CU, Jacket:PE |
|
|
Conductor:0.45mm BC ,Jacket:PVC |
|
Conductor:0.45mm BC, Jacket:PE |
|
|
Conductor:0.5mm BC ,Jacket:PVC |
|
Conductor:0.5mm BC ,Jacket:PE |
|
|
Conductor:0.57mm BC ,Jacket:PVC |
|
Conductor:0.57mm BC ,Jacket:PE |

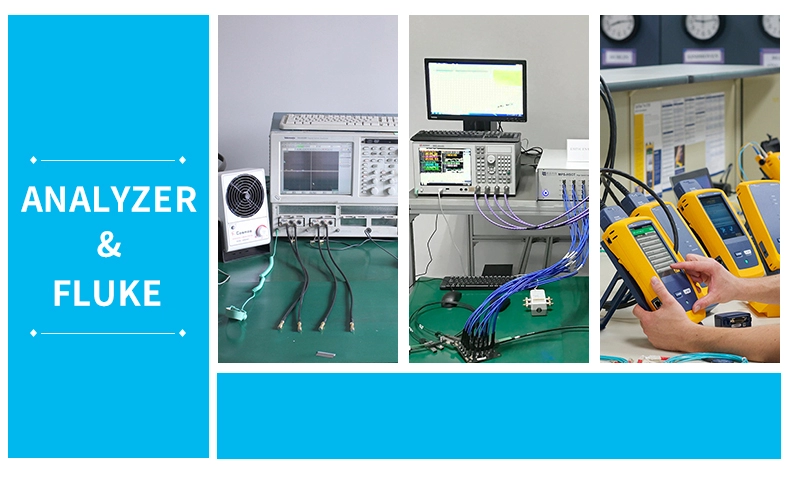

Testing 测试

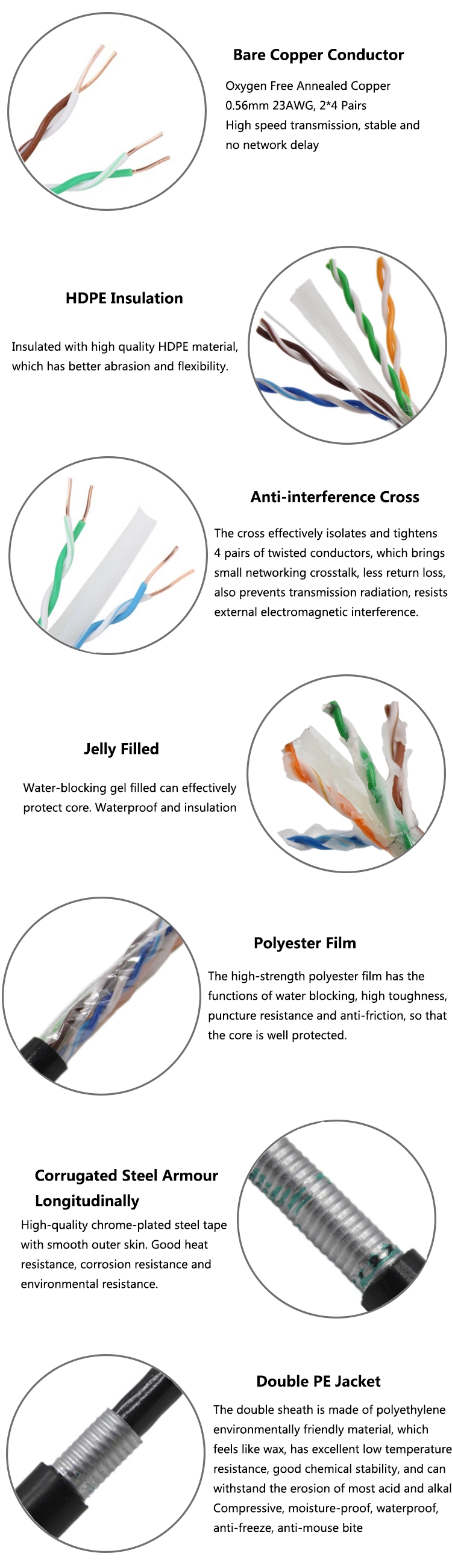

| Constrution | Material | Diameter(mm) |

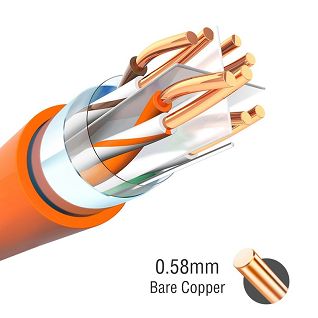

| 1.Conductor | Bare copper | 0.58±0.005 |
| 2.Insulation | High-density polyethylene | 0.95±0.020 |
| 3.Rip cord | nylon | 300D |
| 4.Jacket | LSZH | 5.58±0.20 |
| Frequency | Attenuation | RL | Next | ELFEXT |
| MHZ | (dB/100M) | (dB) | (dB) | (dB/100M) |
| 1MHZ | 2.1 | 15 | 62 | 61 |
| 4MHZ | 4.3 | 15 | 52 | 49 |
| 8MHZ | 6 | 15 | 48 | 47 |
| 10MHZ | 6.9 | 17 | 46 | 41 |
| 16MHZ | 8.9 | 17 | 43 | 37 |
| 20MHZ | 10 | 17 | 42 | 35 |
| 25MHZ | 11.1 | 21 | 41 | 34 |
| 31.3MHZ | 12.4 | 20 | 39 | 31 |
| 62.5MHZ | 17.7 | 19 | 34 | 25 |
| 100MHZ | 23.4 | 17 | 31 | 21 |
Electrical Properties 电性特征
| Conductor Resistance | Max.9.38 ohm/100m |
| Resistance Unbalance | Max.2.5% |
| Insulation Resistance | 5000 ohm/KM |
| Mutual Capacitanue | Max.5600pF/100m |
| Capacitanue Unbalance | Max.330pF/100m |
| Impedance | 100±15 ohm |
| Spark Test | 2.0KV |
| Velocity of Propagation | 0.69 |
Mchanical Properties 机械特征
| Elongation | Min.300% |
| Temperature Range | -20 Up to +75ºC |
| Tensile Strength | Min1.68KG/mm2 |
1. 木盘，塑料盘，纸盘，纸箱
2. 100m：PE保护层，每个纸箱5卷
3. 305m：一个纸箱一卷，一个主纸箱两个纸箱
4. 500m：木盘包装，外包装纸箱
