1. Application of High and low temperature full chromatographic tape
| Width(mm) | Specification(um) thickness |
Tensile strength (Mpa) |
Elongation (%) |
Heat shrinkage (%) |
Instantaneous temperature (°C) |
| 3.0±0.5 | 40±5 | 125↑ | 15↑ | 10↓ | 180 |
| 4.0±0.5 | 40±5 | 125↑ | 15↑ | 10↓ | 180 |
| 7.0±0.5 | 40±5 | 125↑ | 15↑ | 10↓ | 180 |
| In addition to the above specifcations, other special reauirements can desian accordina to customers | |||||
Type B: Low temperature identification tape
1. Definition
The tape is high-temperature resisting(melting point: 168ºC)
2. Application
For color distinguishing in telecommunication cable and high voltage cross-iinked poivethviene insulated cable and local cable.
3. Specification
| Type | PE-2 | PE-2 |
| Specification | Solid Color | Two-tone |
| Width(mm) | 4±1 | 4±1 |
| Temperature resistant(ºC) |
160~180 | 160~180 |
| Thickness(mm) | 0.07±0.01 | 0.07±0.01 |
| Colors | Red, yellow, blue, green,black, orange, white, brown, purple, grey |
White blue, white orange, white gray, white green,white brown, red orange, red blue,red green, black blue, black orange, yellow blue, yellow gray, etc |
| Length(m/reel) | 2500±10% | 2500±10% |
| Tensile strength | ≥200Mpa | ≥200Mpa |
| Elongation | ≥25% | ≥25% |
| Heat shrinkage rate | ≤3.5% | ≤3.5% |
2. Packing of High and low temperature full chromatographic tape

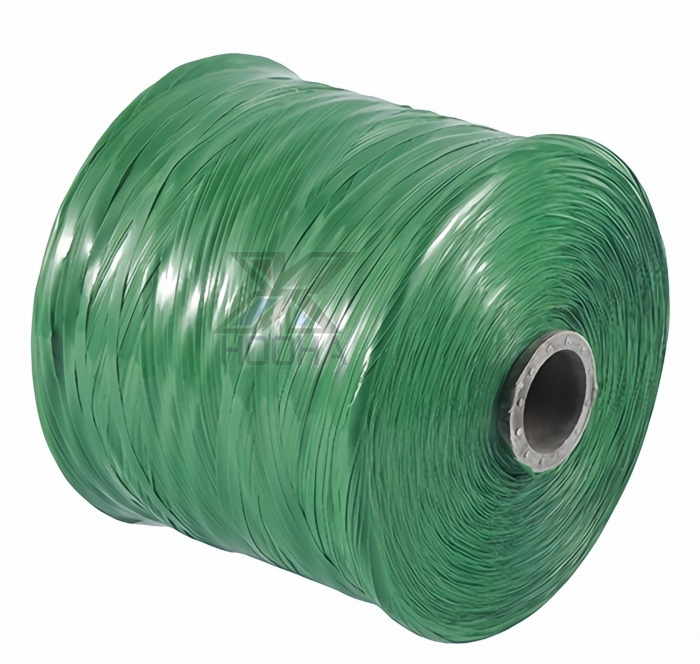

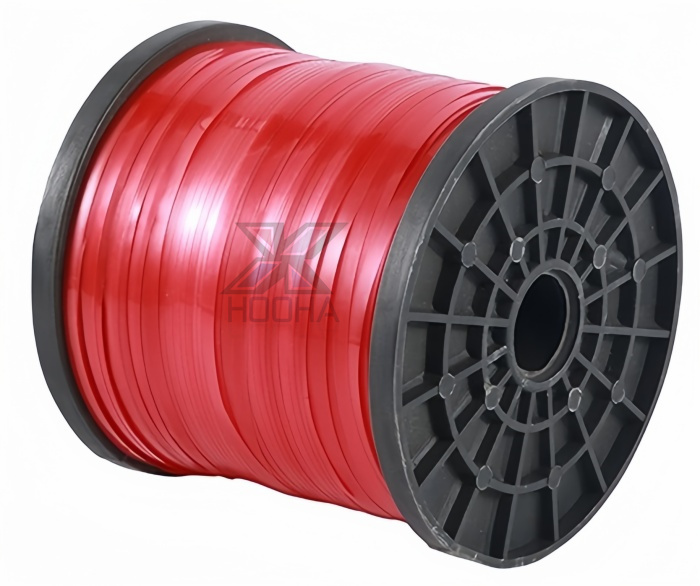

In coil with core Dia. 76mm.,Carton box
3. Payment and Delivery Time of High and low temperature full chromatographic tape
TT, delivery about 20 days
4. Standard
Do not fade, not migrate , when wipe with alcohol after oil cream soaked Should be smooth, no wrinkles, no kinks , no holes, no cracks and no impurities neat edge. Should be neatly wound on the core barrel, the appearance of flat tight, neat at both ends Without side slung, the core barrel is split in two halves or longitudinal, which can be easily removed from the core
