HH-1250 Double Twist Stranding Machine

Product Attributes :

FOB Price: 206,000 ~ 230,000 USD

Payment Terms: T/T, L/C

Delivery Time: 60 working days

Measurment(L*W*H): 4500*2600*2500 MM

Power Request: 22kw

Warranty: 12 months

Product Description

Product Description

HH-1250 Double Twist Bunching Machine

Application:It is applied to the twisting of above 7 pcs of bare copper wires,tinned wires,silver jacketed wires and enamelled wires and double twisting for core wires.

Conductor Inner Diameter

BV Conductor	7*1.34mm	7*1.69mm	7*2.12mm	7*2.5mm	19*1.78mm	19*2.12mm
BVR Conductor	49*0.51mm	49*0.64mm	98*0.57mm	133*0.58mm	133*0.68mm
RV Conductor	77*0.40mm	119*0.40mm	189*0.40mm	266*0.40mm	378*0.40mm	360*0.50mm

Feature Descriptions

1 High production speed, constant tension from empty to full bobbin, especially for high quality stranding wire.

2. Use shaft to calculate meters, less than 0.01% error for a certain wire&cable.

3. Especially for twisting small cross-section area.

4. Use synchronous belt drive,

5. Change guide wheel to change lay distance, easy to operate.

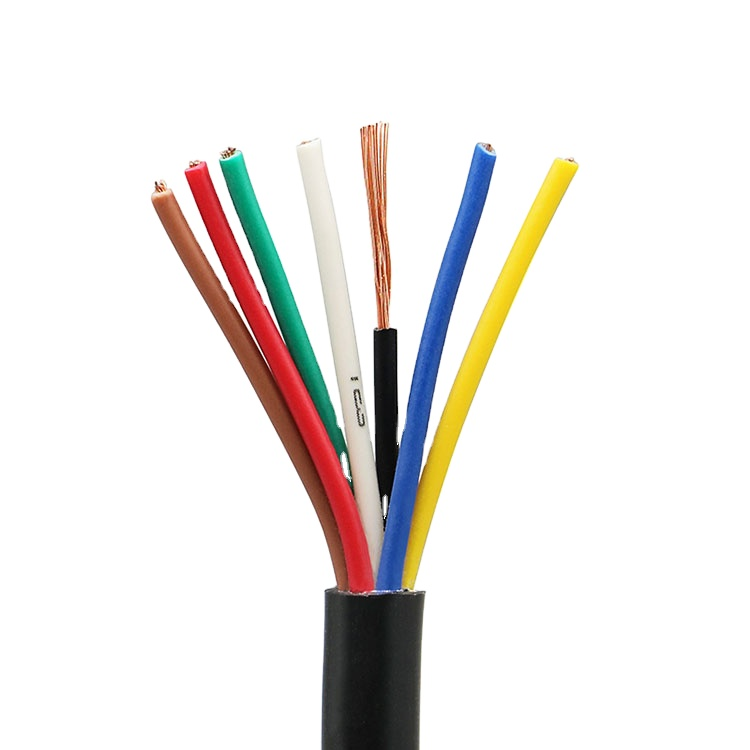

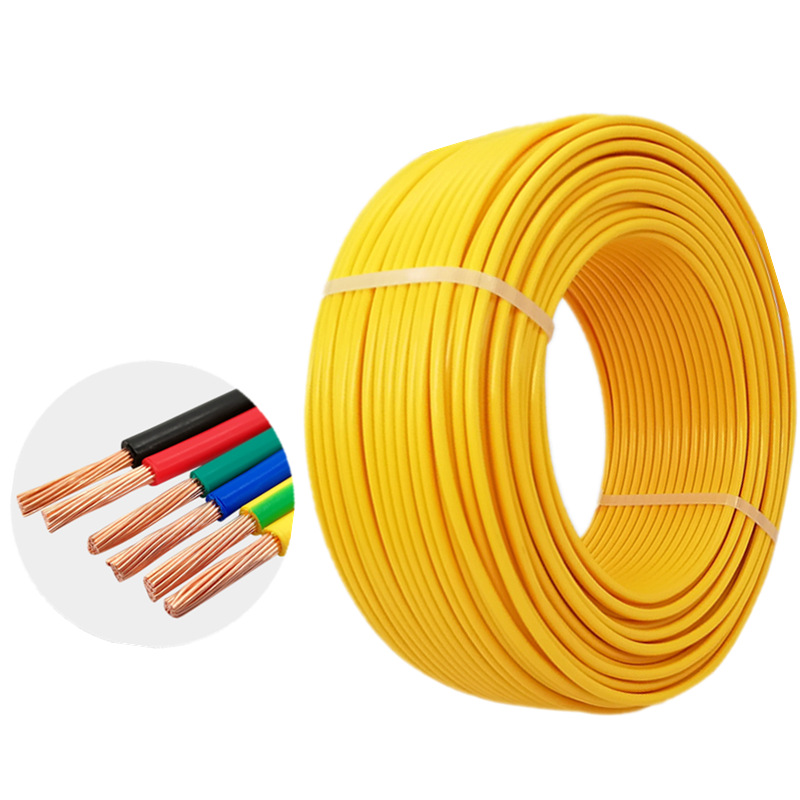

Samples

Specifications

Single Wire Diameter	Φ0.5~2.14mm
Stranding Section Area	10.0~50.0 mm2
Core Wire Single Wire Diameter	Φ3.0~8.0mm
Core Wire Stranding Outer Diameter	Φ6.0~16.0mm
Pitch	50-250mm(12sections)
Direction of Lay	optional for right or left
Take-up Bobbin	Φ1250Φ80950
Max Rotating Speed	800rpm(1600twist)
Main Motor Power	22KW
Inverter Power	22KW
Magnetic Powder Clutch	20kgf
Brake Mode	Electromagnetic Brake
Dimension	4500L2600W2500H mm
