Product Description

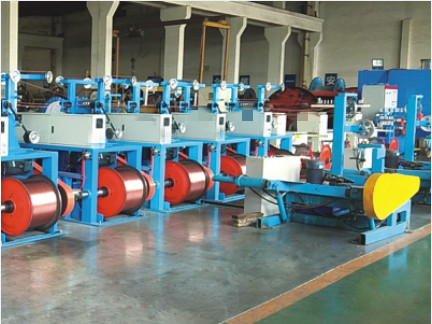

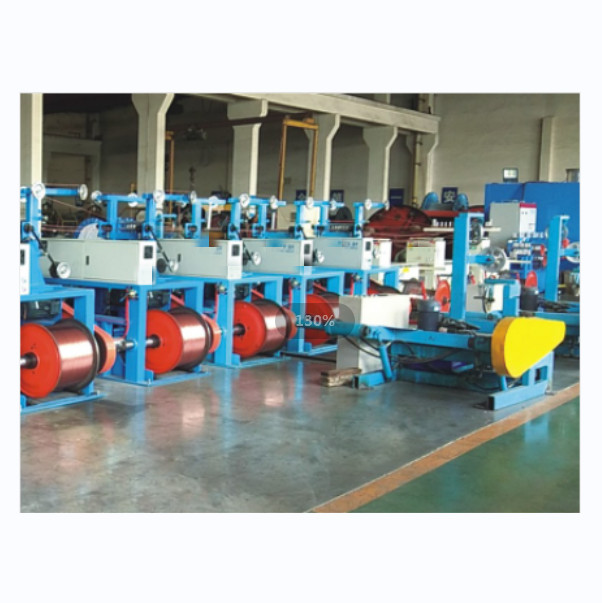

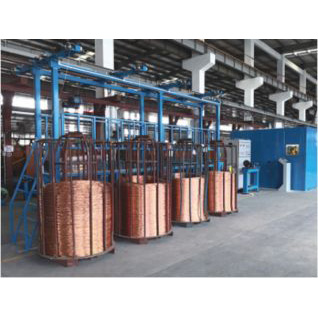

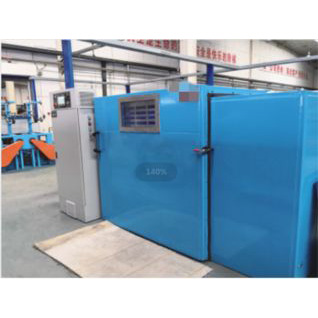

HH-1600 High Speed Bunching Machine
Application:It is applied to the twisting of above seven pcs of bare copper wires, tinned wires, silver jacketed wires ,enameled wires, and double twisting for core wires.
Coductor Diameter Range
|
BV Conductor
|
7*2.12mm
|
7*2.5mm
|
19*1.78mm
|
19*2.12mm
|
19*2.49mm
|
19*2.98mm
|
|
BVR Conductor
|
98*0.57mm
|
133*0.58mm
|
133*0.68mm
|
189*0.67mm
|
|
|
|
RV Conductor
|
189*0.40mm
|
266*0.4mm
|
378*0.40mm
|
360*0.5mm
|
|
Feature Descriptions
1 High production speed, constant tension from empty to full bobbin, especially for high quality stranding wire.
2. Use shaft to calculate meters, less than 0.01% error for a certain wire&cable.
3. Especially for twisting small cross-section area.
4. Use synchronous belt drive,
5. Change guide wheel to change lay distance, easy to operate.

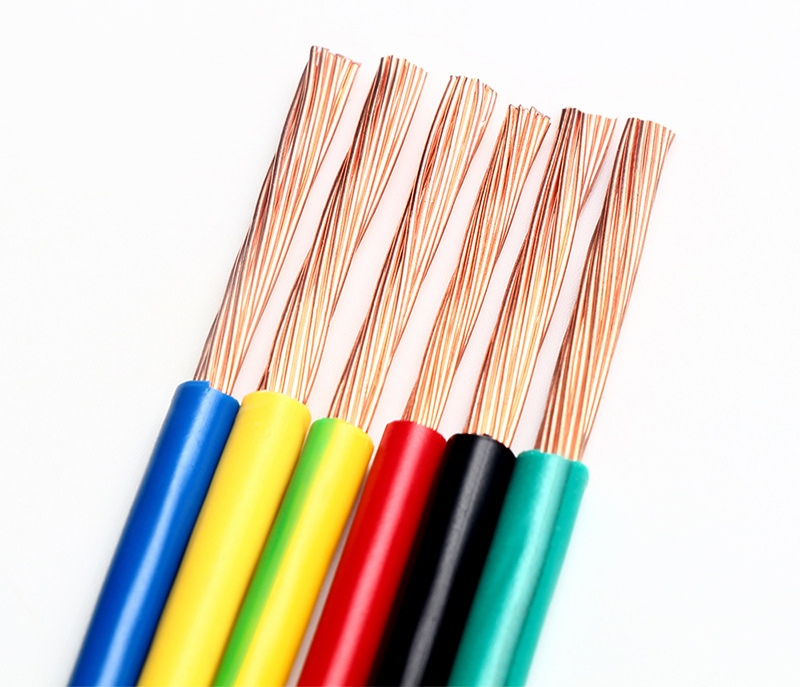

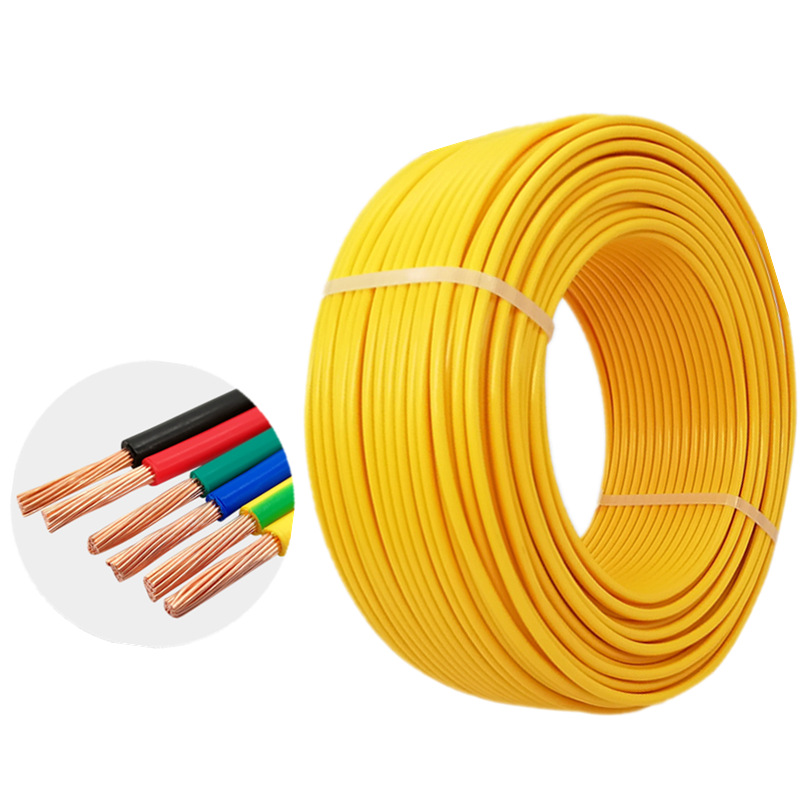

Samples
Specification
|
Single wire dia(mm)
|
φ0.50-φ2.52
|
|
Stranding section area(mm²)
|
16.0-95
|
|
Core wire single wire dia
|
φ3.0-φ10.0
|
|
Core wire stranding outer dia
|
φ8.0-φ20.0
|
|
Pitch(mm)
|
80-350(12zones)
|
|
Direction of lay
|
Optional for right or left
|
|
Take up bobbin Outer dia*bore*outer width
|
φ1600*φ80*1180
|
|
Max rotating speed
|
600(1200twist)
|
|
Main motor power
|
30KW
|
|
Inverter power
|
30KW
|
|
Tension control method
|
Touch screen+ PLC+ magnetic powder clutch,
it may ensure the constant tension from empty bobbin to full bobbin |
|
Magnetic powder clutch
|
40kgf
|
|
Protection
|
Machine will automatically brake when wire inside and outside is broken,
he machine will automatically stop when the preset length is arrived. |
|
Brake mode
|
Electromagnetic brake
|
|
Traversing method
|
Rolling ring drive units, winding pitch and breadth are adjustable
|
|
Operation mode
|
Touch screen operation
|
|
Dimension(mm)
|
5000L*3000w*3000H
|
