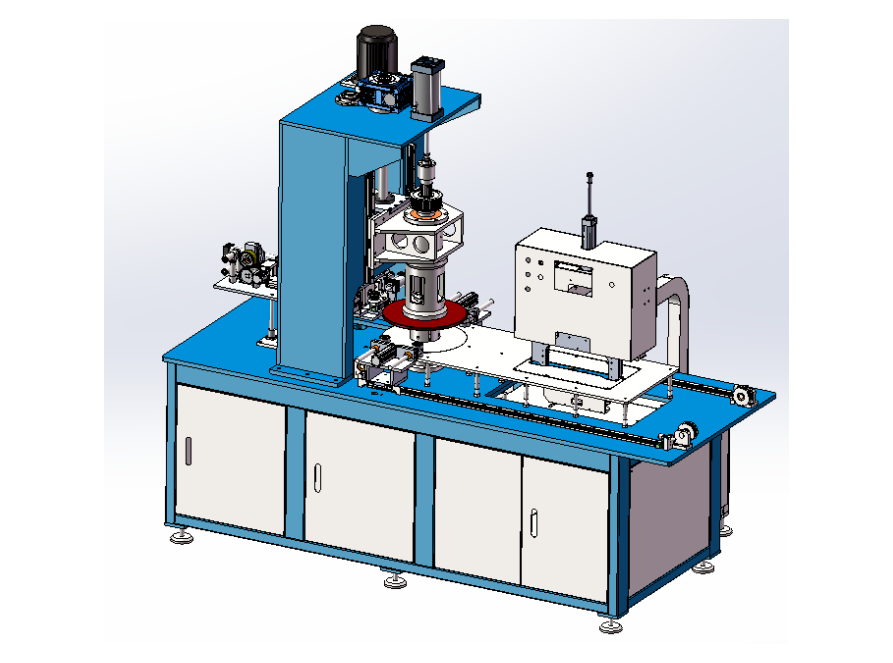

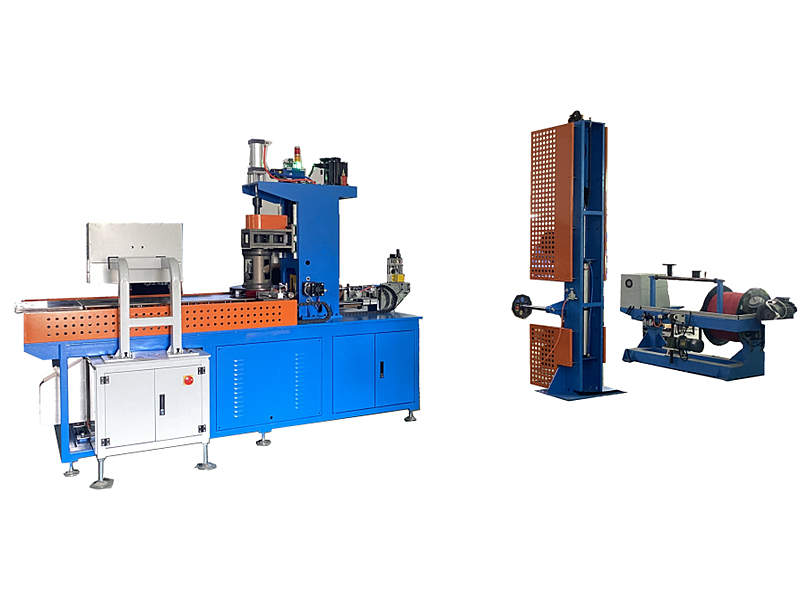

The Latest 1230 Automatic Coiling And Wrapping Tie Machine for All Kinds of Wires :
Specification
| Type | HH-1230 |
| Overall dimension | L2600*W1278*H2348mm |
| Circle height | 50-100mm |
| Inner diameter of ring | Φ130-φ160mm(fixed size) one selected by the customer |
| Maximum outer diameter of circle | φ300mm |
| Number of ties | Whole roll of primary tie |
| Outer diameter range of bound wire coil | Φ200-300mm |
| Winding height of bound wire | Φ50-100 |
| Tie material | OPP The thickness of transparent tie is 0.10mm ~ 0.12mm × 20mm wide |
| Arm holding mode | Pneumatic arm |
| Applicable line species |
Φ3-φ8mm power cord（BV1.5-6mm²，BVR2.5-10mm²） |
| Power Supply |
AC380V，three-phase,50HZ(China）Or designated by the customer |
| Gas source | The compressed air pressure is 5-7kg / cm ³ |
| Machine weight |
1350kg |

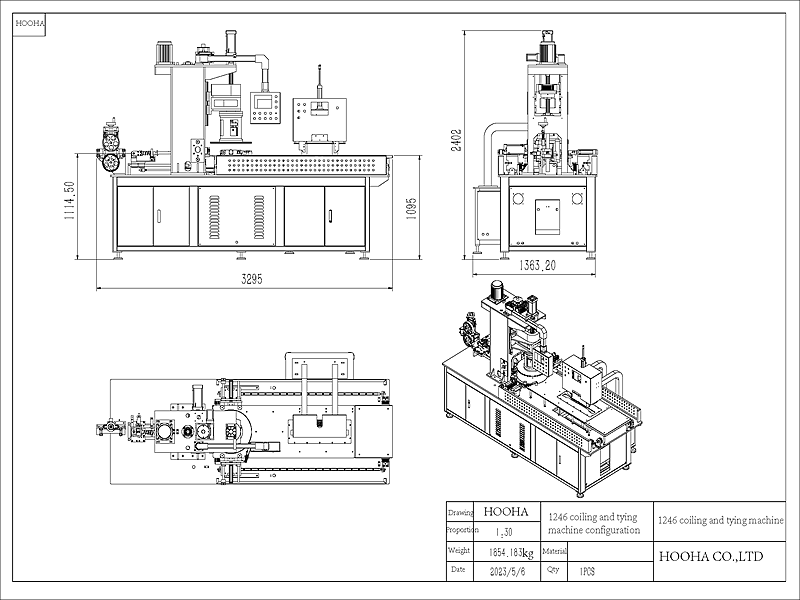

Layout of Equipment
