1.Product Describe

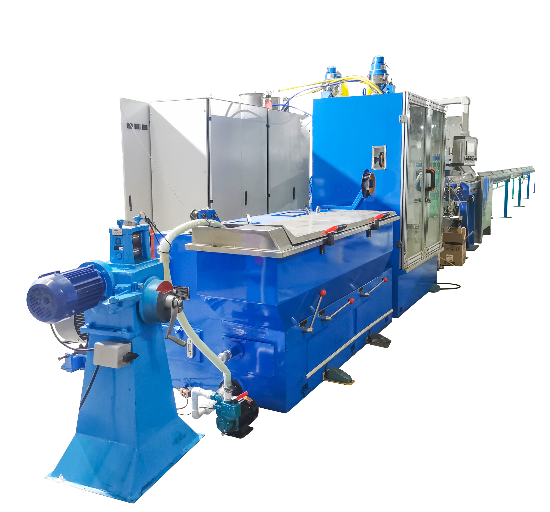

High speed 800-1500 m/min network cable Tandem Production Line:
2.Specification
Wire diameter | 0.40~0.9 mm |
Insulation thickness | 0.15~0.4 mm |
Production speed | Max1800m/min |
The deviation of wire outer diameter | ±0.003 mm |
Wire elongation | 18~25% |
The deviation of insulation outer diameter | ±0.010mm |
The eccentricity of insulation laye | ≥ 92% |
Total weight | about 13000KG |
Overall size of machine | (L×W×H)36000×3000×340mm |
Three phase voltage | AC 3×380 (±10%) |
Single phase voltage | AC 220 (±10%) |
Frequency | 50 Hz (±2%) |

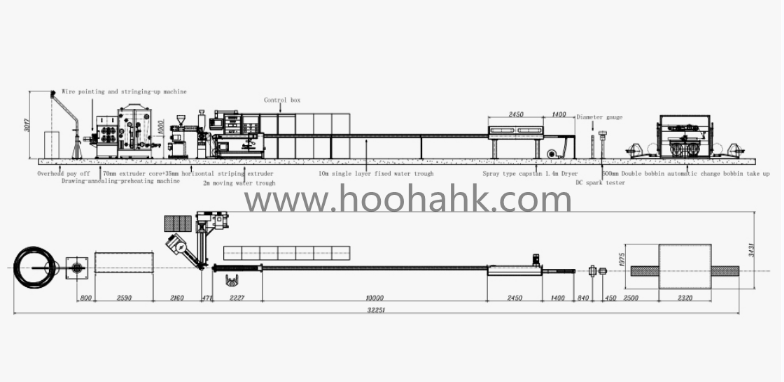

3.Layout of Equipment
