Number of Conductors:8
Product name:Network Cable
Category:CAT6a UTP
Specifications:4 pairs
Conductor:0.57mm(23AWG), 0.51mm(24AWG), 0.4mm(26AWG)
Conductor Material:Bare copper, Standard copper, CCA, CCS
Shield:UTP(Unshielded Twisted Pair)
Jacket:PVC, LSZH
Color:Blue
Length: 305m

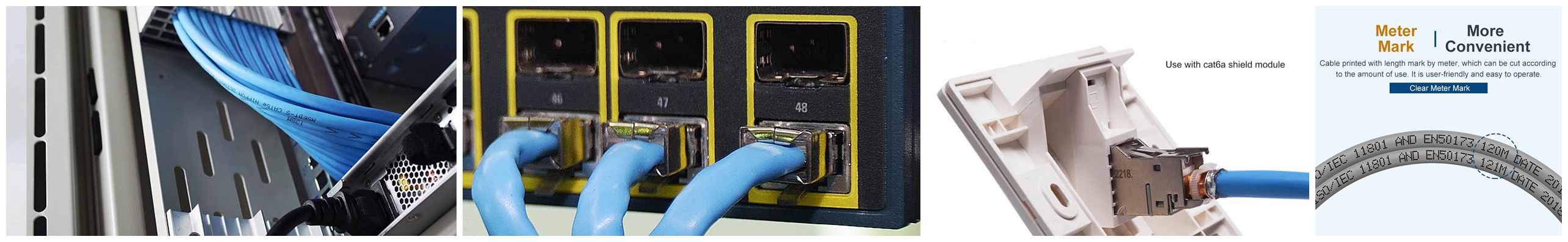

Application:PC, ADSL, network Module Plate, Wall Socket, etc
1. CAT6A FTP cable complies with Category 6 UL444, ANSI/ TIA/ EIA 568B and ISO/ IEC 11801 Standerd.
2. Support Transmission of digital and analogue voice, data and video signal.
3. Rated Temperature: -20ºC to 75ºC.

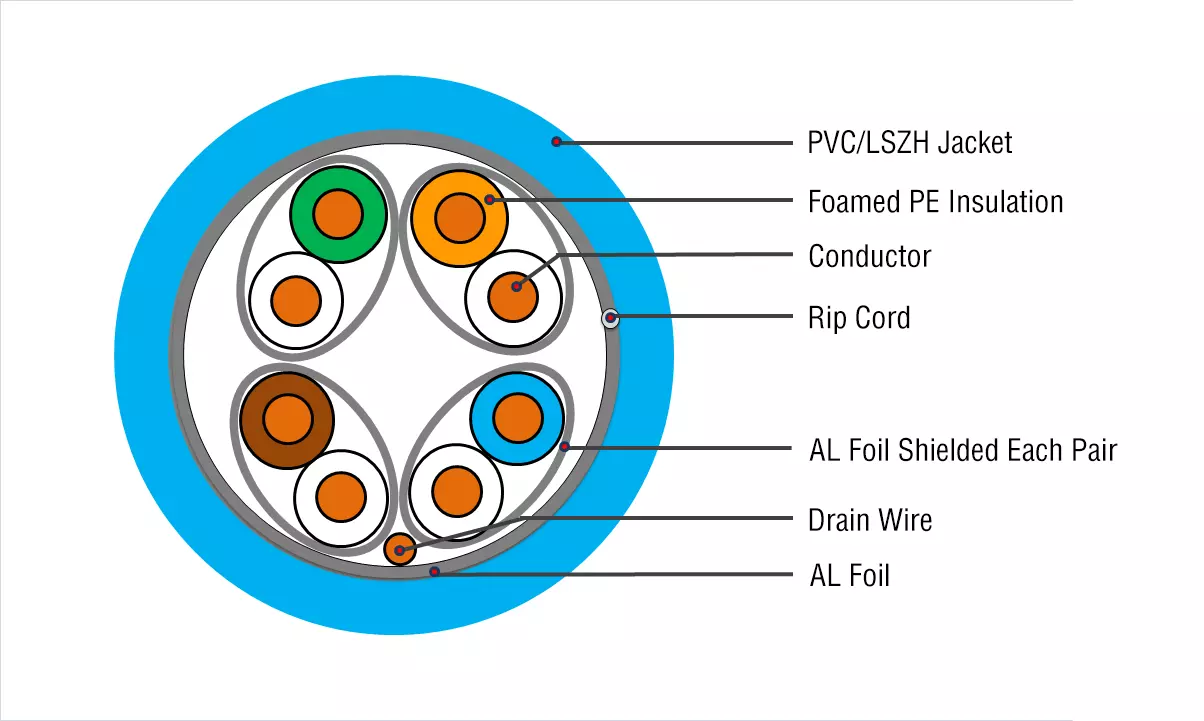

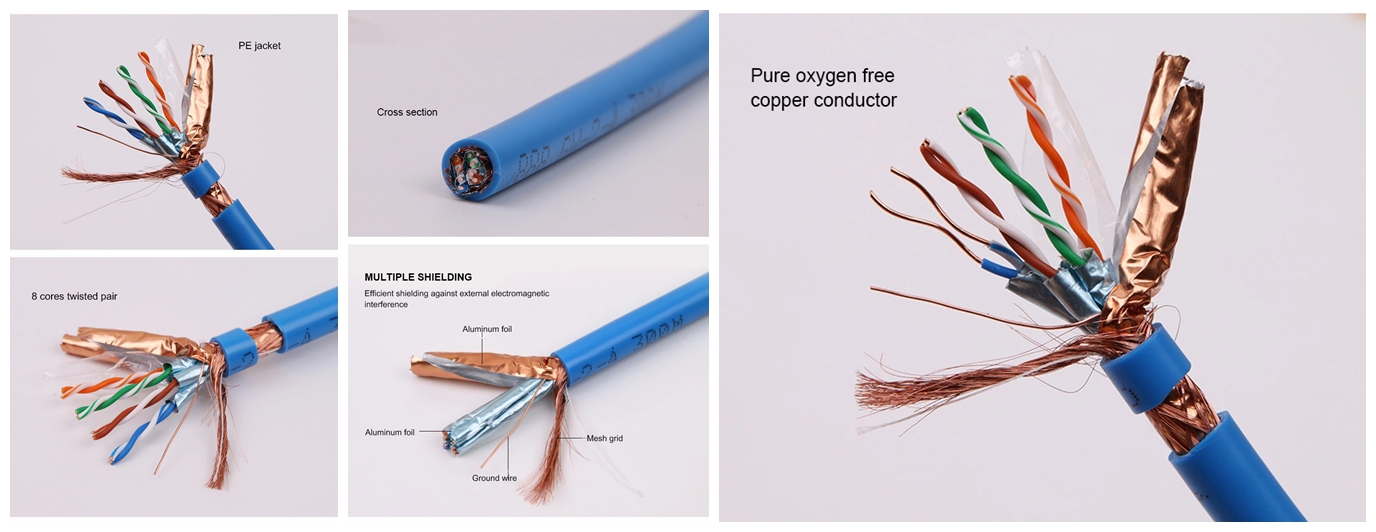

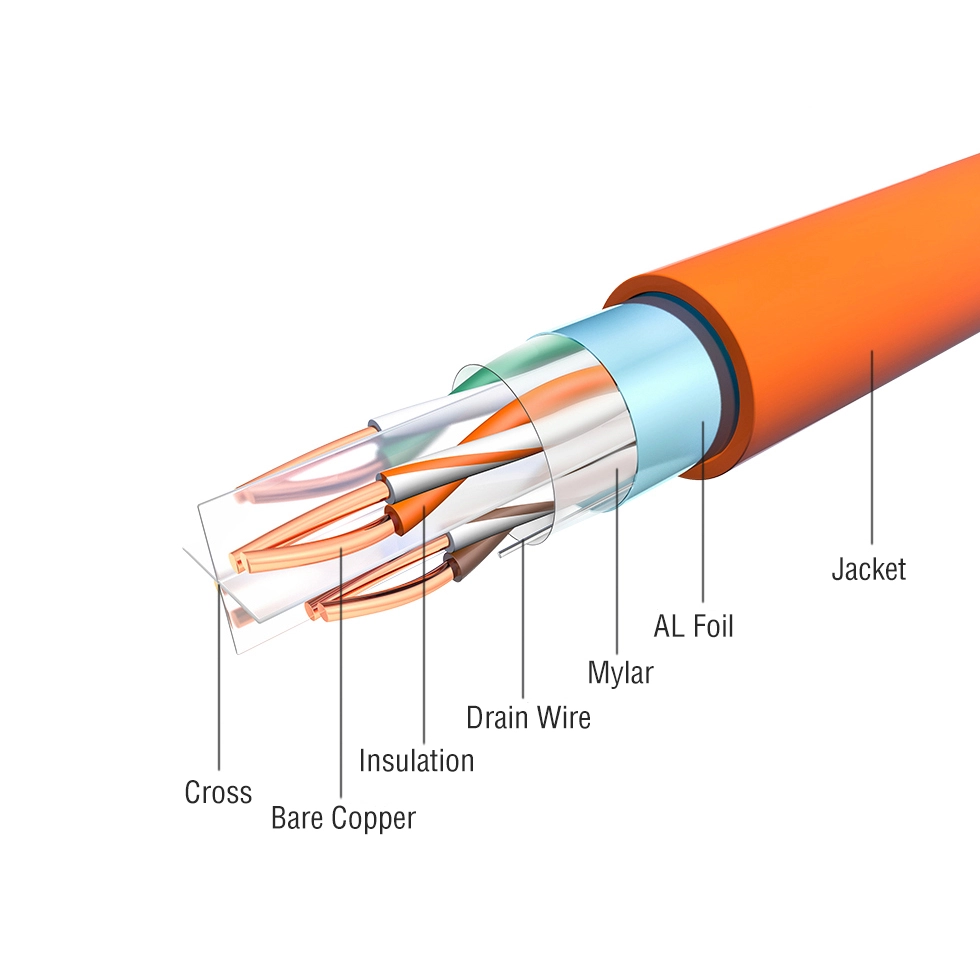

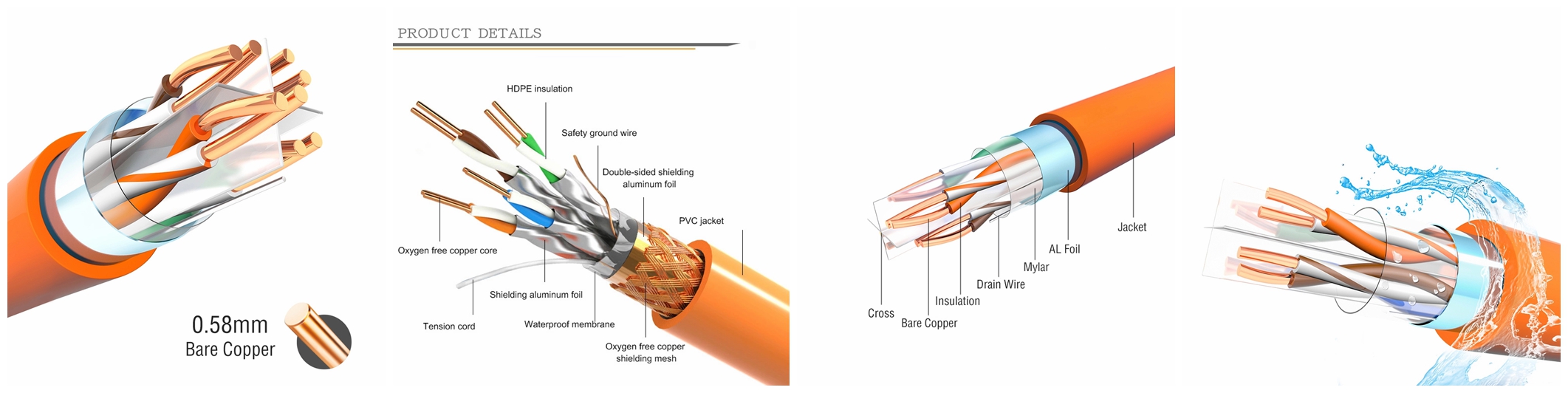

| Product Name | CAT6A 23AWG 0.57mm BARE COPPER Lan CABLE PVC Jacket | |

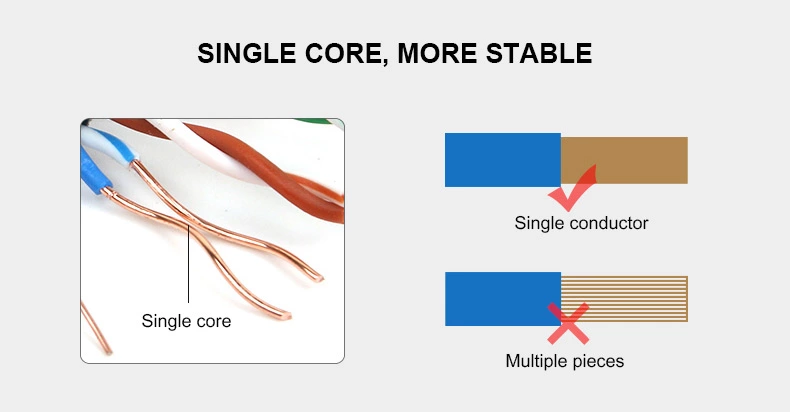

| Inner conductor | Material | BARE COPPER |

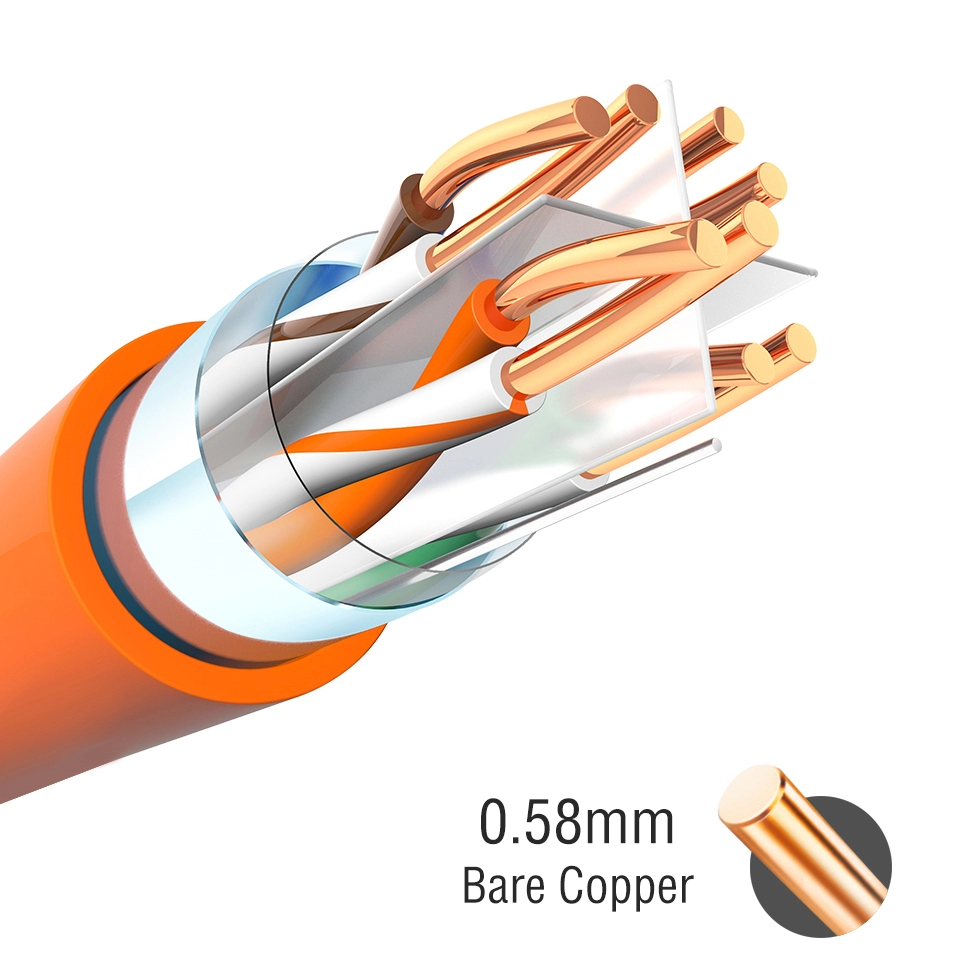

| Diameter | 0.57 ± 0.01mm (23AWG) | |
| Insulation | Material | Color-coded PE (Polyethylene) |
| (Dielectric) | Thickness | ≥ 0.21mm |
| Diameter | 1.35 ± 0.05mm | |

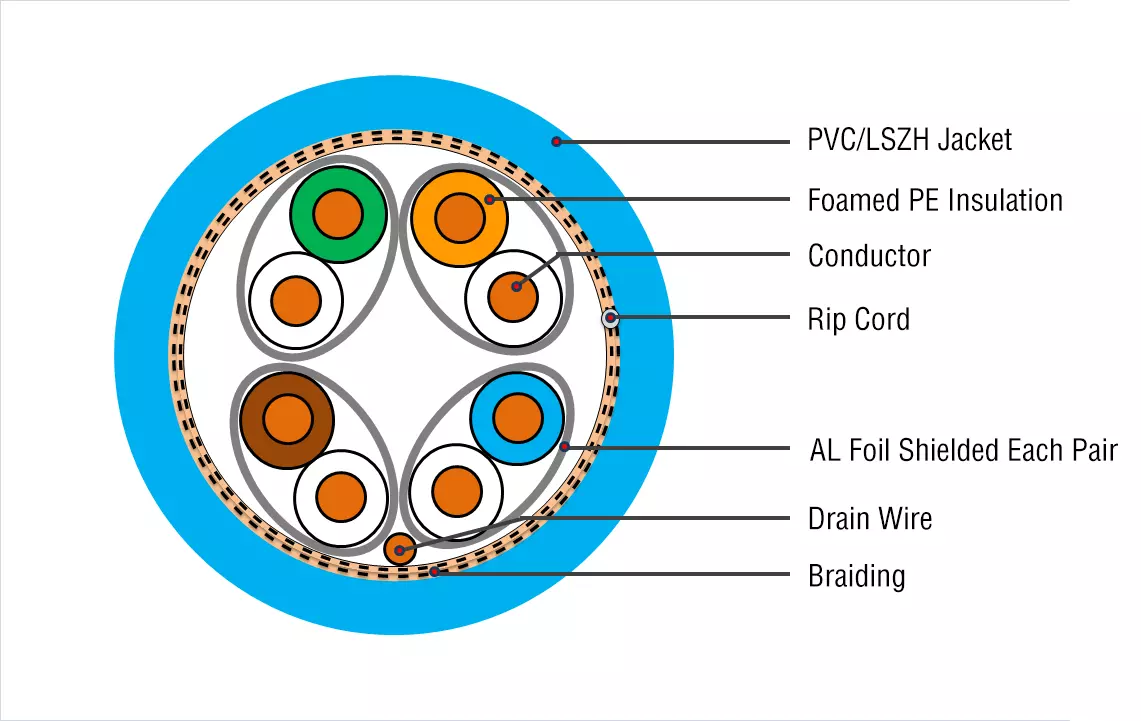

| Shielded Layer | First Layer | Aluminum Foil (or None) |
| Second Layer | Copper or CCA Braiding (or None) | |
| Drain wire | Tinned copper 0.4mm (or None) | |

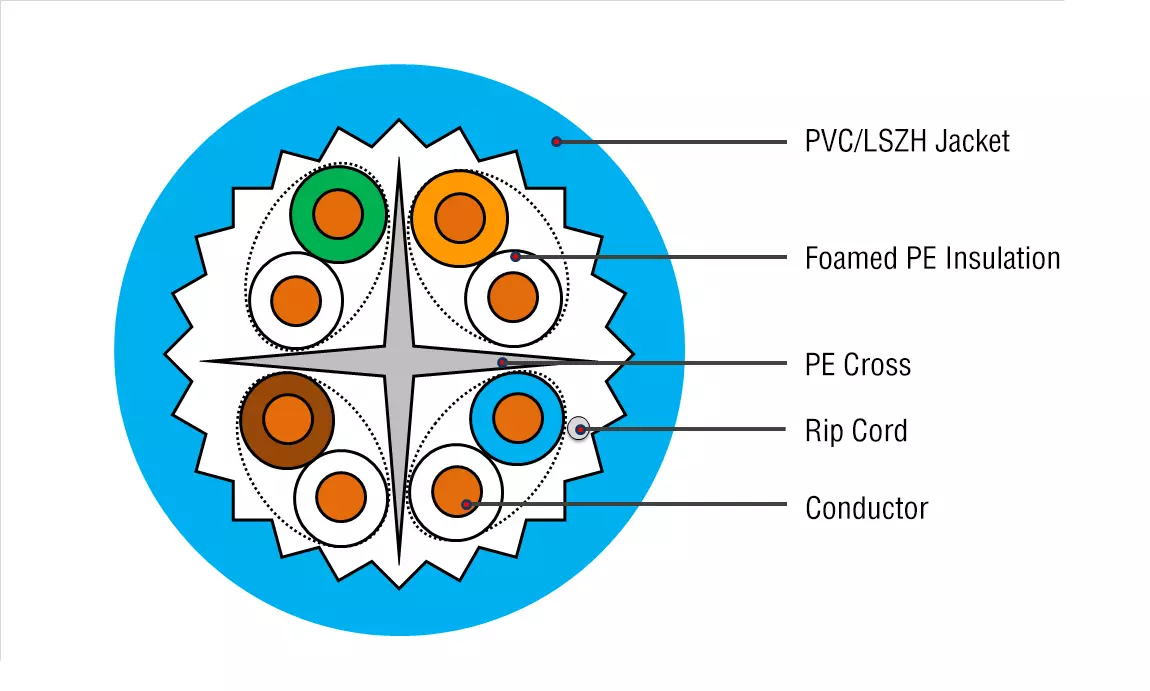

| Cross Separator | Material | Plastic |
| Outer Jacket | Material | PVC (or LSZH/PE, Single/Double Jacket) |
| Nominal O.D | 7.4mm ± 0.30mm | |
| Color | Any | |
| Twisted pair | N/A | Pair 1 : Blue, White / Blue |
| Pair 2 : Orange, White / Orange | ||
| Pair 3 : Green, White / Green | ||
| Pair 4 : Brown, White / Brown | ||

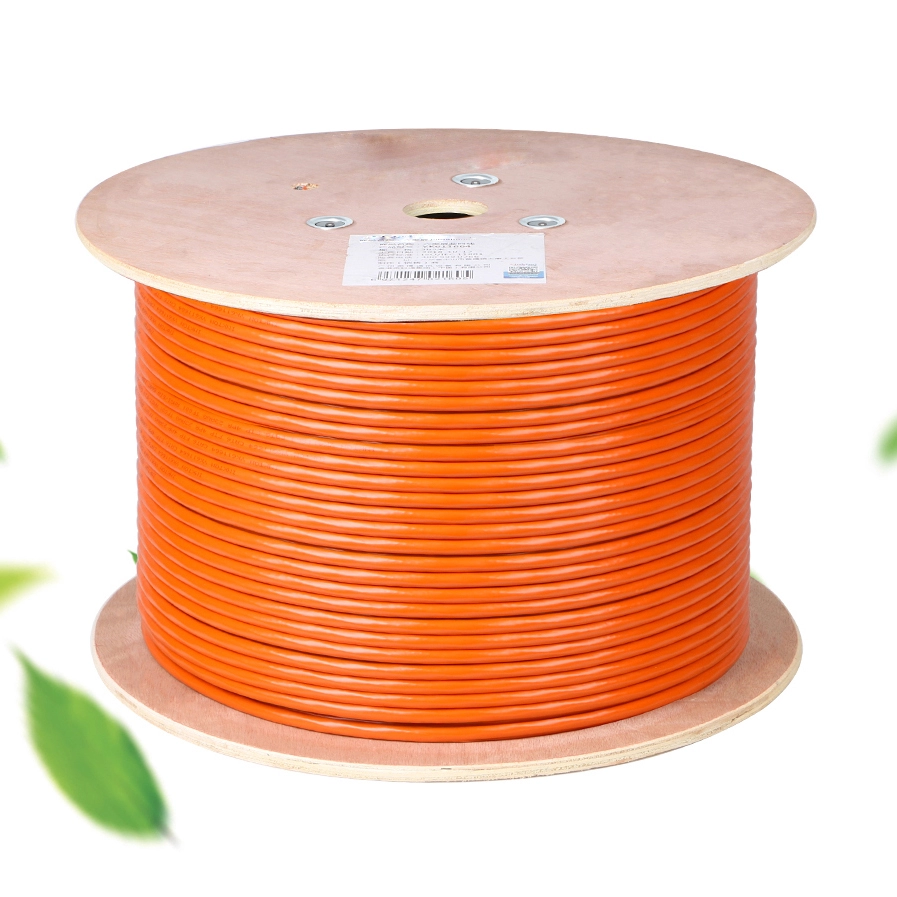

1.Wooden reel, plastic reel,paper reel,carton box
2.100m:PE protective layer, 5 roll per carton box
3.305m:one roll in one carton box, two carton boxes in one master carton
4.500m:wooden roll package, carton box as outer package
| LCL Delivery | <50Rolls | <100Rolls | <500Rolls |
| 25 Days | 22 Days | 20 Days | |
| FCL Delivery | 1*20GP | 1*40GP | 1*40HQ |
| 15~18 Days | 15~18 Days | 15~18 Days |
