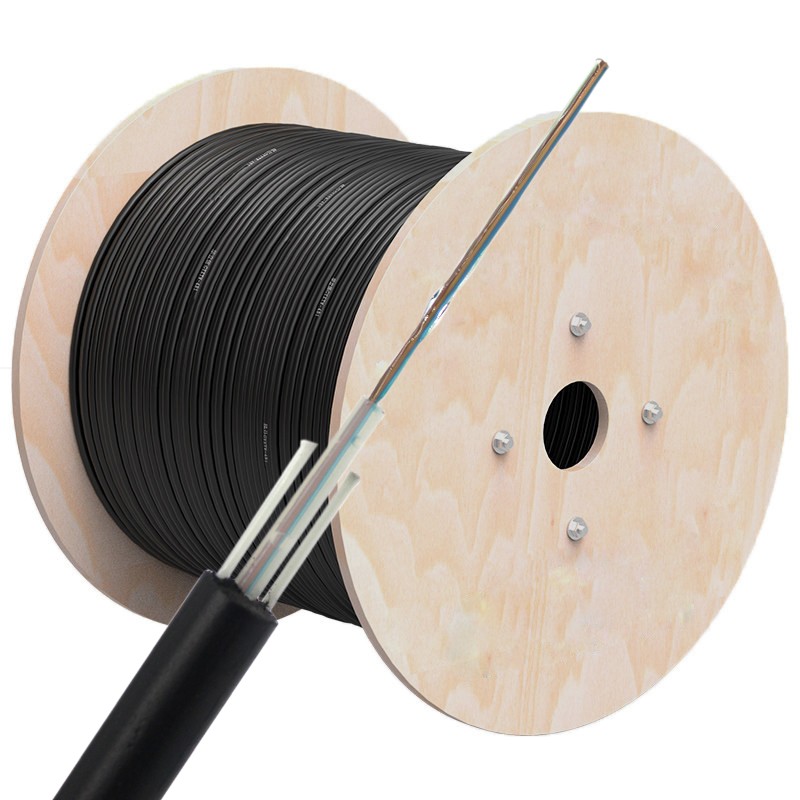

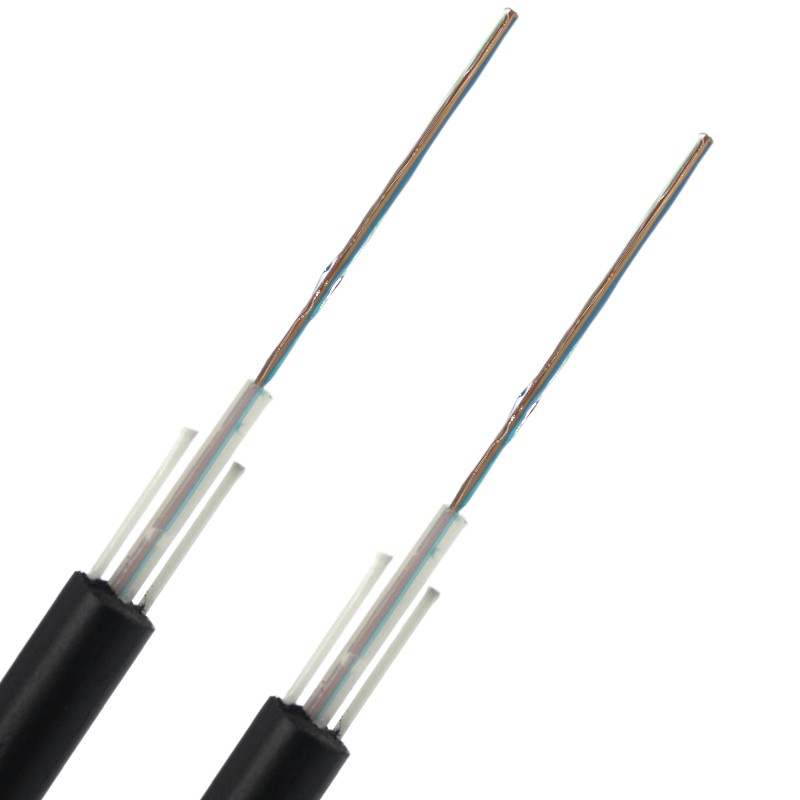

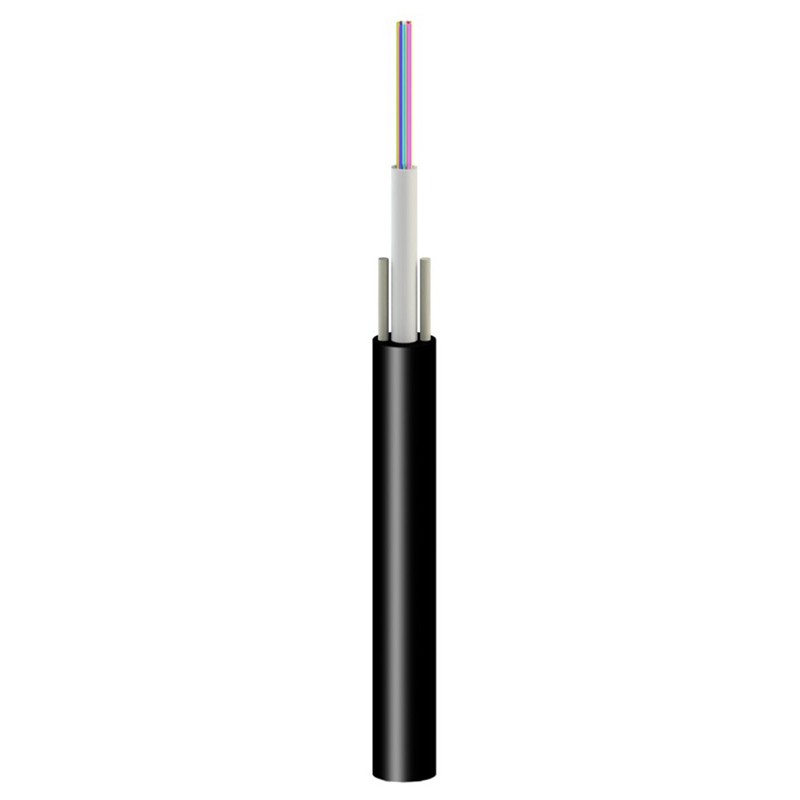

HH-WC-GYFXTY Fiber Optic Cable

Product Attributes :

FOB Price: 10 USD/m

Payment Terms: T/T, L/C

Delivery Time: 10-15 working days

Number of Conductors：Above 10

Fiber Type：G652D

Jacket：LDPE

Product Description

1.GYFXTY fiber optic cable is a non-metallic all dielectric cable used for power transmission system, excessive thunder areas and high electromagnetic interface.

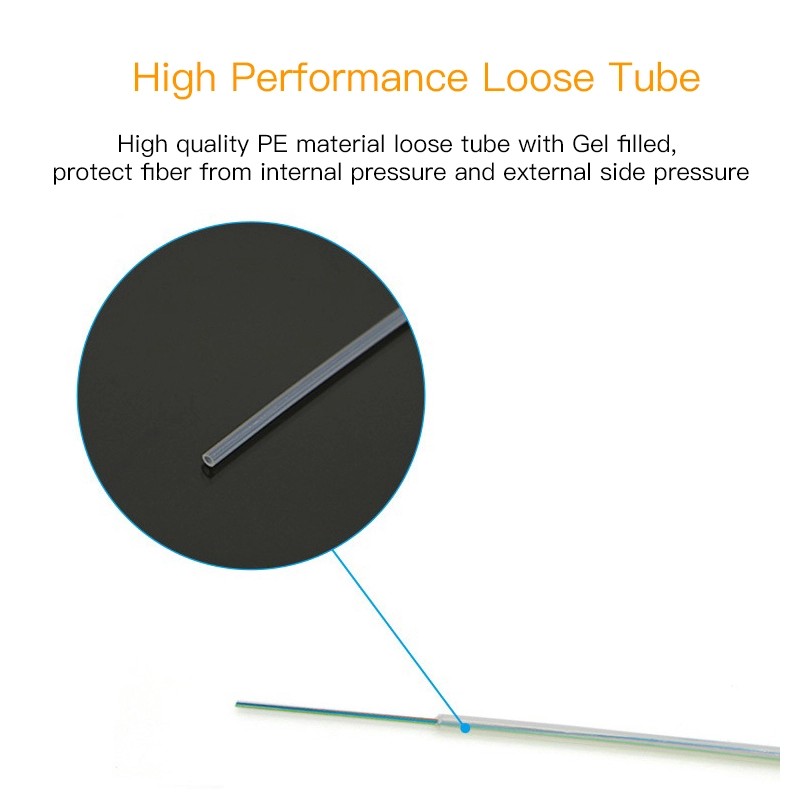

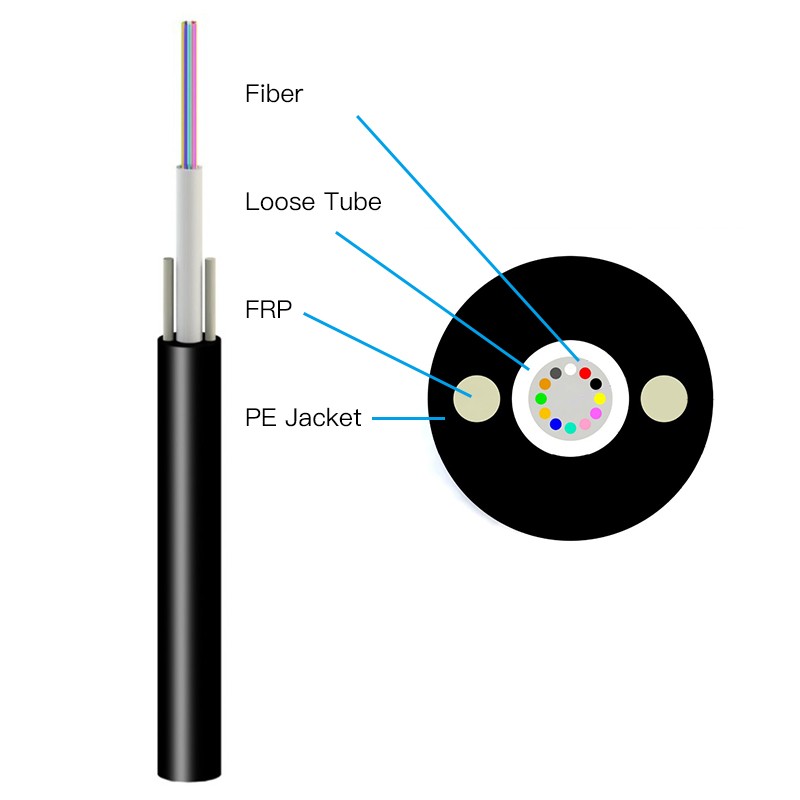

2.The cable tubes, which are filled with filling compound, there is a central loose tube, and with parallel FRP strength member.

3.the cable is completed with a PE sheath.GYXFTY cables are available from 2 core to 12 core. It is used in high-voltage area for long distance aerial or duct application


Model Number: GYFXTY
Number of Conductors:≥10
Product Type: GYFXTY
Fiber Mode: Single Mode
Fiber Count: 1 to 12 Core
Fiber Type:G652D
Cable Color:Black
Cable Diameter: 6.0mm 7.0mm/ 8.0mm
Cable Length: 2km 3km 4km
Jacket Material: LDPE
Strengthen Member: FRP
Life Time:15 Years

Fiber Count	1-12 Fibers
Construction	Central Loose Tube
Fiber Type	Singlemode G.652D / G.657A1
Outer Jacket Material	PE(Black)
Weight	60kg/km
Application	Aerial and Duct
Jacket Diameter	5.5 mm 6.0 mm 6.5 mm 7.0 mm
Cable Length	3Km/Drum
Test Wavelength	1310/1550nm
Operation Temperature	-20ºC to +60ºC
