HH - BR- High Speed 16 Spindle Braiding Machine

HH - BR- High Speed 16 Spindle Braiding Machine
HH - BR- High Speed 16 Spindle Braiding Machine HH - BR- High Speed 16 Spindle Braiding Machine HH - BR- High Speed 16 Spindle Braiding Machine HH - BR- High Speed 16 Spindle Braiding Machine HH - BR- High Speed 16 Spindle Braiding Machine
Product Attributes :

FOB Price: 15,000 ~ 18,000 USD

Payment Terms: T/T, L/C

Delivery Time: 30 working days

Bobbin Number: 16 ( 8 is inside , 8 is outside )

Production Speed: Max.485 m/hour

Main Motor Power: 1.1kw

Dimension: 1200x1390x2350mm

Warranty: 12 months

Product Description

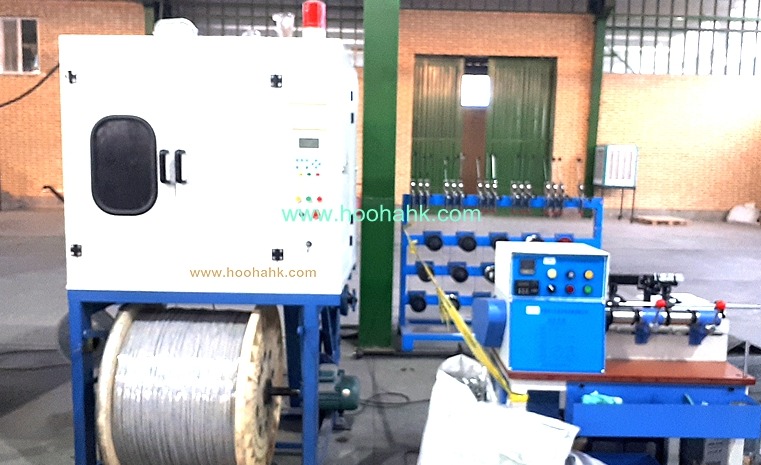

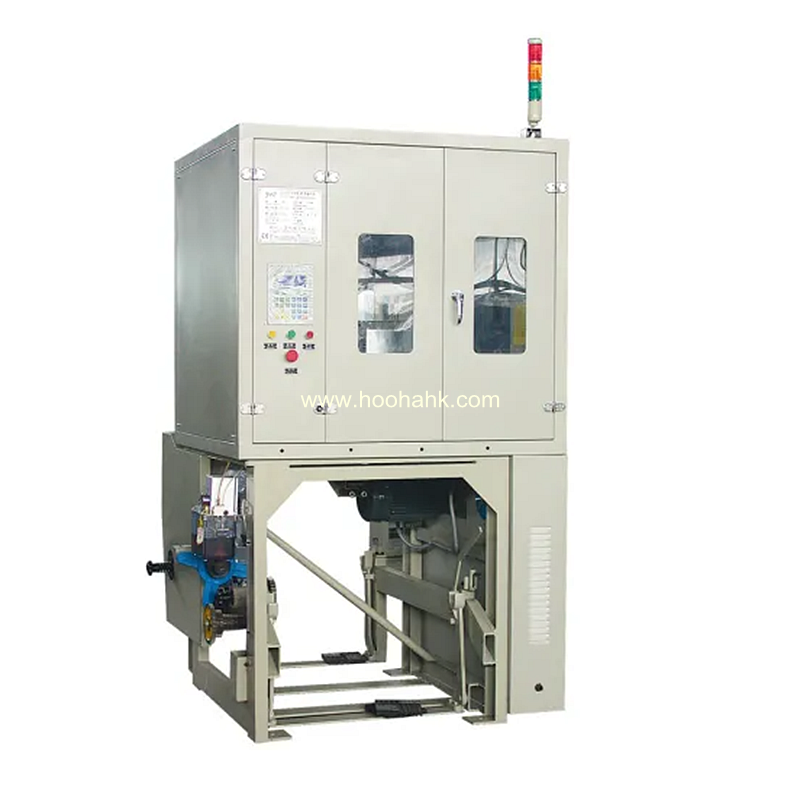

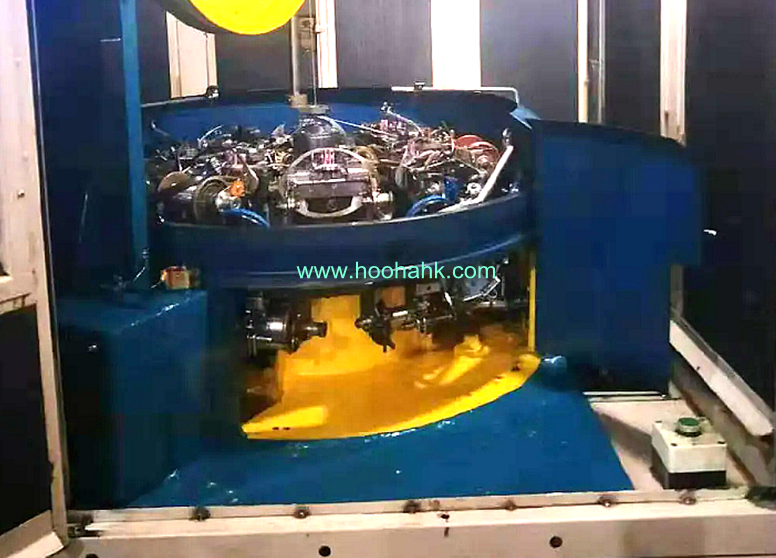

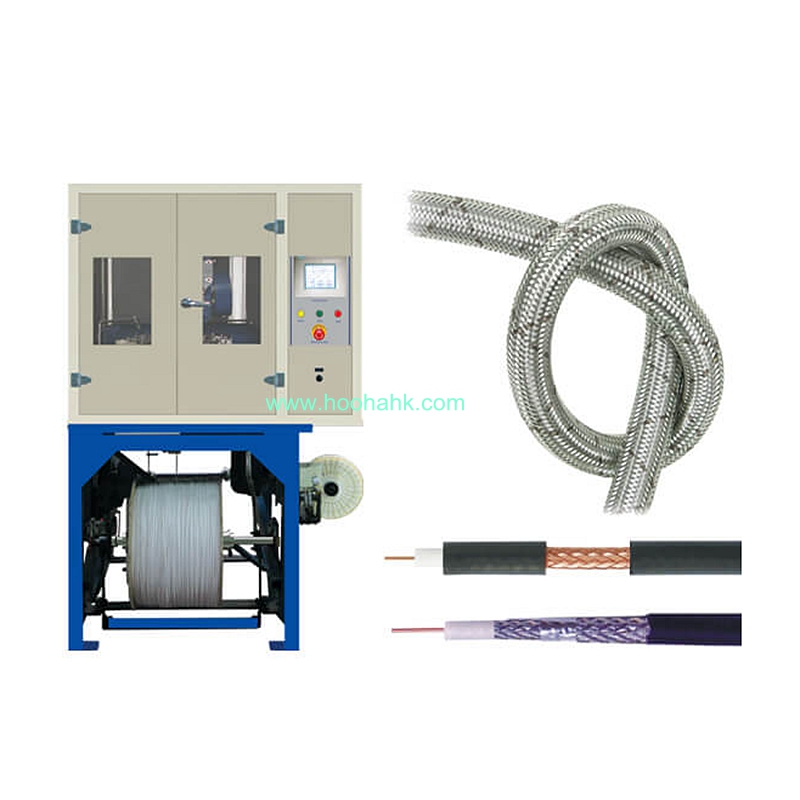

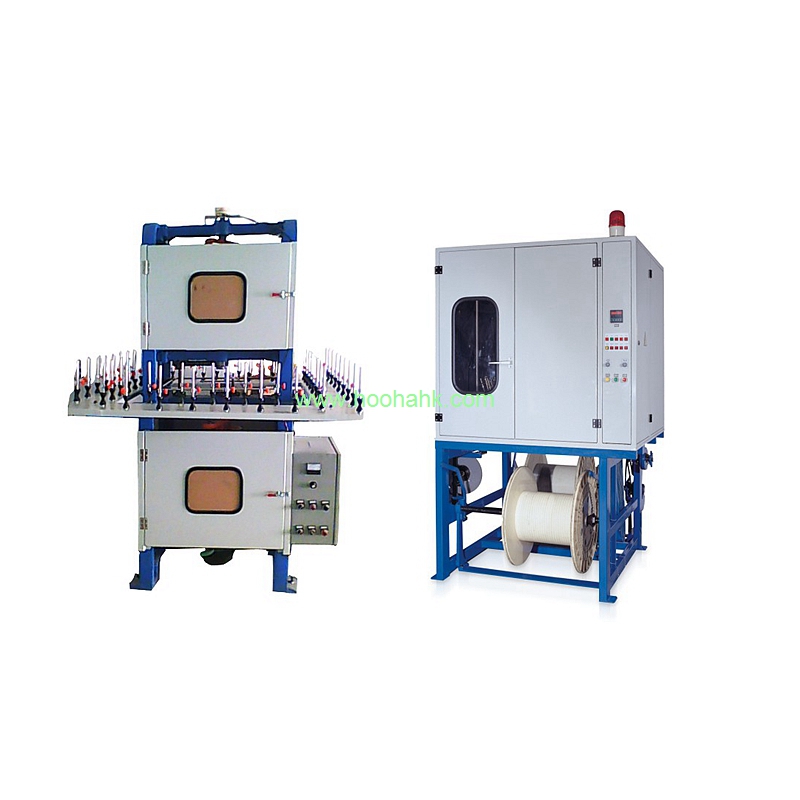

A. 16 Spindle Braiding Machine: It is suitable for the shielding or braiding of all kinds of high quality electric wire , computer wire etc.

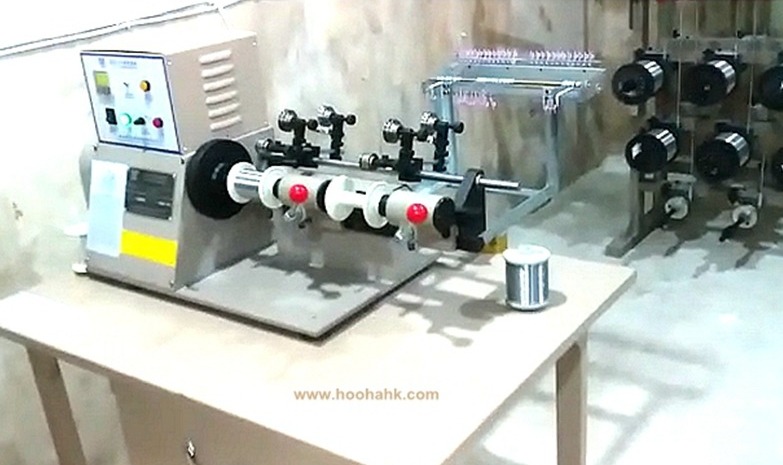

B. Wire Combining Machine: Apply to combine several single copper wire or other alloy wires orderly on the small plastic reel






1. Adopt high-quality shaft and reasonable structure to ensure stable function and long service life.

2. Humanized design, safe and convenient operation, direct and convenient maintenance. The reasonable spindle structure ensures that customers can replace the spool in a quick and easy way.

3. This equipment adopts automatic thread cutting device.

4. Motor uses the frequency converter to freely change the speed.

5. Standard accessory kit and perfect after-sales service.










No.

Items

Quantity


1

16 spindle braiding machine

1 set

2

Wire combing machine

1 set

3

Vertical pay off stand

1 set








A: 16 Spindle Braiding Machine



No.

Items

Features

1

Braiding Direction

Vertical

2

Bobbin Number

16 ( 8 is inside , 8 is outside )

3

Bobbin Size

80mmx22mmx80mm

4

Bobbin Speed

50-150rpm

5

Braiding Pitch

3.2-35.5mm or 6.4-65mm

6

Braiding Cable Diameter

Max.14mm

7

Production Speed

Max.485 m/hour

8

Braiding Wire Material

0.1-0.2mm , Al, Mg wire , copper wire

9

Reel Diameter

630mm-800mm

10

Main Motor Power

1.1kw

11

Product Weight

854 Kg

12

Dimension

1200x1390x2350mm



B. Wire Combining Machine



No.

Items

Features

1

Combine wire diameter range

0.08mm-0.4mm

2

Speed

0-5000 RPM

3

Control

Automatic stop when reel is full , or copper wire broken

4

Motor

0.75 KW Inverter motor , stepless speed adjustable









Our engineer team has over 5-year experience working overseas for customer on-site service. Therefore, we can provide you widely range of support, such as overseas on-site installation, talent training, long-term technology updating services,etc.
