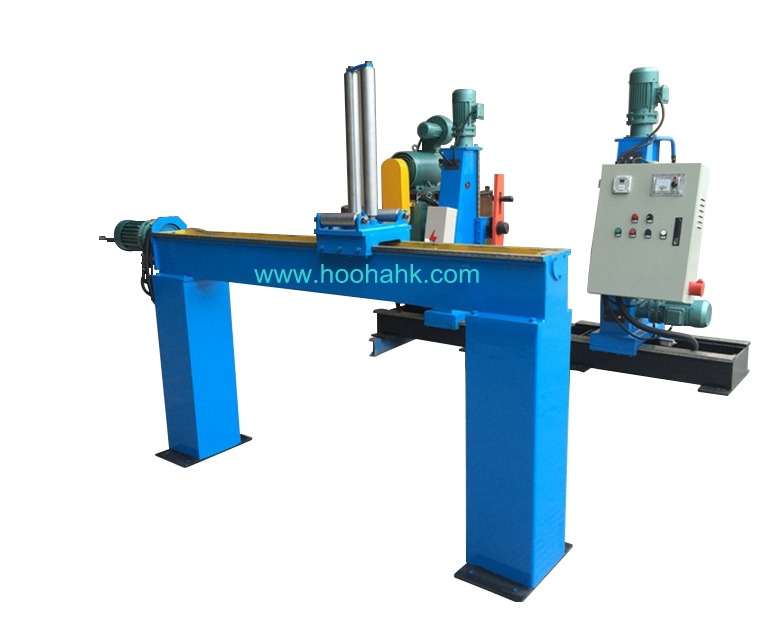

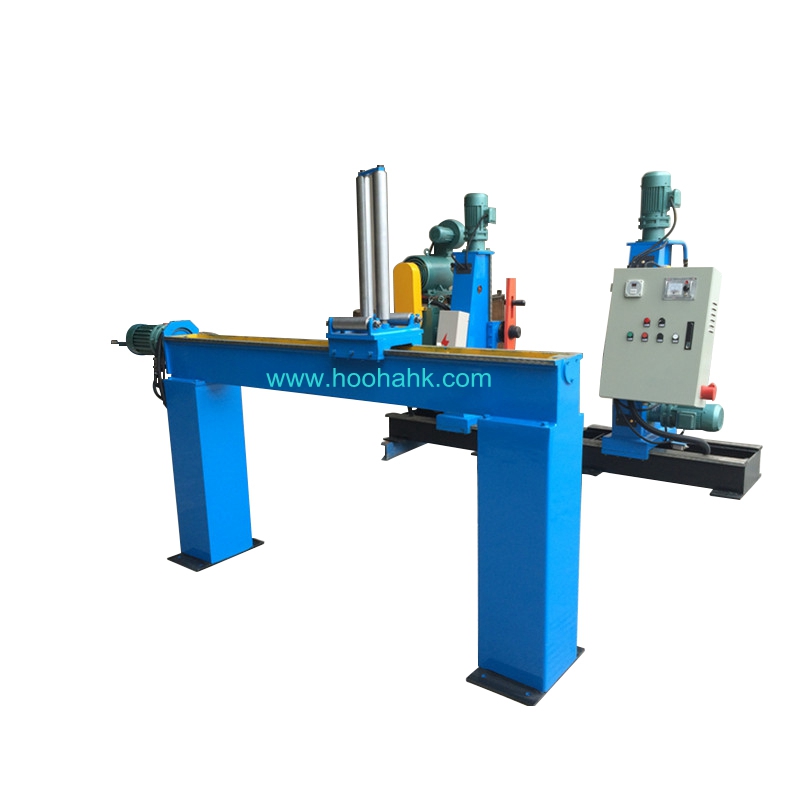

This machine is used for cable rewinding.
The take-up and pay-off device is divided into two types.One is portal walking take-up and pay-off. The other is shaft end take-up and pay-off. They are all for cable take-up and pay-off. Shaft end type take-up and pay-off is characterized by low manufacturing cost,convenient handing of the tool axis, and other advantages
|
No. |
Items |
Quantity |
Reference Picture |
|
1 |
1600mm Column Type Pay Off |
1 Set |
|
|
2 |
Meter Counter |
1 Set |
|
|
3 |
1000mm Column Type Take Up With Traverse |
1 Set |
|

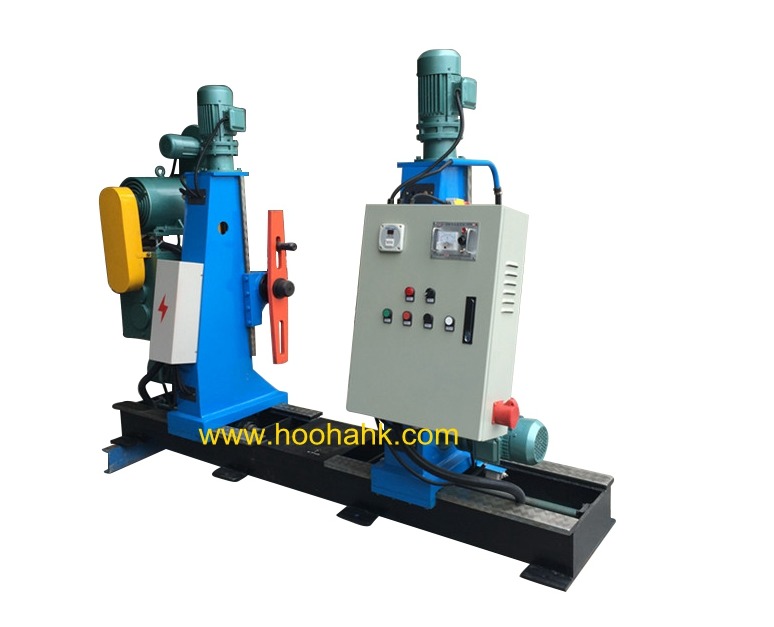

| 1600mm Column Type Pay Off |
1. Suitable drum：Ф800-1600mm 2. Max loading capacity：4000kg 3. Type：Shaftless structure and column type
|
|
Meter Counter |
1. Counting wheel perimeter：1m 2. Error of counting meter：±0.3% 3. Max counting length：9999m
|
| 1000mm Column Type Take Up With Traverse |
1. Suitable drum：Ф630-1000mm 2. Max loading capacity：1000kg 3. Max traverse pitch：Ф30mm 4. Take up motor：25NM Torque motor
|
2.Our professional engineer team had over 5 years experience working overseas, will provide various technologies to support our customers, including overseas on-site installation guidance, talent training, long-term technological updating services,etc.
3.Adopting famous brand parts such as Siemens, Yaskawa, Omron, Emerson to ensure reliable using of our products.
4.We check every detail of the machines and do pre-production test before delivery to eusure products quality and performance.
