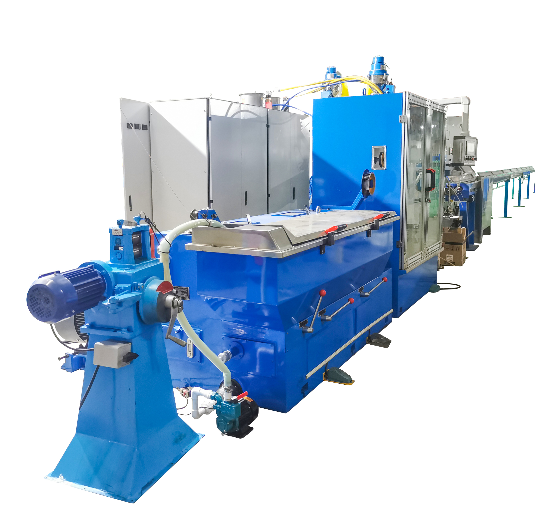

Newly Lunched High speed 800-100 m/min network cable Tandem Production Line:
Picture and Vedio
Specification
|
Wire diameter |
0.40~0.9 mm |
|
Insulation thickness |
0.15~0.4 mm |
|
Production speed |
Max1800m/min |
|
The deviation of wire outer diameter |
±0.003 mm |
|
Wire elongation |
18~25% |
|
The deviation of insulation outer diameter |
±0.010mm |
|
The eccentricity of insulation laye |
≥ 92％ |
|
Total weight |
about 13000KG |
|
Overall size of machine |
(L×W×H)36000×3000×340mm |
|
Three phase voltage |
AC 3×380 (±10%) |
|
Single phase voltage |
AC 220 (±10%) |
|
Frequency |
50 Hz (±2%) |

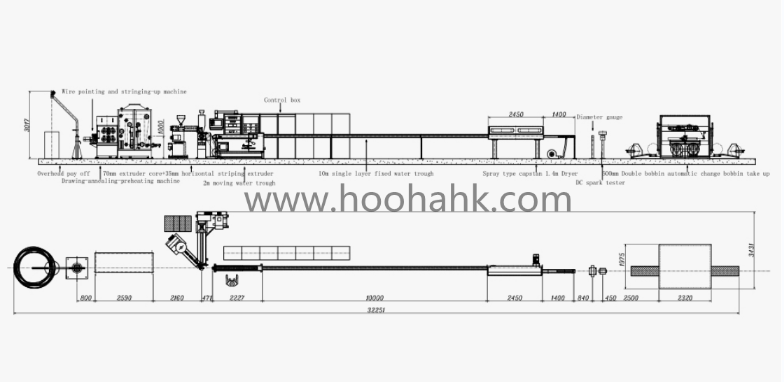

Layout of Equipment
