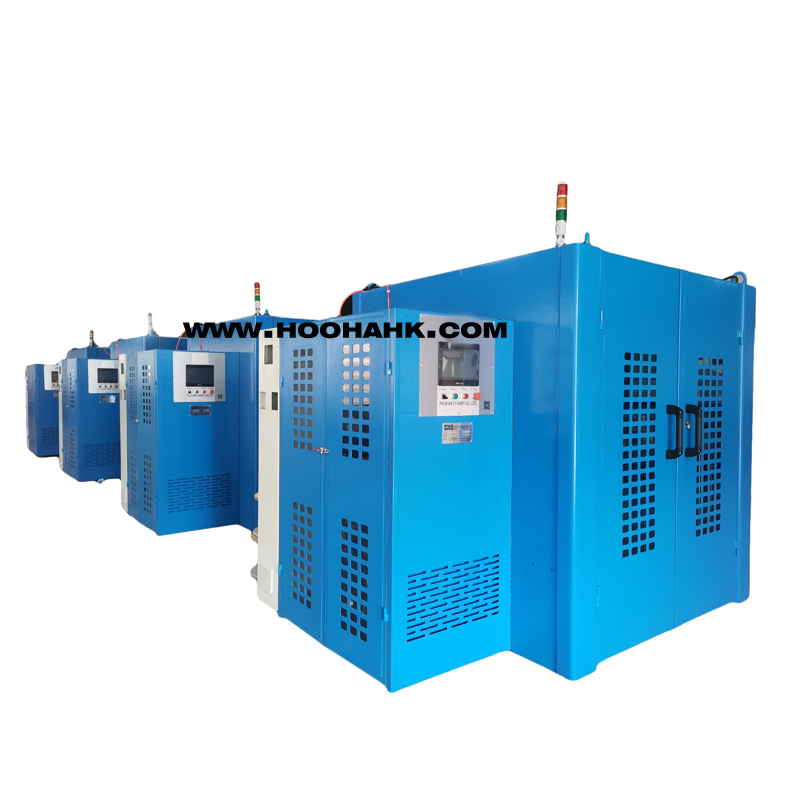

The Latest Type 500 type Twisting Twist Back Twisting Machine for CAT 7,8

Core wire specifications

Best range:Ф0.8~2.0mm

Strand O.D.

Best range:Ф1.6~4.0mm

Strand pitch setting

Touch screen + PLC program setting

Range of strand pitch

Optimal range:5~30mm, special specifications must be written in the custom item

Retorsion rate

0~100% arbitrary setting

Tolerance of strand pitch

±2%

Strand direction

S,Z are available

Production speed

Winch TPM x winch pitch/1000 m/min (depending on winch pitch and retracting rate)

Voltage of

the whole machine

Three phase 380V as standard, non-standard as specified by customer

Tension form

Pendulum type constant tension control
