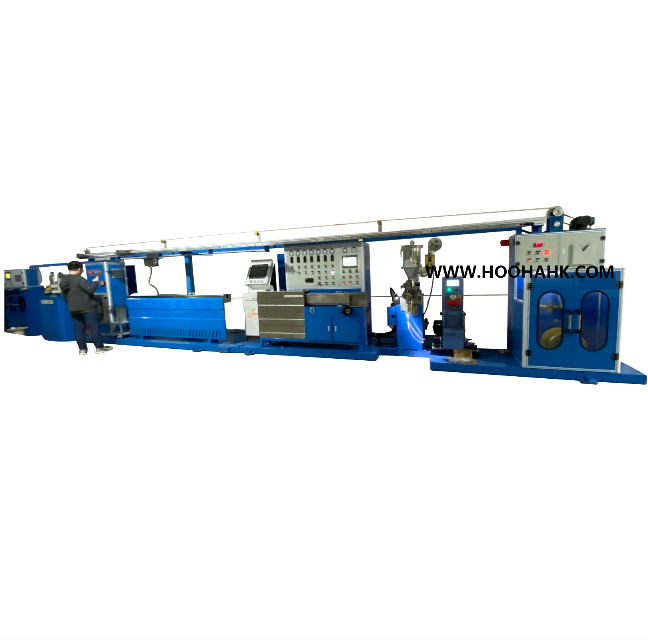

The latest Popular Style of 25mm Teflon Extrusion Machine for Ultra-Fine Coaxial Wire:
Unique Advantages:
| 1.Suitable for Teflon insulation extrusion of ultra-fine coaxial wire or high frequency wire number transmission wire Teflon insulation extrusion and other wire extrusion |
| 2.The Teflon cores are produced with an overall precision design from the discharge to the take-up, with absolute stability of the online tension, ensuring a continuous and smooth extrusion of the cores. |
| 3. Concentricity of extruded products: 93% or more: Tolerance of outer diameter: ±0.002 |
| 4.Exclusive use of Newtopp Teflon special industrial control machine, Chinese/English interface optional, fully automatic control, simple operation |
| 5.The design of the machine is integrated, the appearance is beautiful, and the traditional 4-in-1 system of wire release, wire tensioning, preheating, straightening, lead-in and take-out is 2-in-1, with a box structure, the total length is reduced by more than 5 metres. |
Picture and Vedio
Specification
|
Wire diameter |
Φ0.25-1.5mm |
|
Extrusion material |
ETFR/FEP/PFA |
|
Screw parameters |
Aspect ratio 26:1 |
|
Main engine power |
4KW servo motor |
|
Maximum production capacity |
8KG/h |
|
Number of temperature control segments |
3+3 |
|
Maximum line speed |
180M/min |
