The Latest 1230 Automatic Coiling And Wrapping Tie Machine for All Kinds of Wires :

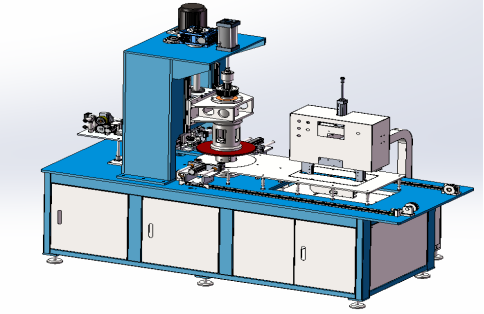

Picture and Vedio
Specification
|
Type |
HH-1230 |
|
Overall dimension |
L2600*W1278*H2348mm |
|
Circle height |
50-100mm |
|
Inner diameter of ring |
Φ130-φ160mm(fixed size) one selected by the customer |
|
Maximum outer diameter of circle |
φ300mm |
|
Number of ties |
Whole roll of primary tie |
|
Outer diameter range of bound wire coil |
Φ200-300mm |
|
Winding height of bound wire |
Φ50-100 |
|
Tie material |
OPP The thickness of transparent tie is 0.10mm ~ 0.12mm × 20mm wide |
|
Arm holding mode |
Pneumatic arm |
|
Applicable line species |
Φ3-φ8mm power cord（BV1.5-6mm²，BVR2.5-10mm²） |
|
Power Supply |
AC380V，three-phase,50HZ(China）Or designated by the customer |
|
Gas source |
The compressed air pressure is 5-7kg / cm ³ |
|
Machine weight |
1350kg |

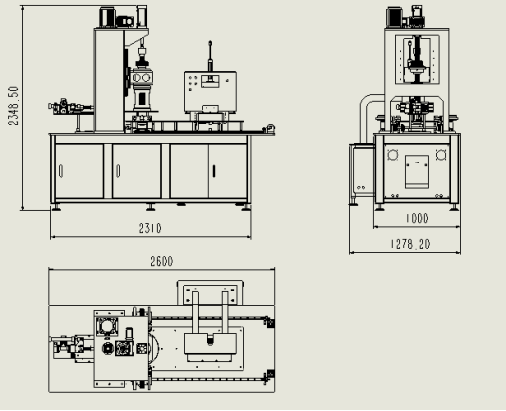

Layout of Equipment
