Product Description

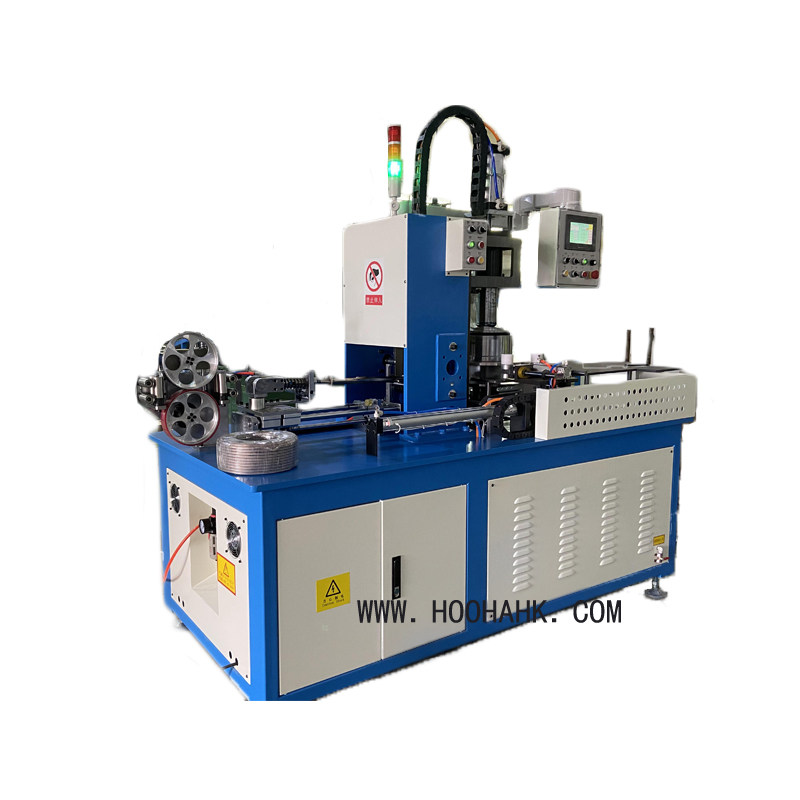

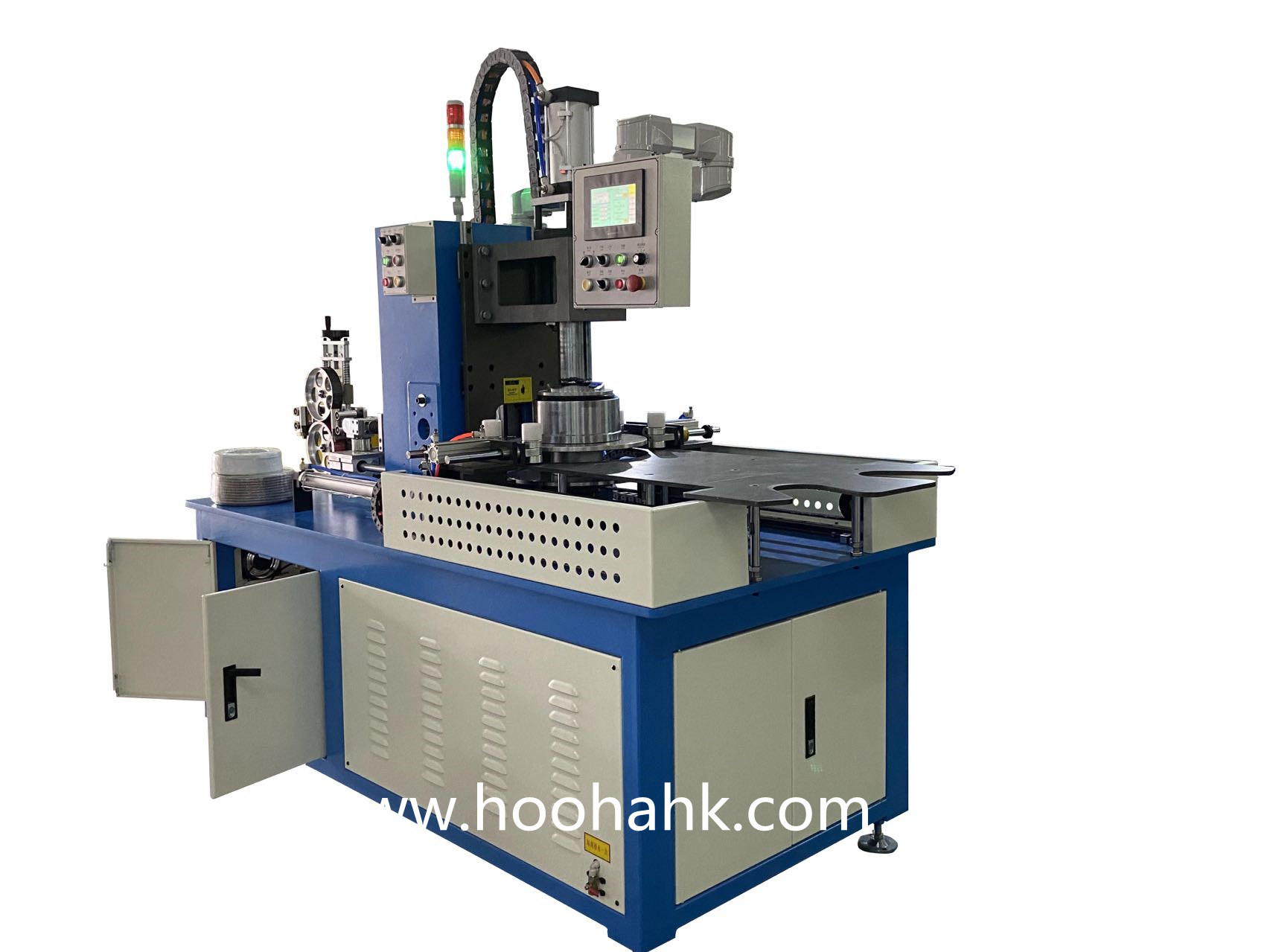

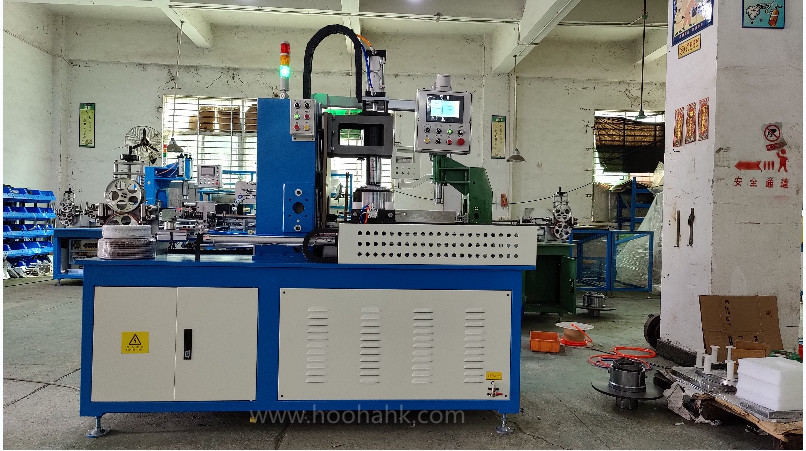

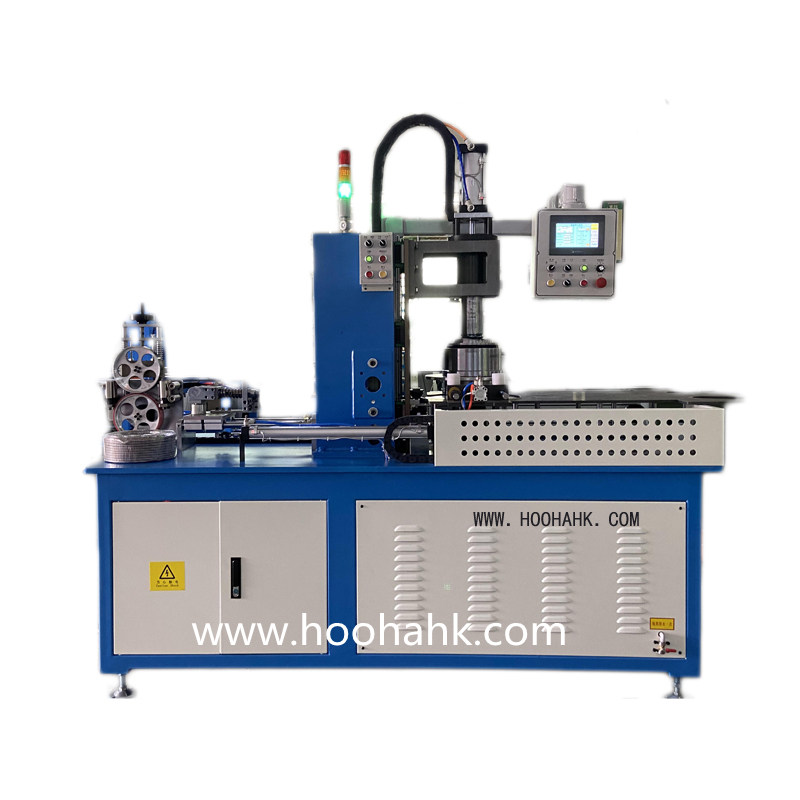

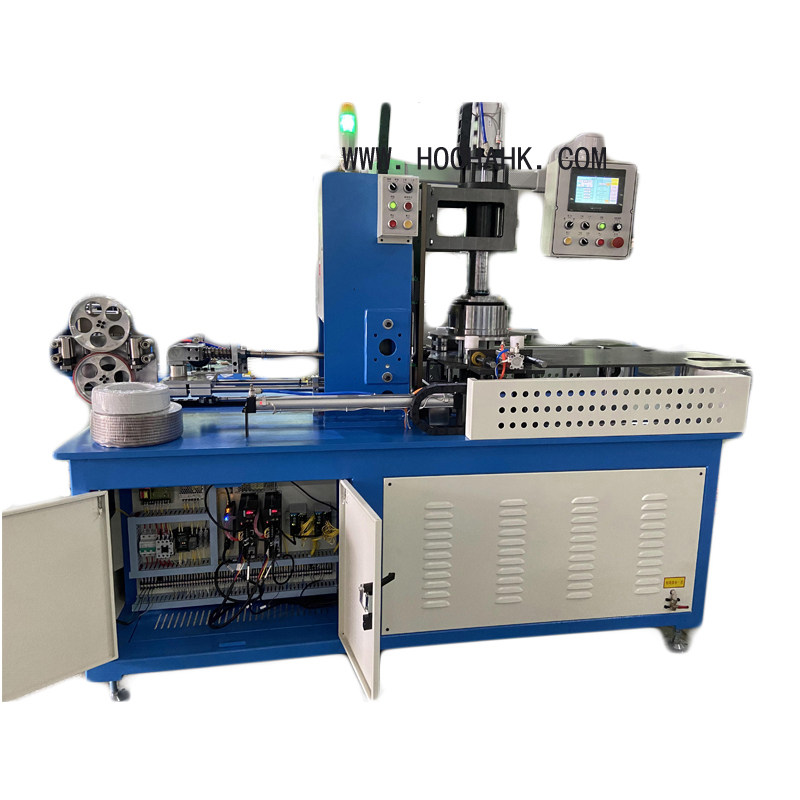

The Latest HH-1040 Automatic Shaking Pan Coating Machine for Flat Cable:
Specification
Model |
HH-1040 |
Dimensions |
L3340*W1673*H1951mm |
Circle height |
50-100mm |
Inner diameter of coiling |
Φ140-Φ160mm (fixed size) selected by the customer |
Maximum outer diameter of coiling |
φ400mm |
Arm holding method |
Servo holding arm |
Film loading method |
Pneumatic clamping |
Envelope height |
50-90mm |
Packed coil weight |
<25kg |
Film material |
PVC/PE |
Film thickness |
0.04mm-0.07mm |
Film size |
40mm wide |
Label size |
width 50-70mm length 90mm-180mm |
Label material |
Plastic wrapping paper (guaranteed that the label is airtight) |
Applicable cable type |
Φ3-Φ8mm power cable (BV1.5-6mm², BVR2.5-10mm²) |
Power supply |
AC380V, three-phase, 50HZ (China) or specified by the customer |
Air source |
Compressed air pressure : 5-7kg/cm³ |
Weight |
1800kg |
Output |
MAX260m/min |
Rotating speed |
Max 930 RPM |

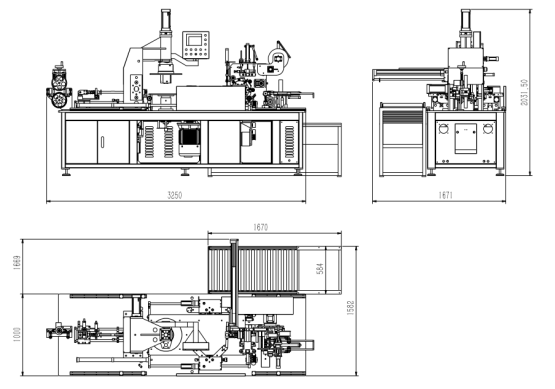

Equipment Layout
