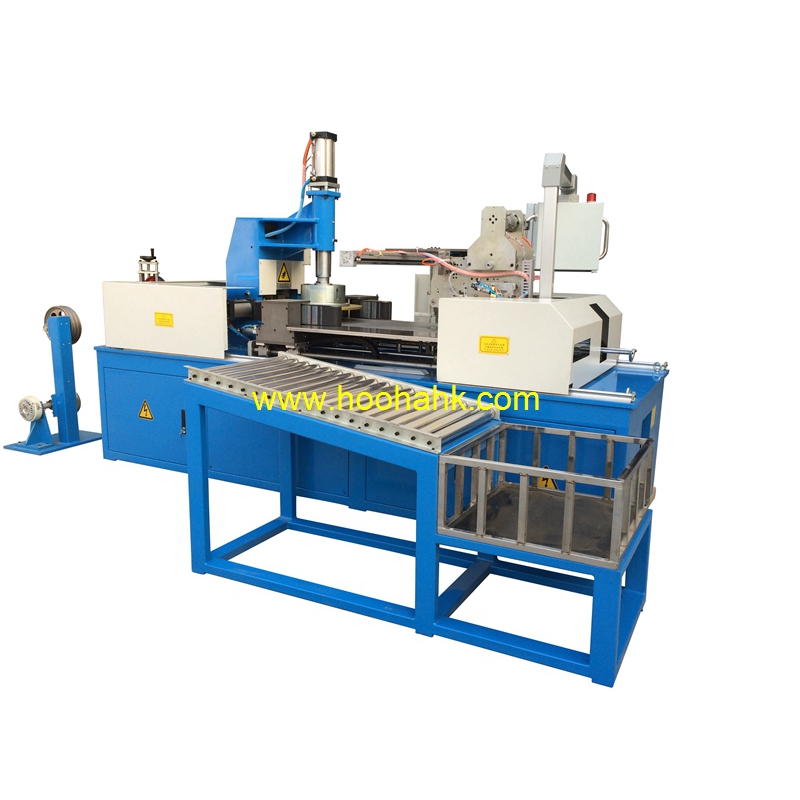

HH-C- PLC 1246 Automatic Coiling And Wrapping Machine

HH-C- PLC 1246 Automatic Coiling And Wrapping Machine
HH-C- PLC 1246 Automatic Coiling And Wrapping Machine HH-C- PLC 1246 Automatic Coiling And Wrapping Machine HH-C- PLC 1246 Automatic Coiling And Wrapping Machine HH-C- PLC 1246 Automatic Coiling And Wrapping Machine HH-C- PLC 1246 Automatic Coiling And Wrapping Machine
Product Attributes :

FOB Price: 24,500 ~ 25,500 USD

Payment Terms: T/T, L/C

Delivery Time: 30 working days

Power Supply: AC 380 V, three-phase, 50 HZ or customized

Applicable Wire Range: 1-12mm

Coiling Speed: 800 RPM

Warranty: 12 months

Product Description




This equipment is mainly used for the coiling of 0.5-6mm2 electric wire and small section cable.The product has high production efficiency and the quality of the cable is at the advanced level of the same type of products at home and abroad.






1

Automatic packaging, wrapping and labeling

2

Packing label capacity 7 times more than manual

3

200m per coil and coiling speed 4 times more than manual

4

Can be directly connected to the extrusion machine

5

 Servo motor flat cable system, perfect packing

6

Automatic warning system, easy control of the operation

7

 99 types of the coiling storage and can change as you like

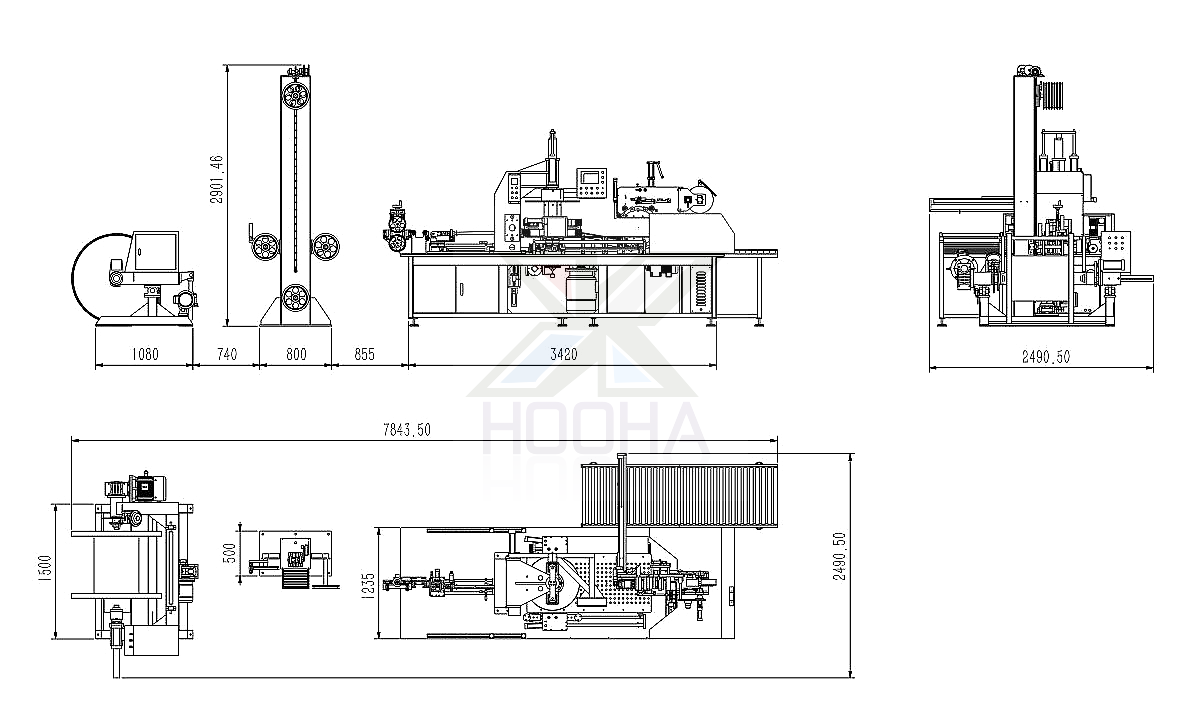

No.

Items

Quantity

Reference Picture

400-630 Magnetic Powder Type Payoff Stand

1 Set





Wire Straightening Device

1 Set





3

PLC Automatic 1246 Coiling And Wrapping Main Machine

1 Set










Main parameters:



Coiling Speed

800 RPM

Coiling Size

Outside diameter is 200-460mm, height is 50-120mm, Inner diameter is 140-220mm

Applicable Wire Range

1-12mm

Power Supply

AC 380 V, three-phase, 50 HZ or customized

Operation Direction

Left or right side(Can be customized)

Packaged Coil Weight

MAX 35 kg



Technical Specification:

400-630 Magnetic Powder Type Payoff Stand

1.  Type:No axis cone

2.  Bobbin Lift:1HP Motor + Drive Screw Lift

3.  Shaft Diameter:PD400-630

Wire Straightening Device

1. Wheels:Four grooves on each

2. Treatment:Anodized for long-term usage

PLC Automatic 1246 Coiling And Wrapping Main Machine

1. Use PVC/PE film, high-speed coiling and wrapping

2. The film roll loading method is pneumatic clamping

3. PVC/PE/PP film size:Thickness 0.05-0.07mm * width 40-50mm




1.Over 20-year experienced engineer team in field of cable and wire making machines to guarantee professional solution and first-rate quality products.

2.Our professional engineer team had over 5 years experience working overseas, will provide various technologies to support our customers, including overseas on-site installation guidance, talent training, long-term technological updating services,etc.

3.Adopting famous brand parts such as Siemens, Yaskawa, Omron, Emerson to ensure reliable using of our products.

4.We check every detail of the machines and do pre-production test before delivery to eusure products quality and performance.
