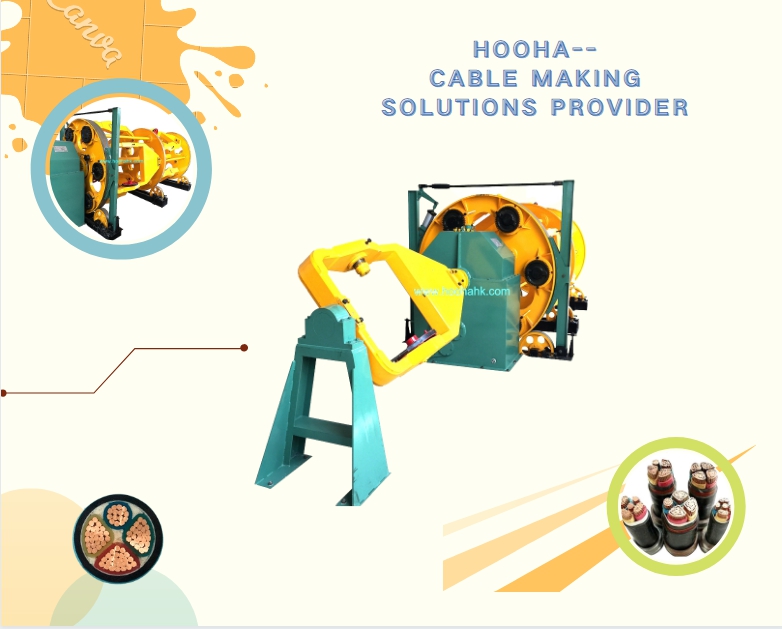

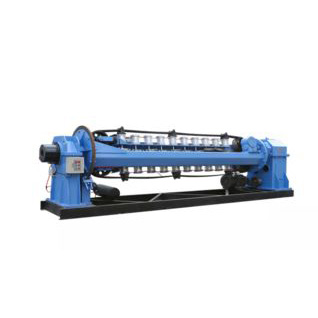

HH-S-1600-1+1+3 Laying Up Machine

HH-S-1600-1+1+3 Laying Up Machine
HH-S-1600-1+1+3 Laying Up Machine HH-S-1600-1+1+3 Laying Up Machine HH-S-1600-1+1+3 Laying Up Machine HH-S-1600-1+1+3 Laying Up Machine HH-S-1600-1+1+3 Laying Up Machine
Product Attributes :

FOB Price: 115,000 ~ 116,000 USD

Payment Terms: T/T, L/C

Delivery Time: 60 working days

Main motor power:37kw(AC)

Max lay-up diameter:  120mm

Strand cage rotation speed:6.5-18.5r/min

Warranty: 12 months

Product Description




This machine is used for making 6 cores round soft cable.







1. The size of the winding drum of the roller twister is 2000mm to 4200mm, which can meet the requirements of manufacturing cables of different diameters and lengths.

2. Use programmable controller and touch screen to control operation status.

3. All motors are AC variable frequency motors and are controlled by inverters. These motors have stable performance, low failure rate and easy maintenance.

4. The running distance can be set, modified and displayed through the touch screen. Through the touch screen, you can set to move left or right. Slightly moving and fast moving can also be adjusted

5. The production line uses a centralized lofting rack to shorten the total length of the production line and reduce the customer's factory investment.

6. Excellent production technology ensures the high-speed rotation of the twisting head.

7. The cable manufacturing machine is driven by a separate motor. It has a high degree of automation.






No.

Items

Quantity

1

1+1+3/1600 Bobbin strand cage

1 Set

2

Double row mold base

1 Set

3

Taping head

1 Set

4

800 Steel belt taping device

1 Set

5

Transmission system

1 Set

6

Mechanical meter counter

1 Set

7

2500 Traction system

1 Set

8

3150 Shaftless take-up frame

1 Set

9

Traverse device

1 Set

10

Electric control system

1 Set

11

Safety protection device

1 Set







No.

Items

Features

1

Single wire diameter

10-60 mm

2

Strand cage rotation speed

6.5-18.5r/min

3

Max lay-up diameter

120mm

4

Lay-up pitch

330-6320mm

5

Taping head rotation speed

187.9-419.0r/min

6

Armour speed

187.9-419.0r/min

7

Outlet wire speed

4.06-27.18m/min

8

Traction wheel diameter

φ2500 mm

9

Main motor power

37kw(AC)

10

Pay-off frame in cage

PN1600

11

Take-up frame

PN1800-3150






1.Over 20-year experienced engineer team in field of cable and wire making machines to guarantee professional solution and first-rate quality products.

2.Our professional engineer team had over 5 years experience working overseas, will provide various technologies to support our customers, including overseas on-site installation guidance, talent training, long-term technological updating services,etc.

3.Adopting famous brand parts such as Siemens, Yaskawa, Omron, Emerson to ensure reliable using of our products.

4.We check every detail of the machines and do pre-production test before delivery to eusure products quality and performance.
