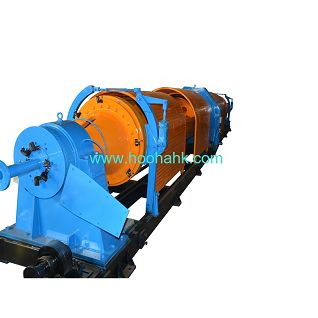

HH-DT- PLC 1250 Bow Type Stranding Machine

HH-DT- PLC 1250 Bow Type Stranding Machine
HH-DT- PLC 1250 Bow Type Stranding Machine HH-DT- PLC 1250 Bow Type Stranding Machine HH-DT- PLC 1250 Bow Type Stranding Machine HH-DT- PLC 1250 Bow Type Stranding Machine HH-DT- PLC 1250 Bow Type Stranding Machine

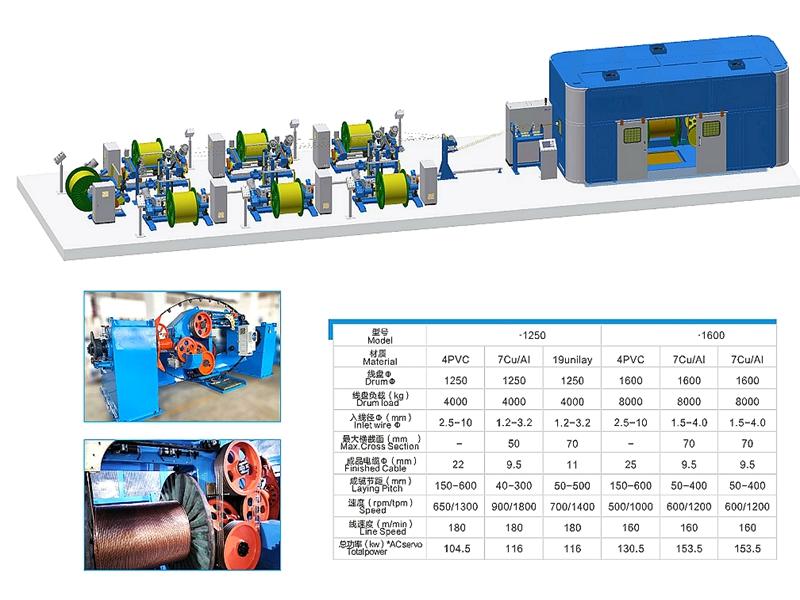

Product Attributes :

FOB Price: 152,000 ~ 153,000 USD

Payment Terms: T/T, L/C

Delivery Time: 60 working days

Applicable scope of wire rod : AL / Cu 10mm2— 35mm2

Max stranded diameter:  φ 25mm

Warranty: 12 months

Product Description




This machine is applicable to bunching of various kind of cables such as power cable, communication cable, computer and instrument cable, copper conductor, aluminum conductor, BV, BVV, RV and RVV, etc.



1

It adopts imported carbon fiber rotary double bow slices and features light weight, small centrifugal force and high rotation speed

2

PLC controls the whole process of production line with program control of PLC stranding pitch

3

Active type pay-off can keep constant tension of wire stringing, which avoids leakage of stranding effectively

4

The pneumatic type jacking shaft structure is easy and convenient in operation

5

Bearing of the machine adopts the imported brands NSK and KOYO, high strength synchronous belt transmission force with high transmission accuracy and low noise, imported gas-liquid pressurized disc braking system, up and down spool in motor-driven conveying type, standalone closed protecting cover

6

It adopts high hardness chrome bar as a guidance during wire ranging, multi-startthread transmission force speed reduction motor drive. PLC procedure controls the pitch of cables, which can be adjusted in the working process

7

The pre-twisting device with multi-hole inlet wire distribution plate arranges multiple wires layer by layer with concentric stranding. There is one rotating mould and two fixed moulds and squeezing moulds installed inside and outside the machine to guarantee tightness and roundness of stranded conductor

8

The mainshaft bearing is designed with temperature control system, which will stop working and offer a reminder to add lubricating oil to make automatic protection in case of over high temperature

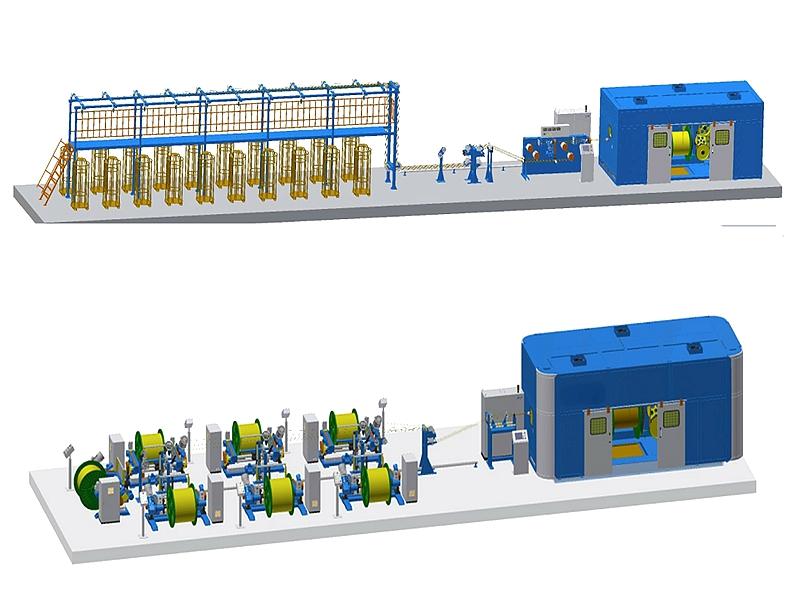

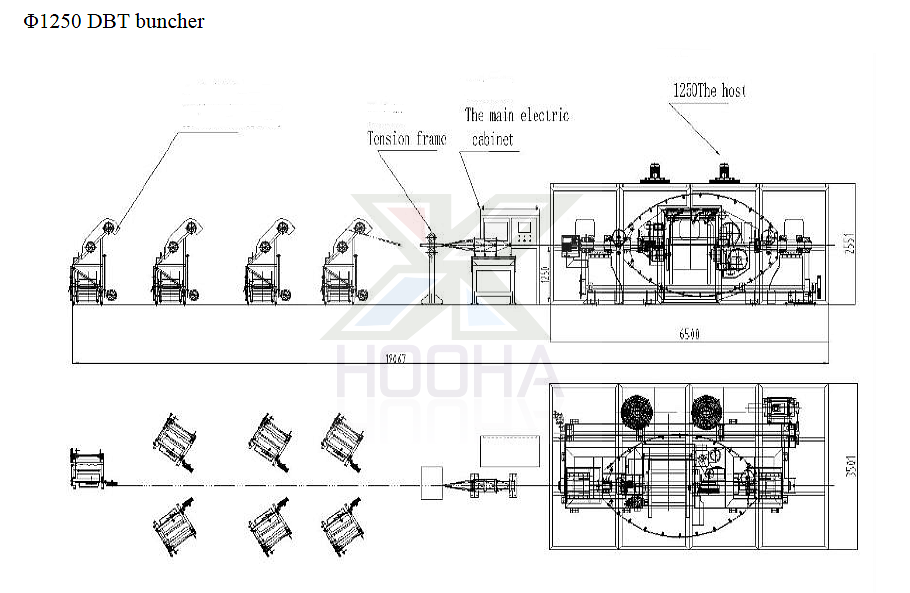

No.  Items Quantity

Reference Picture

1

800-1000 Active non-shaft payoff stand

7 sets

2

Inlet Wire Pre-Twisting Device

3 pieces

3

PLC Electric control box

1 set

4

Standalone security protective cover

1 set

5

1250 Main stranding machine

1 set

6

Motor-driven type lift truck

1 set










No.

Items

Features

1

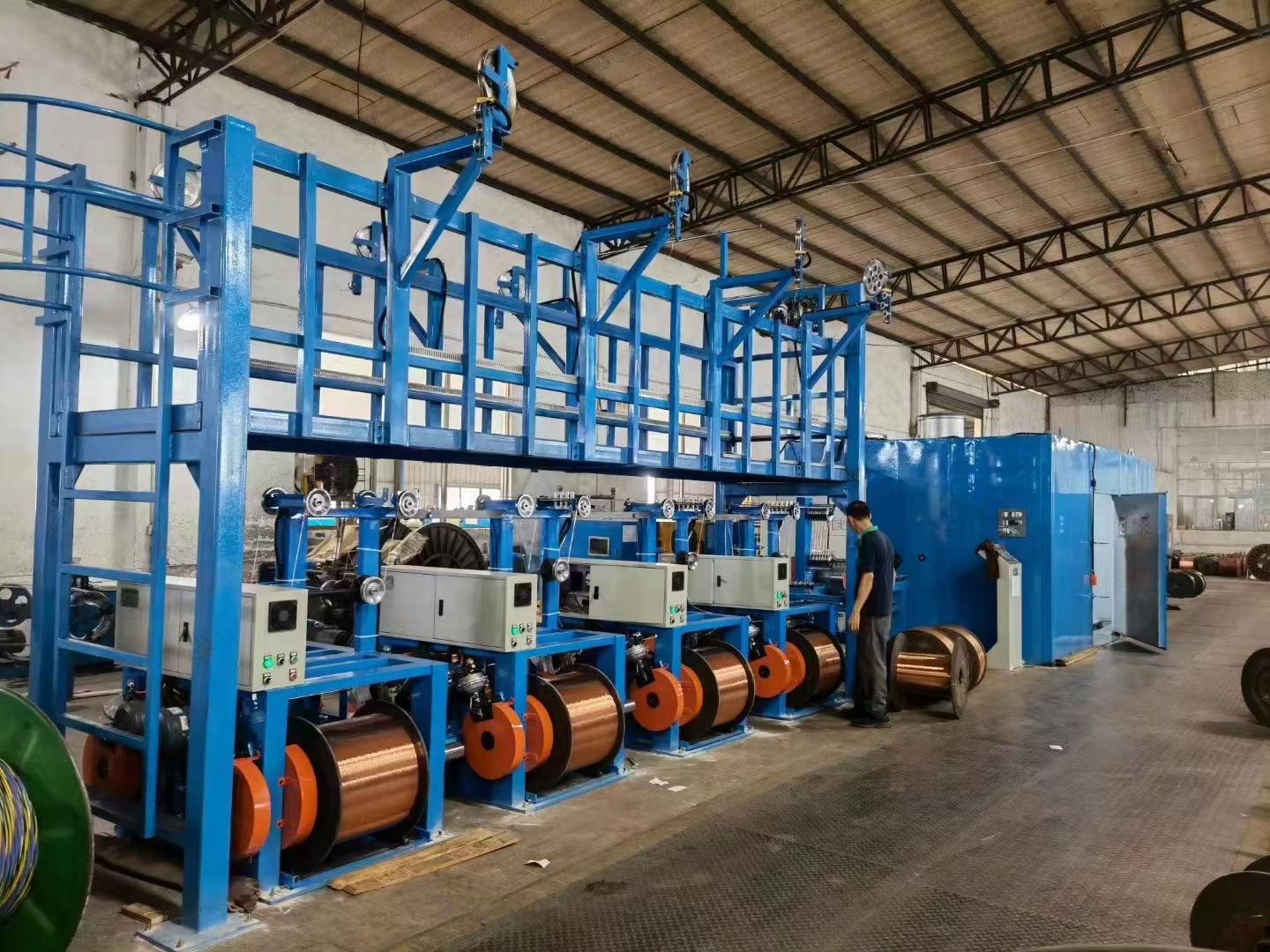

800-1000 Active non-shaft pay off stand and take up stand



1. Plate Specifications:800~1000mm

2. Type:None axis top cone type

3. Load and unload plate Type:Motor-driven screw up and down

4. Wire plate locking:Manual screw

5. Pay-Off tension:3.7 KW motor +specific inverter

2

Inlet Wire Pre-Twisting Device

1. Inlet wire distribution plate:3 pieces, electroplating of A3 steel plate; porcelain eyes are arranged by a rule of 3/2/1, forming three layers 1+6+12+18

2. Position:Three distribution plates are adjustable to the proper positions

3 PLC  Electric control box

1. PLC:Human-machine interface, whole-process control, stranding pitch can be set freely, direction can be selected from left or right

2. Electronic components:Adopt imported 10.6-inch color touch screen and vector converter, temperature control module, power panel, high-precision tension board, Japan imported NEMION decoder, imported relay and so on

3. Drive converter:Adopts imported vector converter, and the host machine is fitted with 50KW, traction and 30KW DC capstan, The cable is fitted with 1HP. The converter can realize frequency conversion stepless speed regulation

4

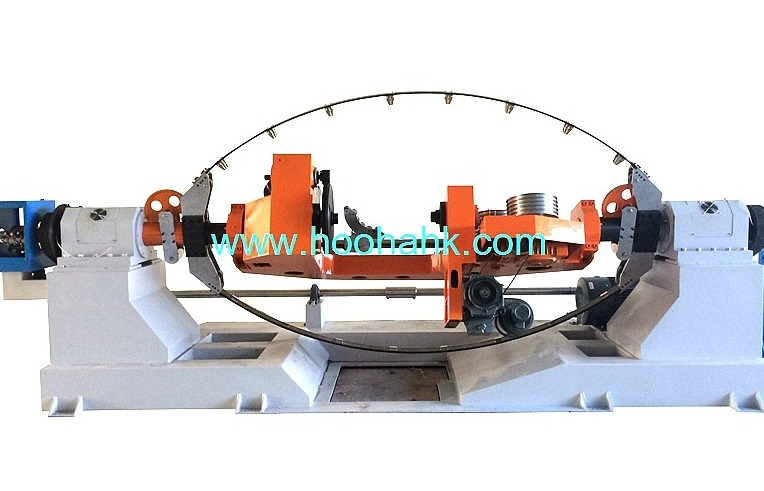

1250 Main stranding machine

1. Structural style:Open double column type inner rack, antivibration separated safety guard, enhanced host machine stand, A3 installation and welding and annealing

2. Applicable scope of wire rod:Wire AL/Wire Cu 10mm2— 35mm2

3. Range of stranding products:MAX φ 25mm

4. Applicable spool:International corrugated spool φ1250 (external diameter)*950 (total length)*800 (inner width)*φ80 (inner bore)
